VZV30-ATMQK (1990)
Toyota Camry/Vista

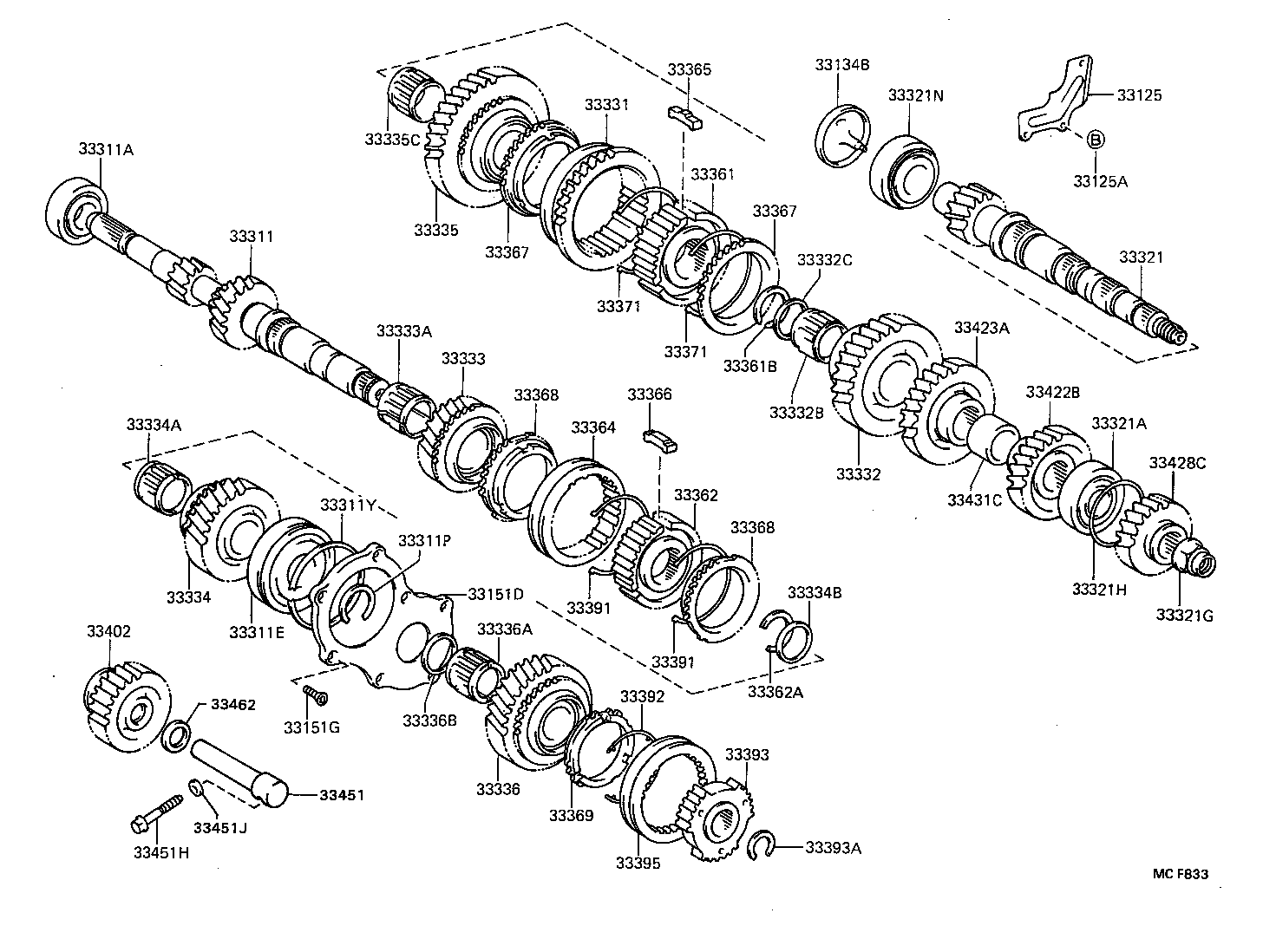

(9007-9105)VZV3#
E53
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33125 - RECEIVER, MANUAL TRANSAXLE CASE | ||||
| 33125-20010 |
SV35,VZV30,31..5F |
1 | ||
| 33125A - BOLT(FOR TRANSAXLE CASE RECEIVER) | ||||
| 91611-60616 |
SV35,VZV30,31..5F |
3 | ||
| 33134B - COVER, OUTPUT SHAFT(MTM) | ||||
| 33134-20010 |
SV35,VZV30,31..5F |
1 | ||
| 33151D - RETAINER, BEARING, REAR(MTM) | ||||
| 33151-20031 |
VZV30,31..5F |
1 | ||
| 33151G - SCREW(FOR REAR BEARING RETAINER) | ||||
| 90149-80029 |
SV35,VZV30,31..5F |
7 | ||
| 33311 - SHAFT, INPUT | ||||
| 33311-20110 |
VZV3#..5F |
1 | ||
| 33311-33010 |
VZV30,31..5F |
1 | ||
| 33311A - BEARING (FOR INPUT SHAFT FRONT) | ||||
| 90365-30023 |
SV35,VZV30,31..5F |
1 | ||
| 33311E - BEARING, RADIAL BALL (FOR INPUT SHAFT REAR) | ||||
| 90363-33007 |
SV35,VZV30,31..5F |
1 | ||
| 33311P - RING, SHAFT SNAP (FOR INPUT SHAFT REAR BEARING) | ||||
| 90520-30008 |
SV35,VZV30,31..5F 厚さ=2.35−2.40,ﾏｰｸ 1 |
1 | ||
| 90520-30012 |
SV35,VZV30,31..5F 厚さ=2.55−2.60,ﾏｰｸ 5 |
1 | ||
| 90520-30013 |
SV35,VZV30,31..5F 厚さ=2.60−2.65,ﾏｰｸ 6 |
1 | ||
| 90520-30009 |
SV35,VZV30,31..5F 厚さ=2.40−2.45,ﾏｰｸ 2 |
1 | ||
| 90520-30021 |
SV35,VZV30,31..5F 厚さ=2.65−2.69,ﾏｰｸ 7 |
1 | ||
| 90520-30022 |
SV35,VZV30,31..5F 厚さ=2.70−2.74,ﾏｰｸ 8 |
1 | ||
| 90520-30010 |
SV35,VZV30,31..5F 厚さ=2.45−2.50,ﾏｰｸ 3 |
1 | ||
| 90520-30011 |
SV35,VZV30,31..5F 厚さ=2.50−2.55,ﾏｰｸ 4 |
1 | ||
| 33311Y - RING, SHAFT SNAP (FOR INPUT SHAFT REAR BEARING) | ||||
| 90520-76003 |
SV35,VZV30,31..5F |
1 | ||
| 33321 - SHAFT, OUTPUT | ||||
| 33321-20110 |
VZV3#..5F |
1 | ||
| 33321-32080 |
VZV30,31..5F |
1 | ||
| 33321A - BEARING (FOR OUTPUT SHAFT REAR) | ||||
| 90366-28007 |
VZV30,31..5F |
1 | ||
| 33321G - NUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET) | ||||
| 90179-20012 |
SV35,VZV30,31..5F |
1 | ||
| 33321H - SHIM (FOR OUTPUT SHAFT REAR BEARING) | ||||
| 90564-60001 |
VZV30,31..5F 厚さ=0.40,ﾏｰｸ 0 |
1 | ||
| 90564-60007 |
VZV30,31..5F 厚さ=0.70,ﾏｰｸ 6 |
1 | ||
| 90564-60002 |
VZV30,31..5F 厚さ=0.45,ﾏｰｸ 1 |
1 | ||
| 90564-60006 |
VZV30,31..5F 厚さ=0.65,ﾏｰｸ 5 |
1 | ||
| 90564-60004 |
VZV30,31..5F 厚さ=0.55,ﾏｰｸ 3 |
1 | ||
| 90564-60005 |
VZV30,31..5F 厚さ=0.60,ﾏｰｸ 4 |
1 | ||
| 90564-60012 |
VZV30,31..5F 厚さ=0.95,ﾏｰｸ B |
1 | ||
| 90564-60009 |
VZV30,31..5F 厚さ=0.80,ﾏｰｸ 8 |
1 | ||
| 90564-60014 |
VZV30,31..5F 厚さ=1.05,ﾏｰｸ D |
1 | ||
| 90564-60003 |
VZV30,31..5F 厚さ=0.50,ﾏｰｸ 2 |
1 | ||
| 90564-60008 |
VZV30,31..5F 厚さ=0.75,ﾏｰｸ 7 |
1 | ||
| 90564-60016 |
VZV30,31..5F 厚さ=1.15,ﾏｰｸ F |
1 | ||
| 90564-60011 |
VZV30,31..5F 厚さ=0.90,ﾏｰｸ A |
1 | ||
| 90564-60010 |
VZV30,31..5F 厚さ=0.85,ﾏｰｸ 9 |
1 | ||
| 90564-60018 |
VZV30,31..5F 厚さ=1.25,ﾏｰｸ H |
1 | ||
| 90564-60020 |
VZV30,31..5F 厚さ=1.35,ﾏｰｸ K |
1 | ||
| 90564-60017 |
VZV30,31..5F 厚さ=1.20,ﾏｰｸ G |
1 | ||
| 90564-60015 |
VZV30,31..5F 厚さ=1.10,ﾏｰｸ E |
1 | ||
| 90564-60021 |
VZV30,31..5F 厚さ=1.40,ﾏｰｸ L |
1 | ||
| 90564-60025 |
VZV30,31..5F 厚さ=1.60,ﾏｰｸ Q |
1 | ||
| 90564-60022 |
VZV30,31..5F 厚さ=1.45,ﾏｰｸ M |
1 | ||
| 90564-60023 |
VZV30,31..5F 厚さ=1.50,ﾏｰｸ N |
1 | ||
| 90564-60013 |
VZV30,31..5F 厚さ=1.00,ﾏｰｸ C |
1 | ||
| 90564-60019 |
VZV30,31..5F 厚さ=1.30,ﾏｰｸ J |
1 | ||
| 90564-60024 |
VZV30,31..5F 厚さ=1.55,ﾏｰｸ P |
1 | ||
| 33321N - BEARING (FOR OUTPUT SHAFT FRONT) | ||||
| 90366-32002 |
VZV30,31..5F |
1 | ||
| 33331 - GEAR, REVERSE | ||||
| 33331-20040 |
VZV3#..5F |
1 | ||
| 33331-33010 |
VZV30,31..5F |
1 | ||
| 33332 - GEAR, 2ND | ||||
| 33033-20060 |
VZV3#..5F |
1 | ||
| 33332-33011 |
VZV30,31..5F |
1 | ||
| 33332B - BEARING, NEEDLE ROLLER (FOR 2ND GEAR) | ||||
| 90364-39006 |
VZV30,31..5F |
1 | ||
| 33332C - SPACER (FOR 2ND GEAR BEARING) | ||||
| 90560-39003 |
VZV30,31..5F |
1 | ||
| 33333 - GEAR, 3RD | ||||
| 33034-33010 |
VZV30,31..5F |
1 | ||
| 33034-20040 |
VZV3#..5F |
1 | ||
| 33333A - BEARING, NEEDLE ROLLER (FOR 3RD GEAR) | ||||
| 90364-36007 |
VZV30,31..5F |
1 | ||
| 33334 - GEAR, 4TH | ||||
| 33035-33011 |
VZV30,31..5F |
1 | ||
| 33035-32020 |
VZV3#..5F |
1 | ||
| 33334A - BEARING, NEEDLE ROLLER (FOR 4TH GEAR) | ||||
| 90364-36010 |
VZV30,31..5F |
1 | ||
| 33334B - SPACER (FOR 4TH GEAR BEARING) | ||||
| 90560-36002 |
SV35,VZV30,31..5F |
1 | ||
| 33335 - GEAR, 1ST | ||||
| 33335-33010 |
VZV30,31..5F |
1 | ||
| 33032-20060 |
VZV3#..5F |
1 | ||
| 33335C - BEARING, NEEDLE ROLLER(FOR 1ST GEAR) | ||||
| 90364-39008 |
VZV30,31..5F |
1 | ||
| 33336 - GEAR, 5TH | ||||
| 33036-32021 |
VZV3#..5F |
1 | ||
| 33336-33010 |
VZV30,31..5F |
1 | ||
| 33336A - BEARING, NEEDLE ROLLER (FOR 5TH GEAR) | ||||
| 90364-28015 |
VZV30,31..5F |
1 | ||
| 90364-33004 |
VZV3#..5F |
1 | ||
| 33336B - SPACER (FOR 5TH GEAR BEARING) | ||||
| 90560-33004 |
SV35,VZV3#..5F |
1 | ||
| 90560-33004 |
VZV30,31..5F |
1 | ||
| 33361 - HUB, TRANSMISSION CLUTCH, NO.1 | ||||
| 33361-20040 |
VZV3#..5F |
1 | ||
| 33361-33010 |
VZV30,31..5F |
1 | ||
| 33361B - RING, SHAFT SNAP (FOR CLUTCH HUB NO.1) | ||||
| 90520-37004 |
VZV30,31..5F 厚さ=2.80−2.85,ﾏｰｸ A |
1 | ||
| 90520-37006 |
VZV30,31..5F 厚さ=2.90−2.95,ﾏｰｸ C |
1 | ||
| 90520-37010 |
VZV30,31..5F 厚さ=3.10−3.15,ﾏｰｸ G |
1 | ||
| 90520-37005 |
VZV30,31..5F 厚さ=2.85−2.90,ﾏｰｸ B |
1 | ||
| 90520-37008 |
VZV30,31..5F 厚さ=3.00−3.05,ﾏｰｸ E |
1 | ||
| 90520-37007 |
VZV30,31..5F 厚さ=2.95−3.00,ﾏｰｸ D |
1 | ||
| 90520-37009 |
VZV30,31..5F 厚さ=3.05−3.10,ﾏｰｸ F |
1 | ||
| 33362 - HUB, TRANSMISSION CLUTCH, NO.2 | ||||
| 33362-20021 |
SV35,VZV3#..5F |
1 | ||
| 33362A - RING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING) | ||||
| 90520-34005 |
SV35,VZV30,31..5F 厚さ=2.40−2.45,ﾏｰｸ K |
1 | ||
| 90520-34008 |
SV35,VZV30,31..5F 厚さ=2.55−2.60,ﾏｰｸ N |
1 | ||
| 90520-34004 |
SV35,VZV30,31..5F 厚さ=2.35−2.40,ﾏｰｸ J |
1 | ||
| 90520-34006 |
SV35,VZV30,31..5F 厚さ=2.45−2.50,ﾏｰｸ L |
1 | ||
| 90520-34003 |
SV35,VZV30,31..5F 厚さ=2.30−2.35,ﾏｰｸ H |
1 | ||
| 90520-34009 |
SV35,VZV30,31..5F 厚さ=2.60−2.65,ﾏｰｸ P |
1 | ||
| 90520-34007 |
SV35,VZV30,31..5F 厚さ=2.50−2.55,ﾏｰｸ M |
1 | ||
| 33364 - SLEEVE, TRANSMISSION HUB, NO.2 | ||||
| 33364-20024 |
SV35,VZV3#..5F |
1 | ||
| 33365 - KEY, SYNCHROMESH SHIFTING, NO.1 | ||||
| 33365-20050 |
VZV3#..5F |
3 | ||
| 33365-33010 |
VZV30,31..5F |
1 | ||
| 33366 - KEY, SYNCHROMESH SHIFTING, NO.2 | ||||
| 33366-20021 |
SV35,VZV3#..5F |
3 | ||
| 33367 - RING, SYNCHRONIZER, NO.1 | ||||
| 33367-20040 |
SV35,VZV3#..5F 1STｷﾞﾔ側 |
1 | ||
| 33367-20050 |
SV35,VZV3#..5F 2NDｷﾞﾔ側 |
1 | ||
| 33367 - RING, SYNCHRONIZER, NO.1 | ||||
| 33367-20040 |
SV35,VZV3#..5F 1STｷﾞﾔ側 |
1 | ||
| 33367-20050 |
SV35,VZV3#..5F 2NDｷﾞﾔ側 |
1 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33368-20030 |
SV35,VZV3#..5F |
2 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33368-20030 |
SV35,VZV3#..5F |
2 | ||
| 33369 - RING, SYNCHRONIZER, NO.3 | ||||
| 33369-20010 |
SV35,VZV3#..5F |
1 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-20020 |
SV35,VZV3#..5F |
2 | ||
| 33371-33010 |
VZV30,31..5F |
2 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-20020 |
SV35,VZV3#..5F |
2 | ||
| 33371-33010 |
VZV30,31..5F |
2 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33391-20010 |
SV35,VZV3#..5F |
2 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33391-20010 |
SV35,VZV3#..5F |
2 | ||
| 33392 - SPRING, SYNCHROMESH SHIFTING KEY, NO.3 | ||||
| 33392-20010 |
SV35,VZV3#..5F |
1 | ||
| 33393 - HUB, TRANSMISSION CLUTCH, NO.3 | ||||
| 33393-20020 |
SV35,VZV3#..5F |
1 | ||
| 33393A - RING, SHAFT SNAP (FOR TRANSMISSION CLUTCH HUB NO.3) | ||||
| 90520-27039 |
SV35,VZV30,31..5F 厚さ=2.35−2.40,ﾏｰｸ S |
1 | ||
| 90520-27038 |
SV35,VZV30,31..5F 厚さ=2.30−2.35,ﾏｰｸ R |
1 | ||
| 90520-27042 |
SV35,VZV30,31..5F 厚さ=2.50−2.55,ﾏｰｸ V |
1 | ||
| 90520-27041 |
SV35,VZV30,31..5F 厚さ=2.45−2.50,ﾏｰｸ U |
1 | ||
| 90520-27045 |
SV35,VZV30,31..5F 厚さ=2.65−2.70,ﾏｰｸ Y |
1 | ||
| 90520-27043 |
SV35,VZV30,31..5F 厚さ=2.55−2.60,ﾏｰｸ W |
1 | ||
| 90520-27040 |
SV35,VZV30,31..5F 厚さ=2.40−2.45,ﾏｰｸ T |
1 | ||
| 90520-27044 |
SV35,VZV30,31..5F 厚さ=2.60−2.65,ﾏｰｸ X |
1 | ||
| 90520-27037 |
SV35,VZV30,31..5F 厚さ=2.25−2.30,ﾏｰｸ Q |
1 | ||
| 33395 - SLEEVE, TRANSMISSION HUB, NO.3 | ||||
| 33395-20020 |
SV35,VZV3#..5F |
1 | ||
| 33402 - GEAR SUB-ASSY, REVERSE IDLER | ||||
| 33402-20040 |
VZV30,31..5F |
1 | ||
| 33422B - GEAR, 4TH DRIVEN | ||||
| 33422-32020 |
VZV30,31..5F |
1 | ||
| 33423A - GEAR, 3RD DRIVEN | ||||
| 33423-20020 |
VZV30,31..5F |
1 | ||
| 33428C - GEAR, 5TH DRIVEN | ||||
| 33428-32030 |
VZV30,31..5F |
1 | ||
| 33431C - SPACER, OUTPUT GEAR | ||||
| 33431-20080 |
SV35,VZV30,31..5F |
1 | ||
| 33451 - SHAFT, REVERSE IDLER GEAR | ||||
| 33451-20040 |
VZV30,31..5F |
1 | ||
| 33451H - BOLT (FOR REVERSE IDLER GEAR SHAFT) | ||||
| 90105-08150 |
SV35,VZV30,31..5F |
1 | ||
| 33451J - GASKET (FOR REVERSE IDLER GEAR SHAFT) | ||||
| 90430-08010 |
CV30,SV3#,VZV30,31..5F |
1 | ||
| 33462 - WASHER, REVERSE IDLER THRUST | ||||
| 33462-20050 |
SV35,VZV30,31..5F |
1 | ||

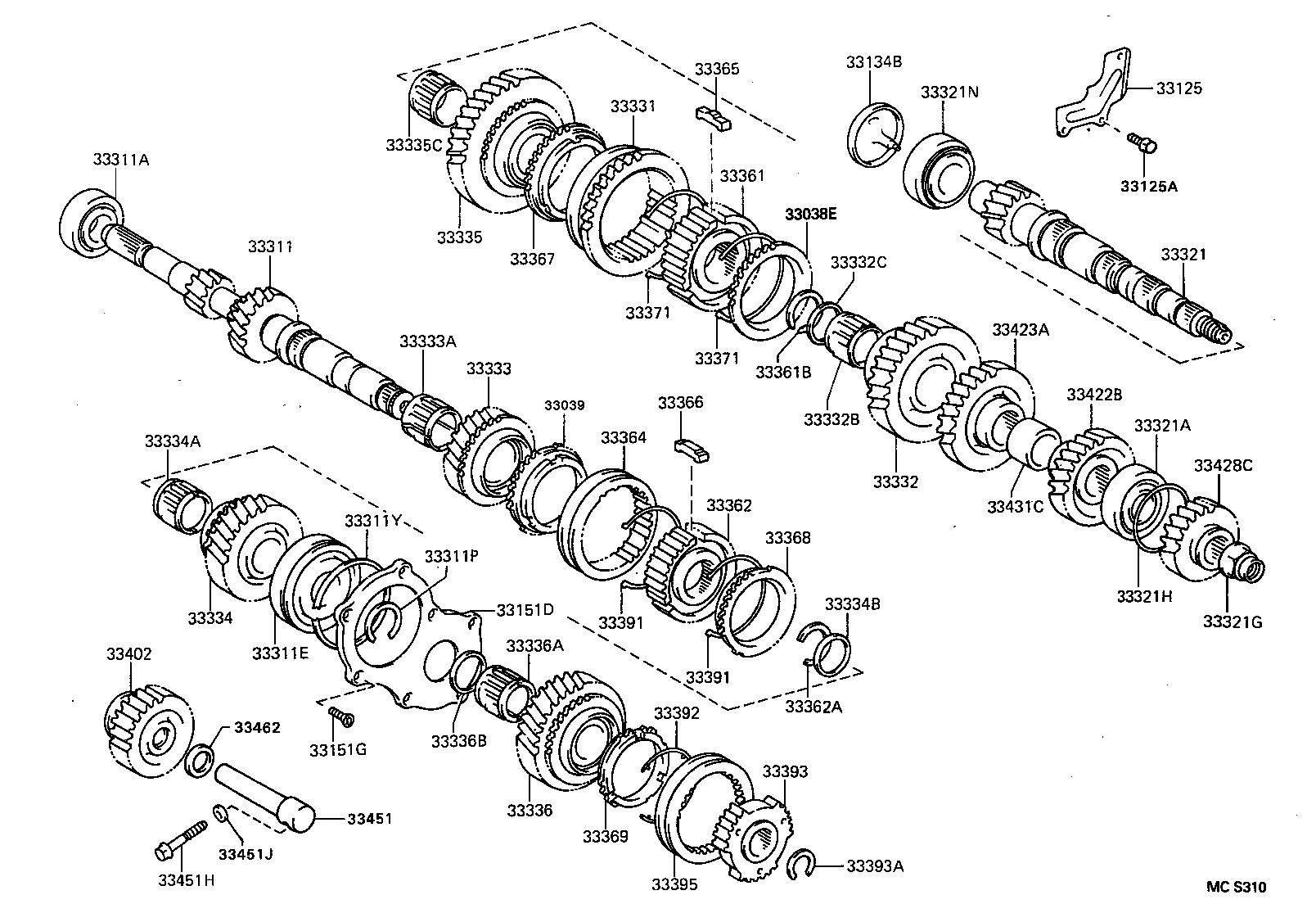

(9105-9206)VZV3#
E53
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33039 - RING SET, SYNCHRONIZER, NO.3 | ||||
| 33039-12010 |
VZV30,31..5F |
1 | ||
| 33125 - RECEIVER, MANUAL TRANSAXLE CASE | ||||
| 33125-20010 |
SV35,VZV30,31..5F |
1 | ||
| 33125A - BOLT(FOR TRANSAXLE CASE RECEIVER) | ||||
| 91611-60616 |
SV35,VZV30,31..5F |
3 | ||
| 33134B - COVER, OUTPUT SHAFT(MTM) | ||||
| 33134-20010 |
SV35,VZV30,31..5F |
1 | ||
| 33151D - RETAINER, BEARING, REAR(MTM) | ||||
| 33151-20031 |
VZV30,31..5F |
1 | ||
| 33151G - SCREW(FOR REAR BEARING RETAINER) | ||||
| 90149-80029 |
SV35,VZV30,31..5F |
7 | ||
| 33311 - SHAFT, INPUT | ||||
| 33311-20110 |
VZV3#..5F |
1 | ||
| 33311-33010 |
VZV30,31..5F |
1 | ||
| 33311A - BEARING (FOR INPUT SHAFT FRONT) | ||||
| 90365-30023 |
SV35,VZV30,31..5F |
1 | ||
| 33311E - BEARING, RADIAL BALL (FOR INPUT SHAFT REAR) | ||||
| 90363-33007 |
SV35,VZV30,31..5F |
1 | ||
| 33311P - RING, SHAFT SNAP (FOR INPUT SHAFT REAR BEARING) | ||||
| 90520-30008 |
SV35,VZV30,31..5F 厚さ=2.35−2.40,ﾏｰｸ 1 |
1 | ||
| 90520-30012 |
SV35,VZV30,31..5F 厚さ=2.55−2.60,ﾏｰｸ 5 |
1 | ||
| 90520-30013 |
SV35,VZV30,31..5F 厚さ=2.60−2.65,ﾏｰｸ 6 |
1 | ||
| 90520-30009 |
SV35,VZV30,31..5F 厚さ=2.40−2.45,ﾏｰｸ 2 |
1 | ||
| 90520-30021 |
SV35,VZV30,31..5F 厚さ=2.65−2.69,ﾏｰｸ 7 |
1 | ||
| 90520-30022 |
SV35,VZV30,31..5F 厚さ=2.70−2.74,ﾏｰｸ 8 |
1 | ||
| 90520-30010 |
SV35,VZV30,31..5F 厚さ=2.45−2.50,ﾏｰｸ 3 |
1 | ||
| 90520-30011 |
SV35,VZV30,31..5F 厚さ=2.50−2.55,ﾏｰｸ 4 |
1 | ||
| 33311Y - RING, SHAFT SNAP (FOR INPUT SHAFT REAR BEARING) | ||||
| 90520-76003 |
SV35,VZV30,31..5F |
1 | ||
| 33321 - SHAFT, OUTPUT | ||||
| 33321-20110 |
VZV3#..5F |
1 | ||
| 33321-32080 |
VZV30,31..5F |
1 | ||
| 33321A - BEARING (FOR OUTPUT SHAFT REAR) | ||||
| 90366-28007 |
VZV30,31..5F |
1 | ||
| 33321G - NUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET) | ||||
| 90179-20012 |
SV35,VZV30,31..5F |
1 | ||
| 33321H - SHIM (FOR OUTPUT SHAFT REAR BEARING) | ||||
| 90564-60001 |
VZV30,31..5F 厚さ=0.40,ﾏｰｸ 0 |
1 | ||
| 90564-60007 |
VZV30,31..5F 厚さ=0.70,ﾏｰｸ 6 |
1 | ||
| 90564-60002 |
VZV30,31..5F 厚さ=0.45,ﾏｰｸ 1 |
1 | ||
| 90564-60006 |
VZV30,31..5F 厚さ=0.65,ﾏｰｸ 5 |
1 | ||
| 90564-60004 |
VZV30,31..5F 厚さ=0.55,ﾏｰｸ 3 |
1 | ||
| 90564-60005 |
VZV30,31..5F 厚さ=0.60,ﾏｰｸ 4 |
1 | ||
| 90564-60012 |
VZV30,31..5F 厚さ=0.95,ﾏｰｸ B |
1 | ||
| 90564-60009 |
VZV30,31..5F 厚さ=0.80,ﾏｰｸ 8 |
1 | ||
| 90564-60014 |
VZV30,31..5F 厚さ=1.05,ﾏｰｸ D |
1 | ||
| 90564-60003 |
VZV30,31..5F 厚さ=0.50,ﾏｰｸ 2 |
1 | ||
| 90564-60008 |
VZV30,31..5F 厚さ=0.75,ﾏｰｸ 7 |
1 | ||
| 90564-60016 |
VZV30,31..5F 厚さ=1.15,ﾏｰｸ F |
1 | ||
| 90564-60011 |
VZV30,31..5F 厚さ=0.90,ﾏｰｸ A |
1 | ||
| 90564-60010 |
VZV30,31..5F 厚さ=0.85,ﾏｰｸ 9 |
1 | ||
| 90564-60018 |
VZV30,31..5F 厚さ=1.25,ﾏｰｸ H |
1 | ||
| 90564-60020 |
VZV30,31..5F 厚さ=1.35,ﾏｰｸ K |
1 | ||
| 90564-60017 |
VZV30,31..5F 厚さ=1.20,ﾏｰｸ G |
1 | ||
| 90564-60015 |
VZV30,31..5F 厚さ=1.10,ﾏｰｸ E |
1 | ||
| 90564-60021 |
VZV30,31..5F 厚さ=1.40,ﾏｰｸ L |
1 | ||
| 90564-60025 |
VZV30,31..5F 厚さ=1.60,ﾏｰｸ Q |
1 | ||
| 90564-60022 |
VZV30,31..5F 厚さ=1.45,ﾏｰｸ M |
1 | ||
| 90564-60023 |
VZV30,31..5F 厚さ=1.50,ﾏｰｸ N |
1 | ||
| 90564-60013 |
VZV30,31..5F 厚さ=1.00,ﾏｰｸ C |
1 | ||
| 90564-60019 |
VZV30,31..5F 厚さ=1.30,ﾏｰｸ J |
1 | ||
| 90564-60024 |
VZV30,31..5F 厚さ=1.55,ﾏｰｸ P |
1 | ||
| 33321N - BEARING (FOR OUTPUT SHAFT FRONT) | ||||
| 90366-32002 |
VZV30,31..5F |
1 | ||
| 33331 - GEAR, REVERSE | ||||
| 33331-20040 |
VZV3#..5F |
1 | ||
| 33331-33010 |
VZV30,31..5F |
1 | ||
| 33332 - GEAR, 2ND | ||||
| 33033-20060 |
VZV3#..5F |
1 | ||
| 33332-33011 |
VZV30,31..5F |
1 | ||
| 33332B - BEARING, NEEDLE ROLLER (FOR 2ND GEAR) | ||||
| 90364-39006 |
VZV30,31..5F |
1 | ||
| 33332C - SPACER (FOR 2ND GEAR BEARING) | ||||
| 90560-39003 |
VZV30,31..5F |
1 | ||
| 33333 - GEAR, 3RD | ||||
| 33034-33010 |
VZV30,31..5F |
1 | ||
| 33034-20040 |
VZV3#..5F |
1 | ||
| 33333A - BEARING, NEEDLE ROLLER (FOR 3RD GEAR) | ||||
| 90364-36007 |
VZV30,31..5F |
1 | ||
| 33334 - GEAR, 4TH | ||||
| 33035-33011 |
VZV30,31..5F |
1 | ||
| 33035-32020 |
VZV3#..5F |
1 | ||
| 33334A - BEARING, NEEDLE ROLLER (FOR 4TH GEAR) | ||||
| 90364-36010 |
VZV30,31..5F |
1 | ||
| 33334B - SPACER (FOR 4TH GEAR BEARING) | ||||
| 90560-36002 |
SV35,VZV30,31..5F |
1 | ||
| 33335 - GEAR, 1ST | ||||
| 33335-33010 |
VZV30,31..5F |
1 | ||
| 33032-20060 |
VZV3#..5F |
1 | ||
| 33335C - BEARING, NEEDLE ROLLER(FOR 1ST GEAR) | ||||
| 90364-39008 |
VZV30,31..5F |
1 | ||
| 33336 - GEAR, 5TH | ||||
| 33036-32021 |
VZV3#..5F |
1 | ||
| 33336-33010 |
VZV30,31..5F |
1 | ||
| 33336A - BEARING, NEEDLE ROLLER (FOR 5TH GEAR) | ||||
| 90364-28015 |
VZV30,31..5F |
1 | ||
| 90364-33004 |
VZV3#..5F |
1 | ||
| 33336B - SPACER (FOR 5TH GEAR BEARING) | ||||
| 90560-33004 |
SV35,VZV3#..5F |
1 | ||
| 90560-33004 |
VZV30,31..5F |
1 | ||
| 33361 - HUB, TRANSMISSION CLUTCH, NO.1 | ||||
| 33361-20040 |
VZV3#..5F |
1 | ||
| 33361-33010 |
VZV30,31..5F |
1 | ||
| 33361B - RING, SHAFT SNAP (FOR CLUTCH HUB NO.1) | ||||
| 90520-37004 |
VZV30,31..5F 厚さ=2.80−2.85,ﾏｰｸ A |
1 | ||
| 90520-37006 |
VZV30,31..5F 厚さ=2.90−2.95,ﾏｰｸ C |
1 | ||
| 90520-37010 |
VZV30,31..5F 厚さ=3.10−3.15,ﾏｰｸ G |
1 | ||
| 90520-37005 |
VZV30,31..5F 厚さ=2.85−2.90,ﾏｰｸ B |
1 | ||
| 90520-37008 |
VZV30,31..5F 厚さ=3.00−3.05,ﾏｰｸ E |
1 | ||
| 90520-37007 |
VZV30,31..5F 厚さ=2.95−3.00,ﾏｰｸ D |
1 | ||
| 90520-37009 |
VZV30,31..5F 厚さ=3.05−3.10,ﾏｰｸ F |
1 | ||
| 33362 - HUB, TRANSMISSION CLUTCH, NO.2 | ||||
| 33362-20021 |
SV35,VZV3#..5F |
1 | ||
| 33362A - RING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING) | ||||
| 90520-34005 |
SV35,VZV30,31..5F 厚さ=2.40−2.45,ﾏｰｸ K |
1 | ||
| 90520-34008 |
SV35,VZV30,31..5F 厚さ=2.55−2.60,ﾏｰｸ N |
1 | ||
| 90520-34004 |
SV35,VZV30,31..5F 厚さ=2.35−2.40,ﾏｰｸ J |
1 | ||
| 90520-34006 |
SV35,VZV30,31..5F 厚さ=2.45−2.50,ﾏｰｸ L |
1 | ||
| 90520-34003 |
SV35,VZV30,31..5F 厚さ=2.30−2.35,ﾏｰｸ H |
1 | ||
| 90520-34009 |
SV35,VZV30,31..5F 厚さ=2.60−2.65,ﾏｰｸ P |
1 | ||
| 90520-34007 |
SV35,VZV30,31..5F 厚さ=2.50−2.55,ﾏｰｸ M |
1 | ||
| 33364 - SLEEVE, TRANSMISSION HUB, NO.2 | ||||
| 33364-20024 |
SV35,VZV3#..5F |
1 | ||
| 33365 - KEY, SYNCHROMESH SHIFTING, NO.1 | ||||
| 33365-20050 |
VZV3#..5F |
3 | ||
| 33365-33010 |
VZV30,31..5F |
1 | ||
| 33366 - KEY, SYNCHROMESH SHIFTING, NO.2 | ||||
| 33366-20021 |
SV35,VZV3#..5F |
3 | ||
| 33367 - RING, SYNCHRONIZER, NO.1 | ||||
| 33367-20040 |
SV35,VZV3#..5F 1STｷﾞﾔ側 |
1 | ||
| 33367-20050 |
SV35,VZV3#..5F 2NDｷﾞﾔ側 |
1 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33368-20030 |
SV35,VZV3#..5F |
2 | ||
| 33369 - RING, SYNCHRONIZER, NO.3 | ||||
| 33369-20010 |
SV35,VZV3#..5F |
1 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-20020 |
SV35,VZV3#..5F |
2 | ||
| 33371-33010 |
VZV30,31..5F |
2 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-20020 |
SV35,VZV3#..5F |
2 | ||
| 33371-33010 |
VZV30,31..5F |
2 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33391-20010 |
SV35,VZV3#..5F |
2 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33391-20010 |
SV35,VZV3#..5F |
2 | ||
| 33392 - SPRING, SYNCHROMESH SHIFTING KEY, NO.3 | ||||
| 33392-20010 |
SV35,VZV3#..5F |
1 | ||
| 33393 - HUB, TRANSMISSION CLUTCH, NO.3 | ||||
| 33393-20020 |
SV35,VZV3#..5F |
1 | ||
| 33393A - RING, SHAFT SNAP (FOR TRANSMISSION CLUTCH HUB NO.3) | ||||
| 90520-27039 |
SV35,VZV30,31..5F 厚さ=2.35−2.40,ﾏｰｸ S |
1 | ||
| 90520-27038 |
SV35,VZV30,31..5F 厚さ=2.30−2.35,ﾏｰｸ R |
1 | ||
| 90520-27042 |
SV35,VZV30,31..5F 厚さ=2.50−2.55,ﾏｰｸ V |
1 | ||
| 90520-27041 |
SV35,VZV30,31..5F 厚さ=2.45−2.50,ﾏｰｸ U |
1 | ||
| 90520-27045 |
SV35,VZV30,31..5F 厚さ=2.65−2.70,ﾏｰｸ Y |
1 | ||
| 90520-27043 |
SV35,VZV30,31..5F 厚さ=2.55−2.60,ﾏｰｸ W |
1 | ||
| 90520-27040 |
SV35,VZV30,31..5F 厚さ=2.40−2.45,ﾏｰｸ T |
1 | ||
| 90520-27044 |
SV35,VZV30,31..5F 厚さ=2.60−2.65,ﾏｰｸ X |
1 | ||
| 90520-27037 |
SV35,VZV30,31..5F 厚さ=2.25−2.30,ﾏｰｸ Q |
1 | ||
| 33395 - SLEEVE, TRANSMISSION HUB, NO.3 | ||||
| 33395-20020 |
SV35,VZV3#..5F |
1 | ||
| 33402 - GEAR SUB-ASSY, REVERSE IDLER | ||||
| 33402-20040 |
VZV30,31..5F |
1 | ||
| 33422B - GEAR, 4TH DRIVEN | ||||
| 33422-32020 |
VZV30,31..5F |
1 | ||
| 33423A - GEAR, 3RD DRIVEN | ||||
| 33423-20020 |
VZV30,31..5F |
1 | ||
| 33428C - GEAR, 5TH DRIVEN | ||||
| 33428-32030 |
VZV30,31..5F |
1 | ||
| 33431C - SPACER, OUTPUT GEAR | ||||
| 33431-20080 |
SV35,VZV30,31..5F |
1 | ||
| 33451 - SHAFT, REVERSE IDLER GEAR | ||||
| 33451-20040 |
VZV30,31..5F |
1 | ||
| 33451H - BOLT (FOR REVERSE IDLER GEAR SHAFT) | ||||
| 90105-08150 |
SV35,VZV30,31..5F |
1 | ||
| 33451J - GASKET (FOR REVERSE IDLER GEAR SHAFT) | ||||
| 90430-08010 |
CV30,SV3#,VZV30,31..5F |
1 | ||
| 33462 - WASHER, REVERSE IDLER THRUST | ||||
| 33462-20050 |
SV35,VZV30,31..5F |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
