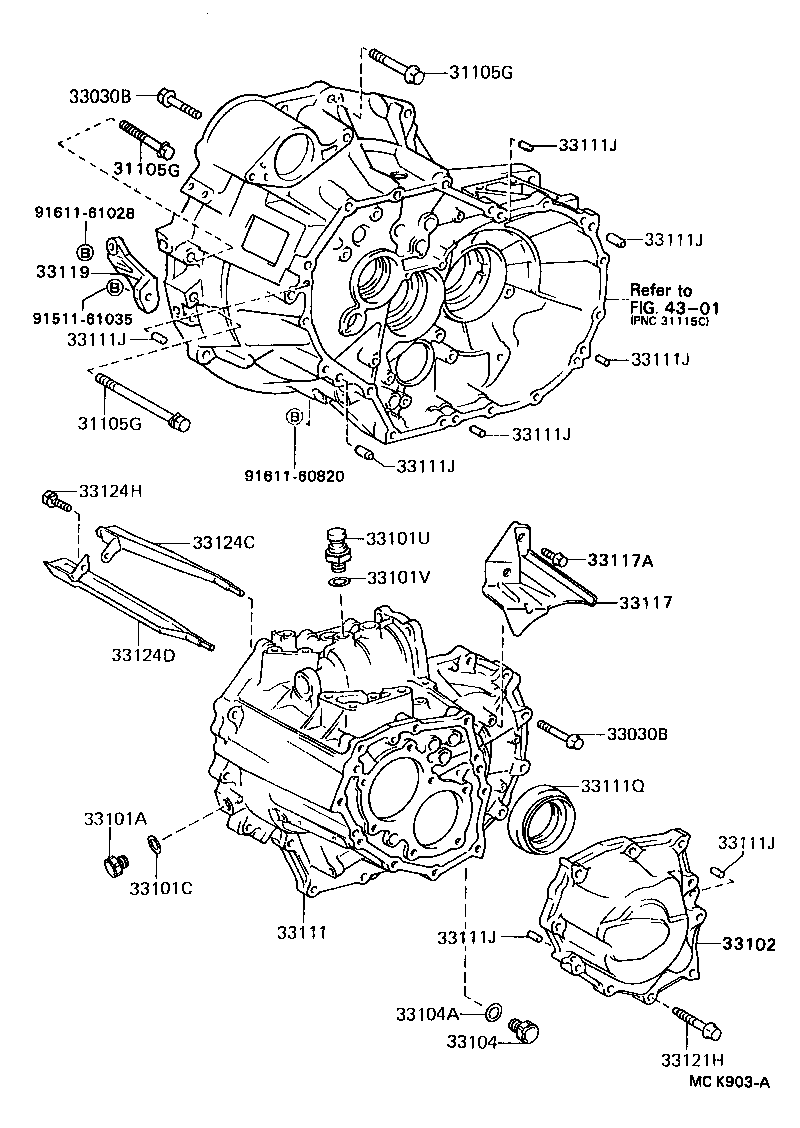

VZV30-ATMQK (1990)
Toyota Camry/Vista
(9007- )VZV3#
E53
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING) | ||||
| 90105-08040 |
SV32,33..5F..GT;CV30,SV30,35,VZV30,31..5F *8−1.25PX18−15 |
1 | ||
| 90119-12168 |
VZV30,31..5F *12−1.25PX55−30 |
2 | ||
| 91611-61045 |
VZV30,31..5F *10−1.25PX95−50 |
2 | ||
| 90105-12038 |
VZV30,31..5F *12−1.25PX72−25 |
1 | ||
| 91619-61260 |
VZV30,31..5F *12−1.25PX60−30 |
1 | ||
| 31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING) | ||||
| 90105-08040 |
SV32,33..5F..GT;CV30,SV30,35,VZV30,31..5F *8−1.25PX18−15 |
1 | ||
| 90119-12168 |
VZV30,31..5F *12−1.25PX55−30 |
2 | ||
| 91611-61045 |
VZV30,31..5F *10−1.25PX95−50 |
2 | ||
| 90105-12038 |
VZV30,31..5F *12−1.25PX72−25 |
1 | ||
| 91619-61260 |
VZV30,31..5F *12−1.25PX60−30 |
1 | ||
| 31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING) | ||||
| 90105-08040 |
SV32,33..5F..GT;CV30,SV30,35,VZV30,31..5F *8−1.25PX18−15 |
1 | ||
| 90119-12168 |
VZV30,31..5F *12−1.25PX55−30 |
2 | ||
| 91611-61045 |
VZV30,31..5F *10−1.25PX95−50 |
2 | ||
| 90105-12038 |
VZV30,31..5F *12−1.25PX72−25 |
1 | ||
| 91619-61260 |
VZV30,31..5F *12−1.25PX60−30 |
1 | ||
| 33030B - BOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING) | ||||
| 90105-08126 |
SV35,VZV30,31..5F *8−1.25PX45−27.5 |
17 | ||
| 33030B - BOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING) | ||||
| 90105-08126 |
SV35,VZV30,31..5F *8−1.25PX45−27.5 |
17 | ||
| 33101A - PLUG(FOR MANUAL TRANSMISSION FILLER) | ||||
| 90341-18033 |
CV30,SV3#,VZV30,31..5F |
1 | ||
| 33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG) | ||||
| 90430-18008 |
CV30,SV3#,VZV30,31..5F |
1 | ||
| 33101U - PLUG, BREATHER(FOR MANUAL TRANSMISSION) | ||||
| 90930-03111 |
SV35,VZV30,31..5F |
1 | ||
| 33101V - GASKET(FOR MANUAL TRANSMISSION BREATHER PLUG) | ||||
| 90430-18008 |
SV35,VZV30,31..5F |
1 | ||
| 33102 - COVER SUB-ASSY, MANUAL TRANSMISSION CASE | ||||
| 33102-20040 |
VZV3#..5F |
1 | ||
| 33102-33010 |
VZV30,31..5F |
1 | ||
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| 90341-18006 |
CV30,SV3#,VZV30,31..5F |
1 | ||
| 33104A - GASKET, DRAIN PLUG(MTM) | ||||
| 90430-18008 |
CV30,SV3#,VZV30,31..5F |
1 | ||
| 33111 - CASE, MANUAL TRANSMISSION | ||||
| 33101-20040 |
VZV3#..5F |
1 | ||
| 33101-33010 |
VZV30,31..5F |
1 | ||
| 33101-20050 |
VZV30,31..5F |
1 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-08054 |
CV30,SV30,32,33,VZV30,31..5F 長さ=23,外径=8 |
6 | ||
| 90250-12005 |
VZV30,31..5F 長さ=24,外径=12 |
2 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-08054 |
CV30,SV30,32,33,VZV30,31..5F 長さ=23,外径=8 |
6 | ||
| 90250-12005 |
VZV30,31..5F 長さ=24,外径=12 |
2 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-08054 |
CV30,SV30,32,33,VZV30,31..5F 長さ=23,外径=8 |
6 | ||
| 90250-12005 |
VZV30,31..5F 長さ=24,外径=12 |
2 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-08054 |
CV30,SV30,32,33,VZV30,31..5F 長さ=23,外径=8 |
6 | ||
| 90250-12005 |
VZV30,31..5F 長さ=24,外径=12 |
2 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-08054 |
CV30,SV30,32,33,VZV30,31..5F 長さ=23,外径=8 |
6 | ||
| 90250-12005 |
VZV30,31..5F 長さ=24,外径=12 |
2 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-08054 |
CV30,SV30,32,33,VZV30,31..5F 長さ=23,外径=8 |
6 | ||
| 90250-12005 |
VZV30,31..5F 長さ=24,外径=12 |
2 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-08054 |
CV30,SV30,32,33,VZV30,31..5F 長さ=23,外径=8 |
6 | ||
| 90250-12005 |
VZV30,31..5F 長さ=24,外径=12 |
2 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-08054 |
CV30,SV30,32,33,VZV30,31..5F 長さ=23,外径=8 |
6 | ||
| 90250-12005 |
VZV30,31..5F 長さ=24,外径=12 |
2 | ||
| 33111Q - SEAL, OIL(FOR TRANSMISSION CASE) | ||||
| 90311-50010 |
VZV30,31..5F |
1 | ||
| 33117 - PROTECTOR, MANUAL TRANSMISSION CASE | ||||
| 33117-20020 |
SV35,VZV30,31..5F |
1 | ||
| 33117A - BOLT(FOR MANUAL TRANSMISSION CASE PROTECTOR) | ||||
| 90105-08040 |
CV30,SV3#,VZV30,31..5F |
2 | ||
| 33119 - PLATE, STIFFENER, LH(MTM) | ||||
| 33119-32040 |
VZV30,31..5F |
1 | ||
| 33121H - BOLT, W/WASHER(FOR TRANSMISSION CASE COVER) | ||||
| 90105-08273 |
VZV30,31..5F |
10 | ||
| 90105-08089 |
VZV3#..5F |
10 | ||
| 33124C - PIPE, OIL RECEIVER, NO.1(MTM) | ||||
| 33124-20020 |
VZV30,31..5F |
1 | ||
| 33124D - PIPE, OIL RECEIVER, NO.2(MTM) | ||||
| 33124-20030 |
VZV30,31..5F |
1 | ||
| 33124H - BOLT(FOR OIL RECEIVER PIPE) | ||||
| 90119-08648 |
SV35,VZV30,31..5F |
1 | ||
| Common parts | ||||
| 91511-61035 | ||||
| 91611-60820 | ||||
| 91611-61028 | ||||
| Linked diagrams | ||||
| 4301 | ||||
