VZV30-ATMQK (1990)

Toyota Camry/Vista

Production Jul 1990 - Jun 1992
Engine 1VZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9007- )5F

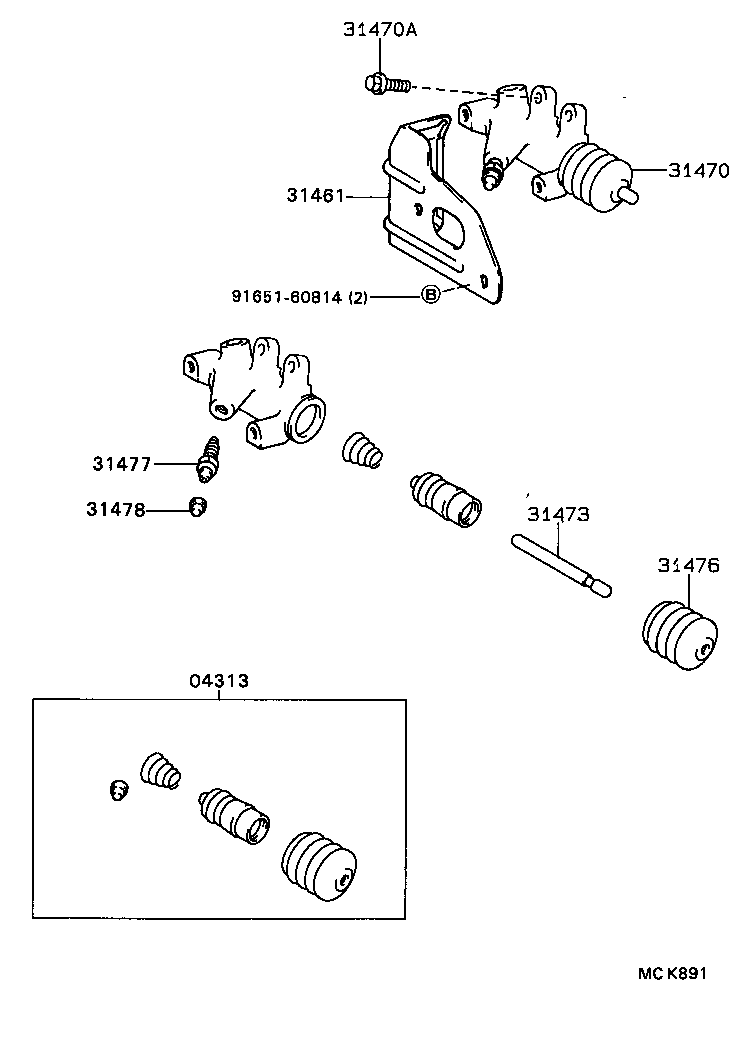

Click highlighted areas on diagram

diagram 04313 31461 31470 31470A 31473 31476 31477 31478 9165160814
Part # Description Qty Price
04313 - CYLINDER KIT, CLUTCH RELEASE
04313-12030

CV30,SV3#,VZV30,31..5F

 1
31470 - CYLINDER ASSY, CLUTCH RELEASE
31470-32032

SV3#,VZV30,31..5F..(ETO,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZV,ZX)

 1
31470A - BOLT(FOR CLUTCH RELEASE CYLINDER SETTING)
91611-60822

SV35,VZV30,31..5F

*8−1.25PX22−22

 2
31473 - ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1
31473-32010

CV30,SV3#,VZV30,31..5F

 1
31476 - BOOT, CLUTCH RELEASE CYLINDER
31476-22010

CV30,SV3#,VZV30,31..5F

 1
31477 - PLUG, BLEEDER(FOR RELEASE CYLINDER)
47547-20010

CV30,SV3#,VZV30,31..5F

 1
31478 - CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)
31478-30010

CV30,SV3#,VZV30,31..5F

 1
Common parts
91651-60814
