VZV30-ATMQK (1990)

Toyota Camry/Vista

Production Jul 1990 - Jun 1992
Engine 1VZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(9007- )1VZFE,4VZFE

Click highlighted areas on diagram

diagram 23091 23204 23206A 23206B 23217A 23217A 23220P 23220P 23229 23229 23233 23233B 23233B 23249 8401 9011906351 9015950219 9046712056 9046712056 9098011078 9331914008 9533306020
Part # Description Qty Price
23091 - TUBE SUB-ASSY, FUEL PUMP
23091-74180

1VZFE,4VZFE..VZV3#

 1
23091-74180

1VZFE,4VZFE..VZV3#

 1
23204 - TUBE SUB-ASSY, FUEL PUMP RETURN
23204-74620

1VZFE,4VZFE..VZV3#

 1
23204-74620

1VZFE,4VZFE..VZV3#

 1
23206A - BRACKET, FUEL PUMP
23206-74620

1VZFE,4VZFE..VZV3#

 1
23206-74620

1VZFE,4VZFE..VZV3#

 1
23206B - GASKET, FUEL PUMP BRACKET
77169-60010

1VZFE,4VZFE..VZV3#

 1
77169-60010

1VZFE,4VZFE..VZV3#

 1
23217A - FILTER, FUEL PUMP
23217-74020

1VZFE..VZV30,31

 1
23217-74020

1VZFE..VZV30,31

 1
23217A - FILTER, FUEL PUMP
23217-74020

1VZFE..VZV30,31

 1
23217-74020

1VZFE..VZV30,31

 1
23220P - PUMP ASSY, FUEL
23220-74020

1VZFE..VZV30,31

 1
23220-74020

1VZFE..VZV30,31

 1
23220P - PUMP ASSY, FUEL
23220-74020

1VZFE..VZV30,31

 1
23220-74020

1VZFE..VZV30,31

 1
23229 - CLIP(FOR FUEL PUMP FILTER)
23229-16010

1VZFE..VZV30,31

 1
23229-16010

1VZFE..VZV30,31

 1
23229 - CLIP(FOR FUEL PUMP FILTER)
23229-16010

1VZFE..VZV30,31

 1
23229-16010

1VZFE..VZV30,31

 1
23233 - HOSE, FUEL PUMP
23239-63010

1VZFE,4VZFE..VZV3#

 1
23239-63010

1VZFE,4VZFE..VZV3#

 1
23233B - CLIP(FOR FUEL PUMP HOSE)
90467-13054

1VZFE,4VZFE..VZV3#

 2
90467-13054

1VZFE,4VZFE..VZV3#

 2
23233B - CLIP(FOR FUEL PUMP HOSE)
90467-13054

1VZFE,4VZFE..VZV3#

 2
90467-13054

1VZFE,4VZFE..VZV3#

 2
23249 - RUBBER, CUSHION(FOR FUEL PUMP)
23249-74610

1VZFE,4VZFE..VZV3#

 1
23249-74610

1VZFE,4VZFE..VZV3#

 1
Common parts
90119-06351
90159-50219
90467-12056
90980-11078
93319-14008
95333-06020
Linked diagrams
8401

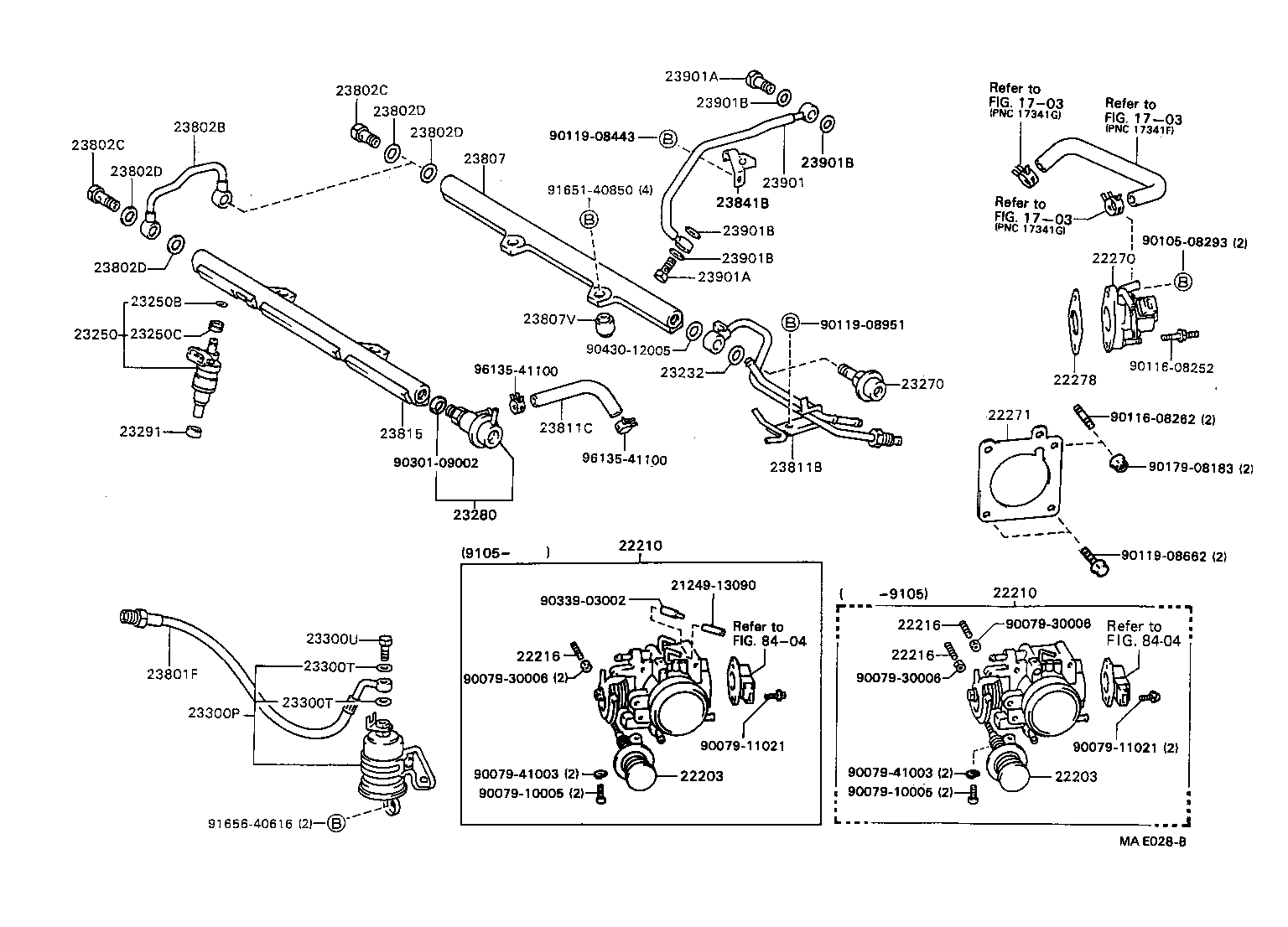

ILLUST NO. 1 OF 2(9007-9206)1VZFE

Click highlighted areas on diagram

diagram 1703 1703 1703 2124913090 22203 22203 22210 22210 22216 22216 22216 22270 22271 22278 23232 23250 23250B 23250C 23270 23280 23291 23300P 23300T 23300T 23300U 23801F 23802B 23802C 23802C 23802D 23802D 23802D 23802D 23807 23807V 23811B 23811C 23815 23841B 23901 23901A 23901A 23901B 23901B 23901B 23901B 8404 8404 9007910005 9007910005 9007911021 9007911021 9007930006 9007930006 9007930006 9007941003 9007941003 9010508293 9011608252 9011608262 9011908443 9011908662 9011908951 9017908183 9030109002 9033903002 9043012005 9165140850 9165640616 9613541100 9613541100
Part # Description Qty Price
22203 - DASH POT SUB-ASSY(FOR THROTTLE BODY)
22202-62050

1VZFE..VZV30,31

 1
22203 - DASH POT SUB-ASSY(FOR THROTTLE BODY)
22202-62050

1VZFE..VZV30,31

 1
22210 - BODY ASSY, THROTTLE
22210-62070

1VZFE..VZV3#

 1
22210-62071

1VZFE..VZV30,31

 1
22210 - BODY ASSY, THROTTLE
22210-62070

1VZFE..VZV3#

 1
22210-62071

1VZFE..VZV30,31

 1
22216 - SCREW, DASH POT ADJUSTING
22216-62050

1VZFE..VZV30,31

 2
22216 - SCREW, DASH POT ADJUSTING
22216-62050

1VZFE..VZV30,31

 2
22216 - SCREW, DASH POT ADJUSTING
22216-62050

1VZFE..VZV30,31

 2
22270 - VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)
22270-62010

1VZFE..VZV30,31

 1
22271 - GASKET, THROTTLE BODY
22271-62020

1VZFE..VZV30,31

 1
22278 - GASKET, IDLE SPEED CONTROL VALVE
22278-62020

1VZFE..VZV30,31

 1
23232 - GASKET(FOR FUEL PUMP HOSE)
23232-28010

1VZFE..VZV30,31

 1
23232-28010

1VZFE..VZV3#

 1
23250 - INJECTOR ASSY, FUEL
23209-62020

1VZFE..VZV30,31

 6
23250B - RING, O(FOR FUEL INJECTOR)
90301-07001

1VZFE,4VZFE..VZV3#

 6
23250C - GROMMET(FOR FUEL INJECTOR)
90480-13005

1VZFE,4VZFE..VZV3#

 6
23270 - DAMPER ASSY, FUEL PRESSURE PULSATION
23270-62010

1VZFE,4VZFE..VZV3#

 1
23280 - REGULATOR ASSY, FUEL PRESSURE
23280-62020

1VZFE,4VZFE..VZV3#

 1
23291 - INSULATOR, INJECTOR VIBRATION
23291-41010

1VZFE,4VZFE..VZV3#

 6
23300P - FILTER, FUEL(FOR EFI)
23300-79295

1VZFE,4VZFE..VZV3#

 1
23300T - GASKET(FOR FUEL FILTER)
90430-12005

1VZFE,4VZFE..VZV3#

 2
23300T - GASKET(FOR FUEL FILTER)
90430-12005

1VZFE,4VZFE..VZV3#

 2
23300U - BOLT, UNION(FOR FUEL FILTER)
90401-12097

1VZFE,4VZFE..VZV3#

 1
23801F - HOSE, FUEL, NO.1
90923-01383

1VZFE..VZV30,31

 1
23802B - PIPE SUB-ASSY, FUEL, NO.2
23812-62010

1VZFE..VZV30,31

 1
23802C - BOLT, UNION(FOR FUEL PIPE NO.2)
90401-12015

1VZFE,4VZFE..VZV3#

 2
23802C - BOLT, UNION(FOR FUEL PIPE NO.2)
90401-12015

1VZFE,4VZFE..VZV3#

 2
23802D - GASKET(FOR FUEL PIPE NO.2)
90430-12005

1VZFE..VZV30,31

 4
23802D - GASKET(FOR FUEL PIPE NO.2)
90430-12005

1VZFE..VZV30,31

 4
23802D - GASKET(FOR FUEL PIPE NO.2)
90430-12005

1VZFE..VZV30,31

 4
23802D - GASKET(FOR FUEL PIPE NO.2)
90430-12005

1VZFE..VZV30,31

 4
23807 - PIPE SUB-ASSY, FUEL DELIVERY
23814-62021

1VZFE..VZV30,31

 1
23807V - SPACER, NO.1(FOR DELIVERY PIPE)
90561-08020

1VZFE,4VZFE..VZV3#

 4
23811B - PIPE, FUEL, NO.1
23811-62030

1VZFE..VZV30,31

 1
23811C - HOSE, FUEL(FOR FUEL PIPE TO PRESSURE REGULATOR)
95333-06020

1VZFE,4VZFE..VZV3#

*H,L=200

 1
23815 - PIPE, FUEL DELIVERY, NO.2
23815-62021

1VZFE..VZV30,31

 1
23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI)
23841-62010

1VZFE..VZV30,31

 1
23901 - TUBE SUB-ASSY, FUEL
23901-62020

1VZFE..VZV30,31

 1
23901A - BOLT, UNION(FOR FUEL TUBE)
90401-08011

1VZFE..VZV30,31

 2
90401-08010

1VZFE..VZV30,31

 2
23901A - BOLT, UNION(FOR FUEL TUBE)
90401-08011

1VZFE..VZV30,31

 2
90401-08010

1VZFE..VZV30,31

 2
23901B - GASKET(FOR FUEL TUBE)
90430-08005

1VZFE..VZV30,31

 4
90430-08012

1VZFE..VZV30,31

 4
23901B - GASKET(FOR FUEL TUBE)
90430-08005

1VZFE..VZV30,31

 4
90430-08012

1VZFE..VZV30,31

 4
23901B - GASKET(FOR FUEL TUBE)
90430-08005

1VZFE..VZV30,31

 4
90430-08012

1VZFE..VZV30,31

 4
23901B - GASKET(FOR FUEL TUBE)
90430-08005

1VZFE..VZV30,31

 4
90430-08012

1VZFE..VZV30,31

 4
Common parts
21249-13090
90079-10005
90079-11021
90079-30006
90079-41003
90105-08293
90116-08252
90116-08262
90119-08443
90119-08662
90119-08951
90179-08183
90301-09002
90339-03002
90430-12005
91651-40850
91656-40616
96135-41100
Linked diagrams
1703
8404
