VZV30-ATMQK (1990)

Toyota Camry/Vista

Production Jul 1990 - Jun 1992
Engine 1VZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9007-9206)1VZFE,4VZFE

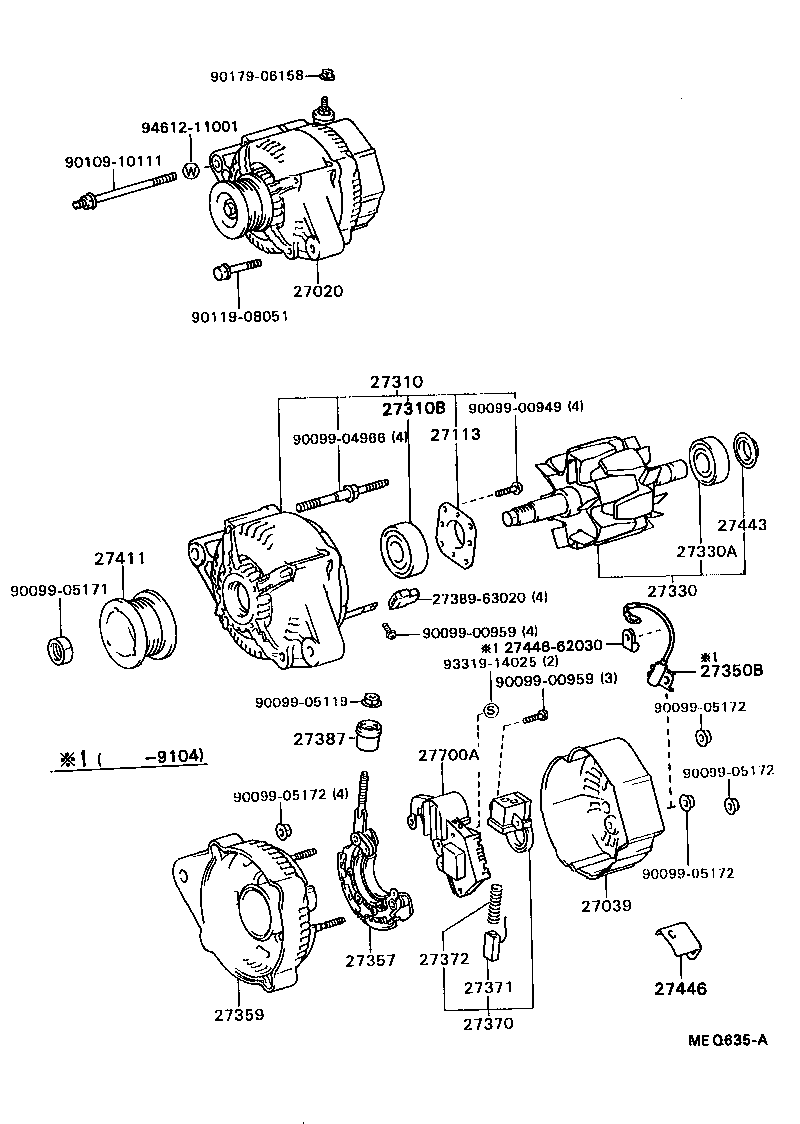

Click highlighted areas on diagram

12V 70A

diagram 27020 27039 27113 27310 27310B 27330 27330A 27350B 27357 27359 27370 27371 27372 27387 2738963020 27411 27443 27446 2744662030 27700A 9009900949 9009900959 9009900959 9009904966 9009905119 9009905171 9009905172 9009905172 9009905172 9009905172 9010910111 9011908051 9017906158 9331914025 9461211001
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-62050

1VZFE,4VZFE..VZV3#

12V 70A

 1
27039 - COVER, ALTERNATOR REAR END
27039-72010

1VZFE,4VZFE..VZV3#

 1
27113 - PLATE, BEARING RETAINER, ALTERNATOR
27312-70200

1VZFE,4VZFE..VZV3#;3SFE,4SFE..SV3#..5F

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-62050

1VZFE,4VZFE..VZV3#

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10178

1VZFE,4VZFE..VZV3#;3SFE,4SFE..SV3#..5F

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-72101

1VZFE,4VZFE..VZV3#;3SFE,4SFE..SV3#..5F

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10140

3S#,4SFE,1VZFE,4VZFE..SV3#,VZV3#

 1
27350B - CONDENSER, ALTERNATOR
90099-52026

1VZFE..VZV3#

 1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-63020

1VZFE,4VZFE..VZV3#

 1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-62050

1VZFE,4VZFE..VZV3#

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-63021

1VZFE,4VZFE..VZV3#;3SFE,4SFE..SV3#..5F

 1
27371 - BRUSH, ALTERNATOR
27371-63020

1VZFE,4VZFE..VZV3#;3SFE,4SFE..SV3#..5F

 2
27372 - SPRING, ALTERNATOR BRUSH
27372-72100

1VZFE..VZV3#;3SFE,4SFE..SV3#..5F

 2
27387 - INSULATOR, TERMINAL
27387-70170

1VZFE,4VZFE..VZV3#

 1
27411 - PULLEY, ALTERNATOR
27411-62050

1VZFE,4VZFE..VZV3#

 1
27443 - COVER, ALTERNATOR BEARING
27443-63020

3S#,4SFE,1VZFE,4VZFE..SV3#,VZV3#

 1
27446 - CLIP, ALTERNATOR CORD
27446-62050

3SGE,1VZFE,4VZFE..SV32,33,VZV3#

 1
27700A - REGULATOR ASSY, GENERATOR
27700-46030

3S#,4SFE,1VZFE,4VZFE..SV3#,VZV3#

 1
27700-46030

1VZFE,4VZFE..VZV3#

 1
27700-74010

3S#,4SFE,1VZFE..SV3#,VZV3#

 1
Common parts
27389-63020
27446-62030
90099-00949
90099-00959
90099-04966
90099-05119
90099-05171
90099-05172
90109-10111
90119-08051
90179-06158
93319-14025
94612-11001
