VZV30-ATMQK (1990)

Toyota Camry/Vista

Production Jul 1990 - Jun 1992
Engine 1VZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9007-9206)1VZFE

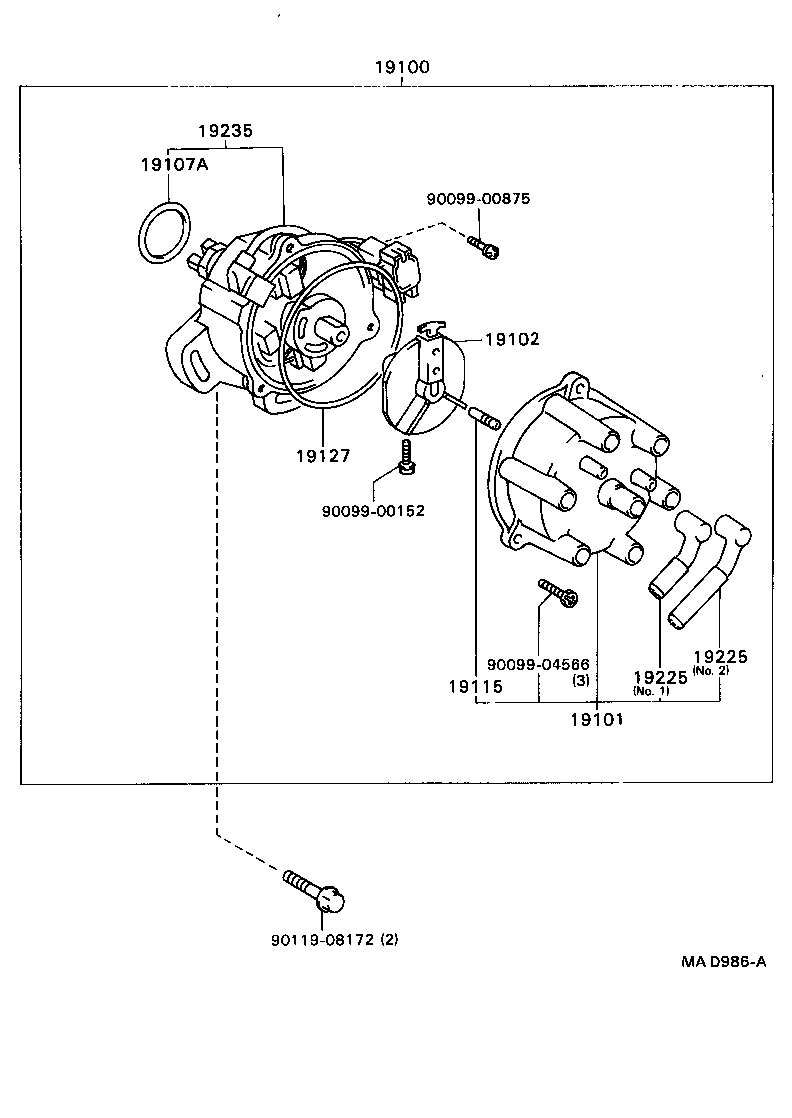

Click highlighted areas on diagram

diagram 19100 19101 19102 19107A 19115 19127 19225 19225 19235 9009900152 9009900875 9009904566 9011908172
Part # Description Qty Price
19100 - DISTRIBUTOR ASSY
19100-62040

1VZFE..VZV30,31

 1
19101 - CAP SUB-ASSY, DISTRIBUTOR
19101-62040

1VZFE..VZV30,31

 1
19102 - ROTOR SUB-ASSY, DISTRIBUTOR
19102-62020

1VZFE..VZV30,31

 1
19107A - RING, O, DISTRIBUTOR HOUSING
90099-14089

1VZFE,4VZFE..VZV3#

 1
19115 - PIECE, DISTRIBUTOR CAP, CENTER
19115-50010

1VZFE..VZV30,31

 1
19127 - PACKING, DUST PROOF
19127-61240

1VZFE,4VZFE..VZV3#

 1
19225 - CAP, RUBBER
19225-62030

1VZFE..VZV30,31

NO.1

 1
19225-62040

1VZFE..VZV30,31

NO.2

 1
19225 - CAP, RUBBER
19225-62030

1VZFE..VZV30,31

NO.1

 1
19225-62040

1VZFE..VZV30,31

NO.2

 1
19235 - HOUSING, DISTRIBUTOR
19235-62040

1VZFE..VZV30,31

 1
Common parts
90099-00152
90099-00875
90099-04566
90119-08172
