VZV30-ATMQK (1990)
Toyota Camry/Vista
Production
Jul 1990
-
Jun 1992
Engine
1VZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9007- )1VZFE,4VZFE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
| 90999-92004 | ||||
| 90999-92006 | ||||
| 90999-92007 | ||||
| 90999-92008 | ||||

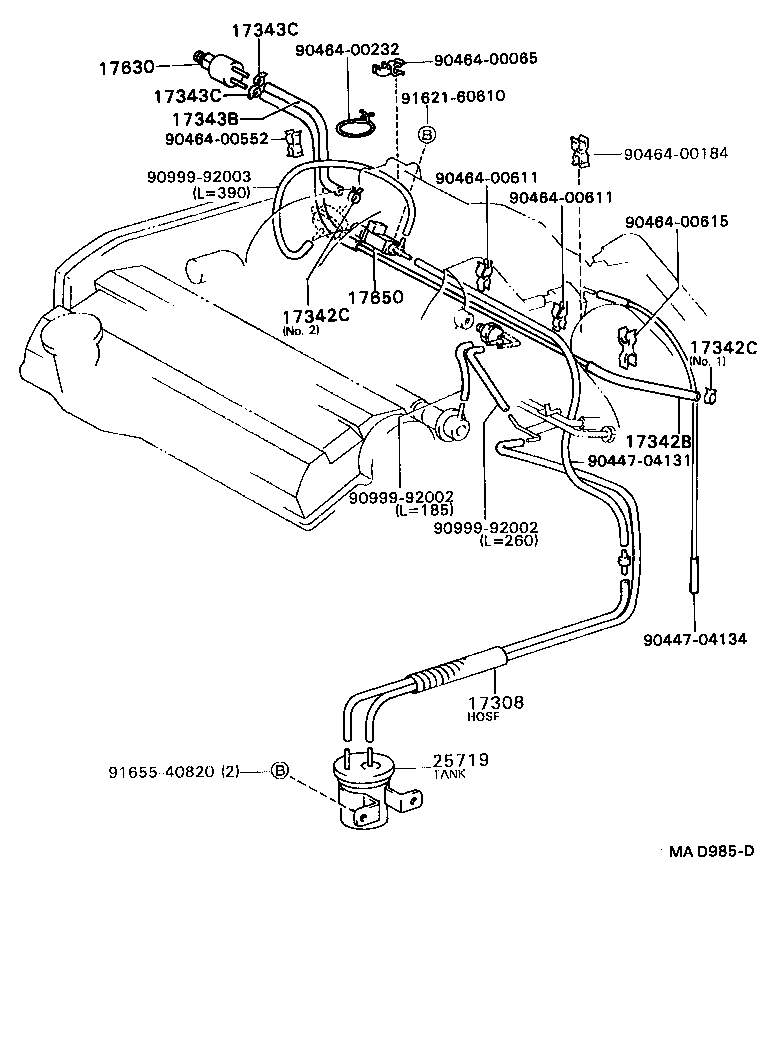

(9007-9105)1VZFE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17308 - HOSE SUB-ASSY, VACUUM(FOR IDLE-UP) | ||||
| 17308-62020 |
1VZFE..VZV3# |
1 | ||
| 17342B - HOSE, NO.2(FOR IDLE-UP) | ||||
| 17342-62030 |
1VZFE..VZV30,31 |
1 | ||
| 17342C - CLIP, NO.2(FOR IDLE-UP HOSE) | ||||
| 90467-13058 |
1VZFE..VZV30,31 NO.2 |
1 | ||
| 90467-13042 |
1VZFE..VZV30,31 NO.1 |
1 | ||
| 17342C - CLIP, NO.2(FOR IDLE-UP HOSE) | ||||
| 90467-13058 |
1VZFE..VZV30,31 NO.2 |
1 | ||
| 90467-13042 |
1VZFE..VZV30,31 NO.1 |
1 | ||
| 17343B - HOSE, NO.3(FOR IDLE-UP) | ||||
| 17343-62040 |
1VZFE..VZV30,31 |
1 | ||
| 17343C - CLIP, NO.3(FOR IDLE-UP HOSE) | ||||
| 96132-41100 |
1VZFE..VZV30,31 |
2 | ||
| 17343C - CLIP, NO.3(FOR IDLE-UP HOSE) | ||||
| 96132-41100 |
1VZFE..VZV30,31 |
2 | ||
| 17630 - VALVE ASSY, AIR CONTROL | ||||
| 17630-74010 |
1VZFE,4VZFE..VZV3# |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 25860-62030 |
1VZFE..VZV30,31 |
1 | ||
| 90910-12018 |
1VZFE..VZV3# |
1 | ||
| 25719 - TANK, VACUUM SURGE | ||||
| 25719-62011 |
1VZFE..VZV3# |
1 | ||
| 25719-62012 |
1VZFE..VZV3# |
1 | ||
| Common parts | ||||
| 90447-04131 | ||||
| 90447-04134 | ||||
| 90464-00065 | ||||
| 90464-00184 | ||||
| 90464-00232 | ||||
| 90464-00552 | ||||
| 90464-00611 | ||||
| 90464-00615 | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
| 91621-60610 | ||||
| 91655-40820 | ||||

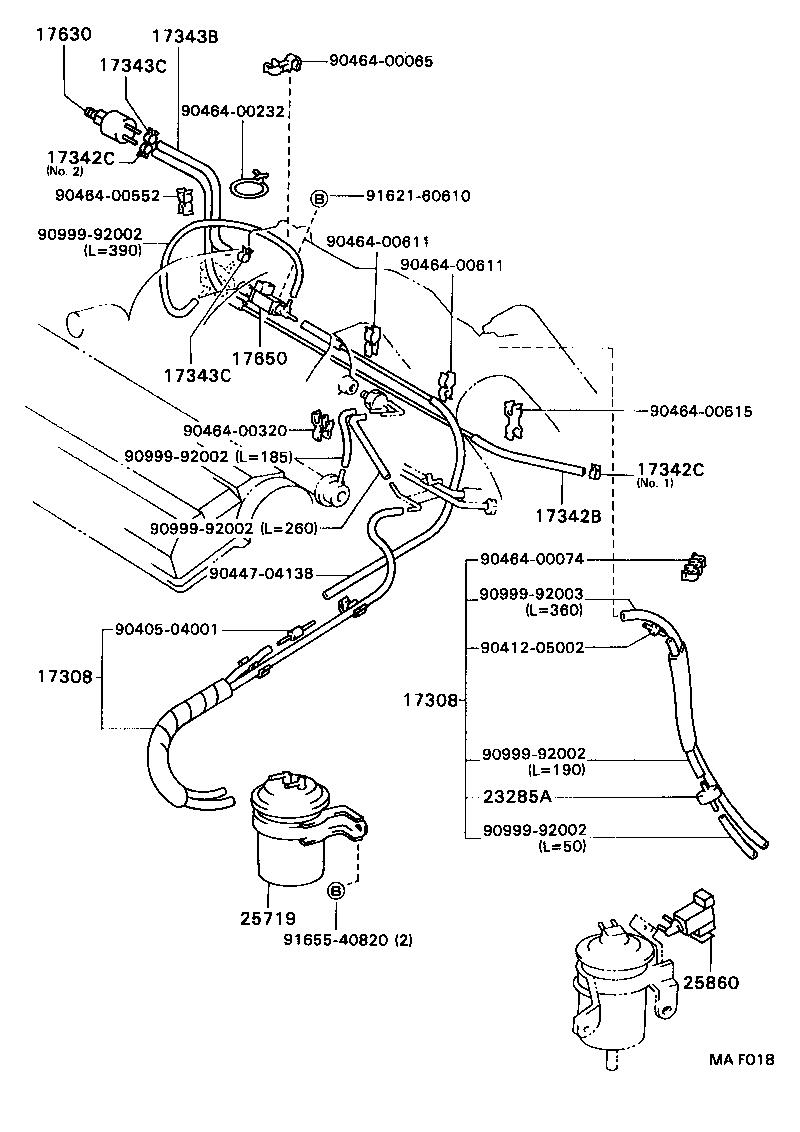

(9105-9206)1VZFE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17308 - HOSE SUB-ASSY, VACUUM(FOR IDLE-UP) | ||||
| 17308-62020 |
1VZFE..VZV3# |
1 | ||
| 17308 - HOSE SUB-ASSY, VACUUM(FOR IDLE-UP) | ||||
| 17308-62020 |
1VZFE..VZV3# |
1 | ||
| 17342B - HOSE, NO.2(FOR IDLE-UP) | ||||
| 17342-62030 |
1VZFE..VZV30,31 |
1 | ||
| 17342C - CLIP, NO.2(FOR IDLE-UP HOSE) | ||||
| 90467-13058 |
1VZFE..VZV30,31 NO.2 |
1 | ||
| 90467-13042 |
1VZFE..VZV30,31 NO.1 |
1 | ||
| 17342C - CLIP, NO.2(FOR IDLE-UP HOSE) | ||||
| 90467-13058 |
1VZFE..VZV30,31 NO.2 |
1 | ||
| 90467-13042 |
1VZFE..VZV30,31 NO.1 |
1 | ||
| 17343B - HOSE, NO.3(FOR IDLE-UP) | ||||
| 17343-62040 |
1VZFE..VZV30,31 |
1 | ||
| 17343C - CLIP, NO.3(FOR IDLE-UP HOSE) | ||||
| 96132-41100 |
1VZFE..VZV30,31 |
2 | ||
| 17343C - CLIP, NO.3(FOR IDLE-UP HOSE) | ||||
| 96132-41100 |
1VZFE..VZV30,31 |
2 | ||
| 17630 - VALVE ASSY, AIR CONTROL | ||||
| 17630-74010 |
1VZFE,4VZFE..VZV3# |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 25860-62030 |
1VZFE..VZV30,31 |
1 | ||
| 90910-12018 |
1VZFE..VZV3# |
1 | ||
| 25719 - TANK, VACUUM SURGE | ||||
| 25719-62011 |
1VZFE..VZV3# |
1 | ||
| 25719-62012 |
1VZFE..VZV3# |
1 | ||
| Common parts | ||||
| 90405-04001 | ||||
| 90412-05002 | ||||
| 90447-04138 | ||||
| 90464-00065 | ||||
| 90464-00074 | ||||
| 90464-00232 | ||||
| 90464-00320 | ||||
| 90464-00552 | ||||
| 90464-00611 | ||||
| 90464-00615 | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
| 91621-60610 | ||||
| 91655-40820 | ||||
