VZV30-ATMQK (1990)

Toyota Camry/Vista

Production Jul 1990 - Jun 1992
Engine 1VZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9007-9206)1VZFE

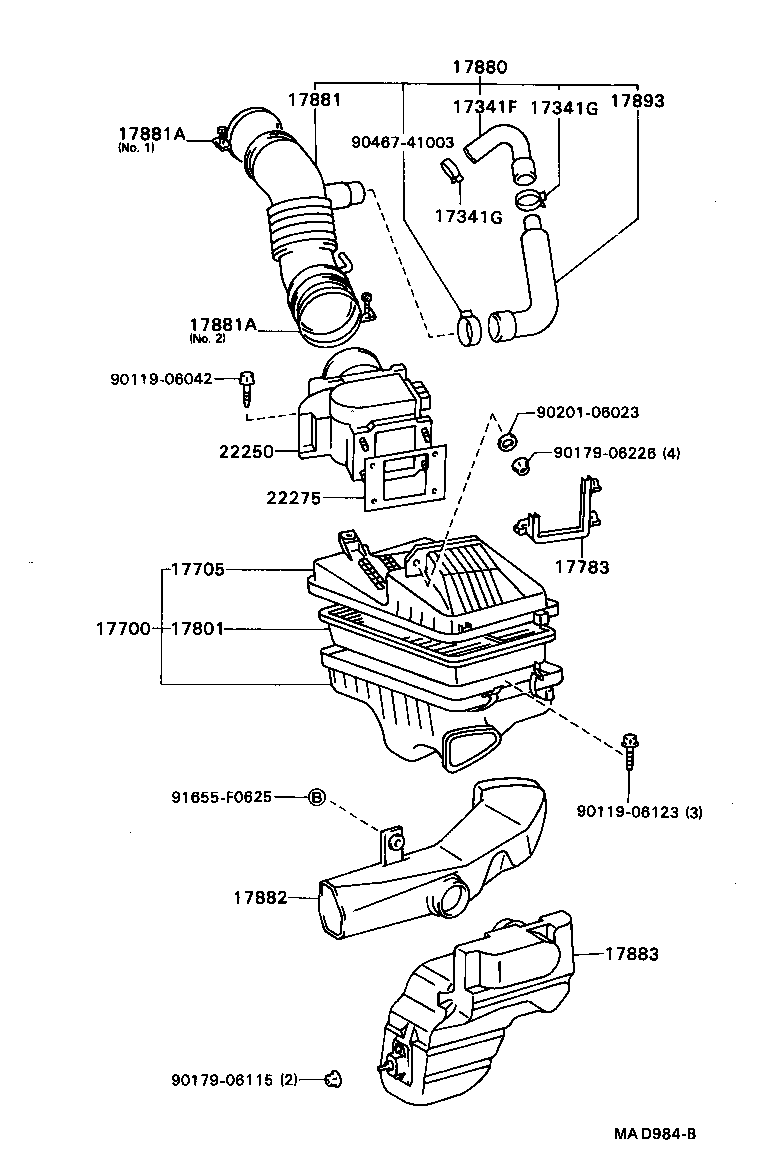

Click highlighted areas on diagram

diagram 17341F 17341G 17341G 17700 17705 17783 17801 17880 17881 17881A 17881A 17882 17883 17893 22250 22275 9011906042 9011906123 9017906115 9017906226 9020106023 9046741003 91655F0625
Part # Description Qty Price
17341F - HOSE, AIR, NO.1
17341-62020

1VZFE..VZV30,31

 1
17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1)
90467-23007

1VZFE,4VZFE..VZV3#

ISCV SIDE

 1
90467-26003

1VZFE,4VZFE..VZV3#

RESONATOR SIDE

 1
17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1)
90467-23007

1VZFE,4VZFE..VZV3#

ISCV SIDE

 1
90467-26003

1VZFE,4VZFE..VZV3#

RESONATOR SIDE

 1
17700 - CLEANER ASSY, AIR
17700-62030

1VZFE,4VZFE..VZV3#

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-62030

1VZFE,4VZFE..VZV3#

 1
17783 - PLATE, AIR CLEANER BAFFLE
17783-62010

1VZFE,4VZFE..VZV3#

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-74020

1VZFE,4VZFE..VZV3#

 1
17880 - HOSE ASSY, AIR CLEANER
17880-62030

1VZFE..VZV30,31

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-62030

1VZFE..VZV30,31

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10750

1VZFE..VZV30,31

NO.1

 1
96111-10900

1VZFE,4VZFE..VZV3#

NO.2

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10750

1VZFE..VZV30,31

NO.1

 1
96111-10900

1VZFE,4VZFE..VZV3#

NO.2

 1
17882 - HOSE, AIR CLEANER, NO.2
17882-74220

1VZFE,4VZFE..VZV3#

 1
17883 - HOSE, AIR CLEANER, NO.3
17883-62020

1VZFE,4VZFE..VZV3#

 1
17893 - RESONATOR, INTAKE AIR
17893-62020

1VZFE..VZV30,31

 1
22250 - METER ASSY, INTAKE AIR FLOW
22250-62030

1VZFE..VZV30,31

 1
22275 - GASKET, AIR FLOW METER
22275-43010

1VZFE,4VZFE..VZV3#

 1
Common parts
90119-06042
90119-06123
90179-06115
90179-06226
90201-06023
90467-41003
91655-F0625
