VZV30-ATMQK (1990)

Toyota Camry/Vista

Production Jul 1990 - Jun 1992
Engine 1VZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9007- )1VZFE,4VZFE

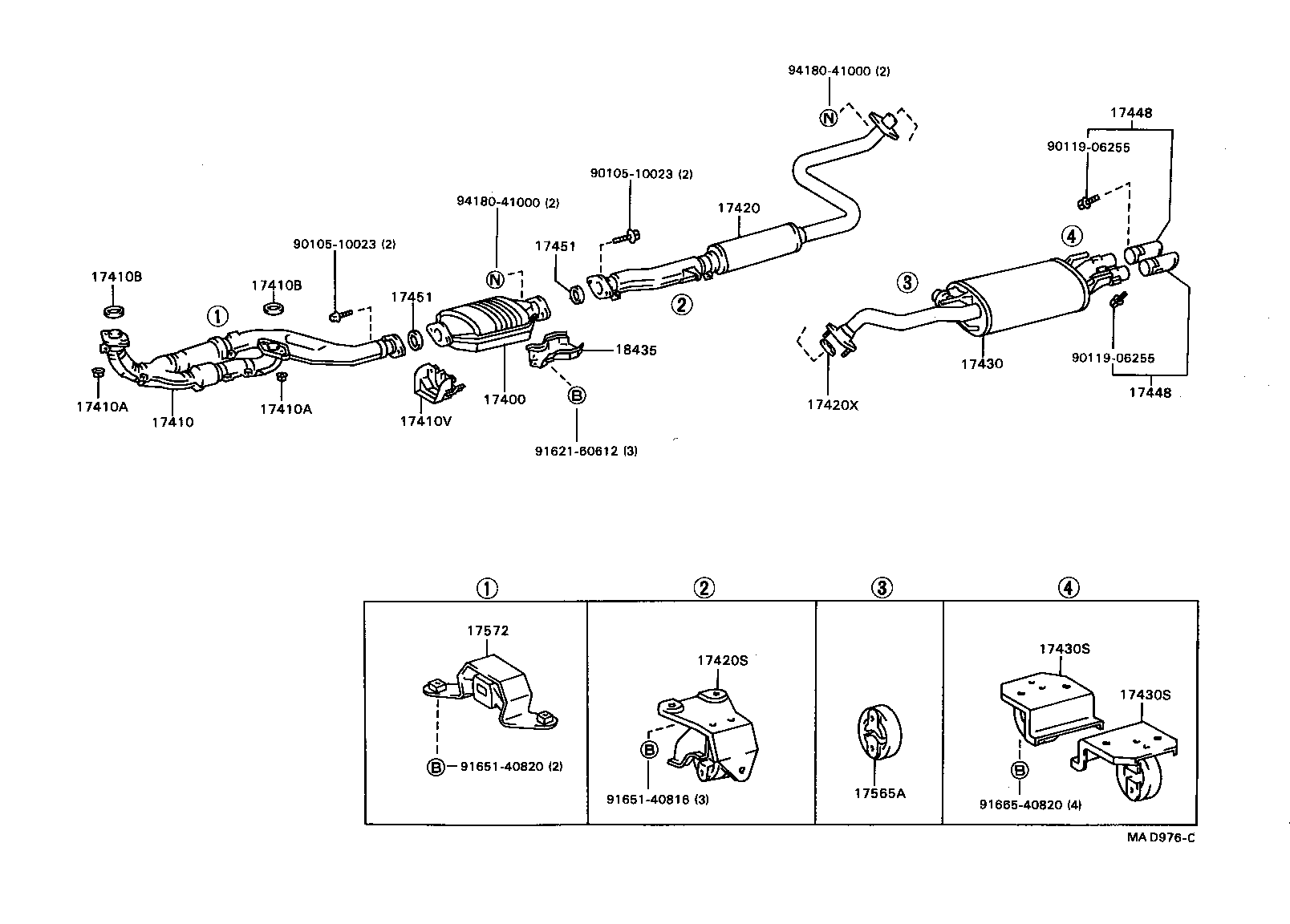

Click highlighted areas on diagram

diagram 17400 17410 17410A 17410A 17410B 17410B 17410V 17420 17420S 17420X 17430 17430S 17430S 17448 17448 17451 17451 17565A 17572 18435 9010510023 9010510023 9011906255 9011906255 9162160612 9165140816 9165140820 9166540820 9418041000 9418041000
Part # Description Qty Price
17400 - CONVERTER ASSY, W/CATALYST
18450-62070

1VZFE,4VZFE..VZV3#

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17410-62050

1VZFE,4VZFE..VZV3#

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

1VZFE,4VZFE..VZV3#

 4
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

1VZFE,4VZFE..VZV3#

 4
17410B - GASKET, EXHAUST PIPE
90917-06045

1VZFE,4VZFE..VZV3#

 2
17410B - GASKET, EXHAUST PIPE
90917-06045

1VZFE,4VZFE..VZV3#

 2
17410V - BRACKET, EXHAUST PIPE FRONT (FOR REAR)
17503-62010

3S#,1VZFE,4VZFE..SV32,33,VZV3#

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-62070

1VZFE,4VZFE..VZV3#

 1
17420S - BRACKET, EXHAUST PIPE CENTER, REAR
17507-74050

2CT,3SGE,4SFE,1VZFE,4VZFE..CV30,SV30,32,33,VZV3#

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06042

3SGE,1VZFE,4VZFE..SV32,33,VZV3#

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17440-62012

3SGE,1VZFE,4VZFE..SV32,33,VZV3#

 1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17509-74100

2CT,3S#,4SFE,1VZFE,4VZFE..CV30,SV3#,VZV3#

 2
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17509-74100

2CT,3S#,4SFE,1VZFE,4VZFE..CV30,SV3#,VZV3#

 2
17448 - BAFFLE, TAIL PIPE
17448-79025

3SGE,1VZFE,4VZFE..SV32,33,VZV3#

 1
17448 - BAFFLE, TAIL PIPE
17448-79025

3SGE,1VZFE,4VZFE..SV32,33,VZV3#

 1
17451 - GASKET, EXHAUST PIPE
90917-06054

3SFE,1VZFE,4VZFE..SV32,33,VZV3#

CENTER

 1
90917-06043

3SFE,1VZFE,4VZFE..SV32,33,VZV3#

FRONT

 1
17451 - GASKET, EXHAUST PIPE
90917-06054

3SFE,1VZFE,4VZFE..SV32,33,VZV3#

CENTER

 1
90917-06043

3SFE,1VZFE,4VZFE..SV32,33,VZV3#

FRONT

 1
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-74280

3S#,4SFE,1VZFE,4VZFE..SV3#,VZV3#

 1
17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT
17572-74080

3S#,4SFE,1VZFE,4VZFE..SV3#,VZV3#

 1
18435 - PROTECTOR, CATALYTIC CONVERTER
18436-74020

3SFE,1VZFE,4VZFE..SV32,33,VZV3#

 1
Common parts
90105-10023
90119-06255
91621-60612
91651-40816
91651-40820
91665-40820
94180-41000
