VZV30-ATMQK (1990)

Toyota Camry/Vista

Production Jul 1990 - Jun 1992
Engine 1VZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9007- )1VZFE,4VZFE

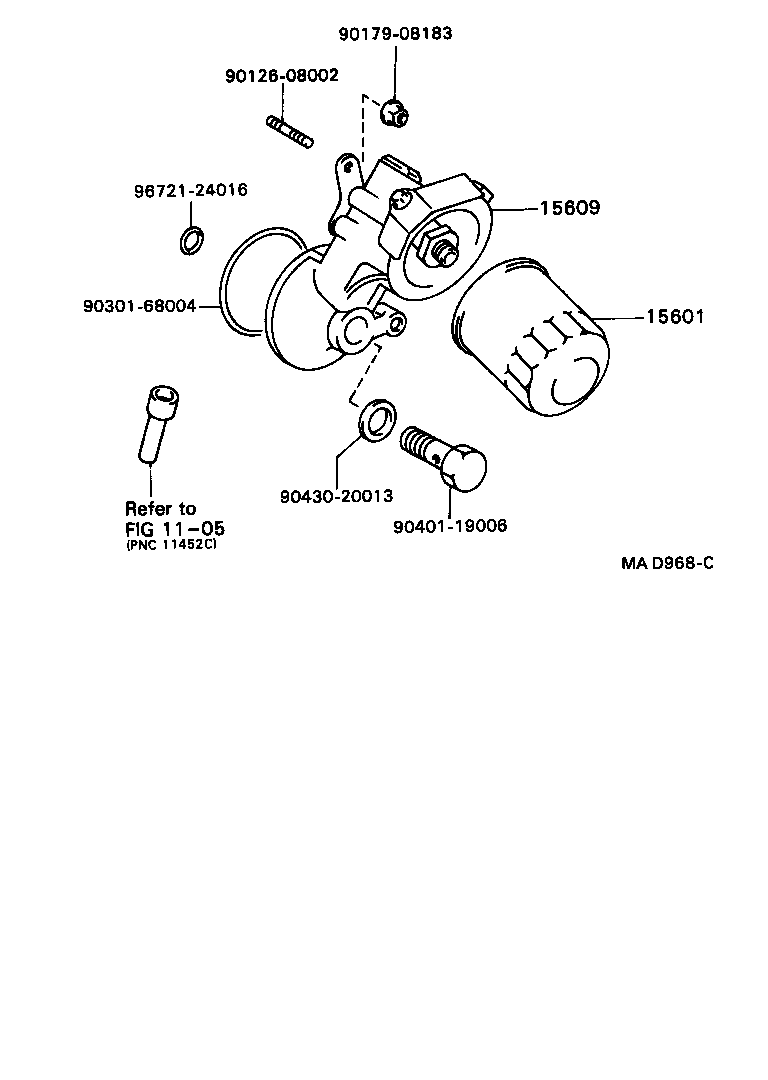

Click highlighted areas on diagram

diagram 1105 15601 15609 9012608002 9017908183 9030168004 9040119006 9043020013 9672124016
Part # Description Qty Price
15601 - FILTER SUB-ASSY, OIL
90915-03002

1VZFE,4VZFE..VZV3#

 1
15609 - BRACKET SUB-ASSY, OIL FILTER
15671-62010

1VZFE,4VZFE..VZV3#

 1
Common parts
90126-08002
90179-08183
90301-68004
90401-19006
90430-20013
96721-24016
Linked diagrams
1105
