VZV30-ATMQK (1990)

Toyota Camry/Vista

Production Jul 1990 - Jun 1992
Engine 1VZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9007- )1VZFE,4VZFE

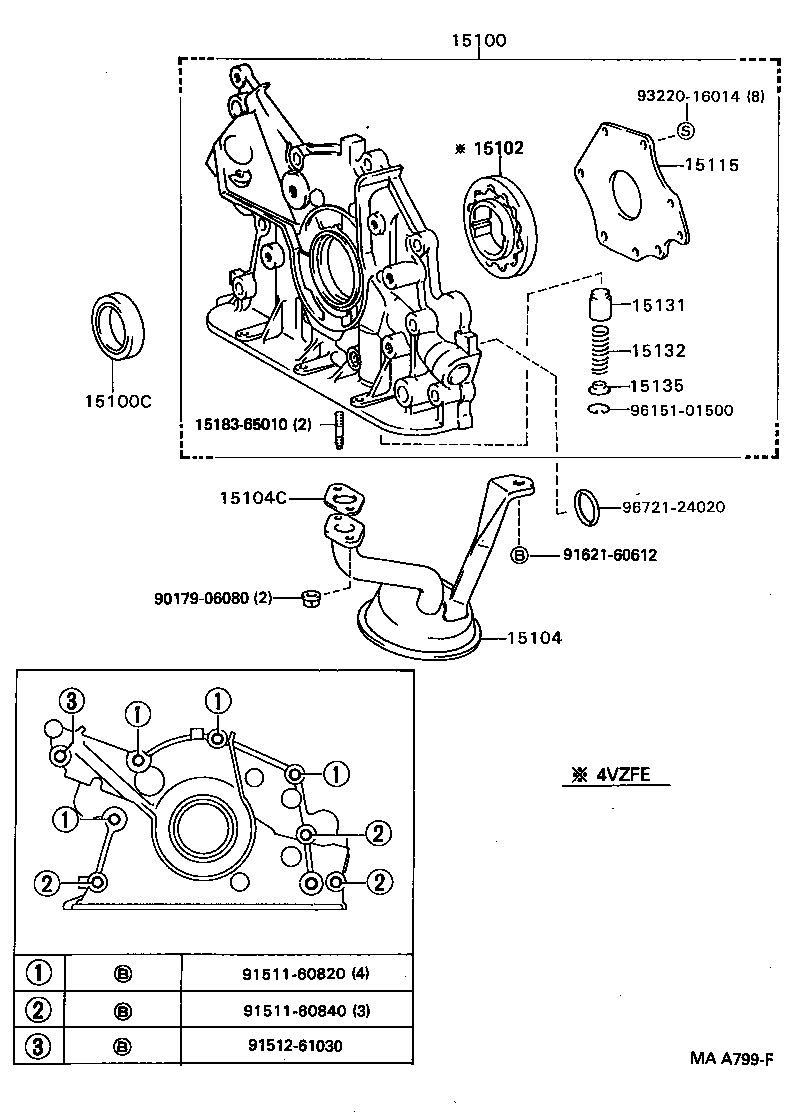

Click highlighted areas on diagram

diagram 15100 15100C 15102 15104 15104C 15115 15131 15132 15135 1518365010 9017906080 9151160820 9151160840 9151261030 9162160612 9322016014 9615101500 9672124020
Part # Description Qty Price
15100 - PUMP ASSY, OIL
15100-62020

1VZFE,4VZFE..VZV3#

 1
15100C - SEAL(FOR OIL PUMP)
90311-40013

1VZFE,4VZFE..VZV3#

 1
15104 - STRAINER SUB-ASSY, OIL
15104-62020

1VZFE,4VZFE..VZV3#

 1
15104C - GASKET(FOR OIL STRAINER)
15147-62020

1VZFE,4VZFE..VZV3#

 1
15115 - COVER, OIL PUMP
15115-62010

1VZFE,4VZFE..VZV3#

 1
15131 - VALVE, OIL PUMP RELIEF
15131-24010

1VZFE,4VZFE..VZV3#

 1
15132 - SPRING, OIL PUMP RELIEF VALVE
15132-62010

1VZFE,4VZFE..VZV3#

 1
15135 - RETAINER, OIL PUMP RELIEF VALVE
15135-15010

1VZFE,4VZFE..VZV3#

 1
Common parts
15183-65010
90179-06080
91511-60820
91511-60840
91512-61030
91621-60612
93220-16014
96151-01500
96721-24020
