VZV30-ATMQK (1990)

Toyota Camry/Vista

Production Jul 1990 - Jun 1992
Engine 1VZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9007-9206)1VZFE

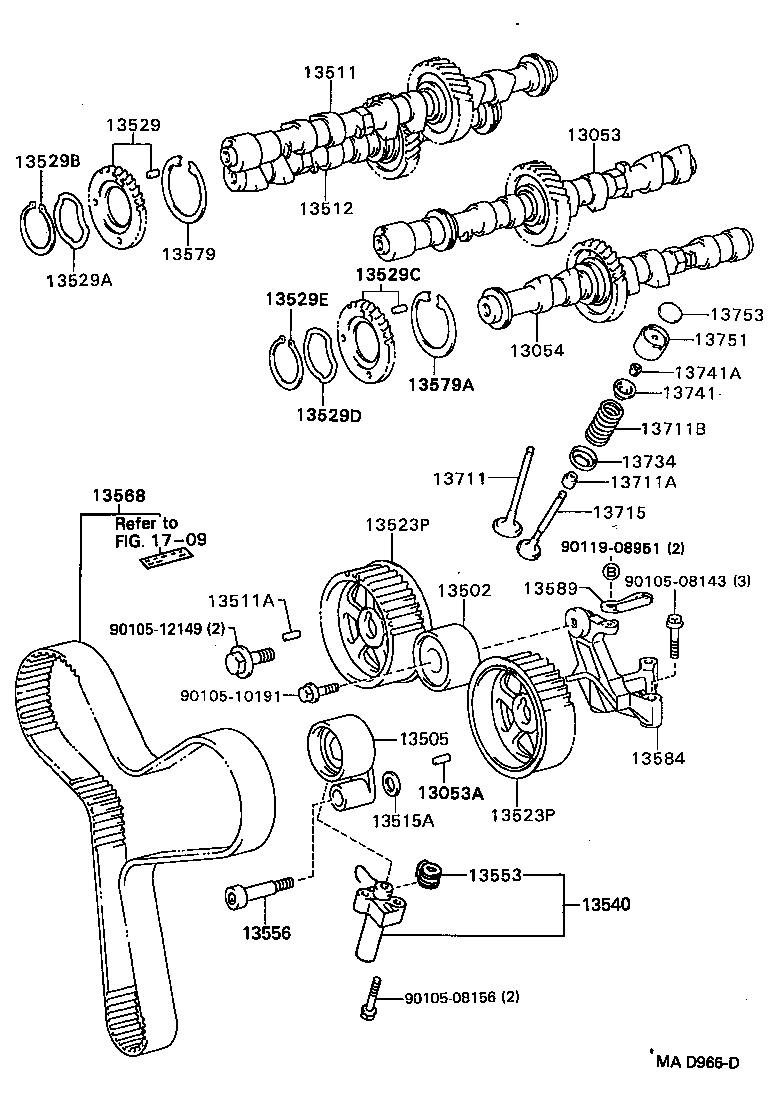

Click highlighted areas on diagram

diagram 13053 13053A 13054 13502 13505 13511 13511A 13512 13515A 13523P 13523P 13529 13529A 13529B 13529C 13529D 13529E 13540 13553 13556 13568 13579 13579A 13584 13589 13711 13711A 13711B 13715 13734 13741 13741A 13751 13753 1709 9010508143 9010508156 9010510191 9010512149 9011908951
Part # Description Qty Price
13053 - CAMSHAFT SUB-ASSY, NO.3
13053-62010

1VZFE..VZV30,31

 1
13053A - PIN, STRAIGHT, NO.3(FOR CAMSHAFT KNOCK)
90250-05121

1VZFE,4VZFE..VZV3#

長さ=15,外径=5

 1
13054 - CAMSHAFT SUB-ASSY, NO.4
13054-62020

1VZFE..VZV30,31

 1
13502 - IDLER SUB-ASSY, TIMING BELT, NO.2
13503-62010

1VZFE..VZV3#

 1
13505 - IDLER SUB-ASSY, TIMING BELT, NO.1
13505-62031

1VZFE..VZV30,31

 1
13505-62060

1VZFE,4VZFE..VZV3#

NSK

 1
13511 - CAMSHAFT
13501-62010

1VZFE..VZV30,31

 1
13511A - PIN, STRAIGHT(FOR CAMSHAFT KNOCK)
90250-05121

1VZFE,4VZFE..VZV3#

長さ=15,外径=5

 1
13512 - CAMSHAFT, NO.2
13502-62020

1VZFE..VZV30,31

 1
13515A - WASHER, PLATE(FOR DISTRIBUTOR DRIVE GEAR)
90201-10098

1VZFE,4VZFE..VZV3#

 1
13523P - PULLEY, CAMSHAFT TIMING
13051-62010

1VZFE..VZV30,31

 2
13523P - PULLEY, CAMSHAFT TIMING
13051-62010

1VZFE..VZV30,31

 2
13529 - GEAR, CAMSHAFT SUB
13529-62900

1VZFE,4VZFE..VZV3#

 1
13529A - WASHER, WAVE(FOR CAMSHAFT SUB GEAR)
90206-42001

1VZFE,4VZFE..VZV3#

 1
13529B - RING, SHAFT SNAP(FOR CAMSHAFT SUB GEAR)
90520-41004

1VZFE,4VZFE..VZV3#

 1
13529C - GEAR, CAMSHAFT SUB, NO.3
13529-62900

1VZFE,4VZFE..VZV3#

 1
13529D - WASHER, WAVE(FOR CAMSHAFT SUB GEAR, NO.3)
90206-42001

1VZFE,4VZFE..VZV3#

 1
13529E - RING, SHAFT SNAP(FOR CAMSHAFT SUB GEAR, NO.3)
90520-41004

1VZFE,4VZFE..VZV3#

 1
13540 - TENSIONER ASSY, CHAIN, NO.1
13540-62011

1VZFE..VZV30,31

 1
13553 - COVER, CHAIN TENSIONER DUST
13553-62010

1VZFE..VZV30,31

 1
13568 - BELT, TIMING
13568-62040

1VZFE,4VZFE..VZV3#

 1
13568-62020

1VZFE..VZV30,31

 1
13579 - WASHER, CAMSHAFT TIMING GEAR BOLT
13579-62010

1VZFE,4VZFE..VZV3#

 1
13579A - WASHER, CAMSHAFT TIMING GEAR BOLT, NO.3
13579-62010

1VZFE,4VZFE..VZV3#

 1
13584 - BRACKET, TIMING BELT IDLER
13584-62020

1VZFE..VZV30,31

 1
13589 - STAY, IDLER BRACKET
13589-62010

1VZFE,4VZFE..VZV3#

 1
13711 - VALVE, INTAKE
13711-62011

1VZFE..VZV30,31

 12
13711A - SEAL OR RING, O(FOR VALVE STEM OIL)
90913-02066

1VZFE..VZV30,31

 24
90913-02088

1VZFE..VZV30,31

ARAI

 24
90913-02086

1VZFE..VZV30,31

NOK

 24
13711B - SPRING, COMPRESSION(FOR INNER)
90504-30003

1VZFE..VZV30,31

 24
13715 - VALVE, EXHAUST
13715-62011

1VZFE..VZV30,31

 12
13734 - SEAT, VALVE SPRING
13734-62010

1VZFE..VZV30,31

 24
13741 - RETAINER, VALVE SPRING
13741-16010

1VZFE..VZV30,31

 24
13741A - LOCK, VALVE SPRING RETAINER
90913-03021

1VZFE,4VZFE..VZV3#

 48
13751 - LIFTER, VALVE
13751-16010

1VZFE..VZV30,31

 24
13753 - SHIM, VALVE ADJUSTING
13753-16060

1VZFE..VZV30,31

厚さ=2.60

 1
13753-16100

1VZFE..VZV30,31

厚さ=2.70

 1
13753-16080

1VZFE..VZV30,31

厚さ=2.65

 1
13753-16120

1VZFE..VZV30,31

厚さ=2.75

 1
13753-16040

1VZFE..VZV30,31

厚さ=2.55

 1
13753-16180

1VZFE..VZV30,31

厚さ=2.90

 1
13753-16140

1VZFE..VZV30,31

厚さ=2.80

 1
13753-16160

1VZFE..VZV30,31

厚さ=2.85

 1
13753-16260

1VZFE..VZV30,31

厚さ=3.10

 1
13753-16020

1VZFE..VZV30,31

厚さ=2.50

 1
13753-16280

1VZFE..VZV30,31

厚さ=3.15

 1
13753-16340

1VZFE..VZV30,31

厚さ=3.30

 1
13753-16200

1VZFE..VZV30,31

厚さ=2.95

 1
13753-16320

1VZFE..VZV30,31

厚さ=3.25

 1
13753-16300

1VZFE..VZV30,31

厚さ=3.20

 1
13753-16240

1VZFE..VZV30,31

厚さ=3.05

 1
13753-16220

1VZFE..VZV30,31

厚さ=3.00

 1
Common parts
90105-08143
90105-08156
90105-10191
90105-12149
90119-08951
Linked diagrams
1709
