VZV30-ATMQK (1990)
Toyota Camry/Vista
(9007-9206)1VZFE

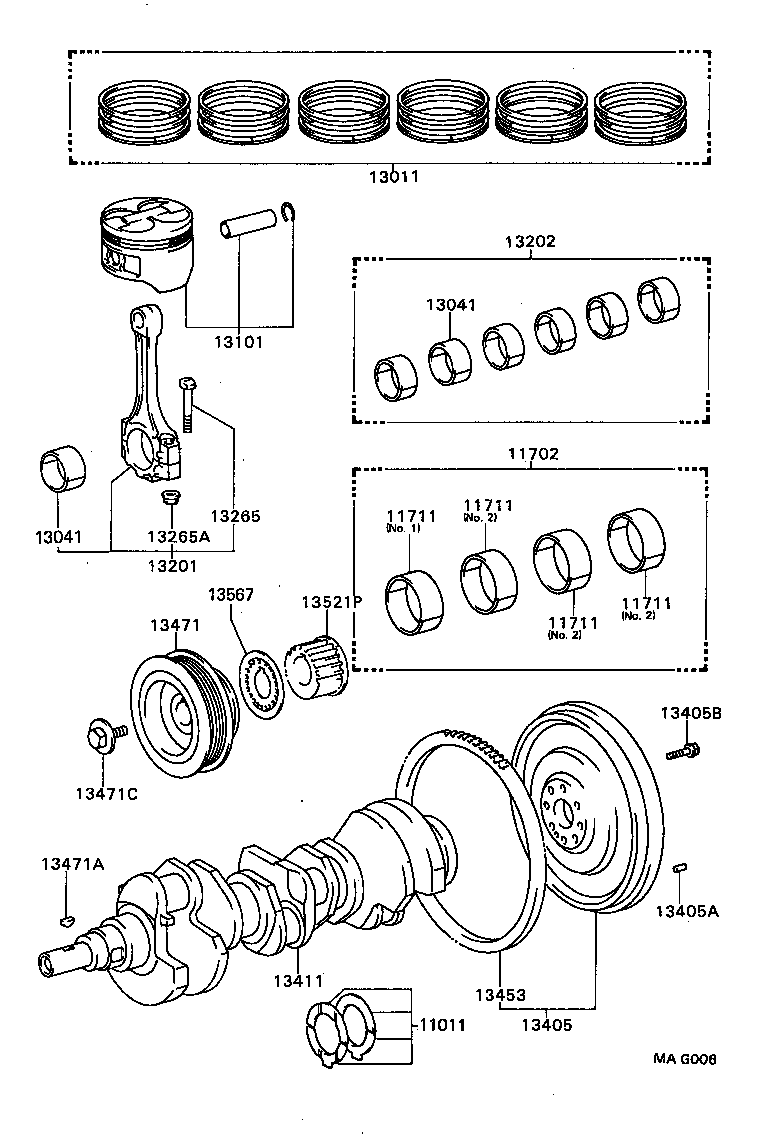

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11011 - WASHER SET, CRANKSHAFT THRUST | ||||
| 11011-62010 |
1VZFE,4VZFE..VZV3# STD |
1 | ||
| 11702 - BEARING SET, CRANKSHAFT | ||||
| 11704-62020 |
1VZFE,4VZFE..VZV3# U/S 0.25 |
1 | ||
| 11704-62010 |
1VZFE..VZV30,31 U/S 0.25 |
1 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11071-6201002 |
1VZFE..VZV3# MARK 2,NO.2 |
3 | ||
| 11071-6201001 |
1VZFE..VZV3# MARK 1,NO.2 |
3 | ||
| 11071-6201005 |
1VZFE..VZV3# MARK 5,NO.2 |
3 | ||
| 11071-6201003 |
1VZFE..VZV3# MARK 3,NO.2 |
3 | ||
| 11071-6201004 |
1VZFE..VZV3# MARK 4,NO.2 |
3 | ||
| 11701-6201004 |
1VZFE..VZV3# MARK 4,NO.1 |
1 | ||
| 11701-6202003 |
1VZFE,4VZFE..VZV3# MARK 3,NO.1 |
1 | ||
| 11701-6201001 |
1VZFE..VZV3# MARK 1,NO.1 |
1 | ||
| 11701-6202007 |
1VZFE,4VZFE..VZV3# MARK 7,NO.1 |
1 | ||
| 11701-6201003 |
1VZFE..VZV3# MARK 3,NO.1 |
1 | ||
| 11701-6201002 |
1VZFE..VZV3# MARK 2,NO.1 |
1 | ||
| 11701-6202001 |
1VZFE,4VZFE..VZV3# MARK 1,NO.1 |
1 | ||
| 11701-6202002 |
1VZFE,4VZFE..VZV3# MARK 2,NO.1 |
1 | ||
| 11701-6201005 |
1VZFE..VZV3# MARK 5,NO.1 |
1 | ||
| 11701-6202006 |
1VZFE,4VZFE..VZV3# MARK 6,NO.1 |
1 | ||
| 11701-6202005 |
1VZFE,4VZFE..VZV3# MARK 5,NO.1 |
1 | ||
| 11701-6202004 |
1VZFE,4VZFE..VZV3# MARK 4,NO.1 |
1 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11071-6201002 |
1VZFE..VZV3# MARK 2,NO.2 |
3 | ||
| 11071-6201001 |
1VZFE..VZV3# MARK 1,NO.2 |
3 | ||
| 11071-6201005 |
1VZFE..VZV3# MARK 5,NO.2 |
3 | ||
| 11071-6201003 |
1VZFE..VZV3# MARK 3,NO.2 |
3 | ||
| 11071-6201004 |
1VZFE..VZV3# MARK 4,NO.2 |
3 | ||
| 11701-6201004 |
1VZFE..VZV3# MARK 4,NO.1 |
1 | ||
| 11701-6202003 |
1VZFE,4VZFE..VZV3# MARK 3,NO.1 |
1 | ||
| 11701-6201001 |
1VZFE..VZV3# MARK 1,NO.1 |
1 | ||
| 11701-6202007 |
1VZFE,4VZFE..VZV3# MARK 7,NO.1 |
1 | ||
| 11701-6201003 |
1VZFE..VZV3# MARK 3,NO.1 |
1 | ||
| 11701-6201002 |
1VZFE..VZV3# MARK 2,NO.1 |
1 | ||
| 11701-6202001 |
1VZFE,4VZFE..VZV3# MARK 1,NO.1 |
1 | ||
| 11701-6202002 |
1VZFE,4VZFE..VZV3# MARK 2,NO.1 |
1 | ||
| 11701-6201005 |
1VZFE..VZV3# MARK 5,NO.1 |
1 | ||
| 11701-6202006 |
1VZFE,4VZFE..VZV3# MARK 6,NO.1 |
1 | ||
| 11701-6202005 |
1VZFE,4VZFE..VZV3# MARK 5,NO.1 |
1 | ||
| 11701-6202004 |
1VZFE,4VZFE..VZV3# MARK 4,NO.1 |
1 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11071-6201002 |
1VZFE..VZV3# MARK 2,NO.2 |
3 | ||
| 11071-6201001 |
1VZFE..VZV3# MARK 1,NO.2 |
3 | ||
| 11071-6201005 |
1VZFE..VZV3# MARK 5,NO.2 |
3 | ||
| 11071-6201003 |
1VZFE..VZV3# MARK 3,NO.2 |
3 | ||
| 11071-6201004 |
1VZFE..VZV3# MARK 4,NO.2 |
3 | ||
| 11701-6201004 |
1VZFE..VZV3# MARK 4,NO.1 |
1 | ||
| 11701-6202003 |
1VZFE,4VZFE..VZV3# MARK 3,NO.1 |
1 | ||
| 11701-6201001 |
1VZFE..VZV3# MARK 1,NO.1 |
1 | ||
| 11701-6202007 |
1VZFE,4VZFE..VZV3# MARK 7,NO.1 |
1 | ||
| 11701-6201003 |
1VZFE..VZV3# MARK 3,NO.1 |
1 | ||
| 11701-6201002 |
1VZFE..VZV3# MARK 2,NO.1 |
1 | ||
| 11701-6202001 |
1VZFE,4VZFE..VZV3# MARK 1,NO.1 |
1 | ||
| 11701-6202002 |
1VZFE,4VZFE..VZV3# MARK 2,NO.1 |
1 | ||
| 11701-6201005 |
1VZFE..VZV3# MARK 5,NO.1 |
1 | ||
| 11701-6202006 |
1VZFE,4VZFE..VZV3# MARK 6,NO.1 |
1 | ||
| 11701-6202005 |
1VZFE,4VZFE..VZV3# MARK 5,NO.1 |
1 | ||
| 11701-6202004 |
1VZFE,4VZFE..VZV3# MARK 4,NO.1 |
1 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11071-6201002 |
1VZFE..VZV3# MARK 2,NO.2 |
3 | ||
| 11071-6201001 |
1VZFE..VZV3# MARK 1,NO.2 |
3 | ||
| 11071-6201005 |
1VZFE..VZV3# MARK 5,NO.2 |
3 | ||
| 11071-6201003 |
1VZFE..VZV3# MARK 3,NO.2 |
3 | ||
| 11071-6201004 |
1VZFE..VZV3# MARK 4,NO.2 |
3 | ||
| 11701-6201004 |
1VZFE..VZV3# MARK 4,NO.1 |
1 | ||
| 11701-6202003 |
1VZFE,4VZFE..VZV3# MARK 3,NO.1 |
1 | ||
| 11701-6201001 |
1VZFE..VZV3# MARK 1,NO.1 |
1 | ||
| 11701-6202007 |
1VZFE,4VZFE..VZV3# MARK 7,NO.1 |
1 | ||
| 11701-6201003 |
1VZFE..VZV3# MARK 3,NO.1 |
1 | ||
| 11701-6201002 |
1VZFE..VZV3# MARK 2,NO.1 |
1 | ||
| 11701-6202001 |
1VZFE,4VZFE..VZV3# MARK 1,NO.1 |
1 | ||
| 11701-6202002 |
1VZFE,4VZFE..VZV3# MARK 2,NO.1 |
1 | ||
| 11701-6201005 |
1VZFE..VZV3# MARK 5,NO.1 |
1 | ||
| 11701-6202006 |
1VZFE,4VZFE..VZV3# MARK 6,NO.1 |
1 | ||
| 11701-6202005 |
1VZFE,4VZFE..VZV3# MARK 5,NO.1 |
1 | ||
| 11701-6202004 |
1VZFE,4VZFE..VZV3# MARK 4,NO.1 |
1 | ||
| 13011 - RING SET, PISTON | ||||
| 13011-62050 |
1VZFE..VZV30,31 STD |
1 | ||
| 13013-62050 |
1VZFE..VZV30,31 O/S 0.50 |
1 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-6201001 |
1VZFE,4VZFE..VZV3# MARK 1 |
6 | ||
| 13041-6201003 |
1VZFE,4VZFE..VZV3# MARK 3 |
6 | ||
| 13041-6201002 |
1VZFE,4VZFE..VZV3# MARK 2 |
6 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-6201001 |
1VZFE,4VZFE..VZV3# MARK 1 |
6 | ||
| 13041-6201003 |
1VZFE,4VZFE..VZV3# MARK 3 |
6 | ||
| 13041-6201002 |
1VZFE,4VZFE..VZV3# MARK 2 |
6 | ||
| 13101 - PISTON SUB-ASSY, W/PIN | ||||
| 13101-6203002 |
1VZFE..VZV30,31 STD,MARK 2 |
6 | ||
| 13101-6203001 |
1VZFE..VZV30,31 STD,MARK 1 |
6 | ||
| 13101-6203003 |
1VZFE..VZV30,31 STD,MARK 3 |
6 | ||
| 13103-62030 |
1VZFE..VZV30,31 O/S 0.50 |
6 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13201-69085 |
1VZFE,4VZFE..VZV3# |
6 | ||
| 13202 - BEARING SET, CONNECTING ROD | ||||
| 13204-62010 |
1VZFE,4VZFE..VZV3# U/S 0.25 |
1 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-62010 |
1VZFE,4VZFE..VZV3# |
12 | ||
| 13265A - NUT, HEXAGON(FOR CONNECTING ROD BOLT) | ||||
| 90179-08118 |
1VZFE,4VZFE..VZV3# |
12 | ||
| 13405 - FLYWHEEL SUB-ASSY | ||||
| 13405-62010 |
1VZFE..VZV30,31..5F |
1 | ||
| 13405A - PIN, STRAIGHT(FOR FLYWHEEL) | ||||
| 90250-08120 |
1VZFE..VZV30,31..5F 長さ=18,外径=8 |
3 | ||
| 13405B - BOLT, FLYWHEEL SETTING | ||||
| 90105-10138 |
1VZFE..VZV30,31..5F |
8 | ||
| 13411 - CRANKSHAFT | ||||
| 13411-62900 |
1VZFE..VZV30,31 |
1 | ||
| 13453 - GEAR, FLYWHEEL RING | ||||
| 13453-74011 |
1VZFE..VZV30,31..5F |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13408-62020 |
1VZFE..VZV30,31 |
1 | ||
| 13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET) | ||||
| 95161-20519 |
1VZFE,4VZFE..VZV3# |
1 | ||
| 95161-20519 |
1VZFE,4VZFE..VZV3# |
1 | ||
| 95161-20519 |
1VZFE..VZV30,31 |
1 | ||
| 13471C - BOLT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90105-16031 |
1VZFE,4VZFE..VZV3# |
1 | ||
| 13521P - PULLEY, CRANKSHAFT TIMING | ||||
| 13521-62020 |
1VZFE,4VZFE..VZV3# |
1 | ||
| 13567 - GUIDE, TIMING BELT, NO.2 | ||||
| 13567-62010 |
1VZFE,4VZFE..VZV3# |
1 | ||
