VZV30-ATMQK (1990)

Toyota Camry/Vista

Production Jul 1990 - Jun 1992
Engine 1VZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9007-9206)1VZFE

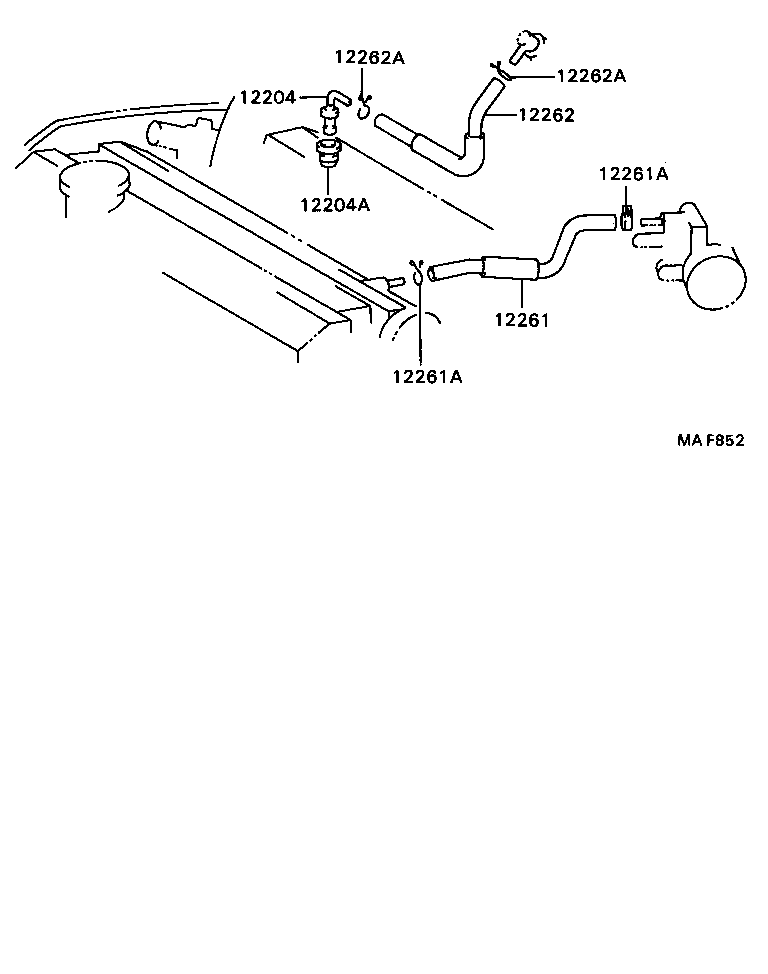

Click highlighted areas on diagram

diagram 12204 12204A 12261 12261A 12261A 12262 12262A 12262A
Part # Description Qty Price
12204 - VALVE SUB-ASSY, VENTILATION
12204-11050

1VZFE..VZV30,31

 1
12204A - GROMMET(FOR VENTILATION SYSTEM)
90480-18001

1VZFE,4VZFE..VZV3#

 1
12261 - HOSE, VENTILATION
12261-62020

1VZFE..VZV30,31

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-17011

1VZFE..VZV30,31

BODY SIDE

 1
90467-17012

1VZFE..VZV30,31

HEAD COVER SIDE

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-17011

1VZFE..VZV30,31

BODY SIDE

 1
90467-17012

1VZFE..VZV30,31

HEAD COVER SIDE

 1
12262 - HOSE, VENTILATION, NO.2
12262-62020

1VZFE..VZV30,31

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-14017

1VZFE..VZV30,31

 2
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-14017

1VZFE..VZV30,31

 2
