VZV30-ATMQK (1990)
Toyota Camry/Vista
Production
Jul 1990
-
Jun 1992
Engine
1VZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9007-9206)1VZFE

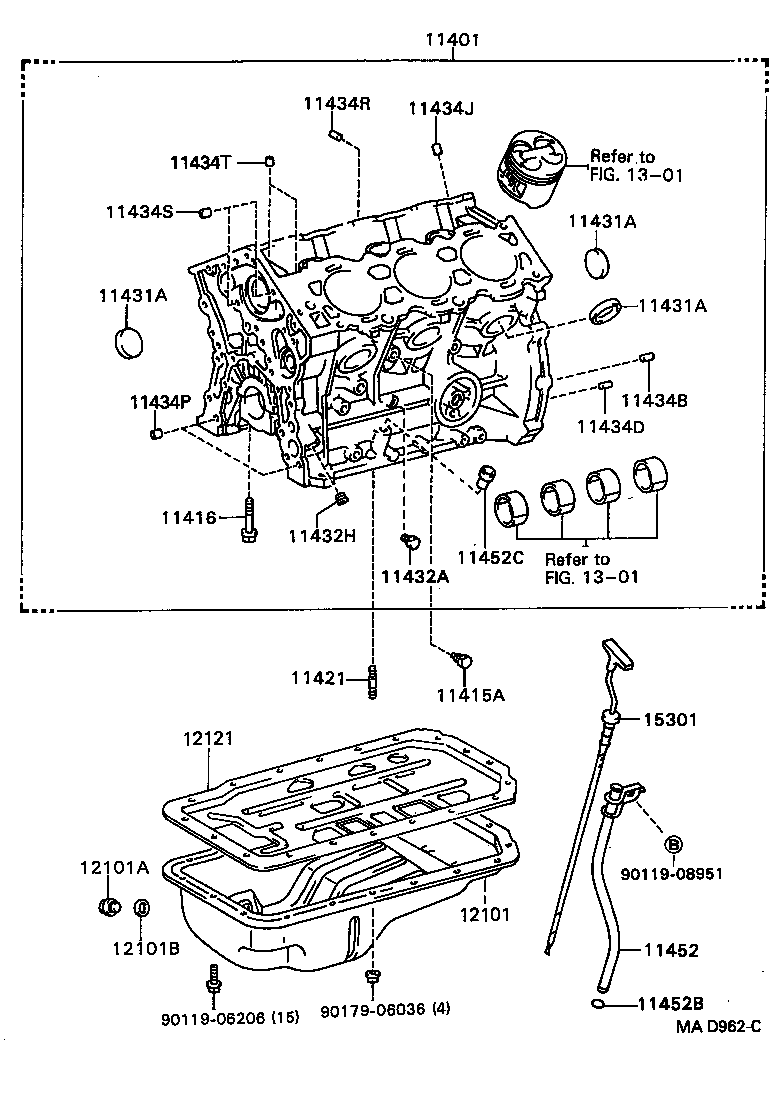

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11401 - BLOCK SUB-ASSY, CYLINDER | ||||
| 11401-69406 |
1VZFE..VZV30,31 |
1 | ||
| 11401-69405 |
1VZFE..VZV30,31 |
1 | ||
| 11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK) | ||||
| 96431-23814 |
1VZFE,4VZFE..VZV3# |
2 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90910-02072 |
1VZFE,4VZFE..VZV3# |
8 | ||
| 11421 - BOLT, STUD(FOR OIL PAN) | ||||
| 90116-06014 |
1VZFE..VZV3# |
4 | ||
| 90116-06014 |
1VZFE..VZV3# |
2 | ||
| 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) | ||||
| 96411-43500 |
1VZFE,4VZFE..VZV3# |
11 | ||
| 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) | ||||
| 96411-43500 |
1VZFE,4VZFE..VZV3# |
11 | ||
| 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) | ||||
| 96411-43500 |
1VZFE,4VZFE..VZV3# |
11 | ||
| 11432A - PLUG, W/HEAD TAPER SCREW, NO.1 | ||||
| 90345-51008 |
1VZFE,4VZFE..VZV3# |
1 | ||
| 11432H - PLUG, W/HEAD TAPER SCREW, NO.5 | ||||
| 90344-53015 |
1VZFE..VZV3# |
2 | ||
| 90344-53015 |
1VZFE,4VZFE..VZV3# |
2 | ||
| 11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET) | ||||
| 90250-10113 |
1VZFE,4VZFE..VZV3# 長さ=22,外径=10 |
2 | ||
| 11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL) | ||||
| 90250-06003 |
1VZFE,4VZFE..VZV3# 長さ=14,外径=6 |
2 | ||
| 11434J - PIN, RING (FOR CYLINDER HEAD SET) | ||||
| 90253-16001 |
1VZFE,4VZFE..VZV3# |
4 | ||
| 11434P - PIN, STRAIGHT(FOR OIL PUMP SET) | ||||
| 90253-11021 |
1VZFE,4VZFE..VZV3# 長さ=8,外径=11 |
2 | ||
| 11434R - PIN, STRAIGHT(FOR DRIVE SHAFT BEARING BRACKET) | ||||
| 90250-06003 |
1VZFE,4VZFE..VZV3# |
2 | ||
| 11434S - PIN, RING(FOR WATER PUMP SET) | ||||
| 90253-11021 |
1VZFE,4VZFE..VZV3# |
2 | ||
| 11434T - PIN, RING(FOR TIMING BELT IDLER BRACKET SET) | ||||
| 90253-11021 |
1VZFE,4VZFE..VZV3# |
2 | ||
| 11452 - GUIDE, OIL LEVEL GAGE | ||||
| 11452-62020 |
1VZFE..VZV30,31 |
1 | ||
| 11452B - RING, O(FOR OIL LEVEL GAGE GUIDE) | ||||
| 96721-19010 |
1VZFE,4VZFE..VZV3# |
1 | ||
| 11452C - UNION(FOR OIL LEVEL GAGE GUIDE) | ||||
| 90405-10033 |
1VZFE,4VZFE..VZV3# |
1 | ||
| 12101 - PAN SUB-ASSY, OIL | ||||
| 12101-62040 |
1VZFE..VZV3# |
1 | ||
| 12101A - PLUG(FOR OIL PAN DRAIN) | ||||
| 90341-12012 |
1VZFE,4VZFE..VZV3# |
1 | ||
| 12101B - GASKET(FOR OIL PAN DRAIN PLUG) | ||||
| 90430-12027 |
1VZFE,4VZFE..VZV3# |
1 | ||
| 90430-12020 |
1VZFE..VZV3# |
1 | ||
| 12121 - PLATE, OIL PAN BAFFLE, NO.1 | ||||
| 12122-62010 |
1VZFE..VZV30,31 |
1 | ||
| 15301 - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15301-62030 |
1VZFE..VZV3# |
1 | ||
| Common parts | ||||
| 90119-06206 | ||||
| 90119-08951 | ||||
| 90179-06036 | ||||
| Linked diagrams | ||||
| 1301 | ||||
