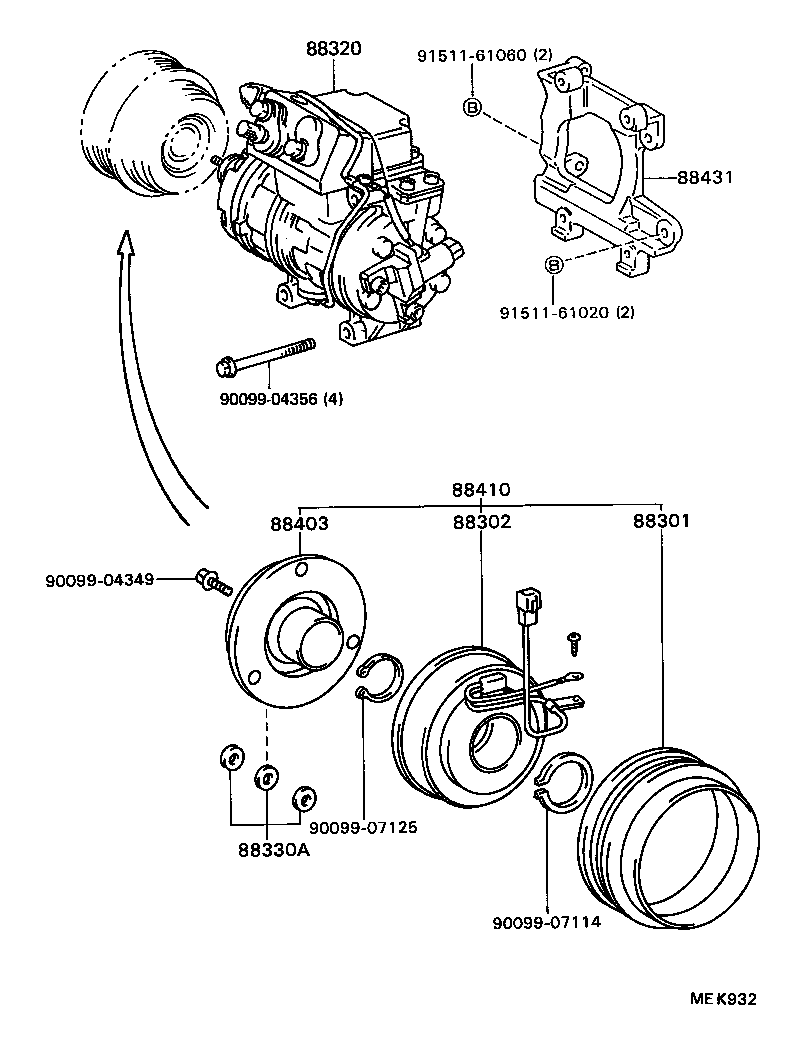

Toyota Camry/vista VZV20 HEATING & AIR CONDITIONING - COMPRESSOR

Part #	Description	Period	Qty
88301 - ROTOR SUB-ASSY, MAGNET CLUTCH
88412-32030	VZV20	08/1988 - 07/1990	1
88302 - STATOR SUB-ASSY, MAGNET CLUTCH
88411-32031	VZV20	08/1988 - 02/1989	1
88411-32050	VZV20	02/1989 - 07/1990	1
88320 - COMPRESSOR ASSY, COOLER
88320-32091	VZV20	08/1988 - 07/1990	1
88330A - WASHER (FOR MAGNET CLUTCH)
88335-14020	VZV20	08/1988 - 02/1989	1
88335-14020	VZV20	02/1989 - 07/1990	1
88403 - HUB SUB-ASSY, MAGNET CLUTCH
88403-16011	VZV20	08/1988 - 07/1990	1
88410 - CLUTCH ASSY, MAGNET
88410-32040	VZV20	08/1988 - 02/1989	1
88410-32050	VZV20	02/1989 - 07/1990	1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-32011	VZV20	07/1989 - 12/2999	1
88431-32010	VZV20	08/1988 - 07/1989	1
Common parts
90099-04349
90099-04356
90099-07114
90099-07125
91511-61020
91511-61060

VZV20-JTPQK (1988)
