VZV20-JTPQK (1988)

Toyota Camry/Vista

Production Aug 1988 - Jul 1990
Engine 1VZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )HT

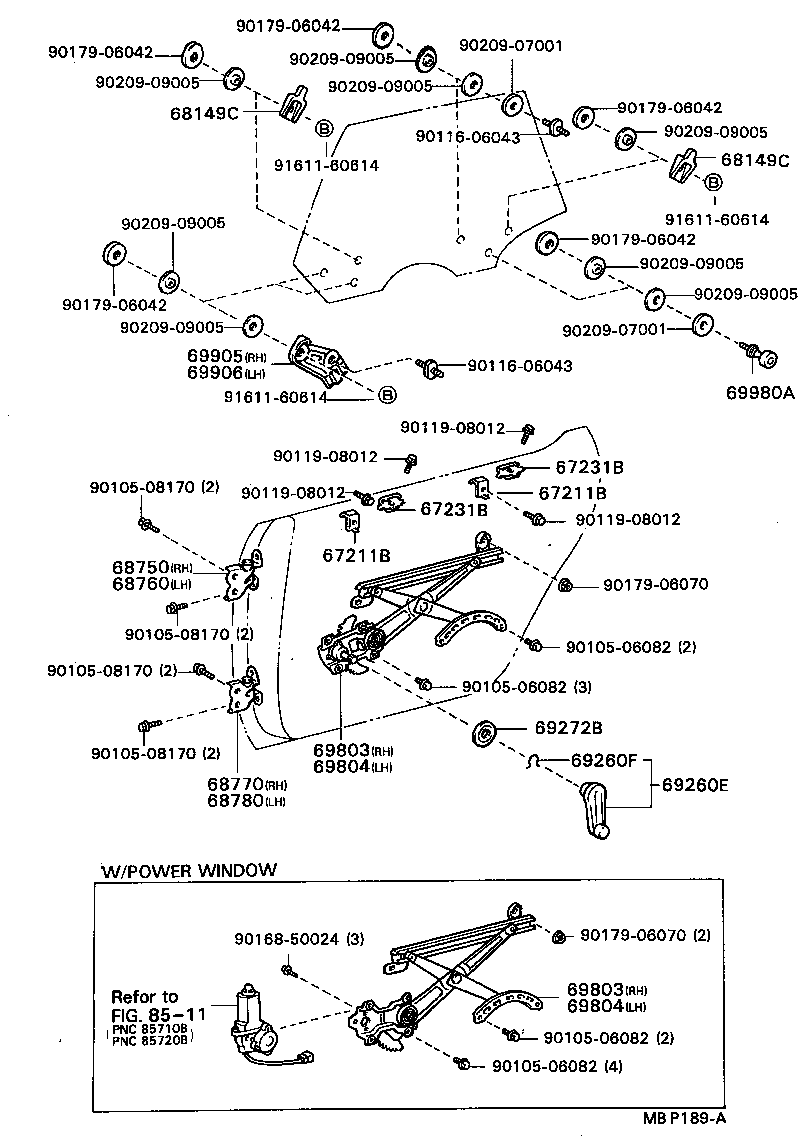

Click highlighted areas on diagram

diagram 67211B 67211B 67231B 67231B 68149C 68149C 68750 68760 68770 68780 69260E 69260F 69272B 69803 69803 69804 69804 69905 69906 69980A 8511 9010506082 9010506082 9010506082 9010506082 9010508170 9010508170 9010508170 9010508170 9011606043 9011606043 9011908012 9011908012 9011908012 9011908012 9016850024 9017906042 9017906042 9017906042 9017906042 9017906042 9017906070 9017906070 9020907001 9020907001 9020909005 9020909005 9020909005 9020909005 9020909005 9020909005 9020909005 9020909005 9161160614 9161160614 9161160614
Part # Description Qty Price
67211B - STOP, REAR DOOR WINDOW, UPPER
67211-32020

CV20,SV2#,VZV20..HT

 4
67211-32030

CV20,SV2#,VZV20..HT

 4
67211B - STOP, REAR DOOR WINDOW, UPPER
67211-32020

CV20,SV2#,VZV20..HT

 4
67211-32030

CV20,SV2#,VZV20..HT

 4
67231B - SUPPORT, REAR DOOR TRIM
67231-20030

CV20,SV2#,VZV20..HT

 4
67231B - SUPPORT, REAR DOOR TRIM
67231-20030

CV20,SV2#,VZV20..HT

 4
68149C - STABILIZER, REAR DOOR GLASS MALE
68149-20010

CV20,SV2#,VZV20..HT

 4
68149C - STABILIZER, REAR DOOR GLASS MALE
68149-20010

CV20,SV2#,VZV20..HT

 4
68750 - HINGE ASSY, REAR DOOR, UPPER RH
68750-32020

CV20,SV2#,VZV20

 1
68760 - HINGE ASSY, REAR DOOR, UPPER LH
68760-32020

CV20,SV2#,VZV20

 1
68770 - HINGE ASSY, REAR DOOR, LOWER RH
68770-32020

CV20,SV2#,VZV20

 1
68780 - HINGE ASSY, REAR DOOR, LOWER LH
68780-32020

CV20,SV2#,VZV20

 1
69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
69803-32030

CV20,SV2#,VZV20..HT..(GT,PRO,VE,VR,VX)

 1
69803-32040

CV20,SV2#,VZV20..HT..(GT,PRO,VE,VR,VX)

 1
69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
69803-32030

CV20,SV2#,VZV20..HT..(GT,PRO,VE,VR,VX)

 1
69803-32040

CV20,SV2#,VZV20..HT..(GT,PRO,VE,VR,VX)

 1
69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
69804-32030

CV20,SV2#,VZV20..HT..(GT,PRO,VE,VR,VX)

 1
69804-32040

CV20,SV2#,VZV20..HT..(GT,PRO,VE,VR,VX)

 1
69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
69804-32030

CV20,SV2#,VZV20..HT..(GT,PRO,VE,VR,VX)

 1
69804-32040

CV20,SV2#,VZV20..HT..(GT,PRO,VE,VR,VX)

 1
69905 - BRACKET SUB-ASSY, REAR DOOR GLASS, RH
69905-32030

CV20,SV2#,VZV20..HT

 1
69906 - BRACKET SUB-ASSY, REAR DOOR GLASS, LH
69906-32020

CV20,SV2#,VZV20..HT

 1
69980A - ROLLER ASSY, REAR DOOR GLASS GUIDE
69980-22020

CV20,SV2#,VZV20..HT

 2
Common parts
90105-06082
90105-08170
90116-06043
90119-08012
90168-50024
90179-06042
90179-06070
90209-07001
90209-09005
91611-60614
Linked diagrams
8511
