VZV20-JEPQK (1987)
Toyota Camry/Vista

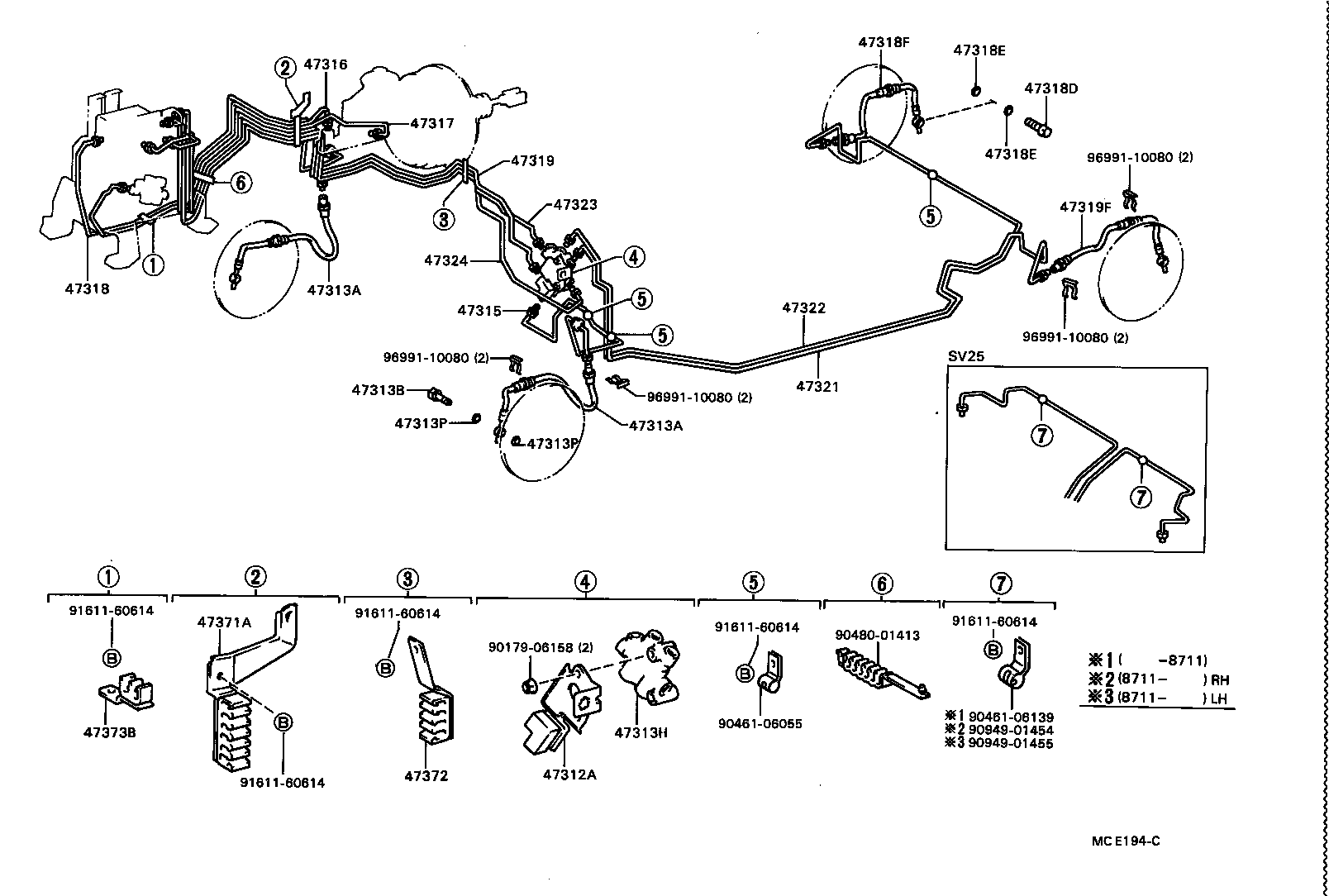

ILLUST NO. 1 OF 2(8704- )
W/ESC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47312A - UNION, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90412-10155 |
SV21,25,VZV20..GT,PRO,VL,VR,XT,ZE |
1 | ||
| 90412-10139 |
SV21,VZV20..GT,PRO |
1 | ||
| 90412-10139 |
SV21,25,VZV20..GT,PRO,VL,VR,XT,ZE |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02496 |
CV20,SV2#,VZV20 |
2 | ||
| 90947-02540 |
SV21,VZV20..GT,PRO ｱﾘ(ESC) |
2 | ||
| 90947-02540 |
SV21,25,VZV20..GT,PRO,VL,VR,XT,ZE ｱﾘ(ESC) |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02496 |
CV20,SV2#,VZV20 |
2 | ||
| 90947-02540 |
SV21,VZV20..GT,PRO ｱﾘ(ESC) |
2 | ||
| 90947-02540 |
SV21,25,VZV20..GT,PRO,VL,VR,XT,ZE ｱﾘ(ESC) |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
CV20,SV2#,VZV20 |
2 | ||
| 47313H - WAY, NO.3(FOR FRONT BRAKE TUBE) | ||||
| 90412-10140 |
SV21,25,VZV20..GT,PRO,VL,VR,XT,ZE |
1 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
CV20,SV2#,VZV20 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
CV20,SV2#,VZV20 |
4 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-32060 |
CV20,SV2#,VZV20 |
1 | ||
| 47315-32080 |
SV21,25,VZV20..GT,PRO,VL,VR,XT,ZE ｱﾘ(ESC) |
1 | ||
| 47315-32080 |
SV21,VZV20..GT,PRO W/ESC |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-32010 |
SV21,VZV20..GT,PRO W/ESC |
1 | ||
| 47316-32010 |
SV21,25,VZV20..GT,PRO,VL,VR,XT,ZE |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-32010 |
SV21,VZV20..GT,PRO W/ESC |
1 | ||
| 47317-32010 |
SV21,25,VZV20..GT,PRO,VL,VR,XT,ZE |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-32010 |
SV21,25,VZV20..GT,PRO,VL,VR,XT,ZE |
1 | ||
| 47318-32010 |
SV21,VZV20..GT,PRO W/ESC |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10015 |
SV21,25,VZV20..GT,PRO,VL,VR,XT,ZE |
2 | ||
| 90401-10015 |
SV21,VZV20..GT,PRO |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 90430-10074 |
SV21,VZV20..GT,PRO |
4 | ||
| 90430-10074 |
SV21,25,VZV20..GT,PRO,VL,VR,XT,ZE |
4 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 90430-10074 |
SV21,VZV20..GT,PRO |
4 | ||
| 90430-10074 |
SV21,25,VZV20..GT,PRO,VL,VR,XT,ZE |
4 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02498 |
SV21,VZV20..GT,PRO |
1 | ||
| 47319 - TUBE, FRONT BRAKE, NO.9 | ||||
| 47319-32010 |
SV21,25,VZV20..GT,PRO,VL,VR,XT,ZE |
1 | ||
| 47319-32010 |
SV21,VZV20..GT,PRO W/ESC |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02498 |
SV21,VZV20..GT,PRO |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-32110 |
CV20,SV2#,VZV20 |
1 | ||
| 47321-32110 |
SV2#,VZV20 |
1 | ||
| 47321-32110 |
CV20,SV20,21,VZV20 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-32100 |
SV2#,VZV20 |
1 | ||
| 47322-32100 |
CV20,SV2#,VZV20 |
1 | ||
| 47322-32100 |
CV20,SV20,21,VZV20 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-32030 |
SV21,25,VZV20..GT,PRO,VL,VR,XT,ZE |
1 | ||
| 47323-32030 |
SV21,VZV20..GT,PRO |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-32030 |
SV21,25,VZV20..GT,PRO,VL,VR,XT,ZE |
1 | ||
| 47324-32030 |
SV21,VZV20..GT,PRO |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-32020 |
SV21,25,VZV20..GT,PRO,VL,VR,XT,ZE ｱﾘ(ESC) |
1 | ||
| 47371-32020 |
SV21,VZV20..GT,PRO W/ESC |
1 | ||
| 47371-32010 |
CV20,SV2#,VZV20 |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47371-32030 |
SV21,VZV20..GT,PRO W/ESC |
1 | ||
| 47371-32030 |
SV21,25,VZV20..GT,PRO,VL,VR,XT,ZE |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 47371-32040 |
SV21,VZV20..GT,PRO W/ESC |
1 | ||
| 47371-32040 |
SV21,25,VZV20..GT,PRO,VL,VR,XT,ZE |
1 | ||
| Common parts | ||||
| 90179-06158 | ||||
| 90461-06055 | ||||
| 90461-06139 | ||||
| 90480-01413 | ||||
| 90949-01454 | ||||
| 90949-01455 | ||||
| 91611-60614 | ||||
| 96991-10080 | ||||

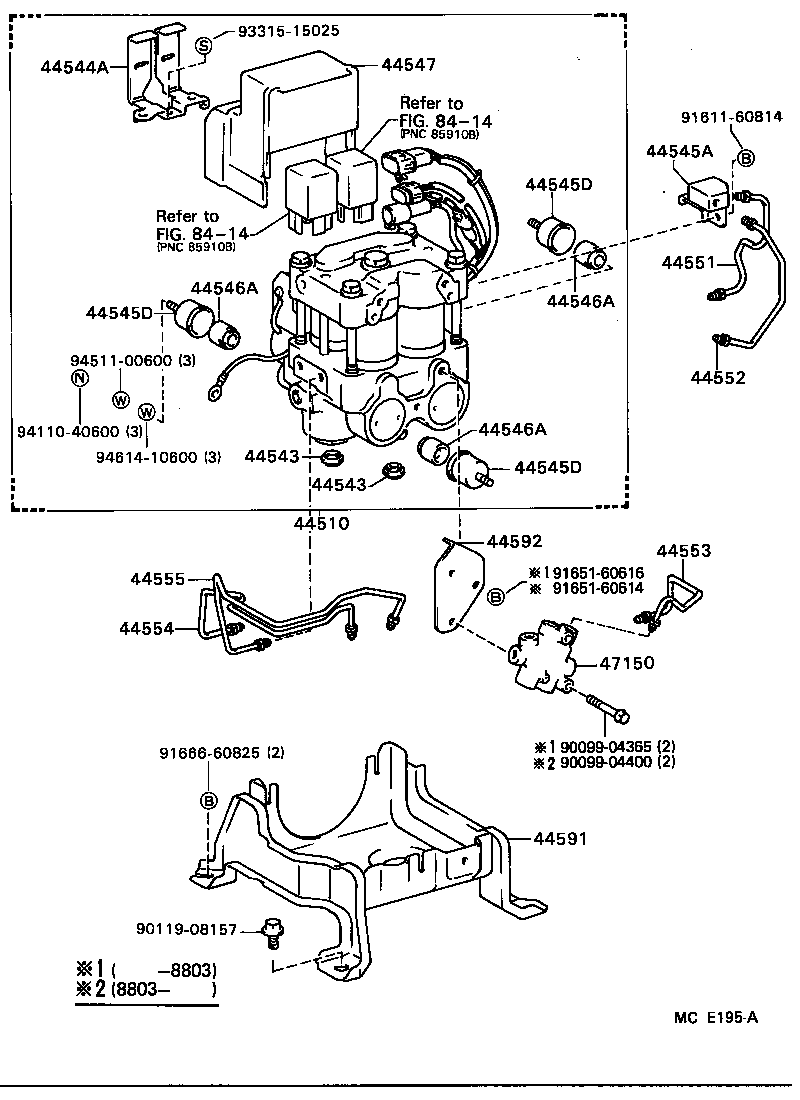

ILLUST NO. 2 OF 2(8704- )
W/ESC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44510-32010 |
SV21,VZV20..GT,PRO W/ESC |
1 | ||
| 44510-32010 |
SV21,25,VZV20..GT,PRO,VL,VR,XT,ZE |
1 | ||
| 44543 - CAP, RUBBER | ||||
| 44543-14010 |
SV21,VZV20..GT,PRO W/ESC |
2 | ||
| 44543-14010 |
SV21,25,VZV20..GT,PRO,VL,VR,XT,ZE |
2 | ||
| 44543 - CAP, RUBBER | ||||
| 44543-14010 |
SV21,VZV20..GT,PRO W/ESC |
2 | ||
| 44543-14010 |
SV21,25,VZV20..GT,PRO,VL,VR,XT,ZE |
2 | ||
| 44544A - CLAMP, BRAKE ACTUATOR WIRE | ||||
| 44548-32010 |
SV25,VZV20 |
1 | ||
| 44548-32010 |
SV21,VZV20..GT,PRO W/ESC |
1 | ||
| 44545A - UNION(FOR BRAKE ACTUATOR) | ||||
| 90413-10185 |
SV21,25,VZV20..GT,PRO,VL,VR,XT,ZE |
1 | ||
| 90413-10185 |
SV21,VZV20..GT,PRO W/ESC |
1 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-14010 |
SV21,25,VZV20..GT,PRO,VL,VR,XT,ZE |
3 | ||
| 44545-14010 |
SV21,VZV20..GT,PRO W/ESC |
3 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-14010 |
SV21,25,VZV20..GT,PRO,VL,VR,XT,ZE |
3 | ||
| 44545-14010 |
SV21,VZV20..GT,PRO W/ESC |
3 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-14010 |
SV21,25,VZV20..GT,PRO,VL,VR,XT,ZE |
3 | ||
| 44545-14010 |
SV21,VZV20..GT,PRO W/ESC |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-14010 |
SV21,VZV20..GT,PRO W/ESC |
3 | ||
| 44546-14010 |
SV21,25,VZV20..GT,PRO,VL,VR,XT,ZE |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-14010 |
SV21,VZV20..GT,PRO W/ESC |
3 | ||
| 44546-14010 |
SV21,25,VZV20..GT,PRO,VL,VR,XT,ZE |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-14010 |
SV21,VZV20..GT,PRO W/ESC |
3 | ||
| 44546-14010 |
SV21,25,VZV20..GT,PRO,VL,VR,XT,ZE |
3 | ||
| 44547 - CASE, RELAY(FOR BRAKE ACTUATOR) | ||||
| 44547-32010 |
SV21,25,VZV20..GT,PRO,VL,VR,XT,ZE |
1 | ||
| 44547-32010 |
SV21,VZV20..GT,PRO W/ESC |
1 | ||
| 44551 - TUBE, BRAKE ACTUATOR, NO.1 | ||||
| 44551-32010 |
SV21,VZV20..GT,PRO W/ESC |
1 | ||
| 44551-32010 |
SV21,25,VZV20..GT,PRO,VL,VR,XT,ZE |
1 | ||
| 44552 - TUBE, BRAKE ACTUATOR, NO.2 | ||||
| 44552-32010 |
SV21,25,VZV20..GT,PRO,VL,VR,XT,ZE |
1 | ||
| 44552-32010 |
SV21,VZV20..GT,PRO W/ESC |
1 | ||
| 44553 - TUBE, BRAKE ACTUATOR, NO.3 | ||||
| 44553-32010 |
SV21,25,VZV20..GT,PRO,VL,VR,XT,ZE |
1 | ||
| 44553-32010 |
SV21,VZV20..GT,PRO W/ESC |
1 | ||
| 44554 - TUBE, BRAKE ACTUATOR, NO.4 | ||||
| 44554-32010 |
SV21,VZV20..GT,PRO W/ESC |
1 | ||
| 44554-32010 |
SV21,25,VZV20..GT,PRO,VL,VR,XT,ZE |
1 | ||
| 44555 - TUBE, BRAKE ACTUATOR, NO.5 | ||||
| 44555-32010 |
SV21,VZV20..GT,PRO W/ESC |
1 | ||
| 44555-32010 |
SV21,25,VZV20..GT,PRO,VL,VR,XT,ZE |
1 | ||
| 44591 - BRACKET, BRAKE ACTUATOR, NO.1 | ||||
| 44591-32010 |
SV21,VZV20..GT,PRO W/ESC |
1 | ||
| 44591-32010 |
SV21,25,VZV20..GT,PRO,VL,VR,XT,ZE |
1 | ||
| 44592 - BRACKET, BRAKE ACTUATOR, NO.2 | ||||
| 44592-32010 |
SV21,25,VZV20..GT,PRO,VL,VR,XT,ZE |
1 | ||
| 44592-32010 |
SV21,VZV20..GT,PRO W/ESC |
1 | ||
| 47150 - VALVE ASSY, PROPORTIONING | ||||
| 47150-20130 |
SV21,VZV20..GT,PRO |
1 | ||
| 47150-32040 |
SV21,VZV20..GT,PRO ｱﾘ(ESC) |
1 | ||
| Common parts | ||||
| 90099-04365 | ||||
| 90099-04400 | ||||
| 90119-08157 | ||||
| 91611-60814 | ||||
| 91651-60614 | ||||
| 91651-60616 | ||||
| 91666-60825 | ||||
| 93315-15025 | ||||
| 94110-40600 | ||||
| 94511-00600 | ||||
| 94614-10600 | ||||
| Linked diagrams | ||||
| 8414 | ||||
