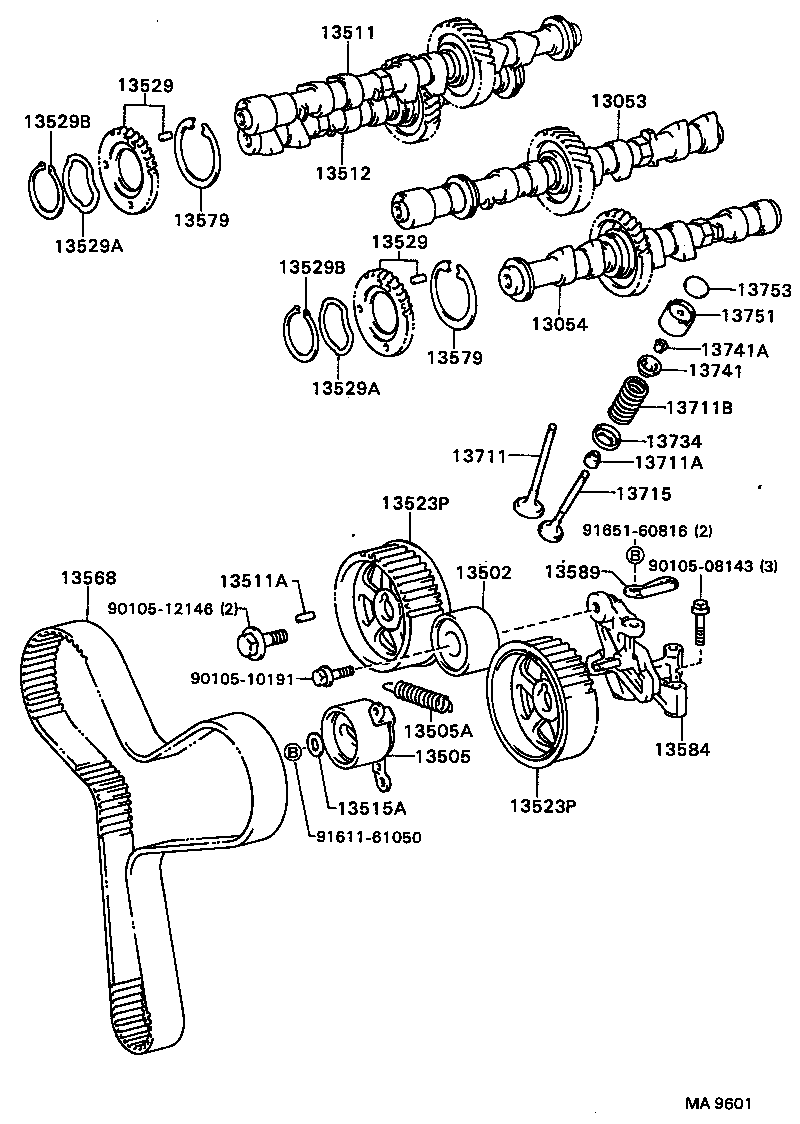

VZV20-JEMQK (1987)
Toyota Camry/Vista
(8704- )1VZFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 13053 - CAMSHAFT SUB-ASSY, NO.3 | ||||
| 13053-62010 |
1VZFE..VZV20 |
1 | ||
| 13054 - CAMSHAFT SUB-ASSY, NO.4 | ||||
| 13054-62010 |
1VZFE..VZV20 |
1 | ||
| 13502 - IDLER SUB-ASSY, TIMING BELT, NO.2 | ||||
| 13503-62010 |
1VZFE..VZV20 |
1 | ||
| 13505 - IDLER SUB-ASSY, TIMING BELT, NO.1 | ||||
| 13505-62020 |
1VZFE..VZV20 |
1 | ||
| 13505A - SPRING, TENSION(FOR IDLER) | ||||
| 90507-26006 |
1VZFE..VZV20 |
1 | ||
| 13511 - CAMSHAFT | ||||
| 13501-62010 |
1VZFE..VZV20 |
1 | ||
| 13511A - PIN, STRAIGHT(FOR CAMSHAFT KNOCK) | ||||
| 90250-05121 |
1VZFE..VZV20 長さ=15,外径=5 |
1 | ||
| 90250-05121 |
1VZFE..VZV20 長さ=15,外径=5 |
1 | ||
| 13512 - CAMSHAFT, NO.2 | ||||
| 13502-62010 |
1VZFE..VZV20 |
1 | ||
| 13515A - WASHER, PLATE(FOR DISTRIBUTOR DRIVE GEAR) | ||||
| 90201-10050 |
1VZFE..VZV20 |
1 | ||
| 13523P - PULLEY, CAMSHAFT TIMING | ||||
| 13051-62010 |
1VZFE..VZV20 |
2 | ||
| 13523P - PULLEY, CAMSHAFT TIMING | ||||
| 13051-62010 |
1VZFE..VZV20 |
2 | ||
| 13529 - GEAR, CAMSHAFT SUB | ||||
| 13529-62900 |
1VZFE..VZV20 |
2 | ||
| 13529 - GEAR, CAMSHAFT SUB | ||||
| 13529-62900 |
1VZFE..VZV20 |
2 | ||
| 13529A - WASHER, WAVE(FOR CAMSHAFT SUB GEAR) | ||||
| 90206-42001 |
1VZFE..VZV20 |
2 | ||
| 13529A - WASHER, WAVE(FOR CAMSHAFT SUB GEAR) | ||||
| 90206-42001 |
1VZFE..VZV20 |
2 | ||
| 13529B - RING, SHAFT SNAP(FOR CAMSHAFT SUB GEAR) | ||||
| 90520-41004 |
1VZFE..VZV20 |
2 | ||
| 13529B - RING, SHAFT SNAP(FOR CAMSHAFT SUB GEAR) | ||||
| 90520-41004 |
1VZFE..VZV20 |
2 | ||
| 13568 - BELT, TIMING | ||||
| 13568-62010 |
1VZFE..VZV20 |
1 | ||
| 13568-62020 |
1VZFE..VZV20 |
1 | ||
| 13579 - WASHER, CAMSHAFT TIMING GEAR BOLT | ||||
| 13579-62010 |
1VZFE..VZV20 |
2 | ||
| 13579 - WASHER, CAMSHAFT TIMING GEAR BOLT | ||||
| 13579-62010 |
1VZFE..VZV20 |
2 | ||
| 13584 - BRACKET, TIMING BELT IDLER | ||||
| 13584-62010 |
1VZFE..VZV20 |
1 | ||
| 13589 - STAY, IDLER BRACKET | ||||
| 13589-62010 |
1VZFE..VZV20 |
1 | ||
| 13711 - VALVE, INTAKE | ||||
| 13711-62010 |
1VZFE..VZV20 |
12 | ||
| 13711-62011 |
1VZFE..VZV20 |
12 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90913-02067 |
1VZFE..VZV20 BROWN |
24 | ||
| 90913-02066 |
1VZFE..VZV20 ﾌﾞﾗｯｸ |
24 | ||
| 90913-02066 |
1VZFE..VZV20 BLACK |
24 | ||
| 90913-02067 |
1VZFE..VZV20 ﾌﾞﾗｳﾝ |
24 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90504-30003 |
1VZFE..VZV20 |
24 | ||
| 13715 - VALVE, EXHAUST | ||||
| 13715-62011 |
1VZFE..VZV20 |
12 | ||
| 13715-62010 |
1VZFE..VZV20 |
12 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 13734-62010 |
1VZFE..VZV20 |
24 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-16010 |
1VZFE..VZV20 |
24 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03021 |
1VZFE..VZV20 |
48 | ||
| 13751 - LIFTER, VALVE | ||||
| 13751-74010 |
1VZFE..VZV20 |
24 | ||
| 13751-16010 |
1VZFE..VZV20 |
24 | ||
| 13753 - SHIM, VALVE ADJUSTING | ||||
| 13753-16060 |
1VZFE..VZV20 厚さ=2.60,T=2.600 |
33 | ||
| 13753-16020 |
1VZFE..VZV20 厚さ=2.50,T=2.500 |
33 | ||
| 13753-16160 |
1VZFE..VZV20 厚さ=2.85,T=2.850 |
33 | ||
| 13753-16040 |
1VZFE..VZV20 厚さ=2.55,T=2.550 |
33 | ||
| 13753-16120 |
1VZFE..VZV20 厚さ=2.75,T=2.750 |
33 | ||
| 13753-16080 |
1VZFE..VZV20 厚さ=2.65,T=2.650 |
33 | ||
| 13753-16220 |
1VZFE..VZV20 厚さ=3.00,T=3.000 |
33 | ||
| 13753-16140 |
1VZFE..VZV20 厚さ=2.80,T=2.800 |
33 | ||
| 13753-16300 |
1VZFE..VZV20 厚さ=3.20,T=3.200 |
33 | ||
| 13753-16240 |
1VZFE..VZV20 厚さ=3.05,T=3.050 |
33 | ||
| 13753-16340 |
1VZFE..VZV20 厚さ=3.30,T=3.300 |
33 | ||
| 13753-16260 |
1VZFE..VZV20 厚さ=3.10,T=3.100 |
33 | ||
| 13753-16180 |
1VZFE..VZV20 厚さ=2.90,T=2.900 |
33 | ||
| 13753-16280 |
1VZFE..VZV20 厚さ=3.15,T=3.150 |
33 | ||
| 13753-16320 |
1VZFE..VZV20 厚さ=3.25,T=3.250 |
33 | ||
| 13753-16100 |
1VZFE..VZV20 厚さ=2.70,T=2.700 |
33 | ||
| 13753-16200 |
1VZFE..VZV20 厚さ=2.95,T=2.950 |
33 | ||
| 13753-16040 |
1VZFE..VZV20 厚さ=2.55,*53 |
1 | ||
| 13753-16060 |
1VZFE..VZV20 厚さ=2.60,*53 |
1 | ||
| 13753-16020 |
1VZFE..VZV20 厚さ=2.50,*53 |
1 | ||
| 13753-16080 |
1VZFE..VZV20 厚さ=2.65,*53 |
1 | ||
| 13753-16100 |
1VZFE..VZV20 厚さ=2.70,*53 |
1 | ||
| 13753-16120 |
1VZFE..VZV20 厚さ=2.75,*53 |
1 | ||
| 13753-16180 |
1VZFE..VZV20 厚さ=2.90,*53 |
1 | ||
| 13753-16200 |
1VZFE..VZV20 厚さ=2.95,*53 |
1 | ||
| 13753-16160 |
1VZFE..VZV20 厚さ=2.85,*53 |
1 | ||
| 13753-16220 |
1VZFE..VZV20 厚さ=3.00,*53 |
1 | ||
| 13753-16140 |
1VZFE..VZV20 厚さ=2.80,*53 |
1 | ||
| 13753-16280 |
1VZFE..VZV20 厚さ=3.15,*53 |
1 | ||
| 13753-16340 |
1VZFE..VZV20 厚さ=3.30,*53 |
1 | ||
| 13753-16320 |
1VZFE..VZV20 厚さ=3.25,*53 |
1 | ||
| 13753-16300 |
1VZFE..VZV20 厚さ=3.20,*53 |
1 | ||
| 13753-16260 |
1VZFE..VZV20 厚さ=3.10,*53 |
1 | ||
| 13753-16240 |
1VZFE..VZV20 厚さ=3.05,*53 |
1 | ||
| Common parts | ||||
| 90105-08143 | ||||
| 90105-10191 | ||||
| 90105-12146 | ||||
| 91611-61050 | ||||
| 91651-60816 | ||||
