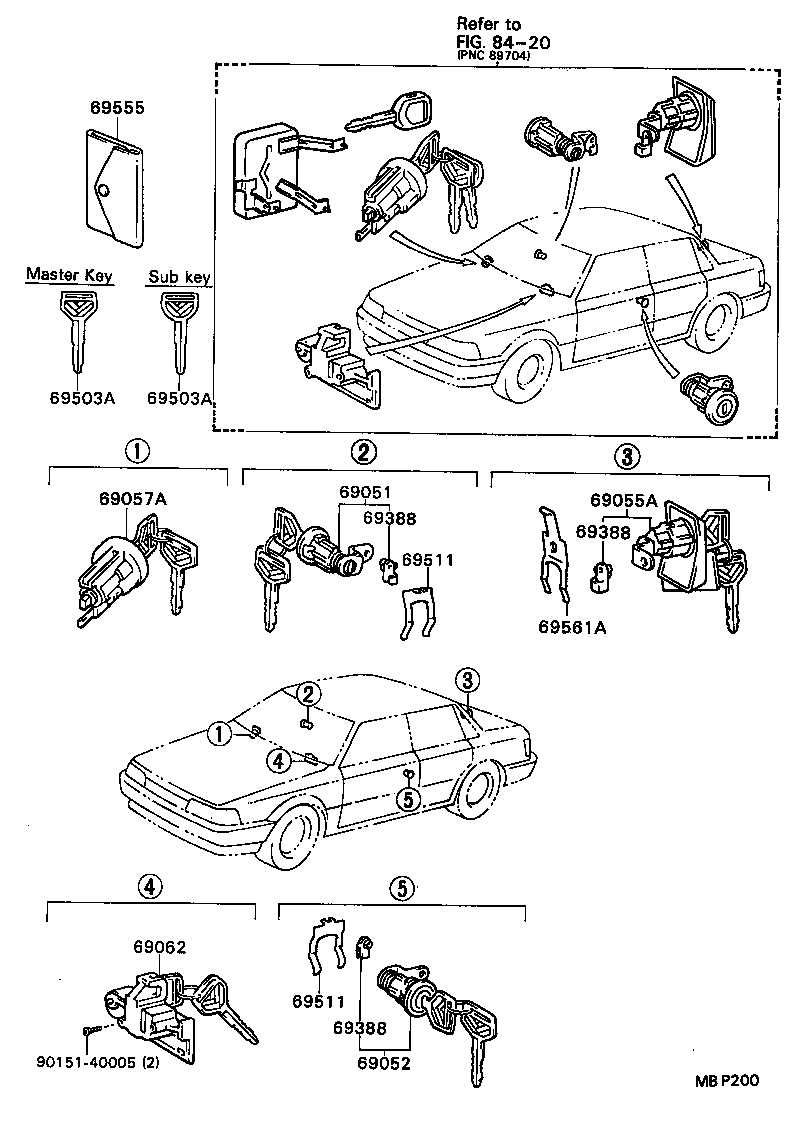

VZV20-JEMQK (1988)
Toyota Camry/Vista
(8808- )SED..GT,PRO,VX,ZX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69051 - CYLINDER & KEY SET, DOOR LOCK, RH | ||||
| 69051-32080 |
VZV20..SED |
1 | ||
| 69052 - CYLINDER & KEY SET, DOOR LOCK, LH | ||||
| 69052-32060 |
CV20,SV2#,VZV20..SED |
1 | ||
| 69055A - CYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK | ||||
| 69055-32130 |
SV2#,VZV20..SED..(GT,PRO,ZE,ZX) |
1 | ||
| 69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK | ||||
| 69057-32070 |
SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX |
1 | ||
| 69062 - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK | ||||
| 69056-32050 |
CV20,SV2#,VZV20 |
1 | ||
| 69388 - SNAP, ROD(FOR DOOR LOCK) | ||||
| 69759-32070 |
CV20,SV2#,VZV20 FRONT DOOR,RH |
1 | ||
| 69759-24080 |
CV20,SV2#,VZV20..SED LUGGAGE DOOR |
1 | ||
| 69759-32080 |
CV20,SV2#,VZV20 FRONT DOOR,LH |
1 | ||
| 69388 - SNAP, ROD(FOR DOOR LOCK) | ||||
| 69759-32070 |
CV20,SV2#,VZV20 FRONT DOOR,RH |
1 | ||
| 69759-24080 |
CV20,SV2#,VZV20..SED LUGGAGE DOOR |
1 | ||
| 69759-32080 |
CV20,SV2#,VZV20 FRONT DOOR,LH |
1 | ||
| 69388 - SNAP, ROD(FOR DOOR LOCK) | ||||
| 69759-32070 |
CV20,SV2#,VZV20 FRONT DOOR,RH |
1 | ||
| 69759-24080 |
CV20,SV2#,VZV20..SED LUGGAGE DOOR |
1 | ||
| 69759-32080 |
CV20,SV2#,VZV20 FRONT DOOR,LH |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00118 |
CV20,SV2#,VZV20 ﾏｽﾀｰｷｰ,*68付き |
1 | ||
| 90999-00099 |
CV20,SV2#,VZV20 ﾏｽﾀｰｷｰ |
1 | ||
| 90999-00100 |
CV20,SV2#,VZV20 ｻﾌﾞｷｰ |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00118 |
CV20,SV2#,VZV20 ﾏｽﾀｰｷｰ,*68付き |
1 | ||
| 90999-00099 |
CV20,SV2#,VZV20 ﾏｽﾀｰｷｰ |
1 | ||
| 90999-00100 |
CV20,SV2#,VZV20 ｻﾌﾞｷｰ |
1 | ||
| 69511 - RETAINER, FRONT DOOR LOCK CYLINDER | ||||
| 69511-32020 |
CV20,SV2#,VZV20..SED |
2 | ||
| 69511 - RETAINER, FRONT DOOR LOCK CYLINDER | ||||
| 69511-32020 |
CV20,SV2#,VZV20..SED |
2 | ||
| 69555 - COVER, KEY | ||||
| 69555-20010 |
CV20,SV2#,VZV20 |
1 | ||
| 69561A - RETAINER, LUGGAGE COMPARTMENT LOCK CYLINDER | ||||
| 69561-32020 |
CV20,SV2#,VZV20..SED |
1 | ||
| Common parts | ||||
| 90151-40005 | ||||
| Linked diagrams | ||||
| 8420 | ||||
(8808- )SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69051 - CYLINDER & KEY SET, DOOR LOCK, RH | ||||
| 69051-32080 |
VZV20..SED |
1 | ||
| 69052 - CYLINDER & KEY SET, DOOR LOCK, LH | ||||
| 69052-32060 |
CV20,SV2#,VZV20..SED |
1 | ||
| 69055A - CYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK | ||||
| 69055-32130 |
SV2#,VZV20..SED..(GT,PRO,ZE,ZX) |
1 | ||
| 69055A - CYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK | ||||
| 69055-32130 |
SV2#,VZV20..SED..(GT,PRO,ZE,ZX) |
1 | ||
| 69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK | ||||
| 69057-32070 |
SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX |
1 | ||
| 69062 - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK | ||||
| 69056-32050 |
CV20,SV2#,VZV20 |
1 | ||
| 69388 - SNAP, ROD(FOR DOOR LOCK) | ||||
| 69759-32070 |
CV20,SV2#,VZV20 FRONT DOOR,RH |
1 | ||
| 69759-24080 |
CV20,SV2#,VZV20..SED LUGGAGE DOOR |
1 | ||
| 69759-32080 |
CV20,SV2#,VZV20 FRONT DOOR,LH |
1 | ||
| 69388 - SNAP, ROD(FOR DOOR LOCK) | ||||
| 69759-32070 |
CV20,SV2#,VZV20 FRONT DOOR,RH |
1 | ||
| 69759-24080 |
CV20,SV2#,VZV20..SED LUGGAGE DOOR |
1 | ||
| 69759-32080 |
CV20,SV2#,VZV20 FRONT DOOR,LH |
1 | ||
| 69388 - SNAP, ROD(FOR DOOR LOCK) | ||||
| 69759-32070 |
CV20,SV2#,VZV20 FRONT DOOR,RH |
1 | ||
| 69759-24080 |
CV20,SV2#,VZV20..SED LUGGAGE DOOR |
1 | ||
| 69759-32080 |
CV20,SV2#,VZV20 FRONT DOOR,LH |
1 | ||
| 69388 - SNAP, ROD(FOR DOOR LOCK) | ||||
| 69759-32070 |
CV20,SV2#,VZV20 FRONT DOOR,RH |
1 | ||
| 69759-24080 |
CV20,SV2#,VZV20..SED LUGGAGE DOOR |
1 | ||
| 69759-32080 |
CV20,SV2#,VZV20 FRONT DOOR,LH |
1 | ||
| 69503 - CYLINDER SET, LOCK | ||||
| 69005-32420 |
VZV20..SED |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00118 |
CV20,SV2#,VZV20 ﾏｽﾀｰｷｰ,*68付き |
1 | ||
| 90999-00099 |
CV20,SV2#,VZV20 ﾏｽﾀｰｷｰ |
1 | ||
| 90999-00100 |
CV20,SV2#,VZV20 ｻﾌﾞｷｰ |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00118 |
CV20,SV2#,VZV20 ﾏｽﾀｰｷｰ,*68付き |
1 | ||
| 90999-00099 |
CV20,SV2#,VZV20 ﾏｽﾀｰｷｰ |
1 | ||
| 90999-00100 |
CV20,SV2#,VZV20 ｻﾌﾞｷｰ |
1 | ||
| 69511 - RETAINER, FRONT DOOR LOCK CYLINDER | ||||
| 69511-32020 |
CV20,SV2#,VZV20..SED |
2 | ||
| 69511 - RETAINER, FRONT DOOR LOCK CYLINDER | ||||
| 69511-32020 |
CV20,SV2#,VZV20..SED |
2 | ||
| 69555 - COVER, KEY | ||||
| 69555-20010 |
CV20,SV2#,VZV20 |
1 | ||
| 69561A - RETAINER, LUGGAGE COMPARTMENT LOCK CYLINDER | ||||
| 69561-32020 |
CV20,SV2#,VZV20..SED |
1 | ||
| Common parts | ||||
| 90151-40005 | ||||
