VZV20-JEMQK (1988)
Toyota Camry/Vista
Production
Aug 1988
-
Jul 1990
Engine
1VZFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )1VZFE

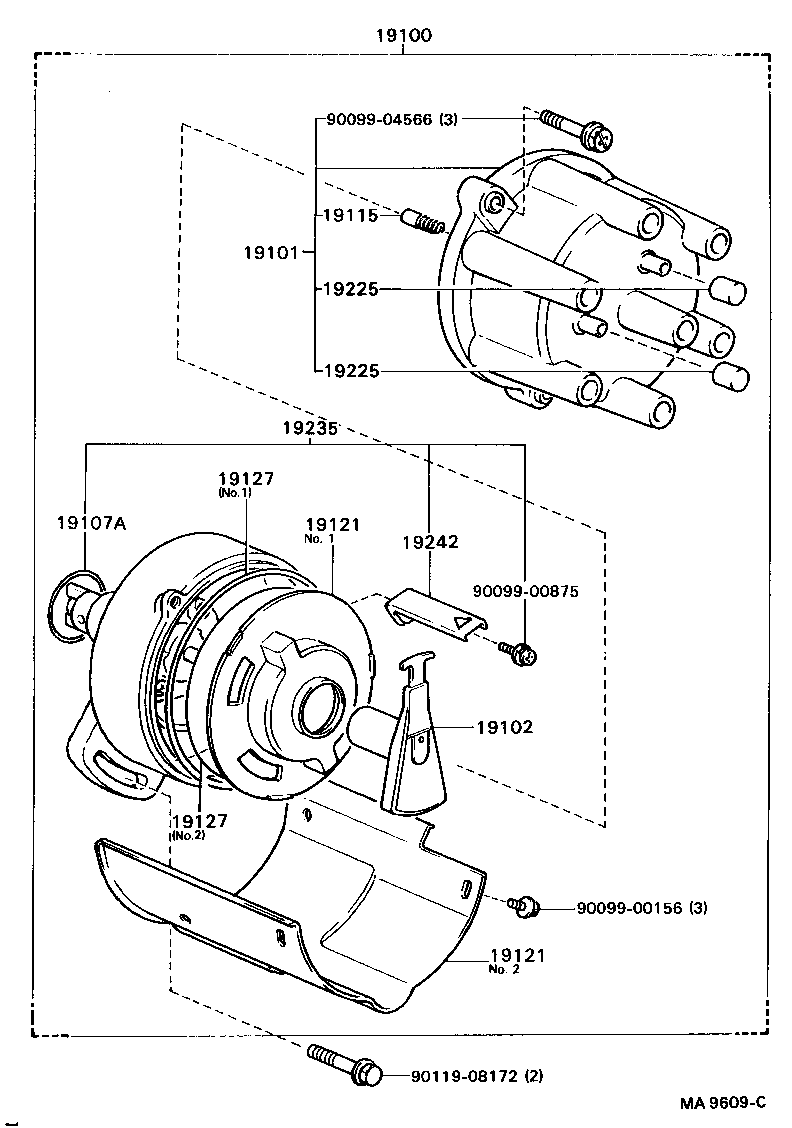

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 19100 - DISTRIBUTOR ASSY | ||||
| 19100-62010 |
1VZFE..VZV20 |
1 | ||
| 19101 - CAP SUB-ASSY, DISTRIBUTOR | ||||
| 19101-62010 |
1VZFE..VZV20 |
1 | ||
| 19102 - ROTOR SUB-ASSY, DISTRIBUTOR | ||||
| 19102-62010 |
1VZFE..VZV20 |
1 | ||
| 19107A - RING, O, DISTRIBUTOR HOUSING | ||||
| 90099-14089 |
1VZFE..VZV20 |
1 | ||
| 19115 - PIECE, DISTRIBUTOR CAP, CENTER | ||||
| 19115-50010 |
1VZFE..VZV20 |
1 | ||
| 19121 - COVER, DUST PROOF | ||||
| 19121-62011 |
1VZFE..VZV20 NO.2 |
1 | ||
| 19121-62010 |
1VZFE..VZV20 NO.1 |
1 | ||
| 19121 - COVER, DUST PROOF | ||||
| 19121-62011 |
1VZFE..VZV20 NO.2 |
1 | ||
| 19121-62010 |
1VZFE..VZV20 NO.1 |
1 | ||
| 19127 - PACKING, DUST PROOF | ||||
| 19127-52020 |
1VZFE..VZV20 NO.1 |
1 | ||
| 19127-62010 |
1VZFE..VZV20 NO.2 |
1 | ||
| 19127 - PACKING, DUST PROOF | ||||
| 19127-52020 |
1VZFE..VZV20 NO.1 |
1 | ||
| 19127-62010 |
1VZFE..VZV20 NO.2 |
1 | ||
| 19225 - CAP, RUBBER | ||||
| 19225-62010 |
1VZFE..VZV20 |
2 | ||
| 19225 - CAP, RUBBER | ||||
| 19225-62010 |
1VZFE..VZV20 |
2 | ||
| 19235 - HOUSING, DISTRIBUTOR | ||||
| 19235-62010 |
1VZFE..VZV20 |
1 | ||
| 19242 - CLAMP, CORD | ||||
| 19242-62010 |
1VZFE..VZV20 |
1 | ||
| Common parts | ||||
| 90099-00156 | ||||
| 90099-00875 | ||||
| 90099-04566 | ||||
| 90119-08172 | ||||
