VZV20-JEMQK (1988)
Toyota Camry/Vista
Production
Aug 1988
-
Jul 1990
Engine
1VZFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )1VZFE

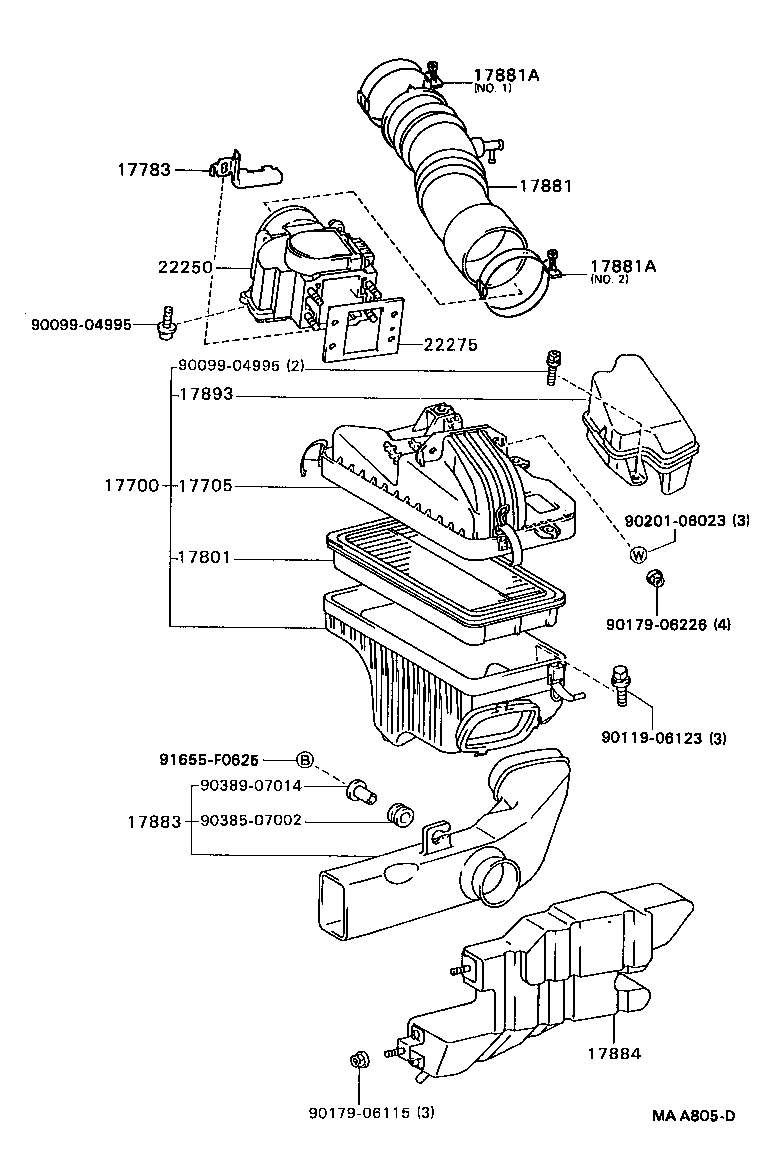

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-62020 |
1VZFE..VZV20 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-62020 |
1VZFE..VZV20 |
1 | ||
| 17783 - PLATE, AIR CLEANER BAFFLE | ||||
| 17783-74030 |
1VZFE..VZV20 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-74020 |
1VZFE..VZV20 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-62010 |
1VZFE..VZV20 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10750 |
1VZFE..VZV20 NO.1 |
1 | ||
| 96111-10900 |
1VZFE..VZV20 NO.2 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10750 |
1VZFE..VZV20 NO.1 |
1 | ||
| 96111-10900 |
1VZFE..VZV20 NO.2 |
1 | ||
| 17883 - HOSE, AIR CLEANER, NO.3 | ||||
| 17882-63110 |
1VZFE..VZV20 |
1 | ||
| 17884 - HOSE, AIR CLEANER, NO.4 | ||||
| 17883-62011 |
1VZFE..VZV20 |
1 | ||
| 17883-62010 |
1VZFE..VZV20 |
1 | ||
| 17893 - RESONATOR, INTAKE AIR | ||||
| 17893-62010 |
1VZFE..VZV20 |
1 | ||
| 22250 - METER ASSY, INTAKE AIR FLOW | ||||
| 22250-62010 |
1VZFE..VZV20 |
1 | ||
| 22275 - GASKET, AIR FLOW METER | ||||
| 22275-43010 |
1VZFE..VZV20 |
1 | ||
| Common parts | ||||
| 90099-04995 | ||||
| 90119-06123 | ||||
| 90179-06115 | ||||
| 90179-06226 | ||||
| 90201-06023 | ||||
| 90385-07002 | ||||
| 90389-07014 | ||||
| 91655-F0625 | ||||
