SV43-BTPMK (1994)

Toyota Camry/Vista

Production Jun 1994 - Jun 1998
Engine 3SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

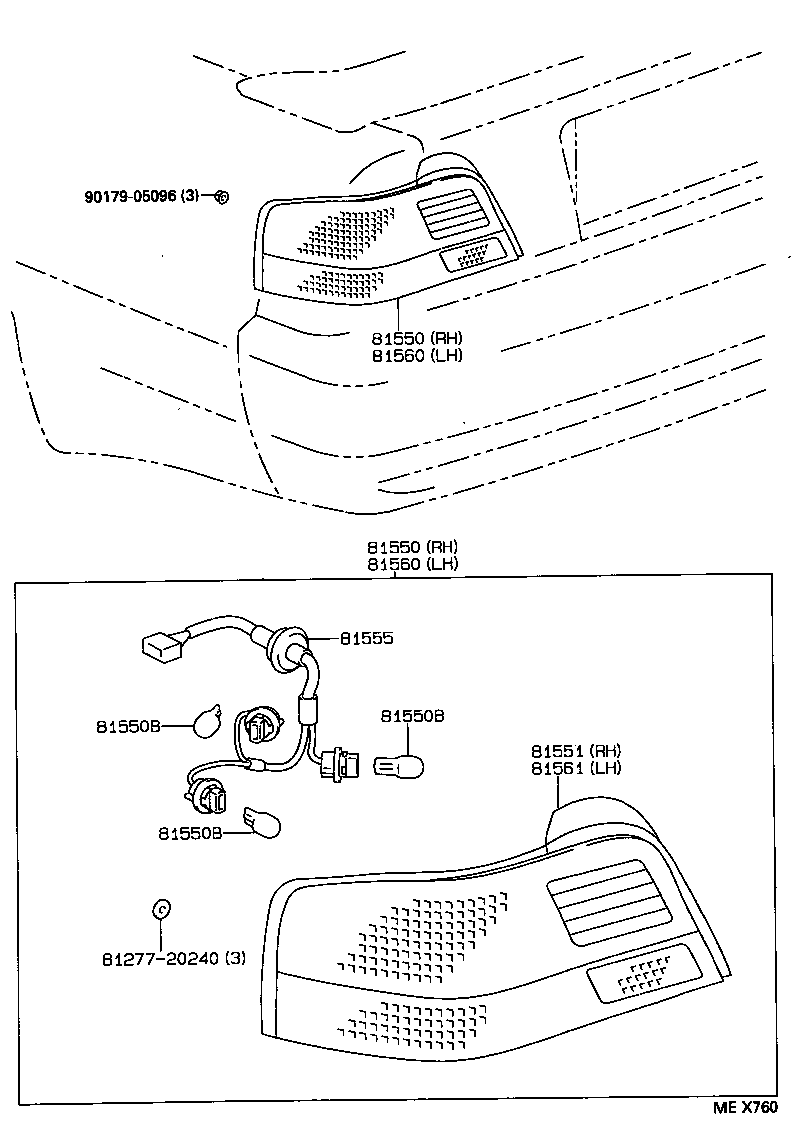

(9406-9605)HT

Click highlighted areas on diagram

diagram 8127720240 81550 81550 81550B 81550B 81550B 81551 81555 81560 81560 81561 9017905096
Part # Description Qty Price
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-32380

CV4#,SV4#..HT

 1
81550-32350

CV4#,SV4#..HT

 1
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-32380

CV4#,SV4#..HT

 1
81550-32350

CV4#,SV4#..HT

 1
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-13044

CV4#,SV4#

12V 21/5W

 2
90981-13043

CV4#,SV4#..HT

12V 21W,TURN/BACK

 4
90981-11039

CV4#,SV4#..HT

12V 16W

 2
90981-13043

CV4#,SV4#

12V 21W

 2
90981-13044

CV4#,SV4#

12V 21/5W,STOP

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-13044

CV4#,SV4#

12V 21/5W

 2
90981-13043

CV4#,SV4#..HT

12V 21W,TURN/BACK

 4
90981-11039

CV4#,SV4#..HT

12V 16W

 2
90981-13043

CV4#,SV4#

12V 21W

 2
90981-13044

CV4#,SV4#

12V 21/5W,STOP

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-13044

CV4#,SV4#

12V 21/5W

 2
90981-13043

CV4#,SV4#..HT

12V 21W,TURN/BACK

 4
90981-11039

CV4#,SV4#..HT

12V 16W

 2
90981-13043

CV4#,SV4#

12V 21W

 2
90981-13044

CV4#,SV4#

12V 21/5W,STOP

 2
81551 - LENS, REAR COMBINATION LAMP, RH
81551-32380

CV4#,SV4#..HT

 1
81551-32350

CV4#,SV4#..HT

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-32350

CV4#,SV4#..HT

 2
81555-32380

CV4#,SV4#..HT

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-32350

CV4#,SV4#..HT

 1
81560-32380

CV4#,SV4#..HT

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-32350

CV4#,SV4#..HT

 1
81560-32380

CV4#,SV4#..HT

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-32350

CV4#,SV4#..HT

 1
81561-32380

CV4#,SV4#..HT

 1
Common parts
81277-20240
90179-05096

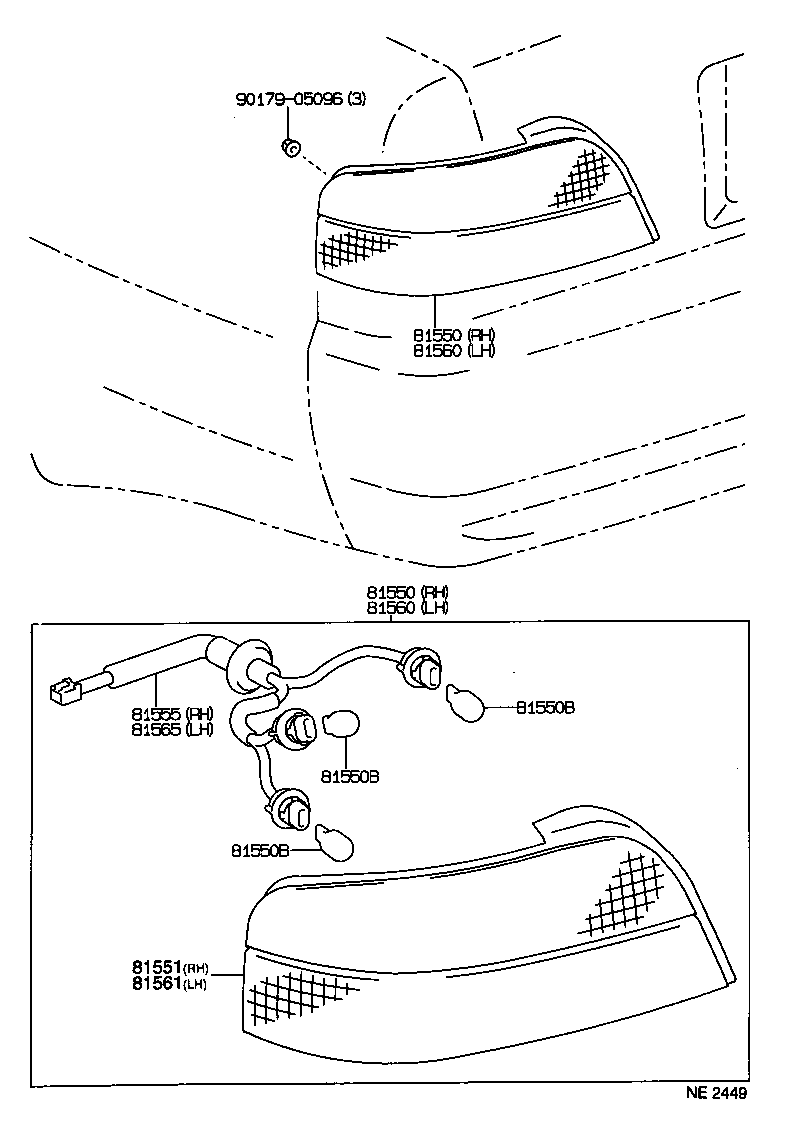

(9605- )HT

Click highlighted areas on diagram

diagram 81550 81550 81550B 81550B 81550B 81551 81555 81560 81560 81561 81565 9017905096
Part # Description Qty Price
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-32380

CV4#,SV4#..HT

 1
81550-32350

CV4#,SV4#..HT

 1
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-32380

CV4#,SV4#..HT

 1
81550-32350

CV4#,SV4#..HT

 1
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-13044

CV4#,SV4#

12V 21/5W

 2
90981-13043

CV4#,SV4#..HT

12V 21W,TURN/BACK

 4
90981-11039

CV4#,SV4#..HT

12V 16W

 2
90981-13043

CV4#,SV4#

12V 21W

 2
90981-13044

CV4#,SV4#

12V 21/5W,STOP

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-13044

CV4#,SV4#

12V 21/5W

 2
90981-13043

CV4#,SV4#..HT

12V 21W,TURN/BACK

 4
90981-11039

CV4#,SV4#..HT

12V 16W

 2
90981-13043

CV4#,SV4#

12V 21W

 2
90981-13044

CV4#,SV4#

12V 21/5W,STOP

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-13044

CV4#,SV4#

12V 21/5W

 2
90981-13043

CV4#,SV4#..HT

12V 21W,TURN/BACK

 4
90981-11039

CV4#,SV4#..HT

12V 16W

 2
90981-13043

CV4#,SV4#

12V 21W

 2
90981-13044

CV4#,SV4#

12V 21/5W,STOP

 2
81551 - LENS, REAR COMBINATION LAMP, RH
81551-32380

CV4#,SV4#..HT

 1
81551-32350

CV4#,SV4#..HT

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-32350

CV4#,SV4#..HT

 2
81555-32380

CV4#,SV4#..HT

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-32350

CV4#,SV4#..HT

 1
81560-32380

CV4#,SV4#..HT

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-32350

CV4#,SV4#..HT

 1
81560-32380

CV4#,SV4#..HT

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-32350

CV4#,SV4#..HT

 1
81561-32380

CV4#,SV4#..HT

 1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81555-32380

CV4#,SV4#..HT

 1
Common parts
90179-05096
