SV43-BTPGK (1994)
Toyota Camry/Vista
Production
Jun 1994
-
Jun 1998
Engine
3SFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9406- )

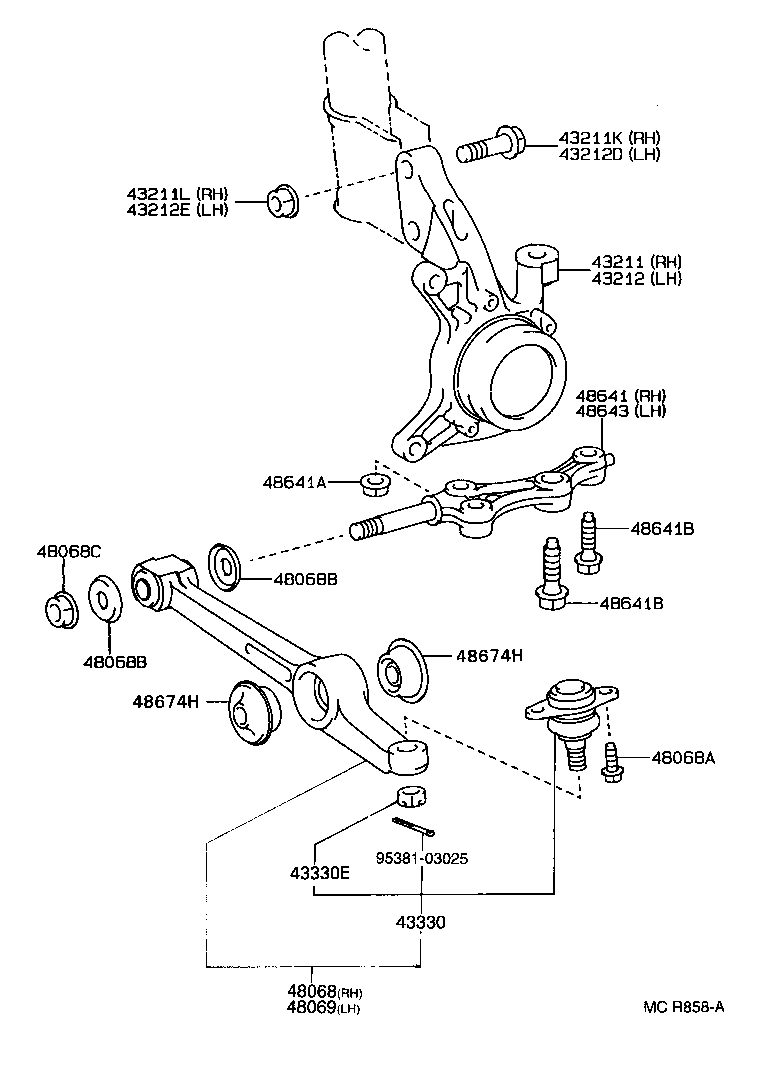

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 43211 - KNUCKLE, STEERING, RH | ||||
| 43211-32100 |
CV43,SV43 |
1 | ||
| 43211-32110 |
CV43,SV43 ｱﾘ(ABS) |
1 | ||
| 43211-32111 |
CV43,SV43 |
1 | ||
| 43211-32111 |
CV43,SV43 ｱﾘ(ABS) |
1 | ||
| 43211K - BOLT (FOR STEERING KNUCKLE RH) | ||||
| 90105-17001 |
CV4#,SV4# 外径=17 |
2 | ||
| 43211L - NUT (FOR STEERING KNUCKLE RH) | ||||
| 90179-17001 |
CV4#,SV4# |
2 | ||
| 43212 - KNUCKLE, STEERING, LH | ||||
| 43212-32100 |
CV43,SV43 |
1 | ||
| 43212-32111 |
CV43,SV43 |
1 | ||
| 43212-32110 |
CV43,SV43 ｱﾘ(ABS) |
1 | ||
| 43212-32111 |
CV43,SV43 ｱﾘ(ABS) |
1 | ||
| 43212D - BOLT (FOR STEERING KNUCKLE LH) | ||||
| 90105-17001 |
CV4#,SV4# 外径=17 |
2 | ||
| 43212E - NUT (FOR STEERING KNUCKLE LH) | ||||
| 90179-17001 |
CV4#,SV4# |
2 | ||
| 43330 - JOINT ASSY, LOWER BALL, FRONT | ||||
| 43330-39345 |
CV4#,SV4# |
2 | ||
| 43330E - NUT, CASTLE (FOR FRONT LOWER BALL JOINT SETTING) | ||||
| 90171-14002 |
CV4#,SV4# |
2 | ||
| 48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH | ||||
| 48620-32060 |
CV4#,SV4# |
1 | ||
| 48068A - BOLT(FOR FRONT SUSPENSION LOWER ARM) | ||||
| 90105-12142 |
CV4#,SV4# |
4 | ||
| 48068B - RETAINER, CUSHION(FOR FRONT SUSPENSION LOWER ARM) | ||||
| 90948-02103 |
CV4#,SV4# FRONT |
2 | ||
| 90948-02103 |
CV43,SV4#;CV40..ATM..XJ;CV40..ALPX,VJ,VX,ZX FRONT |
2 | ||
| 90948-02088 |
CV4#,SV4# REAR |
2 | ||
| 48068B - RETAINER, CUSHION(FOR FRONT SUSPENSION LOWER ARM) | ||||
| 90948-02103 |
CV4#,SV4# FRONT |
2 | ||
| 90948-02103 |
CV43,SV4#;CV40..ATM..XJ;CV40..ALPX,VJ,VX,ZX FRONT |
2 | ||
| 90948-02088 |
CV4#,SV4# REAR |
2 | ||
| 48068C - NUT(FOR FRONT SUSPENSION LOWER ARM) | ||||
| 90179-16004 |
CV4#,SV4# |
2 | ||
| 48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH | ||||
| 48640-32060 |
CV4#,SV4# |
1 | ||
| 48641 - SHAFT, LOWER ARM, RH | ||||
| 48641-32030 |
CV43,SV43 |
1 | ||
| 48641A - NUT(FOR SUSPENSION LOWER ARM SHAFT) | ||||
| 90179-14043 |
CV4#,SV4# |
4 | ||
| 90179-14068 |
CV4#,SV4# |
4 | ||
| 48641B - BOLT(FOR SUSPENSION LOWER ARM SHAFT) | ||||
| 90105-14076 |
CV4#,SV4# *14−1.50PX83−36 |
2 | ||
| 90105-14079 |
CV4#,SV4# *14−1.50PX70−30 |
2 | ||
| 48641B - BOLT(FOR SUSPENSION LOWER ARM SHAFT) | ||||
| 90105-14076 |
CV4#,SV4# *14−1.50PX83−36 |
2 | ||
| 90105-14079 |
CV4#,SV4# *14−1.50PX70−30 |
2 | ||
| 48643 - SHAFT, LOWER ARM, LH | ||||
| 48643-32030 |
CV43,SV43 |
1 | ||
| 48674H - CUSHION, STRUT BAR | ||||
| 48674-32110 |
CV4#,SV4# |
4 | ||
| 48674H - CUSHION, STRUT BAR | ||||
| 48674-32110 |
CV4#,SV4# |
4 | ||
| Common parts | ||||
| 95381-03025 | ||||
