SV43-BTMMK (1994)

Toyota Camry/Vista

Production Jun 1994 - Jun 1998
Engine 3SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9406- )HT

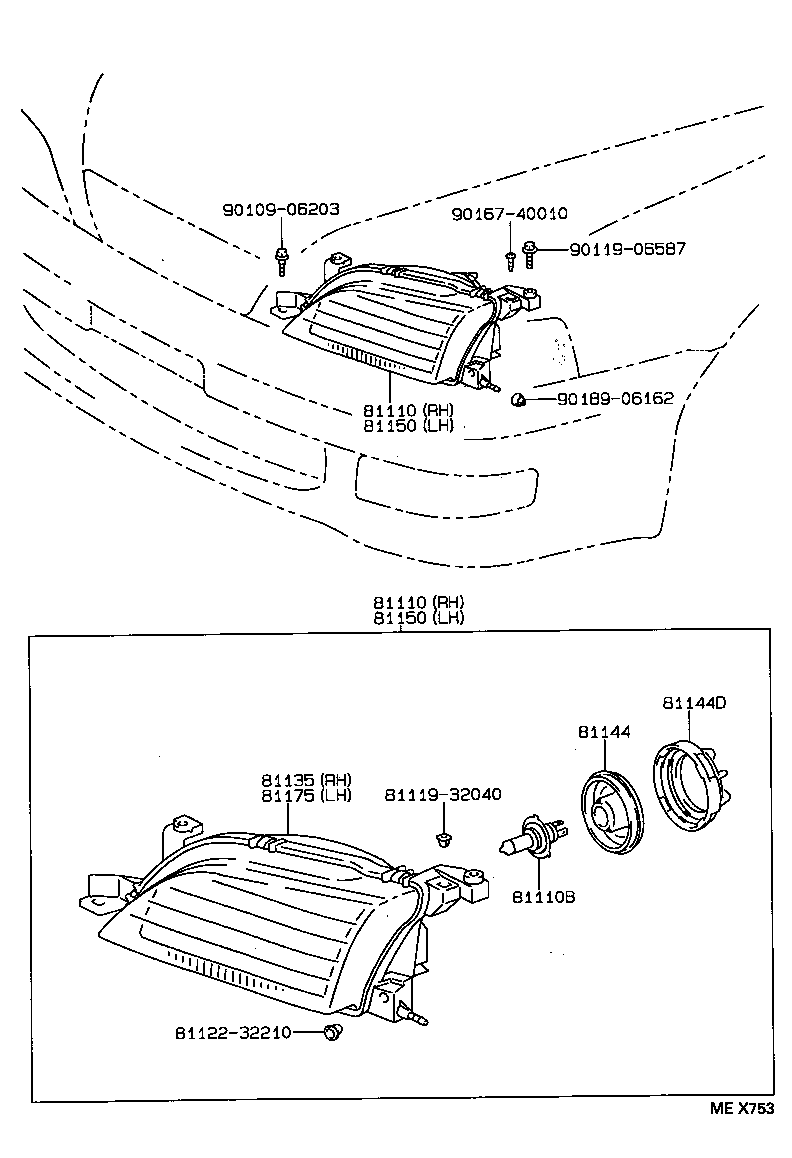

Click highlighted areas on diagram

diagram 81110 81110 81110B 8111932040 8112232210 81135 81144 81144D 81150 81150 81175 9010906203 9011906587 9016740010 9018906162
Part # Description Qty Price
81110 - HEADLAMP ASSY, RH
81110-32430

CV4#,SV4#..HT

 1
81110 - HEADLAMP ASSY, RH
81110-32430

CV4#,SV4#..HT

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-22002

CV4#,SV4#..HT

12V 60/55W,*HAL *WH

 2
81135 - UNIT ASSY, HEADLAMP, RH
81130-32430

CV4#,SV4#..HT

 1
81144 - COVER, HEADLAMP, NO.1
81179-32430

CV4#,SV4#..HT

 2
81144D - CAP, HEADLAMP LOCKING
81122-32430

CV4#,SV4#..HT

 2
81150 - HEADLAMP ASSY, LH
81150-32430

CV4#,SV4#..HT

 1
81150 - HEADLAMP ASSY, LH
81150-32430

CV4#,SV4#..HT

 1
81175 - UNIT ASSY, HEADLAMP, LH
81170-32430

CV4#,SV4#..HT

 1
Common parts
81119-32040
81122-32210
90109-06203
90119-06587
90167-40010
90189-06162
