SV43-BTMMK (1994)

Toyota Camry/Vista

Production Jun 1994 - Jun 1998
Engine 3SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9406- )HT

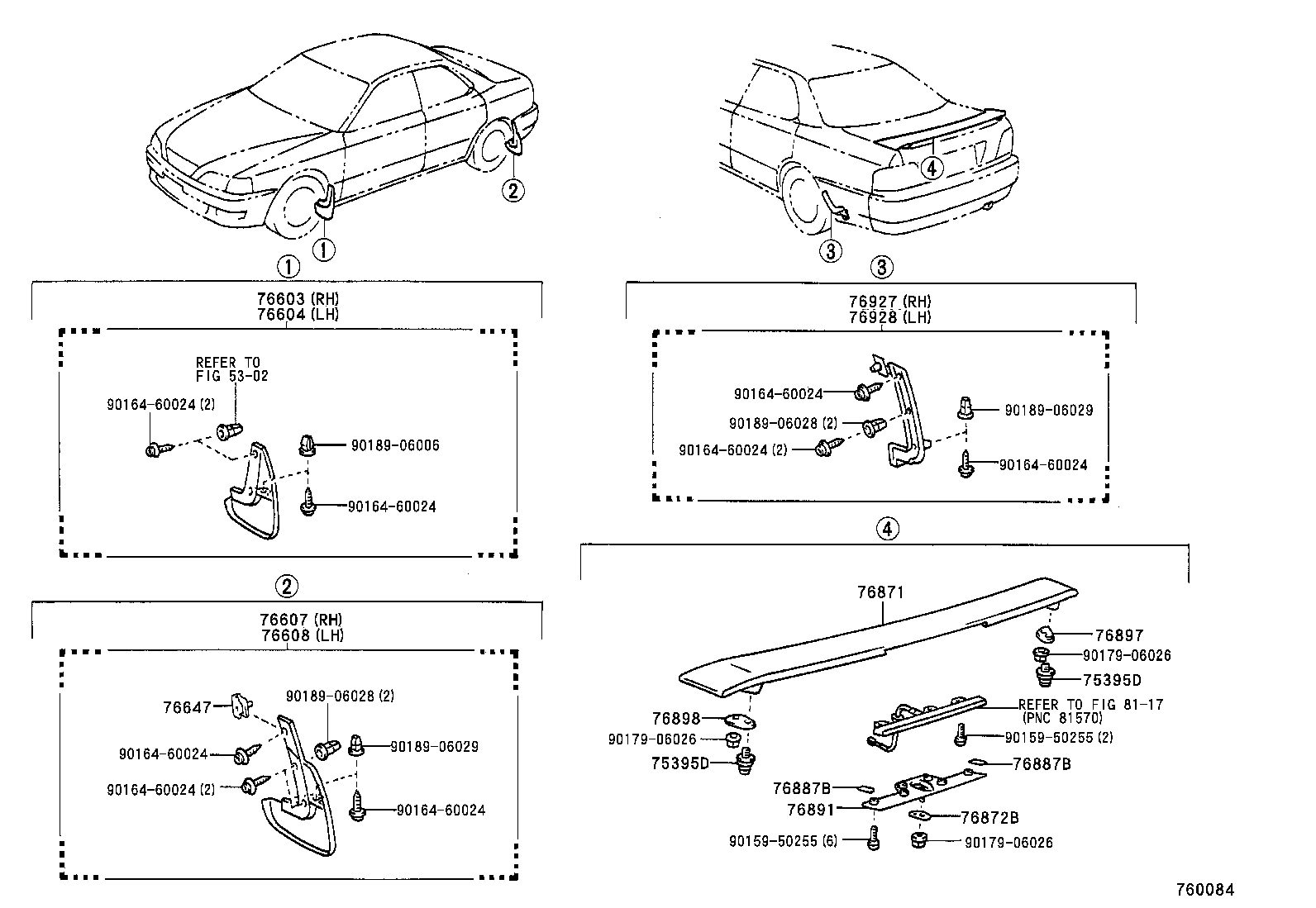

Click highlighted areas on diagram

diagram 5302 75395D 75395D 76603 76604 76607 76608 76647 76871 76872B 76887B 76887B 76891 76897 76898 76927 76928 8117 9015950255 9015950255 9016460024 9016460024 9016460024 9016460024 9016460024 9016460024 9016460024 9016460024 9017906026 9017906026 9017906026 9018906006 9018906028 9018906028 9018906029 9018906029
Part # Description Qty Price
76603 - MUDGUARD SUB-ASSY, FRONT FENDER, RH
76621-39355

CV4#,SV4#..HT

 1
76604 - MUDGUARD SUB-ASSY, FRONT FENDER, LH
76622-39355

CV4#,SV4#..HT

 1
76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
76625-39425

CV4#,SV4#..HT

 1
76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
76626-39425

CV4#,SV4#..HT

 1
76647 - RETAINER, QUARTER PANEL REAR MUDGUARD
76647-32010

CV4#,SV4#

 2
76927 - PROTECTER, REAR MUDGUARD, RH
76927-39015

CV4#,SV4#

 1
76928 - PROTECTER, REAR MUDGUARD, LH
76928-39015

CV4#,SV4#

 1
Common parts
90159-50255
90164-60024
90179-06026
90189-06006
90189-06028
90189-06029
Linked diagrams
5302
8117
