SV43-BTMGK (1994)
Toyota Camry/Vista

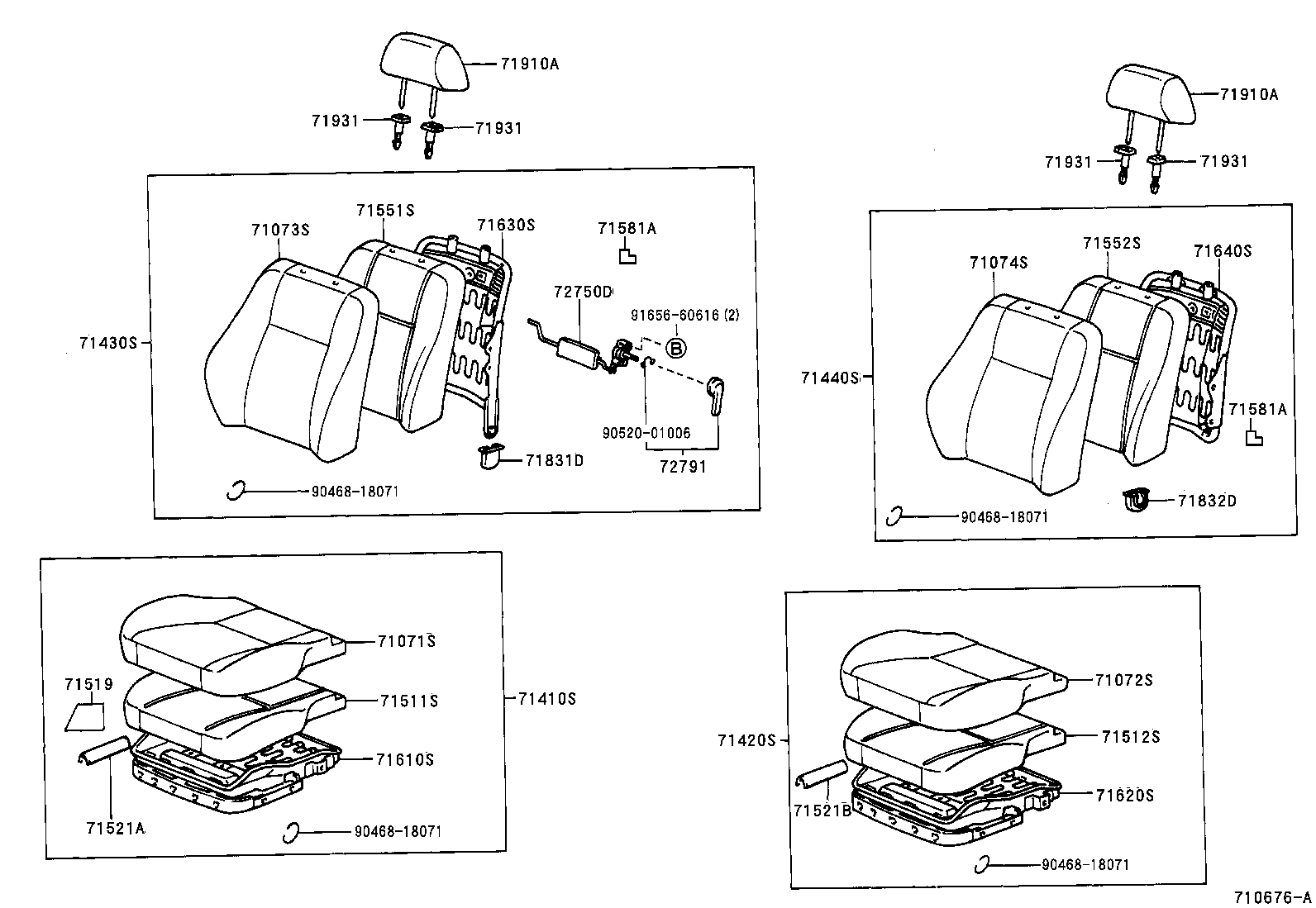

ILLUST NO. 1 OF 2(9406- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-3H330B0 |
SV41,42,43..VX VXﾘﾐﾃﾂﾄﾞ,SHADOW GRAY,TRIM1# |
1 | ||
| 71071-3H320B0 |
CV4#,SV4#..VX,ZX SHADOW GRAY,TRIM1# |
1 | ||
| 71071-3H330B0 |
SV41,42,43..VX,ZX G ﾊﾟﾂｹ-ｼﾞ,SHADOW GRAY,TRIM1# |
1 | ||
| 71071-3H320E0 |
CV4#,SV4#..VX,ZX OAK,TRIM4# |
1 | ||
| 71071-3H330E0 |
SV41,42,43..VX VXﾘﾐﾃﾂﾄﾞ,OAK,TRIM4# |
1 | ||
| 71071-3H330E0 |
SV41,42,43..VX,ZX G ﾊﾟﾂｹ-ｼﾞ,OAK,TRIM4# |
1 | ||
| 71071-3H360B0 |
CV4#,SV4#..VX,ZX MEDIUM GRAY,TRIM1# |
1 | ||
| 71071-3H360E0 |
CV4#,SV4#..VX,ZX MEDIUM OAK,TRIM4# |
1 | ||
| 71071-3H370E0 |
SV41,42,43..VX,ZX G ﾊﾟﾂｹ-ｼﾞ,MEDIUM OAK,TRIM4# |
1 | ||
| 71071-3H370B0 |
SV41,42,43..VX,ZX G ﾊﾟﾂｹ-ｼﾞ,MEDIUM GRAY,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-3H320B0 |
CV4#,SV4#..VX,ZX SHADOW GRAY,TRIM1# |
1 | ||
| 71072-3H320E0 |
CV4#,SV4#..VX,ZX OAK,TRIM4# |
1 | ||
| 71072-3H330B0 |
CV4#,SV4#..VX,ZX MEDIUM GRAY,TRIM1# |
1 | ||
| 71072-3H330E0 |
CV4#,SV4#..VX,ZX MEDIUM OAK,TRIM4# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-3H110B0 |
SV41,42,43..VX VXﾘﾐﾃﾂﾄﾞ,SHADOW GRAY,TRIM1# |
1 | ||
| 71073-3H110E0 |
SV41,42,43..VX VXﾘﾐﾃﾂﾄﾞ,OAK,TRIM4# |
1 | ||
| 71073-3H100E0 |
CV4#,SV4#..VX,ZX OAK,TRIM4# |
1 | ||
| 71073-3H110B0 |
SV41,42,43..VX,ZX G ﾊﾟﾂｹ-ｼﾞ,SHADOW GRAY,TRIM1# |
1 | ||
| 71073-3H110E0 |
SV41,42,43..VX,ZX G ﾊﾟﾂｹ-ｼﾞ,OAK,TRIM4# |
1 | ||
| 71073-3H100B0 |
CV4#,SV4#..VX,ZX SHADOW GRAY,TRIM1# |
1 | ||
| 71073-3H140B0 |
CV4#,SV4#..VX,ZX MEDIUM GRAY,TRIM1# |
1 | ||
| 71073-3H140E0 |
CV4#,SV4#..VX,ZX MEDIUM OAK,TRIM4# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-32650E0 |
CV4#,SV4#..VX,ZX OAK,TRIM4# |
1 | ||
| 71074-32650B0 |
CV4#,SV4#..VX,ZX SHADOW GRAY,TRIM1# |
1 | ||
| 71074-32680B0 |
CV4#,SV4#..VX,ZX MEDIUM GRAY,TRIM1# |
1 | ||
| 71074-32680E0 |
CV4#,SV4#..VX,ZX MEDIUM OAK,TRIM4# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-3H190B0 |
CV4#,SV4#..VX,ZX ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71410-3H190E0 |
CV4#,SV4#..VX,ZX ***,OAK,TRIM4# |
1 | ||
| 71410-3H200B0 |
SV41,42,43..VX,ZX ***,G ﾊﾟﾂｹ-ｼﾞ,SHADOW GRAY,TRIM1# |
1 | ||
| 71410-3H200E0 |
SV41,42,43..VX,ZX ***,G ﾊﾟﾂｹ-ｼﾞ,OAK,TRIM4# |
1 | ||
| 71410-3H250B0 |
CV4#,SV4#..VX,ZX ***,MEDIUM GRAY,TRIM1# |
1 | ||
| 71410-3H250E0 |
CV4#,SV4#..VX,ZX ***,MEDIUM OAK,TRIM4# |
1 | ||
| 71410-3H260B0 |
SV41,42,43..VX,ZX ***,G ﾊﾟﾂｹ-ｼﾞ,MEDIUM GRAY,TRIM1# |
1 | ||
| 71410-3H260E0 |
SV41,42,43..VX,ZX ***,G ﾊﾟﾂｹ-ｼﾞ,MEDIUM OAK,TRIM4# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-3H190B0 |
CV4#,SV4#..VX,ZX ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71420-3H210E0 |
CV4#,SV4#..VX,ZX ***,MEDIUM OAK,TRIM4# |
1 | ||
| 71420-3H190E0 |
CV4#,SV4#..VX,ZX ***,OAK,TRIM4# |
1 | ||
| 71420-3H210B0 |
CV4#,SV4#..VX,ZX ***,MEDIUM GRAY,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-3H050E0 |
CV4#,SV4#..VX,ZX ***,OAK,TRIM4# |
1 | ||
| 71430-3H050B0 |
CV4#,SV4#..VX,ZX ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71430-3H060B0 |
SV41,42,43..VX,ZX ***,G ﾊﾟﾂｹ-ｼﾞ,SHADOW GRAY,TRIM1# |
1 | ||
| 71430-3H110B0 |
CV4#,SV4#..VX,ZX ***,MEDIUM GRAY,TRIM1# |
1 | ||
| 71430-3H110E0 |
CV4#,SV4#..VX,ZX ***,MEDIUM OAK,TRIM4# |
1 | ||
| 71430-3H060E0 |
SV41,42,43..VX,ZX ***,G ﾊﾟﾂｹ-ｼﾞ,OAK,TRIM4# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-32770E0 |
CV4#,SV4#..VX,ZX ***,OAK,TRIM4# |
1 | ||
| 71440-32770B0 |
CV4#,SV4#..VX,ZX ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71440-32820B0 |
CV4#,SV4#..VX,ZX ***,MEDIUM GRAY,TRIM1# |
1 | ||
| 71440-32820E0 |
CV4#,SV4#..VX,ZX ***,MEDIUM OAK,TRIM4# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-32200 |
CV4#,SV4# |
1 | ||
| 71511-32180 |
CV4#,SV4# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-32180 |
CV4#,SV4# |
1 | ||
| 71511-32200 |
CV4#,SV4# |
1 | ||
| 71519 - PAD, FRONT SEAT CUSHION COVER SIDE | ||||
| 71519-32010 |
CV4#,SV4# |
1 | ||
| 71521A - PAD,FRONT SEAT CUSHION SILENCER | ||||
| 71521-32020 |
CV4#,SV4# |
1 | ||
| 71521B - PAD,FRONT SEAT CUSHION SILENCER | ||||
| 71521-32020 |
CV4#,SV4# |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-32150 |
CV4#,SV4# |
1 | ||
| 71551-32170 |
CV4#,SV4# |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-32170 |
CV4#,SV4# |
1 | ||
| 71551-32150 |
CV4#,SV4# |
1 | ||
| 71581A - PAD, FRONT SEAT BACK CORNER, A | ||||
| 71581-32020 |
CV4#,SV4# |
4 | ||
| 71581A - PAD, FRONT SEAT BACK CORNER, A | ||||
| 71581-32020 |
CV4#,SV4# |
4 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-32120 |
SV41,42,43..VX VXﾘﾐﾃﾂﾄﾞ |
1 | ||
| 71610-32120 |
SV41,42,43..VX,ZX G ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 71610-32140 |
SV41,42,43..VX,ZX G ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 71610-32130 |
CV4#,SV4# |
1 | ||
| 71610-32100 |
CV4#,SV4# |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-32030 |
CV4#,SV4# |
1 | ||
| 71620-32040 |
CV4#,SV4# |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-32220 |
SV41,42,43..VX VXﾘﾐﾃﾂﾄﾞ |
1 | ||
| 71630-32220 |
SV41,42,43..VX,ZX G ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 71630-32210 |
CV4#,SV4#..ALPX,TOU,VX,ZX |
1 | ||
| 71013-32220 |
CV4#,SV4#..ALPX,TOU,VX,ZX |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71013-32210 |
CV4#,SV4# |
1 | ||
| 71640-32080 |
CV4#,SV4# |
1 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-16010 |
CV4#,SV4# |
1 | ||
| 71832D - COVER, FRONT SEAT HINGE, LH | ||||
| 71831-16010 |
CV4#,SV4# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-32620E2 |
CV4#,SV4#..VX,ZX MEDIUM OAK,TRIM4# |
2 | ||
| 71910-32620B1 |
CV4#,SV4#..VX,ZX MEDIUM GRAY,TRIM1# |
2 | ||
| 71910-32680B0 |
CV4#,SV4#..VX,ZX MEDIUM GRAY,TRIM1# |
2 | ||
| 71910-32680E0 |
CV4#,SV4#..VX,ZX MEDIUM OAK,TRIM4# |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-32620E2 |
CV4#,SV4#..VX,ZX MEDIUM OAK,TRIM4# |
2 | ||
| 71910-32620B1 |
CV4#,SV4#..VX,ZX MEDIUM GRAY,TRIM1# |
2 | ||
| 71910-32680B0 |
CV4#,SV4#..VX,ZX MEDIUM GRAY,TRIM1# |
2 | ||
| 71910-32680E0 |
CV4#,SV4#..VX,ZX MEDIUM OAK,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-32020B2 |
CV4#,SV4# ﾛｯｸ付,BLUE GRAY,TRIM1# |
2 | ||
| 71931-32020B0 |
CV4#,SV4# ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-32020B2 |
CV4#,SV4# ﾛｯｸ無,BLUE GRAY,TRIM1# |
2 | ||
| 71931-32020E0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX ﾛｯｸ無,OAK,TRIM4# |
2 | ||
| 71930-32020E0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX ﾛｯｸ付,OAK,TRIM4# |
2 | ||
| 71930-32020B0 |
CV4#,SV4# ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-32020E6 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX ﾛｯｸ無,MD.OAK,TRIM4# |
2 | ||
| 71930-32020E6 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX ﾛｯｸ付,MD.OAK,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-32020B2 |
CV4#,SV4# ﾛｯｸ付,BLUE GRAY,TRIM1# |
2 | ||
| 71931-32020B0 |
CV4#,SV4# ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-32020B2 |
CV4#,SV4# ﾛｯｸ無,BLUE GRAY,TRIM1# |
2 | ||
| 71931-32020E0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX ﾛｯｸ無,OAK,TRIM4# |
2 | ||
| 71930-32020E0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX ﾛｯｸ付,OAK,TRIM4# |
2 | ||
| 71930-32020B0 |
CV4#,SV4# ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-32020E6 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX ﾛｯｸ無,MD.OAK,TRIM4# |
2 | ||
| 71930-32020E6 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX ﾛｯｸ付,MD.OAK,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-32020B2 |
CV4#,SV4# ﾛｯｸ付,BLUE GRAY,TRIM1# |
2 | ||
| 71931-32020B0 |
CV4#,SV4# ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-32020B2 |
CV4#,SV4# ﾛｯｸ無,BLUE GRAY,TRIM1# |
2 | ||
| 71931-32020E0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX ﾛｯｸ無,OAK,TRIM4# |
2 | ||
| 71930-32020E0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX ﾛｯｸ付,OAK,TRIM4# |
2 | ||
| 71930-32020B0 |
CV4#,SV4# ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-32020E6 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX ﾛｯｸ無,MD.OAK,TRIM4# |
2 | ||
| 71930-32020E6 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX ﾛｯｸ付,MD.OAK,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-32020B2 |
CV4#,SV4# ﾛｯｸ付,BLUE GRAY,TRIM1# |
2 | ||
| 71931-32020B0 |
CV4#,SV4# ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-32020B2 |
CV4#,SV4# ﾛｯｸ無,BLUE GRAY,TRIM1# |
2 | ||
| 71931-32020E0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX ﾛｯｸ無,OAK,TRIM4# |
2 | ||
| 71930-32020E0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX ﾛｯｸ付,OAK,TRIM4# |
2 | ||
| 71930-32020B0 |
CV4#,SV4# ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-32020E6 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX ﾛｯｸ無,MD.OAK,TRIM4# |
2 | ||
| 71930-32020E6 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX ﾛｯｸ付,MD.OAK,TRIM4# |
2 | ||
| 72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72750-32060 |
CV4#,SV4#..ALPX,TOU,VX,ZX |
1 | ||
| 72750-32070 |
CV4#,SV4#..ALPX,TOU,VX,ZX |
1 | ||
| 72791 - LEVER, LUMBAR SUPPORT | ||||
| 72791-30030E0 |
CV4#,SV4#..VX,ZX OAK,TRIM4# |
1 | ||
| 72791-30030B1 |
CV4#,SV4#..ALPX,TOU,VX,ZX SHADOW GRAY,TRIM1# |
1 | ||
| 72791-20050E2 |
CV4#,SV4#..VX,ZX MD.OAK,TRIM4# |
1 | ||
| 72791-20050B3 |
CV4#,SV4#..ALPX,TOU,VX,ZX MD.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90468-18071 | ||||
| 90520-01006 | ||||
| 91656-60616 | ||||

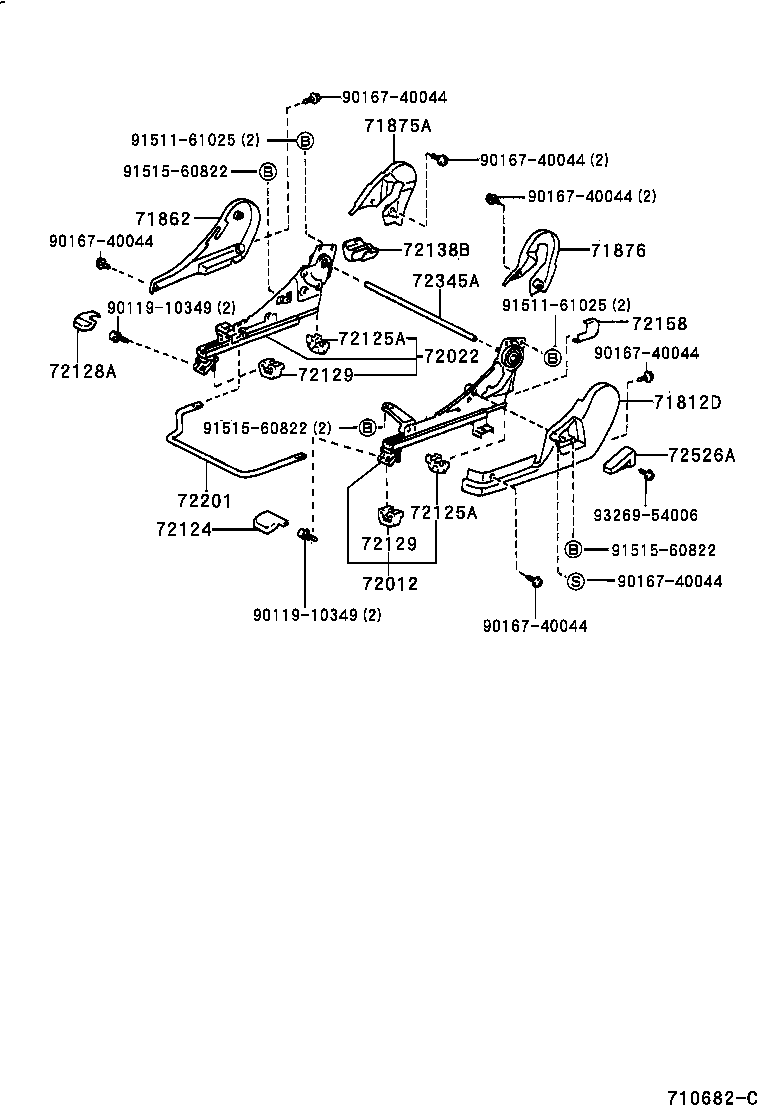

ILLUST NO. 2 OF 2(9605- )
LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-32100E0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX OAK,TRIM4# |
1 | ||
| 71812-32100B0 |
CV4#,SV4# SHADOW GRAY,TRIM1# |
1 | ||
| 71812-32110B0 |
CV4#,SV4# MD.GRAY,TRIM1# |
1 | ||
| 71812-32110E0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX MD.OAK,TRIM4# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-32080B0 |
CV4#,SV4# MD.GRAY,TRIM1# |
1 | ||
| 71862-32070E0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX OAK,TRIM4# |
1 | ||
| 71862-32080E0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX MD.OAK,TRIM4# |
1 | ||
| 71862-32070B0 |
CV4#,SV4# SHADOW GRAY,TRIM1# |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-32030E0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX MD.OAK,TRIM4# |
1 | ||
| 71875-32010E0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX OAK,TRIM4# |
1 | ||
| 71875-32020E0 |
SV41,42,43..VX VXﾘﾐﾃﾂﾄﾞ,OAK,TRIM4# |
1 | ||
| 71875-32020B0 |
SV41,42,43..VX VXﾘﾐﾃﾂﾄﾞ,SHADOW GRAY,TRIM1# |
1 | ||
| 71875-32030B0 |
CV4#,SV4# MD.GRAY,TRIM1# |
1 | ||
| 71875-32040B0 |
SV41,42,43..VX,ZX G ﾊﾟﾂｹ-ｼﾞ,MD.GRAY,TRIM1#,運転席 |
1 | ||
| 71875-32030E0 |
SV41,42,43..VX,ZX G ﾊﾟﾂｹ-ｼﾞ,MD.OAK,TRIM4#,助手席 |
1 | ||
| 71875-32020E0 |
SV41,42,43..VX,ZX G ﾊﾟﾂｹ-ｼﾞ,OAK,TRIM4# |
1 | ||
| 71875-32020B0 |
SV41,42,43..VX,ZX G ﾊﾟﾂｹ-ｼﾞ,SHADOW GRAY,TRIM1# |
1 | ||
| 71875-32030B0 |
SV41,42,43..VX,ZX G ﾊﾟﾂｹ-ｼﾞ,MD.GRAY,TRIM1#,助手席 |
1 | ||
| 71875-32040E0 |
SV41,42,43..VX,ZX G ﾊﾟﾂｹ-ｼﾞ,MD.OAK,TRIM4#,運転席 |
1 | ||
| 71875-32010B0 |
CV4#,SV4# SHADOW GRAY,TRIM1# |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-32030B0 |
CV4#,SV4# MD.GRAY,TRIM1# |
1 | ||
| 71876-32010E0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX OAK,TRIM4# |
1 | ||
| 71876-32010B0 |
CV4#,SV4# SHADOW GRAY,TRIM1# |
1 | ||
| 71876-32030E0 |
CV4#,SV4# MD.OAK,TRIM4# |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72012-32110 |
CV4#,SV4# |
1 | ||
| 72020-32050 |
CV4#,SV4# |
1 | ||
| 72022 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH | ||||
| 72022-32090 |
CV4#,SV4# |
1 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72123-32040B1 |
CV4#,SV4# SHADOW GRAY,TRIM1# |
1 | ||
| 72123-32040E0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX OAK,TRIM4# |
1 | ||
| 72124-32020E0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX MD.OAK,TRIM4# |
1 | ||
| 72124-32020B0 |
CV4#,SV4# MD.GRAY,TRIM1# |
1 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-16020 |
CV4#,SV4# |
2 | ||
| 72125-33010 |
SV41,42,43..VX,ZX G ﾊﾟﾂｹ-ｼﾞ |
2 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-16020 |
CV4#,SV4# |
2 | ||
| 72125-33010 |
SV41,42,43..VX,ZX G ﾊﾟﾂｹ-ｼﾞ |
2 | ||
| 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72128-32020B0 |
CV4#,SV4# MD.GRAY,TRIM1# |
1 | ||
| 72127-32020E0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX OAK,TRIM4# |
1 | ||
| 72127-32020B1 |
CV4#,SV4# SHADOW GRAY,TRIM1# |
1 | ||
| 72128-32020E0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX MD.OAK,TRIM4# |
1 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-33030 |
SV41,42,43..VX,ZX G ﾊﾟﾂｹ-ｼﾞ |
2 | ||
| 72129-16010 |
CV4#,SV4# ﾌﾛﾝﾄ |
2 | ||
| 72129-16020 |
CV4#,SV4# ﾘﾔ |
2 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-33030 |
SV41,42,43..VX,ZX G ﾊﾟﾂｹ-ｼﾞ |
2 | ||
| 72129-16010 |
CV4#,SV4# ﾌﾛﾝﾄ |
2 | ||
| 72129-16020 |
CV4#,SV4# ﾘﾔ |
2 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72138-32010C0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX BLACK,TRIM1#,4# |
1 | ||
| 72138-32020C0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX BLACK,TRIM1#,4# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-32030C0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX BLACK,TRIM1#,4# |
1 | ||
| 72158-32020C0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX BLACK,TRIM1#,4# |
1 | ||
| 72201 - HANDLE SUB-ASSY, SEAT TRACK | ||||
| 72201-32010 |
CV4#,SV4# |
1 | ||
| 72345A - PIPE, RECLINING CONNECTING | ||||
| 72345-32030 |
CV4#,SV4# |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-32010B0 |
CV4#,SV4# SHADOW GRAY,TRIM1# |
1 | ||
| 72526-32020E0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX MD.OAK,TRIM4# |
1 | ||
| 72526-32020B0 |
CV4#,SV4# MD.GRAY,TRIM1# |
1 | ||
| 72526-32010E0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX OAK,TRIM4# |
1 | ||
| Common parts | ||||
| 90119-10349 | ||||
| 90167-40044 | ||||
| 91511-61025 | ||||
| 91515-60822 | ||||
| 93269-54006 | ||||

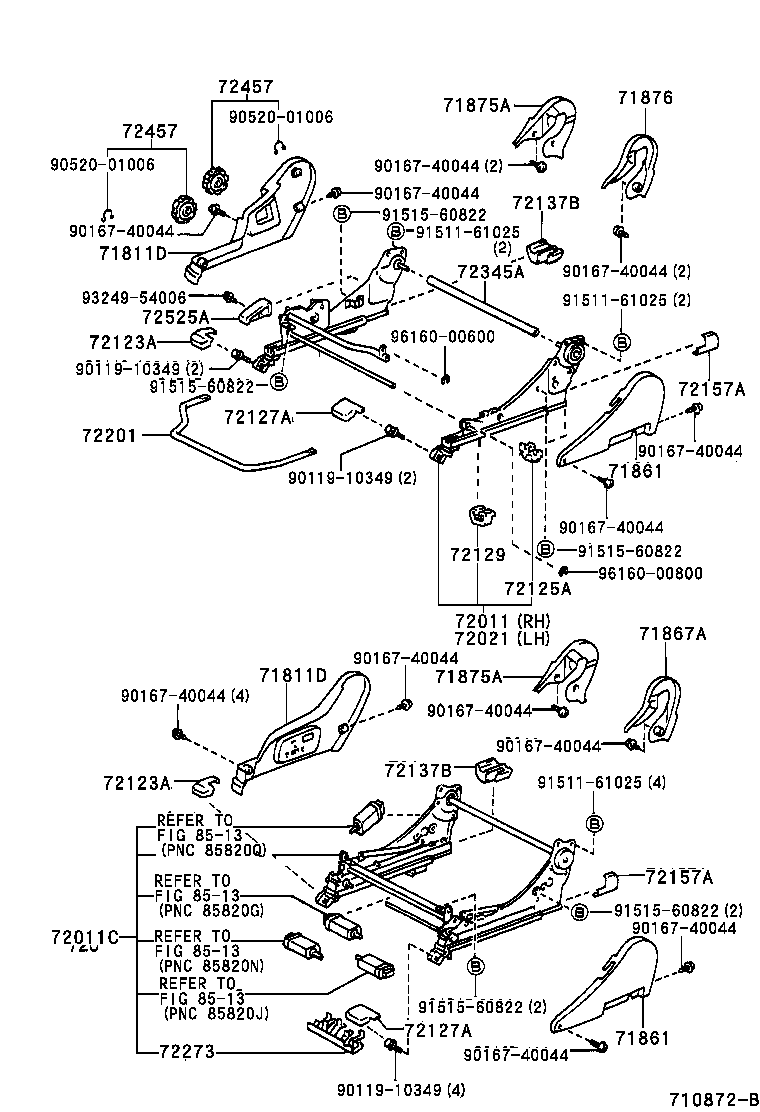

ILLUST NO. 2 OF 2(9406-9605)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-32100B0 |
SV41,42,43..VX VXﾘﾐﾃﾂﾄﾞ,SHADOW GRAY,TRIM1# |
1 | ||
| 71811-32090B0 |
CV4#,SV4# SHADOW GRAY,TRIM1# |
1 | ||
| 71811-32100B0 |
SV41,42,43..VX,ZX G ﾊﾟﾂｹ-ｼﾞ,SHADOW GRAY,TRIM1# |
1 | ||
| 71811-32110B0 |
CV4#,SV4# MD.GRAY,TRIM1# |
1 | ||
| 71811-32090E0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX OAK,TRIM4# |
1 | ||
| 71811-32100E0 |
SV41,42,43..VX,ZX G ﾊﾟﾂｹ-ｼﾞ,OAK,TRIM4# |
1 | ||
| 71811-32100E0 |
SV41,42,43..VX VXﾘﾐﾃﾂﾄﾞ,OAK,TRIM4# |
1 | ||
| 71811-32110E0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX MD.OAK,TRIM4# |
1 | ||
| 71811-32120E0 |
SV41,42,43..VX,ZX G ﾊﾟﾂｹ-ｼﾞ,MD.OAK,TRIM4# |
1 | ||
| 71811-32120B0 |
SV41,42,43..VX,ZX G ﾊﾟﾂｹ-ｼﾞ,MD.GRAY,TRIM1# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-32100E0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX OAK,TRIM4# |
1 | ||
| 71812-32100B0 |
CV4#,SV4# SHADOW GRAY,TRIM1# |
1 | ||
| 71812-32110B0 |
CV4#,SV4# MD.GRAY,TRIM1# |
1 | ||
| 71812-32110E0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX MD.OAK,TRIM4# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-32070B0 |
SV41,42,43..VX,ZX G ﾊﾟﾂｹ-ｼﾞ,SHADOW GRAY,TRIM1# |
1 | ||
| 71861-32070E0 |
SV41,42,43..VX VXﾘﾐﾃﾂﾄﾞ,OAK,TRIM4# |
1 | ||
| 71861-32070E0 |
SV41,42,43..VX,ZX G ﾊﾟﾂｹ-ｼﾞ,OAK,TRIM4# |
1 | ||
| 71861-32060E0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX OAK,TRIM4# |
1 | ||
| 71861-32090E0 |
SV41,42,43..VX,ZX G ﾊﾟﾂｹ-ｼﾞ,MD.OAK,TRIM4# |
1 | ||
| 71861-32060B0 |
CV4#,SV4# SHADOW GRAY,TRIM1# |
1 | ||
| 71861-32070B0 |
SV41,42,43..VX VXﾘﾐﾃﾂﾄﾞ,SHADOW GRAY,TRIM1# |
1 | ||
| 71861-32080B0 |
CV4#,SV4# MD.GRAY,TRIM1# |
1 | ||
| 71861-32090B0 |
SV41,42,43..VX,ZX G ﾊﾟﾂｹ-ｼﾞ,MD.GRAY,TRIM1# |
1 | ||
| 71861-32080E0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX MD.OAK,TRIM4# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-32080B0 |
CV4#,SV4# MD.GRAY,TRIM1# |
1 | ||
| 71862-32070E0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX OAK,TRIM4# |
1 | ||
| 71862-32080E0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX MD.OAK,TRIM4# |
1 | ||
| 71862-32070B0 |
CV4#,SV4# SHADOW GRAY,TRIM1# |
1 | ||
| 71867A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH | ||||
| 71867-32010B0 |
SV41,42,43..VX VXﾘﾐﾃﾂﾄﾞ,SHADOW GRAY,TRIM1# |
1 | ||
| 71867-32010B0 |
SV41,42,43..VX,ZX G ﾊﾟﾂｹ-ｼﾞ,SHADOW GRAY,TRIM1# |
1 | ||
| 71867-32010E0 |
SV41,42,43..VX VXﾘﾐﾃﾂﾄﾞ,OAK,TRIM4# |
1 | ||
| 71867-32010E0 |
SV41,42,43..VX,ZX G ﾊﾟﾂｹ-ｼﾞ,OAK,TRIM4# |
1 | ||
| 71867-32030E0 |
SV41,42,43..VX,ZX MD.OAK,TRIM4# |
1 | ||
| 71867-32030B0 |
SV41,42,43..VX,ZX MD.GRAY,TRIM1# |
1 | ||
| 71873A - SHIELD, FRONT SEAT CUSHION, LOWER | ||||
| 71873-32031B0 |
SV41,42,43..VX VXﾘﾐﾃﾂﾄﾞ,SHADOW GRAY,TRIM1# |
1 | ||
| 71873-32031E0 |
SV41,42,43..VX VXﾘﾐﾃﾂﾄﾞ,OAK,TRIM4# |
1 | ||
| 71873-32020B0 |
CV4#,SV4# SHADOW GRAY,TRIM1# |
1 | ||
| 71873-32020E0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX OAK,TRIM4# |
1 | ||
| 71873-32031B0 |
SV41,42,43..VX,ZX G ﾊﾟﾂｹ-ｼﾞ,SHADOW GRAY,TRIM1# |
1 | ||
| 71873-32031E0 |
SV41,42,43..VX,ZX G ﾊﾟﾂｹ-ｼﾞ,OAK,TRIM4# |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-32010B0 |
CV4#,SV4# SHADOW GRAY,TRIM1# |
1 | ||
| 71874-32010E0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX OAK,TRIM4# |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-32030E0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX MD.OAK,TRIM4# |
1 | ||
| 71875-32010E0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX OAK,TRIM4# |
1 | ||
| 71875-32020E0 |
SV41,42,43..VX VXﾘﾐﾃﾂﾄﾞ,OAK,TRIM4# |
1 | ||
| 71875-32020B0 |
SV41,42,43..VX VXﾘﾐﾃﾂﾄﾞ,SHADOW GRAY,TRIM1# |
1 | ||
| 71875-32030B0 |
CV4#,SV4# MD.GRAY,TRIM1# |
1 | ||
| 71875-32040B0 |
SV41,42,43..VX,ZX G ﾊﾟﾂｹ-ｼﾞ,MD.GRAY,TRIM1#,運転席 |
1 | ||
| 71875-32030E0 |
SV41,42,43..VX,ZX G ﾊﾟﾂｹ-ｼﾞ,MD.OAK,TRIM4#,助手席 |
1 | ||
| 71875-32020E0 |
SV41,42,43..VX,ZX G ﾊﾟﾂｹ-ｼﾞ,OAK,TRIM4# |
1 | ||
| 71875-32020B0 |
SV41,42,43..VX,ZX G ﾊﾟﾂｹ-ｼﾞ,SHADOW GRAY,TRIM1# |
1 | ||
| 71875-32030B0 |
SV41,42,43..VX,ZX G ﾊﾟﾂｹ-ｼﾞ,MD.GRAY,TRIM1#,助手席 |
1 | ||
| 71875-32040E0 |
SV41,42,43..VX,ZX G ﾊﾟﾂｹ-ｼﾞ,MD.OAK,TRIM4#,運転席 |
1 | ||
| 71875-32010B0 |
CV4#,SV4# SHADOW GRAY,TRIM1# |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-32030B0 |
CV4#,SV4# MD.GRAY,TRIM1# |
1 | ||
| 71876-32010E0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX OAK,TRIM4# |
1 | ||
| 71876-32010B0 |
CV4#,SV4# SHADOW GRAY,TRIM1# |
1 | ||
| 71876-32030E0 |
CV4#,SV4# MD.OAK,TRIM4# |
1 | ||
| 72011C - ADJUSTER SUB-ASSY, FRONT SEAT, RH | ||||
| 72010-32080 |
SV41,42,43..VX VXﾘﾐﾃﾂﾄﾞ |
1 | ||
| 72010-32090 |
SV41,42,43..VX,ZX |
1 | ||
| 72010-32080 |
SV41,42,43..VX,ZX G ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72012-32110 |
CV4#,SV4# |
1 | ||
| 72020-32050 |
CV4#,SV4# |
1 | ||
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-32050B0 |
CV4#,SV4# MD.GRAY,TRIM1# |
1 | ||
| 72123-32040E0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX OAK,TRIM4# |
1 | ||
| 72123-32050E0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX MD.OAK,TRIM4# |
1 | ||
| 72123-32040B1 |
CV4#,SV4# SHADOW GRAY,TRIM1# |
1 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72123-32040B1 |
CV4#,SV4# SHADOW GRAY,TRIM1# |
1 | ||
| 72123-32040E0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX OAK,TRIM4# |
1 | ||
| 72124-32020E0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX MD.OAK,TRIM4# |
1 | ||
| 72124-32020B0 |
CV4#,SV4# MD.GRAY,TRIM1# |
1 | ||
| 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72127-32020B1 |
CV4#,SV4# SHADOW GRAY,TRIM1# |
1 | ||
| 72127-32020E0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX OAK,TRIM4# |
1 | ||
| 72127-32030B0 |
CV4#,SV4# MD.GRAY,TRIM1# |
1 | ||
| 72127-32030E0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX MD.OAK,TRIM4# |
1 | ||
| 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72128-32020B0 |
CV4#,SV4# MD.GRAY,TRIM1# |
1 | ||
| 72127-32020E0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX OAK,TRIM4# |
1 | ||
| 72127-32020B1 |
CV4#,SV4# SHADOW GRAY,TRIM1# |
1 | ||
| 72128-32020E0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX MD.OAK,TRIM4# |
1 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-32030C0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX BLACK,TRIM1#,4# |
1 | ||
| 72137-32040C0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX BLACK,TRIM1#,4# |
1 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72138-32010C0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX BLACK,TRIM1#,4# |
1 | ||
| 72138-32020C0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX BLACK,TRIM1#,4# |
1 | ||
| 72140A - TRACK ASSY, FRONT SEAT,INNER LH | ||||
| 72140-32030 |
CV4#,SV4# |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-32020C0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX BLACK,TRIM1#,4# |
1 | ||
| 72157-32030C0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX BLACK,TRIM1#,4# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-32030C0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX BLACK,TRIM1#,4# |
1 | ||
| 72158-32020C0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX BLACK,TRIM1#,4# |
1 | ||
| 72205A - HOUSING SUB-ASSY, POWER SEAT, NO.1 | ||||
| 72205-50020 |
SV41,42,43..VX,ZX G ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 72205-50020 |
SV41,42,43..VX VXﾘﾐﾃﾂﾄﾞ |
1 | ||
| 72206 - HOUSING SUB-ASSY, POWER SEAT, NO.2 | ||||
| 72206-22020 |
SV41,42,43..VX,ZX G ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 72206-22020 |
SV41,42,43..VX VXﾘﾐﾃﾂﾄﾞ |
1 | ||
| 72301D - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH | ||||
| 72301-32030 |
CV4#,SV4# |
1 | ||
| 72405 - HOUSING SUB-ASSY, FRONT SEAT VERTICAL | ||||
| 72405-24020 |
SV41,42,43..VX,ZX G ﾊﾟﾂｹ-ｼﾞ |
2 | ||
| 72405-24020 |
SV41,42,43..VX VXﾘﾐﾃﾂﾄﾞ |
2 | ||
| 72405 - HOUSING SUB-ASSY, FRONT SEAT VERTICAL | ||||
| 72405-24020 |
SV41,42,43..VX,ZX G ﾊﾟﾂｹ-ｼﾞ |
2 | ||
| 72405-24020 |
SV41,42,43..VX VXﾘﾐﾃﾂﾄﾞ |
2 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-32010B0 |
CV4#,SV4# SHADOW GRAY,TRIM1# |
1 | ||
| 72526-32020E0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX MD.OAK,TRIM4# |
1 | ||
| 72526-32020B0 |
CV4#,SV4# MD.GRAY,TRIM1# |
1 | ||
| 72526-32010E0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX OAK,TRIM4# |
1 | ||
| Common parts | ||||
| 90119-08080 | ||||
| 90119-08970 | ||||
| 90119-10111 | ||||
| 90119-10349 | ||||
| 90167-40044 | ||||
| 90386-12039 | ||||
| 91651-60820 | ||||

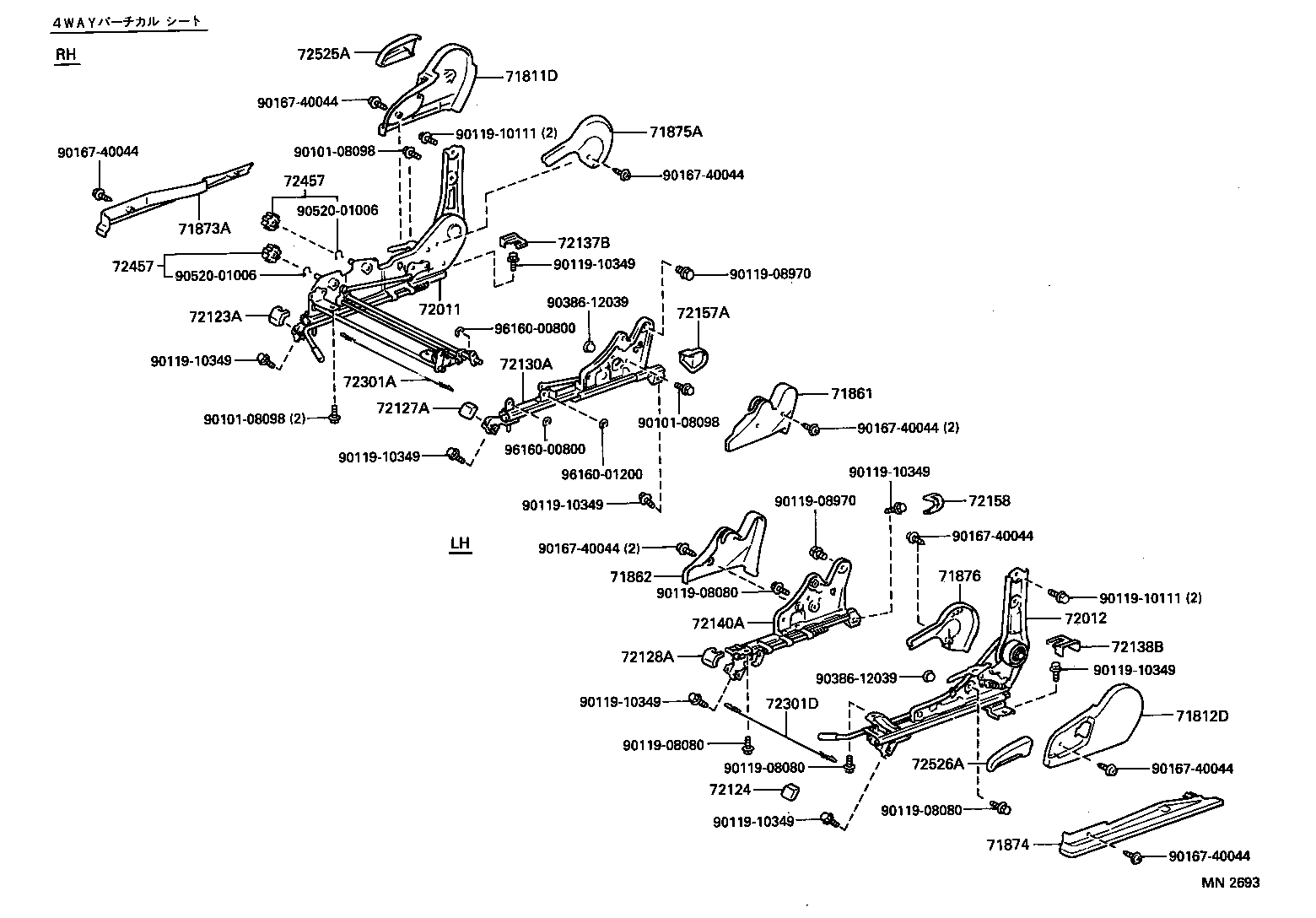

ILLUST NO. 2 OF 2(9605- )
RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-32100B0 |
SV41,42,43..VX VXﾘﾐﾃﾂﾄﾞ,SHADOW GRAY,TRIM1# |
1 | ||
| 71811-32090B0 |
CV4#,SV4# SHADOW GRAY,TRIM1# |
1 | ||
| 71811-32100B0 |
SV41,42,43..VX,ZX G ﾊﾟﾂｹ-ｼﾞ,SHADOW GRAY,TRIM1# |
1 | ||
| 71811-32110B0 |
CV4#,SV4# MD.GRAY,TRIM1# |
1 | ||
| 71811-32090E0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX OAK,TRIM4# |
1 | ||
| 71811-32100E0 |
SV41,42,43..VX,ZX G ﾊﾟﾂｹ-ｼﾞ,OAK,TRIM4# |
1 | ||
| 71811-32100E0 |
SV41,42,43..VX VXﾘﾐﾃﾂﾄﾞ,OAK,TRIM4# |
1 | ||
| 71811-32110E0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX MD.OAK,TRIM4# |
1 | ||
| 71811-32120E0 |
SV41,42,43..VX,ZX G ﾊﾟﾂｹ-ｼﾞ,MD.OAK,TRIM4# |
1 | ||
| 71811-32120B0 |
SV41,42,43..VX,ZX G ﾊﾟﾂｹ-ｼﾞ,MD.GRAY,TRIM1# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-32100B0 |
SV41,42,43..VX VXﾘﾐﾃﾂﾄﾞ,SHADOW GRAY,TRIM1# |
1 | ||
| 71811-32090B0 |
CV4#,SV4# SHADOW GRAY,TRIM1# |
1 | ||
| 71811-32100B0 |
SV41,42,43..VX,ZX G ﾊﾟﾂｹ-ｼﾞ,SHADOW GRAY,TRIM1# |
1 | ||
| 71811-32110B0 |
CV4#,SV4# MD.GRAY,TRIM1# |
1 | ||
| 71811-32090E0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX OAK,TRIM4# |
1 | ||
| 71811-32100E0 |
SV41,42,43..VX,ZX G ﾊﾟﾂｹ-ｼﾞ,OAK,TRIM4# |
1 | ||
| 71811-32100E0 |
SV41,42,43..VX VXﾘﾐﾃﾂﾄﾞ,OAK,TRIM4# |
1 | ||
| 71811-32110E0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX MD.OAK,TRIM4# |
1 | ||
| 71811-32120E0 |
SV41,42,43..VX,ZX G ﾊﾟﾂｹ-ｼﾞ,MD.OAK,TRIM4# |
1 | ||
| 71811-32120B0 |
SV41,42,43..VX,ZX G ﾊﾟﾂｹ-ｼﾞ,MD.GRAY,TRIM1# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-32070B0 |
SV41,42,43..VX,ZX G ﾊﾟﾂｹ-ｼﾞ,SHADOW GRAY,TRIM1# |
1 | ||
| 71861-32070E0 |
SV41,42,43..VX VXﾘﾐﾃﾂﾄﾞ,OAK,TRIM4# |
1 | ||
| 71861-32070E0 |
SV41,42,43..VX,ZX G ﾊﾟﾂｹ-ｼﾞ,OAK,TRIM4# |
1 | ||
| 71861-32060E0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX OAK,TRIM4# |
1 | ||
| 71861-32090E0 |
SV41,42,43..VX,ZX G ﾊﾟﾂｹ-ｼﾞ,MD.OAK,TRIM4# |
1 | ||
| 71861-32060B0 |
CV4#,SV4# SHADOW GRAY,TRIM1# |
1 | ||
| 71861-32070B0 |
SV41,42,43..VX VXﾘﾐﾃﾂﾄﾞ,SHADOW GRAY,TRIM1# |
1 | ||
| 71861-32080B0 |
CV4#,SV4# MD.GRAY,TRIM1# |
1 | ||
| 71861-32090B0 |
SV41,42,43..VX,ZX G ﾊﾟﾂｹ-ｼﾞ,MD.GRAY,TRIM1# |
1 | ||
| 71861-32080E0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX MD.OAK,TRIM4# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-32070B0 |
SV41,42,43..VX,ZX G ﾊﾟﾂｹ-ｼﾞ,SHADOW GRAY,TRIM1# |
1 | ||
| 71861-32070E0 |
SV41,42,43..VX VXﾘﾐﾃﾂﾄﾞ,OAK,TRIM4# |
1 | ||
| 71861-32070E0 |
SV41,42,43..VX,ZX G ﾊﾟﾂｹ-ｼﾞ,OAK,TRIM4# |
1 | ||
| 71861-32060E0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX OAK,TRIM4# |
1 | ||
| 71861-32090E0 |
SV41,42,43..VX,ZX G ﾊﾟﾂｹ-ｼﾞ,MD.OAK,TRIM4# |
1 | ||
| 71861-32060B0 |
CV4#,SV4# SHADOW GRAY,TRIM1# |
1 | ||
| 71861-32070B0 |
SV41,42,43..VX VXﾘﾐﾃﾂﾄﾞ,SHADOW GRAY,TRIM1# |
1 | ||
| 71861-32080B0 |
CV4#,SV4# MD.GRAY,TRIM1# |
1 | ||
| 71861-32090B0 |
SV41,42,43..VX,ZX G ﾊﾟﾂｹ-ｼﾞ,MD.GRAY,TRIM1# |
1 | ||
| 71861-32080E0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX MD.OAK,TRIM4# |
1 | ||
| 71867A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH | ||||
| 71867-32010B0 |
SV41,42,43..VX VXﾘﾐﾃﾂﾄﾞ,SHADOW GRAY,TRIM1# |
1 | ||
| 71867-32010B0 |
SV41,42,43..VX,ZX G ﾊﾟﾂｹ-ｼﾞ,SHADOW GRAY,TRIM1# |
1 | ||
| 71867-32010E0 |
SV41,42,43..VX VXﾘﾐﾃﾂﾄﾞ,OAK,TRIM4# |
1 | ||
| 71867-32010E0 |
SV41,42,43..VX,ZX G ﾊﾟﾂｹ-ｼﾞ,OAK,TRIM4# |
1 | ||
| 71867-32030E0 |
SV41,42,43..VX,ZX MD.OAK,TRIM4# |
1 | ||
| 71867-32030B0 |
SV41,42,43..VX,ZX MD.GRAY,TRIM1# |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-32030E0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX MD.OAK,TRIM4# |
1 | ||
| 71875-32010E0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX OAK,TRIM4# |
1 | ||
| 71875-32020E0 |
SV41,42,43..VX VXﾘﾐﾃﾂﾄﾞ,OAK,TRIM4# |
1 | ||
| 71875-32020B0 |
SV41,42,43..VX VXﾘﾐﾃﾂﾄﾞ,SHADOW GRAY,TRIM1# |
1 | ||
| 71875-32030B0 |
CV4#,SV4# MD.GRAY,TRIM1# |
1 | ||
| 71875-32040B0 |
SV41,42,43..VX,ZX G ﾊﾟﾂｹ-ｼﾞ,MD.GRAY,TRIM1#,運転席 |
1 | ||
| 71875-32030E0 |
SV41,42,43..VX,ZX G ﾊﾟﾂｹ-ｼﾞ,MD.OAK,TRIM4#,助手席 |
1 | ||
| 71875-32020E0 |
SV41,42,43..VX,ZX G ﾊﾟﾂｹ-ｼﾞ,OAK,TRIM4# |
1 | ||
| 71875-32020B0 |
SV41,42,43..VX,ZX G ﾊﾟﾂｹ-ｼﾞ,SHADOW GRAY,TRIM1# |
1 | ||
| 71875-32030B0 |
SV41,42,43..VX,ZX G ﾊﾟﾂｹ-ｼﾞ,MD.GRAY,TRIM1#,助手席 |
1 | ||
| 71875-32040E0 |
SV41,42,43..VX,ZX G ﾊﾟﾂｹ-ｼﾞ,MD.OAK,TRIM4#,運転席 |
1 | ||
| 71875-32010B0 |
CV4#,SV4# SHADOW GRAY,TRIM1# |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-32030E0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX MD.OAK,TRIM4# |
1 | ||
| 71875-32010E0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX OAK,TRIM4# |
1 | ||
| 71875-32020E0 |
SV41,42,43..VX VXﾘﾐﾃﾂﾄﾞ,OAK,TRIM4# |
1 | ||
| 71875-32020B0 |
SV41,42,43..VX VXﾘﾐﾃﾂﾄﾞ,SHADOW GRAY,TRIM1# |
1 | ||
| 71875-32030B0 |
CV4#,SV4# MD.GRAY,TRIM1# |
1 | ||
| 71875-32040B0 |
SV41,42,43..VX,ZX G ﾊﾟﾂｹ-ｼﾞ,MD.GRAY,TRIM1#,運転席 |
1 | ||
| 71875-32030E0 |
SV41,42,43..VX,ZX G ﾊﾟﾂｹ-ｼﾞ,MD.OAK,TRIM4#,助手席 |
1 | ||
| 71875-32020E0 |
SV41,42,43..VX,ZX G ﾊﾟﾂｹ-ｼﾞ,OAK,TRIM4# |
1 | ||
| 71875-32020B0 |
SV41,42,43..VX,ZX G ﾊﾟﾂｹ-ｼﾞ,SHADOW GRAY,TRIM1# |
1 | ||
| 71875-32030B0 |
SV41,42,43..VX,ZX G ﾊﾟﾂｹ-ｼﾞ,MD.GRAY,TRIM1#,助手席 |
1 | ||
| 71875-32040E0 |
SV41,42,43..VX,ZX G ﾊﾟﾂｹ-ｼﾞ,MD.OAK,TRIM4#,運転席 |
1 | ||
| 71875-32010B0 |
CV4#,SV4# SHADOW GRAY,TRIM1# |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-32030B0 |
CV4#,SV4# MD.GRAY,TRIM1# |
1 | ||
| 71876-32010E0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX OAK,TRIM4# |
1 | ||
| 71876-32010B0 |
CV4#,SV4# SHADOW GRAY,TRIM1# |
1 | ||
| 71876-32030E0 |
CV4#,SV4# MD.OAK,TRIM4# |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72010-32070 |
CV4#,SV4# |
1 | ||
| 72011-32100 |
CV4#,SV4# |
1 | ||
| 72011C - ADJUSTER SUB-ASSY, FRONT SEAT, RH | ||||
| 72010-32080 |
SV41,42,43..VX VXﾘﾐﾃﾂﾄﾞ |
1 | ||
| 72010-32090 |
SV41,42,43..VX,ZX |
1 | ||
| 72010-32080 |
SV41,42,43..VX,ZX G ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 72021 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH | ||||
| 72021-32100 |
CV4#,SV4# |
1 | ||
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-32050B0 |
CV4#,SV4# MD.GRAY,TRIM1# |
1 | ||
| 72123-32040E0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX OAK,TRIM4# |
1 | ||
| 72123-32050E0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX MD.OAK,TRIM4# |
1 | ||
| 72123-32040B1 |
CV4#,SV4# SHADOW GRAY,TRIM1# |
1 | ||
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-32050B0 |
CV4#,SV4# MD.GRAY,TRIM1# |
1 | ||
| 72123-32040E0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX OAK,TRIM4# |
1 | ||
| 72123-32050E0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX MD.OAK,TRIM4# |
1 | ||
| 72123-32040B1 |
CV4#,SV4# SHADOW GRAY,TRIM1# |
1 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-16020 |
CV4#,SV4# |
2 | ||
| 72125-33010 |
SV41,42,43..VX,ZX G ﾊﾟﾂｹ-ｼﾞ |
2 | ||
| 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72127-32020B1 |
CV4#,SV4# SHADOW GRAY,TRIM1# |
1 | ||
| 72127-32020E0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX OAK,TRIM4# |
1 | ||
| 72127-32030B0 |
CV4#,SV4# MD.GRAY,TRIM1# |
1 | ||
| 72127-32030E0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX MD.OAK,TRIM4# |
1 | ||
| 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72127-32020B1 |
CV4#,SV4# SHADOW GRAY,TRIM1# |
1 | ||
| 72127-32020E0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX OAK,TRIM4# |
1 | ||
| 72127-32030B0 |
CV4#,SV4# MD.GRAY,TRIM1# |
1 | ||
| 72127-32030E0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX MD.OAK,TRIM4# |
1 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-33030 |
SV41,42,43..VX,ZX G ﾊﾟﾂｹ-ｼﾞ |
2 | ||
| 72129-16010 |
CV4#,SV4# ﾌﾛﾝﾄ |
2 | ||
| 72129-16020 |
CV4#,SV4# ﾘﾔ |
2 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-32030C0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX BLACK,TRIM1#,4# |
1 | ||
| 72137-32040C0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX BLACK,TRIM1#,4# |
1 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-32030C0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX BLACK,TRIM1#,4# |
1 | ||
| 72137-32040C0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX BLACK,TRIM1#,4# |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-32020C0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX BLACK,TRIM1#,4# |
1 | ||
| 72157-32030C0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX BLACK,TRIM1#,4# |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-32020C0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX BLACK,TRIM1#,4# |
1 | ||
| 72157-32030C0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX BLACK,TRIM1#,4# |
1 | ||
| 72201 - HANDLE SUB-ASSY, SEAT TRACK | ||||
| 72201-32010 |
CV4#,SV4# |
1 | ||
| 72273 - SUPPORT, SEAT TRACK CONTROL CABLE | ||||
| 72273-22020 |
SV41,42,43..VX,ZX |
1 | ||
| 72345A - PIPE, RECLINING CONNECTING | ||||
| 72345-32030 |
CV4#,SV4# |
1 | ||
| 72457 - KNOB, VERTICAL SEAT ADJUSTER | ||||
| 72457-22020B5 |
CV4#,SV4# MD.GRAY,TRIM1# |
2 | ||
| 72457-22020E0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX OAK,TRIM4# |
2 | ||
| 72457-22020B1 |
CV4#,SV4# SHADOW GRAY,TRIM1# |
2 | ||
| 72457-22020E4 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX MD.OAK,TRIM4# |
2 | ||
| 72457 - KNOB, VERTICAL SEAT ADJUSTER | ||||
| 72457-22020B5 |
CV4#,SV4# MD.GRAY,TRIM1# |
2 | ||
| 72457-22020E0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX OAK,TRIM4# |
2 | ||
| 72457-22020B1 |
CV4#,SV4# SHADOW GRAY,TRIM1# |
2 | ||
| 72457-22020E4 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX MD.OAK,TRIM4# |
2 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-32010B0 |
CV4#,SV4# SHADOW GRAY,TRIM1# |
1 | ||
| 72525-32010E0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX OAK,TRIM4# |
1 | ||
| 72525-32020B0 |
CV4#,SV4# MD.GRAY,TRIM1# |
1 | ||
| 72525-32020E0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX MD.OAK,TRIM4# |
1 | ||
| Common parts | ||||
| 90119-10349 | ||||
| 90167-40044 | ||||
| 90520-01006 | ||||
| 91511-61025 | ||||
| 91515-60822 | ||||
| 93249-54006 | ||||
| 96160-00600 | ||||
| 96160-00800 | ||||
| Linked diagrams | ||||
| 8513 | ||||
ILLUST NO. 2 OF 2(9406-9605)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-32100B0 |
SV41,42,43..VX VXﾘﾐﾃﾂﾄﾞ,SHADOW GRAY,TRIM1# |
1 | ||
| 71811-32090B0 |
CV4#,SV4# SHADOW GRAY,TRIM1# |
1 | ||
| 71811-32100B0 |
SV41,42,43..VX,ZX G ﾊﾟﾂｹ-ｼﾞ,SHADOW GRAY,TRIM1# |
1 | ||
| 71811-32110B0 |
CV4#,SV4# MD.GRAY,TRIM1# |
1 | ||
| 71811-32090E0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX OAK,TRIM4# |
1 | ||
| 71811-32100E0 |
SV41,42,43..VX,ZX G ﾊﾟﾂｹ-ｼﾞ,OAK,TRIM4# |
1 | ||
| 71811-32100E0 |
SV41,42,43..VX VXﾘﾐﾃﾂﾄﾞ,OAK,TRIM4# |
1 | ||
| 71811-32110E0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX MD.OAK,TRIM4# |
1 | ||
| 71811-32120E0 |
SV41,42,43..VX,ZX G ﾊﾟﾂｹ-ｼﾞ,MD.OAK,TRIM4# |
1 | ||
| 71811-32120B0 |
SV41,42,43..VX,ZX G ﾊﾟﾂｹ-ｼﾞ,MD.GRAY,TRIM1# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-32100E0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX OAK,TRIM4# |
1 | ||
| 71812-32100B0 |
CV4#,SV4# SHADOW GRAY,TRIM1# |
1 | ||
| 71812-32110B0 |
CV4#,SV4# MD.GRAY,TRIM1# |
1 | ||
| 71812-32110E0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX MD.OAK,TRIM4# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-32070B0 |
SV41,42,43..VX,ZX G ﾊﾟﾂｹ-ｼﾞ,SHADOW GRAY,TRIM1# |
1 | ||
| 71861-32070E0 |
SV41,42,43..VX VXﾘﾐﾃﾂﾄﾞ,OAK,TRIM4# |
1 | ||
| 71861-32070E0 |
SV41,42,43..VX,ZX G ﾊﾟﾂｹ-ｼﾞ,OAK,TRIM4# |
1 | ||
| 71861-32060E0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX OAK,TRIM4# |
1 | ||
| 71861-32090E0 |
SV41,42,43..VX,ZX G ﾊﾟﾂｹ-ｼﾞ,MD.OAK,TRIM4# |
1 | ||
| 71861-32060B0 |
CV4#,SV4# SHADOW GRAY,TRIM1# |
1 | ||
| 71861-32070B0 |
SV41,42,43..VX VXﾘﾐﾃﾂﾄﾞ,SHADOW GRAY,TRIM1# |
1 | ||
| 71861-32080B0 |
CV4#,SV4# MD.GRAY,TRIM1# |
1 | ||
| 71861-32090B0 |
SV41,42,43..VX,ZX G ﾊﾟﾂｹ-ｼﾞ,MD.GRAY,TRIM1# |
1 | ||
| 71861-32080E0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX MD.OAK,TRIM4# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-32080B0 |
CV4#,SV4# MD.GRAY,TRIM1# |
1 | ||
| 71862-32070E0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX OAK,TRIM4# |
1 | ||
| 71862-32080E0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX MD.OAK,TRIM4# |
1 | ||
| 71862-32070B0 |
CV4#,SV4# SHADOW GRAY,TRIM1# |
1 | ||
| 71873A - SHIELD, FRONT SEAT CUSHION, LOWER | ||||
| 71873-32031B0 |
SV41,42,43..VX VXﾘﾐﾃﾂﾄﾞ,SHADOW GRAY,TRIM1# |
1 | ||
| 71873-32031E0 |
SV41,42,43..VX VXﾘﾐﾃﾂﾄﾞ,OAK,TRIM4# |
1 | ||
| 71873-32020B0 |
CV4#,SV4# SHADOW GRAY,TRIM1# |
1 | ||
| 71873-32020E0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX OAK,TRIM4# |
1 | ||
| 71873-32031B0 |
SV41,42,43..VX,ZX G ﾊﾟﾂｹ-ｼﾞ,SHADOW GRAY,TRIM1# |
1 | ||
| 71873-32031E0 |
SV41,42,43..VX,ZX G ﾊﾟﾂｹ-ｼﾞ,OAK,TRIM4# |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-32010B0 |
CV4#,SV4# SHADOW GRAY,TRIM1# |
1 | ||
| 71874-32010E0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX OAK,TRIM4# |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-32030E0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX MD.OAK,TRIM4# |
1 | ||
| 71875-32010E0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX OAK,TRIM4# |
1 | ||
| 71875-32020E0 |
SV41,42,43..VX VXﾘﾐﾃﾂﾄﾞ,OAK,TRIM4# |
1 | ||
| 71875-32020B0 |
SV41,42,43..VX VXﾘﾐﾃﾂﾄﾞ,SHADOW GRAY,TRIM1# |
1 | ||
| 71875-32030B0 |
CV4#,SV4# MD.GRAY,TRIM1# |
1 | ||
| 71875-32040B0 |
SV41,42,43..VX,ZX G ﾊﾟﾂｹ-ｼﾞ,MD.GRAY,TRIM1#,運転席 |
1 | ||
| 71875-32030E0 |
SV41,42,43..VX,ZX G ﾊﾟﾂｹ-ｼﾞ,MD.OAK,TRIM4#,助手席 |
1 | ||
| 71875-32020E0 |
SV41,42,43..VX,ZX G ﾊﾟﾂｹ-ｼﾞ,OAK,TRIM4# |
1 | ||
| 71875-32020B0 |
SV41,42,43..VX,ZX G ﾊﾟﾂｹ-ｼﾞ,SHADOW GRAY,TRIM1# |
1 | ||
| 71875-32030B0 |
SV41,42,43..VX,ZX G ﾊﾟﾂｹ-ｼﾞ,MD.GRAY,TRIM1#,助手席 |
1 | ||
| 71875-32040E0 |
SV41,42,43..VX,ZX G ﾊﾟﾂｹ-ｼﾞ,MD.OAK,TRIM4#,運転席 |
1 | ||
| 71875-32010B0 |
CV4#,SV4# SHADOW GRAY,TRIM1# |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-32030B0 |
CV4#,SV4# MD.GRAY,TRIM1# |
1 | ||
| 71876-32010E0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX OAK,TRIM4# |
1 | ||
| 71876-32010B0 |
CV4#,SV4# SHADOW GRAY,TRIM1# |
1 | ||
| 71876-32030E0 |
CV4#,SV4# MD.OAK,TRIM4# |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72010-32070 |
CV4#,SV4# |
1 | ||
| 72011-32100 |
CV4#,SV4# |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72012-32110 |
CV4#,SV4# |
1 | ||
| 72020-32050 |
CV4#,SV4# |
1 | ||
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-32050B0 |
CV4#,SV4# MD.GRAY,TRIM1# |
1 | ||
| 72123-32040E0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX OAK,TRIM4# |
1 | ||
| 72123-32050E0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX MD.OAK,TRIM4# |
1 | ||
| 72123-32040B1 |
CV4#,SV4# SHADOW GRAY,TRIM1# |
1 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72123-32040B1 |
CV4#,SV4# SHADOW GRAY,TRIM1# |
1 | ||
| 72123-32040E0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX OAK,TRIM4# |
1 | ||
| 72124-32020E0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX MD.OAK,TRIM4# |
1 | ||
| 72124-32020B0 |
CV4#,SV4# MD.GRAY,TRIM1# |
1 | ||
| 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72127-32020B1 |
CV4#,SV4# SHADOW GRAY,TRIM1# |
1 | ||
| 72127-32020E0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX OAK,TRIM4# |
1 | ||
| 72127-32030B0 |
CV4#,SV4# MD.GRAY,TRIM1# |
1 | ||
| 72127-32030E0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX MD.OAK,TRIM4# |
1 | ||
| 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72128-32020B0 |
CV4#,SV4# MD.GRAY,TRIM1# |
1 | ||
| 72127-32020E0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX OAK,TRIM4# |
1 | ||
| 72127-32020B1 |
CV4#,SV4# SHADOW GRAY,TRIM1# |
1 | ||
| 72128-32020E0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX MD.OAK,TRIM4# |
1 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-32050 |
CV4#,SV4# |
1 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-32030C0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX BLACK,TRIM1#,4# |
1 | ||
| 72137-32040C0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX BLACK,TRIM1#,4# |
1 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72138-32010C0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX BLACK,TRIM1#,4# |
1 | ||
| 72138-32020C0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX BLACK,TRIM1#,4# |
1 | ||
| 72140A - TRACK ASSY, FRONT SEAT,INNER LH | ||||
| 72140-32030 |
CV4#,SV4# |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-32020C0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX BLACK,TRIM1#,4# |
1 | ||
| 72157-32030C0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX BLACK,TRIM1#,4# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-32030C0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX BLACK,TRIM1#,4# |
1 | ||
| 72158-32020C0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX BLACK,TRIM1#,4# |
1 | ||
| 72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH | ||||
| 72301-32030 |
CV4#,SV4# |
1 | ||
| 72301D - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH | ||||
| 72301-32030 |
CV4#,SV4# |
1 | ||
| 72457 - KNOB, VERTICAL SEAT ADJUSTER | ||||
| 72457-22020B5 |
CV4#,SV4# MD.GRAY,TRIM1# |
2 | ||
| 72457-22020E0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX OAK,TRIM4# |
2 | ||
| 72457-22020B1 |
CV4#,SV4# SHADOW GRAY,TRIM1# |
2 | ||
| 72457-22020E4 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX MD.OAK,TRIM4# |
2 | ||
| 72457 - KNOB, VERTICAL SEAT ADJUSTER | ||||
| 72457-22020B5 |
CV4#,SV4# MD.GRAY,TRIM1# |
2 | ||
| 72457-22020E0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX OAK,TRIM4# |
2 | ||
| 72457-22020B1 |
CV4#,SV4# SHADOW GRAY,TRIM1# |
2 | ||
| 72457-22020E4 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX MD.OAK,TRIM4# |
2 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-32010B0 |
CV4#,SV4# SHADOW GRAY,TRIM1# |
1 | ||
| 72525-32010E0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX OAK,TRIM4# |
1 | ||
| 72525-32020B0 |
CV4#,SV4# MD.GRAY,TRIM1# |
1 | ||
| 72525-32020E0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX MD.OAK,TRIM4# |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-32010B0 |
CV4#,SV4# SHADOW GRAY,TRIM1# |
1 | ||
| 72526-32020E0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX MD.OAK,TRIM4# |
1 | ||
| 72526-32020B0 |
CV4#,SV4# MD.GRAY,TRIM1# |
1 | ||
| 72526-32010E0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX OAK,TRIM4# |
1 | ||
| Common parts | ||||
| 90101-08098 | ||||
| 90119-08080 | ||||
| 90119-08970 | ||||
| 90119-10111 | ||||
| 90119-10349 | ||||
| 90167-40044 | ||||
| 90386-12039 | ||||
| 90520-01006 | ||||
| 96160-00800 | ||||
| 96160-01200 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
