SV43-BTMGK (1994)
Toyota Camry/Vista
Production
Jun 1994
-
Jun 1998
Engine
3SFE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9406- )

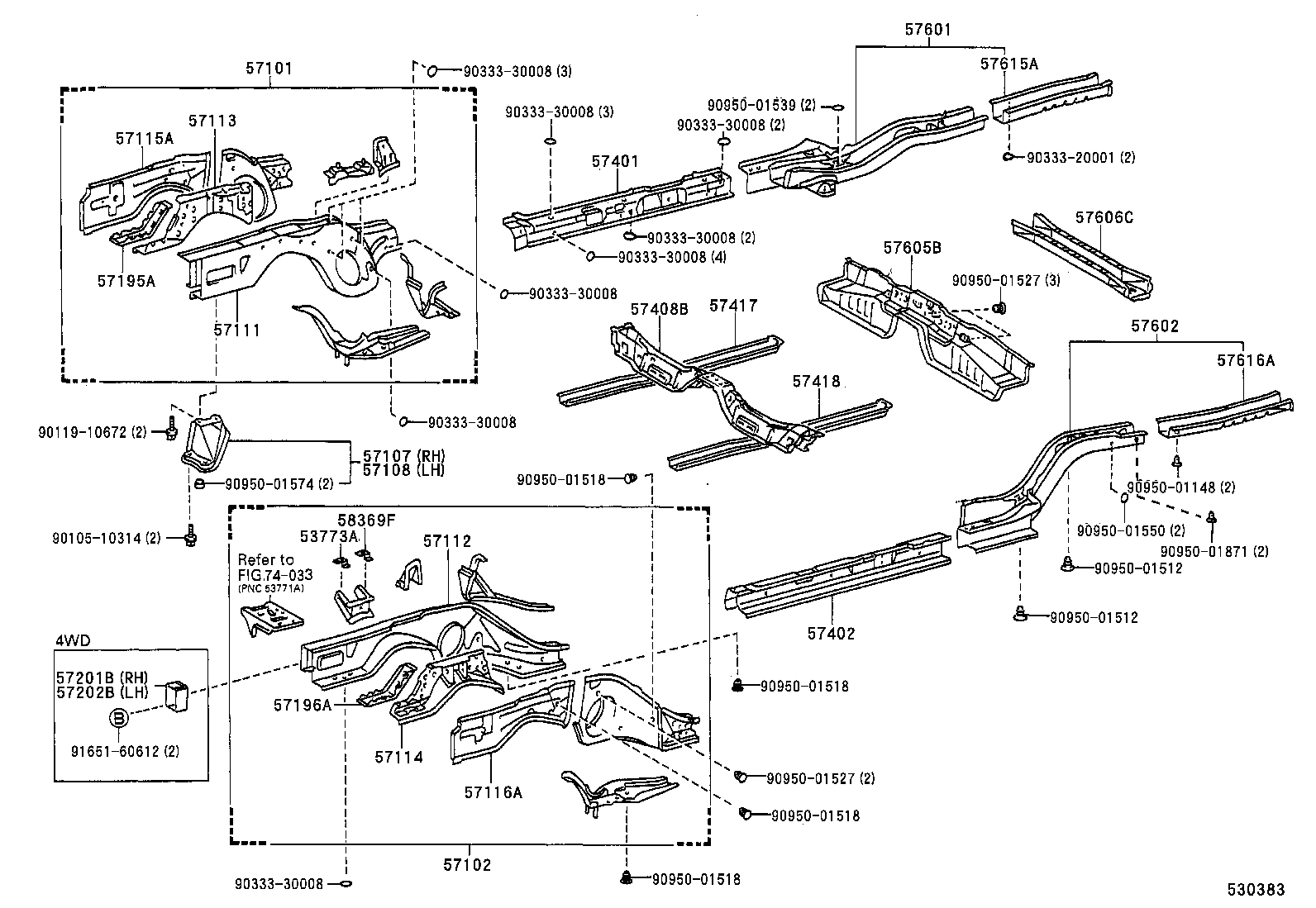

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53773A - BRACKET, AIR CLEANER MOUNTING | ||||
| 53773-32020 |
CV4#,SV4# |
1 | ||
| 57101 - MEMBER SUB-ASSY, FRONT SIDE, RH | ||||
| 57101-32130 |
CV4#,SV4# |
1 | ||
| 57102 - MEMBER SUB-ASSY, FRONT SIDE, LH | ||||
| 57102-32090 |
CV4#,SV4# |
1 | ||
| 57107 - BRACKET SUB-ASSY, STRUT BAR, RH | ||||
| 57107-32050 |
CV4#,SV4# |
1 | ||
| 57108 - BRACKET SUB-ASSY, STRUT BAR, LH | ||||
| 57108-32050 |
CV4#,SV4# |
1 | ||
| 57111 - MEMBER, FRONT SIDE, RH | ||||
| 57111-32050 |
CV4#,SV4# |
1 | ||
| 57112 - MEMBER, FRONT SIDE, LH | ||||
| 57112-32050 |
CV4#,SV4# |
1 | ||
| 57113 - EXTENSION, FRONT SIDE MEMBER, RH | ||||
| 57016-32010 |
CV4#,SV4# |
1 | ||
| 57114 - EXTENSION, FRONT SIDE MEMBER, LH | ||||
| 57017-32010 |
CV4#,SV4# |
1 | ||
| 57115A - PLATE, FRONT SIDE MEMBER, OUTER RH | ||||
| 57115-32050 |
CV4#,SV4# |
1 | ||
| 57116A - PLATE, FRONT SIDE MEMBER, OUTER LH | ||||
| 57116-32040 |
CV4#,SV4# |
1 | ||
| 57195A - REINFORCEMENT, FRONT SIDE MEMBER, FRONT RH | ||||
| 57195-32010 |
CV4#,SV4# |
1 | ||
| 57196A - REINFORCEMENT, FRONT SIDE MEMBER, FRONT LH | ||||
| 57196-32010 |
CV4#,SV4# |
1 | ||
| 57201B - EXTENSION SUB-ASSY, FRONT SIDE MEMBER, RH | ||||
| 57201-32010 |
CV43,SV43 |
1 | ||
| 57202B - EXTENSION SUB-ASSY, FRONT SIDE MEMBER, LH | ||||
| 57201-32010 |
CV43,SV43 |
1 | ||
| 57401 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH | ||||
| 57401-32080 |
CV4#,SV4# |
1 | ||
| 57401-32081 |
CV4#,SV4# |
1 | ||
| 57402 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH | ||||
| 57402-32081 |
CV4#,SV4# |
1 | ||
| 57402-32080 |
CV4#,SV4# |
1 | ||
| 57408B - MEMBER SUB-ASSY, FRONT FLOOR CROSS | ||||
| 57408-32060 |
CV4#,SV4# |
1 | ||
| 57408-32050 |
CV4#,SV4# |
1 | ||
| 57417 - REINFORCEMENT, FRONT FLOOR UNDER, RH | ||||
| 57417-32040 |
CV4#,SV4# |
1 | ||
| 57418 - REINFORCEMENT, FRONT FLOOR UNDER, LH | ||||
| 57417-32040 |
CV4#,SV4# |
1 | ||
| 57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH | ||||
| 57601-32230 |
CV43,SV43 |
1 | ||
| 57601-32905 |
CV43,SV43 ｱﾘ(*66) |
1 | ||
| 57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH | ||||
| 57602-32230 |
CV43,SV43 |
1 | ||
| 57602-32905 |
CV43,SV43 ｱﾘ(*66) |
1 | ||
| 57605B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1 | ||||
| 57605-32090 |
SV43 |
1 | ||
| 57605-32070 |
CV40,SV40,41,43 |
1 | ||
| 57606C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2 | ||||
| 57606-32050 |
SV43 |
1 | ||
| 57615A - MEMBER, REAR FLOOR SIDE, REAR RH | ||||
| 57615-32110 |
CV4#,SV4# |
1 | ||
| 57616A - MEMBER, REAR FLOOR SIDE, REAR LH | ||||
| 57616-32914 |
CV4#,SV4# |
1 | ||
| 58369F - BRACKET, FUEL TUBE, NO.3 | ||||
| 58369-32010 |
CV4#,SV4# |
1 | ||
| Common parts | ||||
| 90105-10314 | ||||
| 90119-10672 | ||||
| 90333-20001 | ||||
| 90333-30008 | ||||
| 90950-01148 | ||||
| 90950-01512 | ||||
| 90950-01518 | ||||
| 90950-01527 | ||||
| 90950-01539 | ||||
| 90950-01550 | ||||
| 90950-01574 | ||||
| 90950-01871 | ||||
| 91651-60612 | ||||
| Linked diagrams | ||||
| 7403 | ||||
