SV43-BEPMK (1994)

Toyota Camry/Vista

Production Jun 1994 - Jun 1998
Engine 3SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9406- )

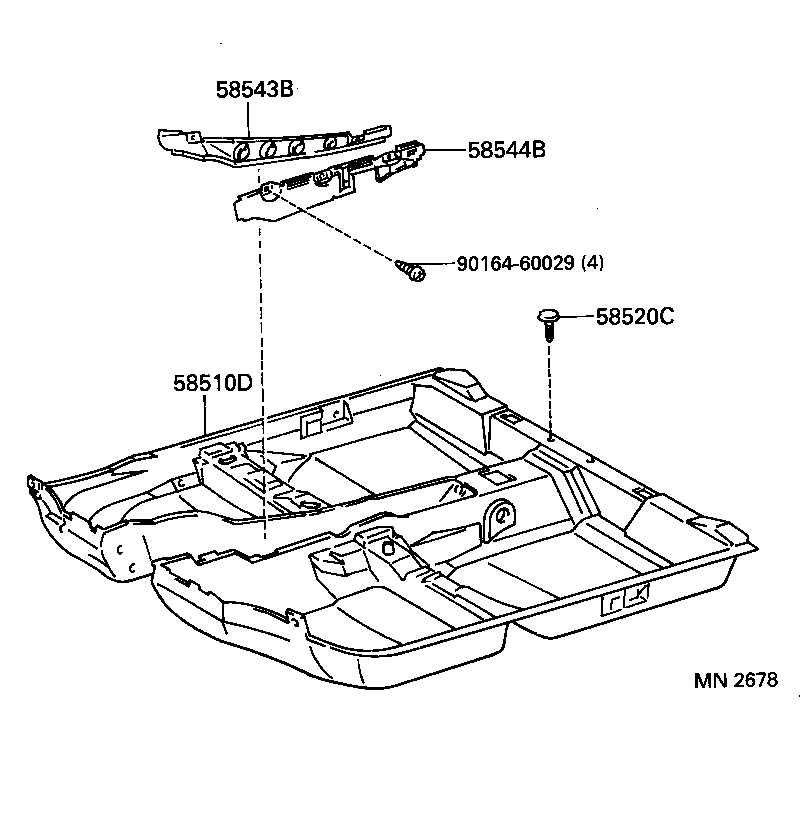

Click highlighted areas on diagram

diagram 58510D 58520C 58543B 58544B 9016460029
Part # Description Qty Price
58510D - CARPET ASSY, FLOOR, FRONT
58510-32420B0

CV4#,SV4#..SED..(ALPX,LUM,TOU,XJ)

MEDIUM GRAY,TRIM1#

 1
58510-32380B0

CV4#,SV4#..SED..(ALPX,LUM,TOU,XJ)

MEDIUM GRAY,TRIM1#

 1
58520C - CLIP(FOR FRONT FLOOR CARPET)
90467-06016C0

CV4#,SV4#..ALPX,TOU

BLACK,TRIM1#

 2
58543B - BRACKET, FLOOR CARPET, RH
58543-32030

CV4#,SV4#

 1
58543-32020

CV4#,SV4#

 1
58544B - BRACKET, FLOOR CARPET, LH
58544-32020

CV4#,SV4#

 1
Common parts
90164-60029
