SV43-BEMMK (1994)
Toyota Camry/Vista
Production
Jun 1994
-
Jun 1998
Engine
3SFE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 2 OF 2(9406- )SV4#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-32160 |
SV43 |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-32120 |
CV4#,SV4# |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-32110 |
SV4# |
1 | ||
| 77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 95333-06020 |
SV4# *H,L=200 |
1 | ||
| 77261F - HOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 95333-06020 |
SV4# *H,L=170 |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-32030 |
CV4#,SV4# |
1 | ||
| 77267A - PROTECTOR, FUEL TUBE, NO.2 | ||||
| 77267-32040 |
CV4#,SV4# |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 90447-12085 |
SV4# 長さ=320 |
1 | ||
| 90447-12141 |
SV4# 長さ=320 |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-32030 |
CV4#,SV4# |
1 | ||
| 77411B - SUPPORT, FUEL TUBE GROMMET, NO.1 | ||||
| 77411-32010 |
CV4#,SV4# |
3 | ||
| 77412 - SUPPORT, FUEL TUBE GROMMET, NO.2 | ||||
| 77412-32010 |
CV40,SV4# ﾀｲﾌﾟ A |
1 | ||
| 77412-32020 |
SV4# ﾀｲﾌﾟ B |
1 | ||
| 77412-32020 |
SV4# TYPE B |
1 | ||
| 77412-32010 |
CV4#,SV4# |
1 | ||
| 77412 - SUPPORT, FUEL TUBE GROMMET, NO.2 | ||||
| 77412-32010 |
CV40,SV4# ﾀｲﾌﾟ A |
1 | ||
| 77412-32020 |
SV4# ﾀｲﾌﾟ B |
1 | ||
| 77412-32020 |
SV4# TYPE B |
1 | ||
| 77412-32010 |
CV4#,SV4# |
1 | ||
| 77707 - TUBE SUB-ASSY, CHARCOAL CANISTER OUTLET | ||||
| 77707-32010 |
SV4# |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77704-32070 |
SV4# |
1 | ||
| 77704-32071 |
SV4# |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77751-32081 |
SV4# |
1 | ||
| 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 | ||||
| 77754-32110 |
SV4# |
1 | ||
| 77754A - HOSE, CHARCOAL CANISTER OUTLET, NO.2 | ||||
| 77754-32100 |
SV4# |
1 | ||
| Common parts | ||||
| 90119-06746 | ||||
| 90179-06219 | ||||
| 90467-11009 | ||||
| 90480-01277 | ||||
| 90480-01360 | ||||
| 90480-15023 | ||||
| 90917-10079 | ||||
| 90949-01499 | ||||
| 90959-01275 | ||||
| 90999-92002 | ||||
| 91651-60614 | ||||
| 96132-41100 | ||||

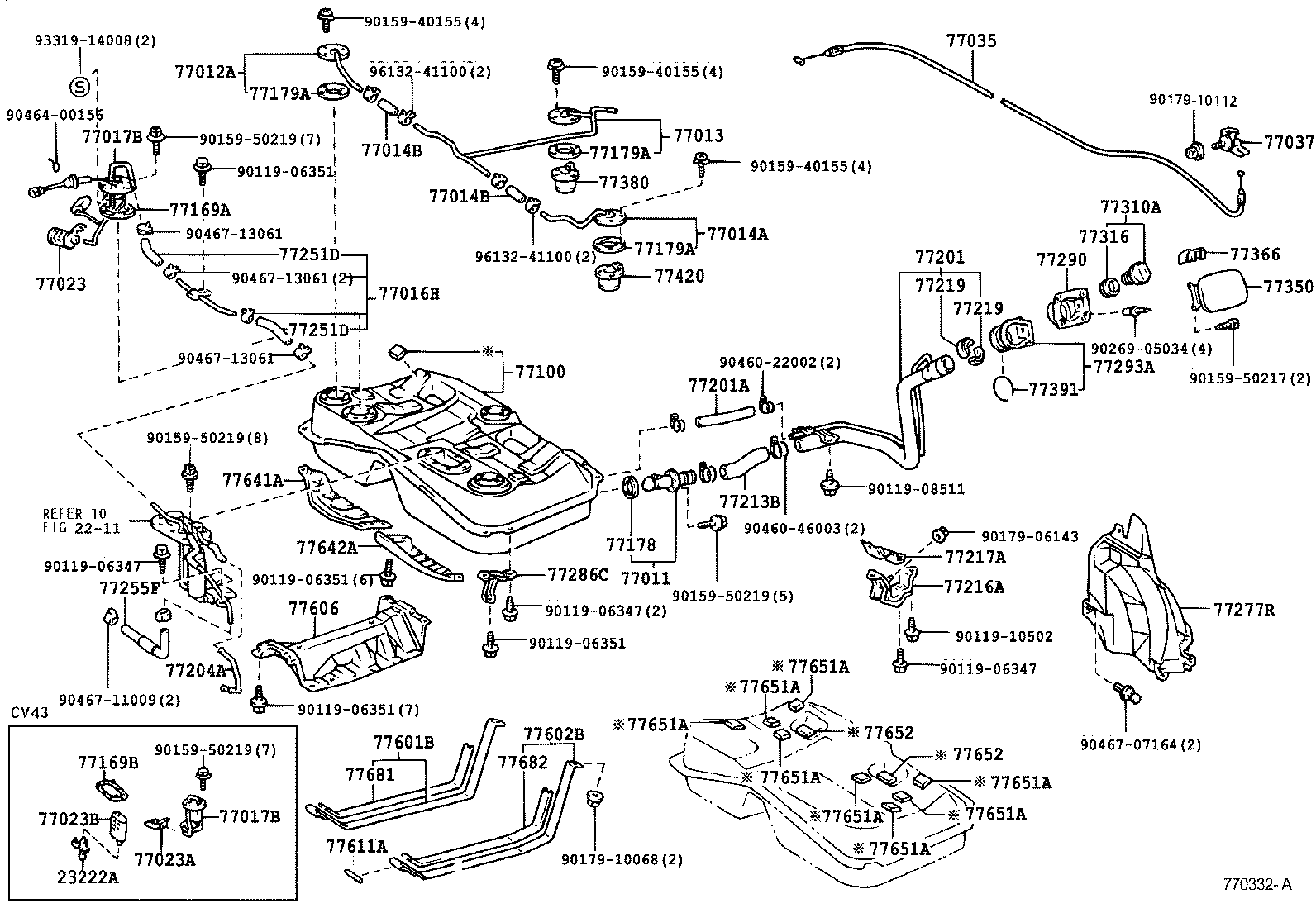

ILLUST NO. 1 OF 2(9406- )CV43,SV43
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER | ||||
| 77011-32040 |
CV4#,SV4# |
1 | ||
| 77012A - TUBE SUB-ASSY, FUEL TANK BREATHER, NO.1 | ||||
| 77012-32050 |
CV43,SV43 |
1 | ||
| 77013 - TUBE SUB-ASSY, FUEL TANK BREATHER, NO.2 | ||||
| 77013-20080 |
CV43,SV43 |
1 | ||
| 77014A - TUBE SUB-ASSY, FUEL TANK BREATHER, NO.3 | ||||
| 77014-20060 |
CV43,SV43 |
1 | ||
| 77014B - HOSE, FUEL (FOR FUEL TANK BREATHER TUBE) | ||||
| 95333-06010 |
CV4#,SV4# *H,L=80 |
2 | ||
| 77014B - HOSE, FUEL (FOR FUEL TANK BREATHER TUBE) | ||||
| 95333-06010 |
CV4#,SV4# *H,L=80 |
2 | ||
| 77016H - TUBE SUB-ASSY, FUEL RETURN VENT | ||||
| 77016-32010 |
CV43,SV43 |
1 | ||
| 77017B - TUBE SUB-ASSY, FUEL TANK VENT | ||||
| 77017-32130 |
CV43,SV43 |
1 | ||
| 77017B - TUBE SUB-ASSY, FUEL TANK VENT | ||||
| 77017-32130 |
CV43,SV43 |
1 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-16020 |
SV43 |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-32170 |
CV4#,SV4#..SED |
1 | ||
| 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID | ||||
| 77037-14020 |
CV40,SV4# |
1 | ||
| 77037-32030 |
CV4#,SV4# |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-32912 |
CV43,SV43 |
1 | ||
| 77001-32911 |
SV43 |
1 | ||
| 77001-32911 |
CV43,SV43 |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-14010 |
CV43,SV43 |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-20030 |
CV4#,SV4# |
1 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-26010 |
CV4#,SV4# |
3 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-26010 |
CV4#,SV4# |
3 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-26010 |
CV4#,SV4# |
3 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-32150 |
CV4#,SV4# |
1 | ||
| 77201A - HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE) | ||||
| 90445-22024 |
CV43,SV43 長さ=270 |
1 | ||
| 77019-32140 |
CV43,SV43 長さ=270,ｱﾘ(ﾎ−ｽ ﾌﾟﾛﾃｸﾀ) |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-32060 |
CV43,SV43 |
1 | ||
| 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 | ||||
| 77104-32010 |
CV43,SV43 |
1 | ||
| 77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77217-32040 |
CV43,SV43 |
1 | ||
| 77219 - COVER, FUEL TANK FILLER PIPE | ||||
| 77219-32030 |
CV4#,SV4# |
2 | ||
| 77219 - COVER, FUEL TANK FILLER PIPE | ||||
| 77219-32030 |
CV4#,SV4# |
2 | ||
| 77251D - HOSE, FUEL, NO.2(FOR FUEL MAIN TUBE) | ||||
| 95333-08011 |
CV43,SV43 長さ=110 |
2 | ||
| 77251D - HOSE, FUEL, NO.2(FOR FUEL MAIN TUBE) | ||||
| 95333-08011 |
CV43,SV43 長さ=110 |
2 | ||
| 77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE) | ||||
| 77259-32040 |
SV43 |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-32060 |
CV4#,SV4# |
1 | ||
| 77286C - PROTECTOR, FUEL TANK INLET HOSE | ||||
| 77286-20060 |
CV43,SV43 |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77290-32040 |
CV4#,SV4#..SED |
1 | ||
| 77293A - SHIELD, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77293-32030 |
CV4#,SV4#..SED |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-16011 |
SV4# |
1 | ||
| 77310-48010 |
SV4# |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-16010 |
CV4#,SV4# |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-32090 |
CV4#,SV4#..SED |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-17010 |
CV4#,SV4#..SED |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-26010 |
CV4#,SV4# |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-16011 |
CV4#,SV4# |
1 | ||
| 77420 - VALVE ASSY, FUEL CUT OFF, NO.2 | ||||
| 77420-26010 |
CV4#,SV4# |
2 | ||
| 77601B - BAND SUB-ASSY, FUEL TANK, NO.1 RH | ||||
| 77601-32100 |
CV43,SV43 |
1 | ||
| 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH | ||||
| 77602-32090 |
CV43,SV43 |
1 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-32031 |
CV43,SV43 |
1 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 90250-08019 |
CV4#,SV4# |
2 | ||
| 77641A - PROTECTOR, FUEL TANK, NO.1 | ||||
| 77641-32050 |
CV43,SV43 |
1 | ||
| 77642A - PROTECTOR, FUEL TANK, NO.2 | ||||
| 77642-32010 |
CV43,SV43 |
1 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-32050 |
CV4#,SV4# |
8 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-32050 |
CV4#,SV4# |
8 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-32050 |
CV4#,SV4# |
8 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-32050 |
CV4#,SV4# |
8 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-32050 |
CV4#,SV4# |
8 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-32050 |
CV4#,SV4# |
8 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-32050 |
CV4#,SV4# |
8 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-32050 |
CV4#,SV4# |
8 | ||
| 77652 - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-20090 |
CV43,SV43 |
2 | ||
| 77652 - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-20090 |
CV43,SV43 |
2 | ||
| 77681 - SEAT, FUEL TANK BAND, RH | ||||
| 77681-32070 |
SV43 |
1 | ||
| 77681-32060 |
CV4#,SV4# |
1 | ||
| 77682 - SEAT, FUEL TANK BAND, LH | ||||
| 77681-32060 |
CV4#,SV4# |
1 | ||
| Common parts | ||||
| 90119-06347 | ||||
| 90119-06351 | ||||
| 90119-08511 | ||||
| 90119-10502 | ||||
| 90159-40155 | ||||
| 90159-50217 | ||||
| 90159-50219 | ||||
| 90179-06143 | ||||
| 90179-10068 | ||||
| 90269-05034 | ||||
| 90460-22002 | ||||
| 90460-46003 | ||||
| 90464-00156 | ||||
| 90467-07164 | ||||
| 90467-11009 | ||||
| 90467-13061 | ||||
| 93319-14008 | ||||
| 96132-41100 | ||||
| Linked diagrams | ||||
| 2211 | ||||
