SV43-AEPMK (1994)

Toyota Camry/Vista

Production Jun 1994 - Jun 1998
Engine 3SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

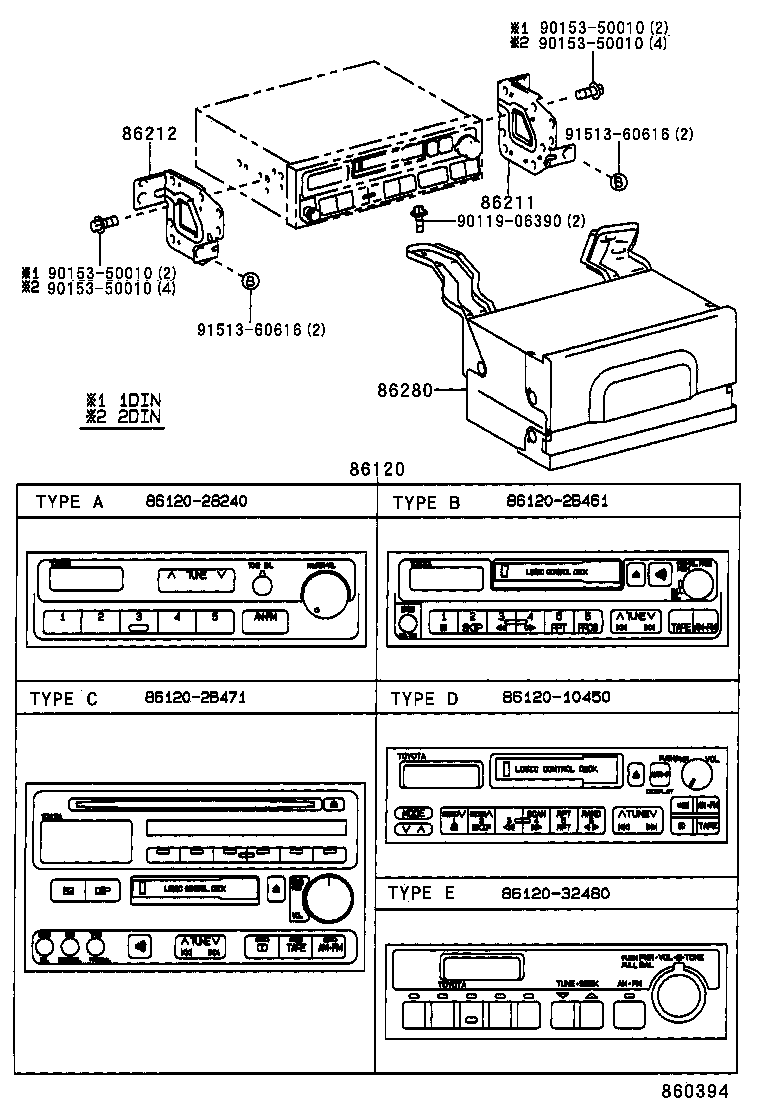

ILLUST NO. 1 OF 2(9406- )

Click highlighted areas on diagram

ﾗｼﾞｵ ﾚｼ-ﾊﾞ,ﾌﾞﾗｹﾂﾄ & ｱﾝﾌﾟﾘﾌｱｲﾔ

diagram 86120 86211 86212 86280 9011906390 9015350010 9015350010 9015350010 9015350010 9151360616 9151360616
Part # Description Qty Price
86120 - RECEIVER ASSY, RADIO
86120-28240

SV40,41,43..ETO,LUM

FUJITSU TEN,ID=10207,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
86120-32480

SV40,41,43..ETO,LUM

FUJITSU TEN,ID=10210,TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ

 1
86211 - BRACKET, RADIO, NO.1
86211-32080

CV4#,SV4#

 1
86211-32090

CV4#,SV4#

 1
86212 - BRACKET, RADIO, NO.2
86212-32090

CV4#,SV4#

 1
86212-32080

CV4#,SV4#

 1
Common parts
90119-06390
90153-50010
91513-60616

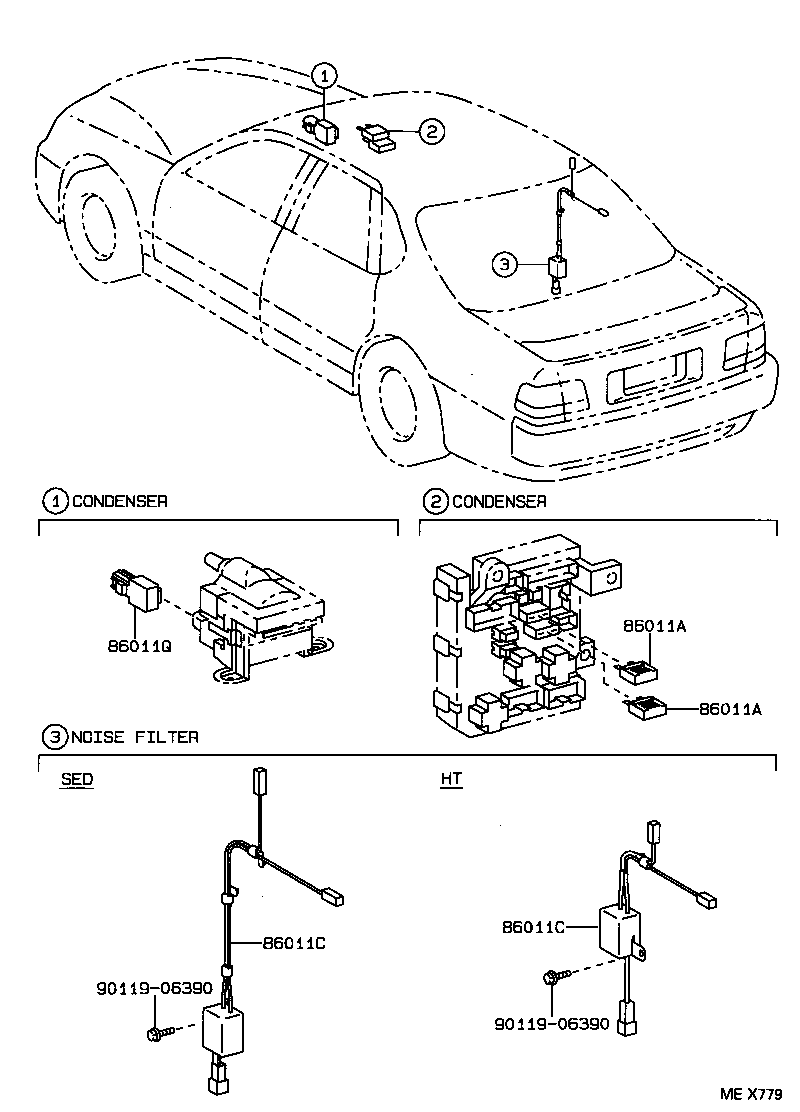

ILLUST NO. 2 OF 2(9406- )

Click highlighted areas on diagram

ｺﾝﾃﾞﾝﾁ & ﾉｲｽﾞﾌｲﾙﾀ

diagram 86011A 86011A 86011C 86011C 86011Q 9011906390 9011906390
Part # Description Qty Price
86011A - CONDENSER, RADIO SETTING
90980-04066

CV4#,SV4#

 2
86011A - CONDENSER, RADIO SETTING
90980-04066

CV4#,SV4#

 2
86011C - FILTER, NOISE
90980-05289

CV4#,SV4#..SED

 1
86011C - FILTER, NOISE
90980-05289

CV4#,SV4#..SED

 1
86011Q - CONDENSER, RADIO SETTING
90980-04083

SV4#

 1
90980-04128

SV4#

 1
Common parts
90119-06390
