SV43-AEPMK (1994)
Toyota Camry/Vista
Production
Jun 1994
-
Jun 1998
Engine
3SFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)

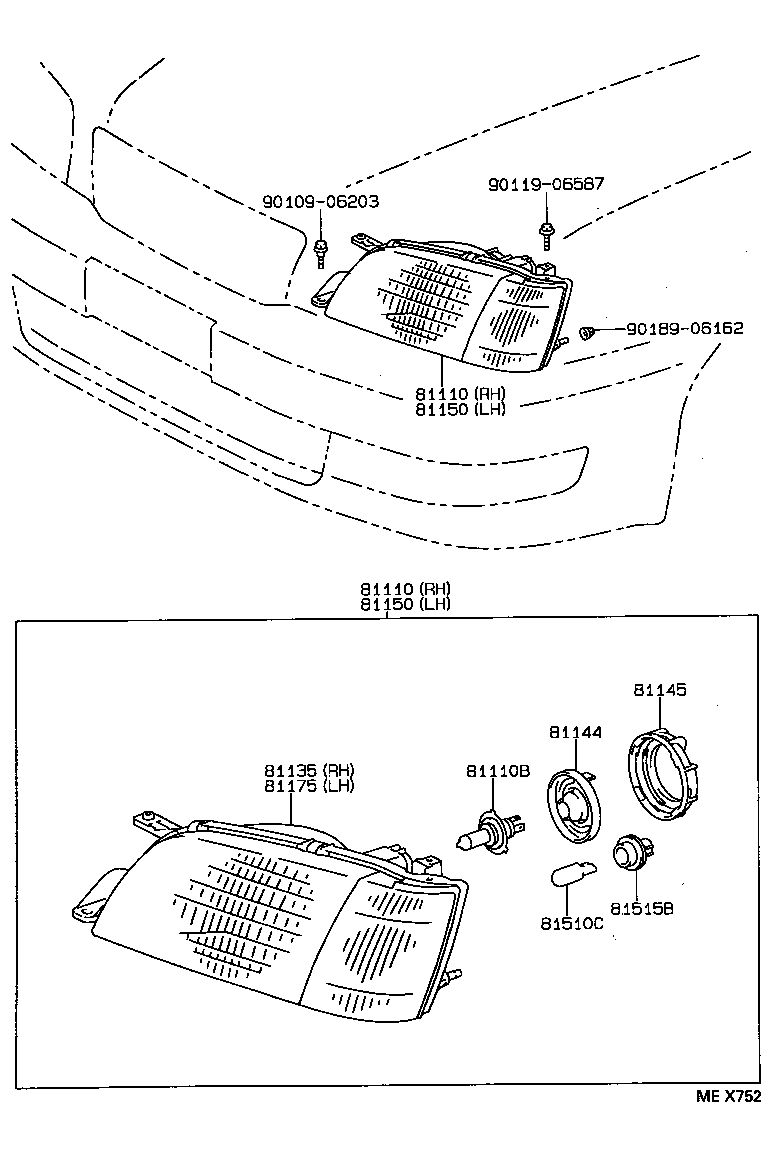

(9406-9605)SED
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-32440 |
CV4#,SV4#..SED |
1 | ||
| 81110-32420 |
CV4#,SV4#..SED |
1 | ||
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-32440 |
CV4#,SV4#..SED |
1 | ||
| 81110-32420 |
CV4#,SV4#..SED |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-22004 |
CV4#,SV4#..SED 12V 60/55W,*HAL *WH |
2 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81130-32420 |
CV4#,SV4#..SED |
1 | ||
| 81130-32440 |
CV4#,SV4#..SED |
1 | ||
| 81144 - COVER, HEADLAMP, NO.1 | ||||
| 90075-99058 |
CV4#,SV4#..SED |
2 | ||
| 81145 - COVER, HEADLAMP, NO.2 | ||||
| 90075-99096 |
CV4#,SV4#..SED |
2 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-32420 |
CV4#,SV4#..SED |
1 | ||
| 81150-32440 |
CV4#,SV4#..SED |
1 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-32420 |
CV4#,SV4#..SED |
1 | ||
| 81150-32440 |
CV4#,SV4#..SED |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81170-32440 |
CV4#,SV4#..SED |
1 | ||
| 81170-32420 |
CV4#,SV4#..SED |
1 | ||
| 81510C - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-13043 |
CV4#,SV4#..SED |
2 | ||
| 81515B - SOCKET, FRONT TURN SIGNAL LAMP | ||||
| 90075-99080 |
CV4#,SV4#..SED |
2 | ||
| Common parts | ||||
| 90109-06203 | ||||
| 90119-06587 | ||||
| 90189-06162 | ||||

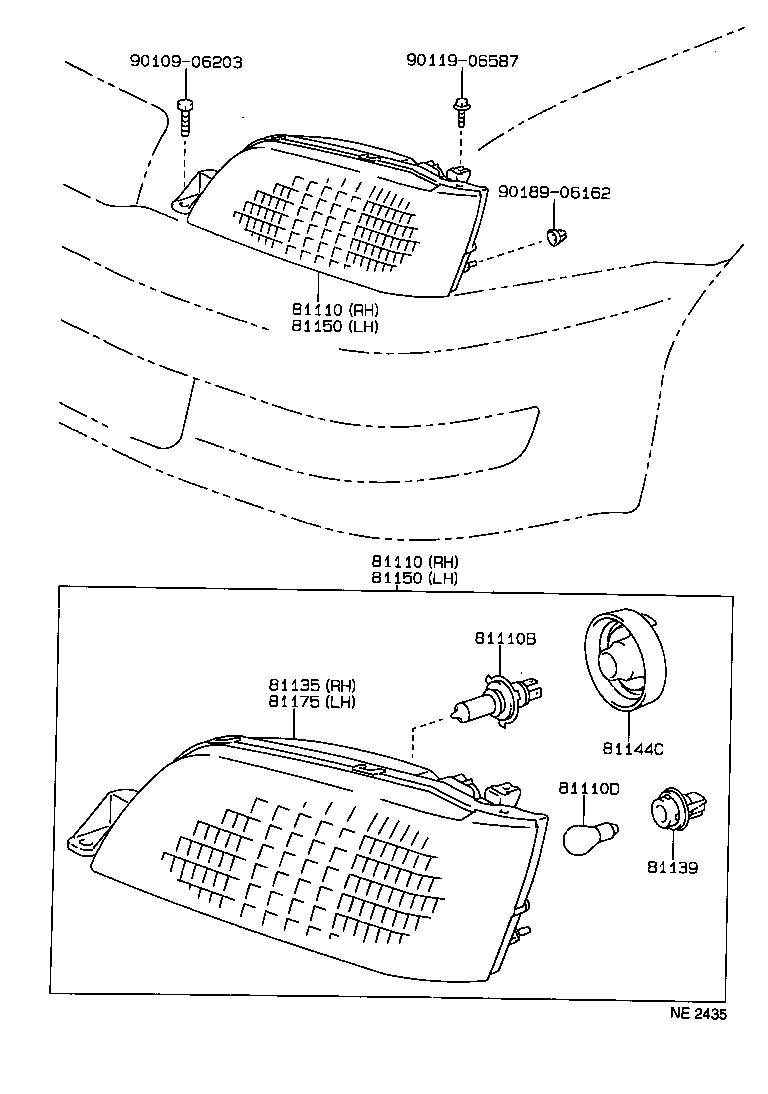

(9605- )SED
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-32440 |
CV4#,SV4#..SED |
1 | ||
| 81110-32420 |
CV4#,SV4#..SED |
1 | ||
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-32440 |
CV4#,SV4#..SED |
1 | ||
| 81110-32420 |
CV4#,SV4#..SED |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-22004 |
CV4#,SV4#..SED 12V 60/55W,*HAL *WH |
2 | ||
| 81110D - BULB(FOR HEADLAMP, NO.2) | ||||
| 90981-15009 |
CV4#,SV4#..SED 12V 21W,ｱﾝﾊﾞｰ |
2 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81130-32420 |
CV4#,SV4#..SED |
1 | ||
| 81130-32440 |
CV4#,SV4#..SED |
1 | ||
| 81139 - COVER, HEADLAMP SOCKET | ||||
| 90075-60006 |
CV4#,SV4#..SED |
2 | ||
| 81144C - COVER, HEADLAMP SOCKET | ||||
| 90075-65002 |
CV4#,SV4#..SED |
2 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-32420 |
CV4#,SV4#..SED |
1 | ||
| 81150-32440 |
CV4#,SV4#..SED |
1 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-32420 |
CV4#,SV4#..SED |
1 | ||
| 81150-32440 |
CV4#,SV4#..SED |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81170-32440 |
CV4#,SV4#..SED |
1 | ||
| 81170-32420 |
CV4#,SV4#..SED |
1 | ||
| Common parts | ||||
| 90109-06203 | ||||
| 90119-06587 | ||||
| 90189-06162 | ||||
