SV43-AEPGK (1994)
Toyota Camry/Vista
Production
Jun 1994
-
Jun 1998
Engine
3SFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9406-9605)

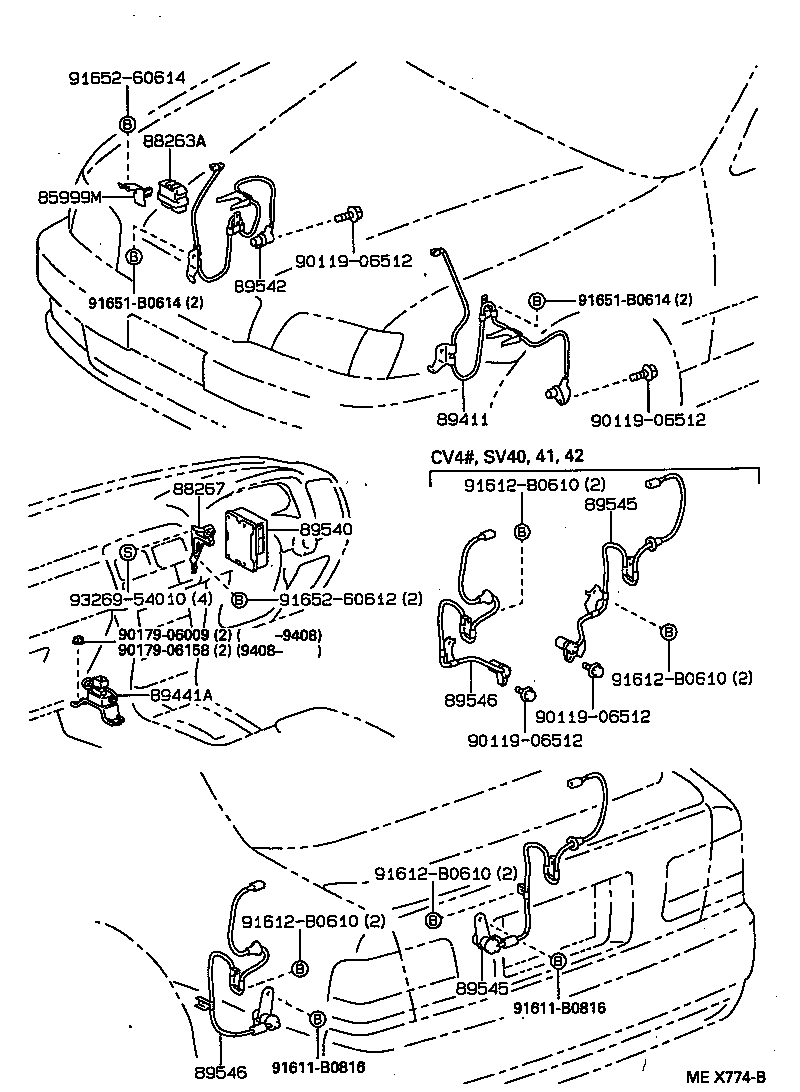

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85999M - BRACKET, RELAY | ||||
| 85999-32270 |
SV4# |
1 | ||
| 85999-32260 |
CV4#,SV4# |
1 | ||
| 88263A - RELAY, SKID CONTROL | ||||
| 88263-14110 |
SV4# |
1 | ||
| 88263-32060 |
CV4#,SV4# |
1 | ||
| 88267 - BRACKET, SKID CONTROL COMPUTER, NO.1 | ||||
| 88267-32110 |
CV4#,SV4# |
1 | ||
| 89411 - SENSOR, SPEED | ||||
| 89543-32021 |
CV4#,SV4# |
1 | ||
| 89441A - SENSOR, DECELERATION | ||||
| 89440-32030 |
CV43,SV43 |
1 | ||
| 89540 - COMPUTER ASSY, SKID CONTROL | ||||
| 89541-32090 |
CV43,SV43 |
1 | ||
| 89542 - SENSOR, SPEED, FRONT RH | ||||
| 89542-32030 |
CV4#,SV4# |
1 | ||
| 89542-32021 |
CV4#,SV4# |
1 | ||
| 89545 - SENSOR, SPEED, REAR RH | ||||
| 89545-32040 |
CV43,SV43 |
1 | ||
| 89545-20150 |
CV43,SV43 |
1 | ||
| 89545 - SENSOR, SPEED, REAR RH | ||||
| 89545-32040 |
CV43,SV43 |
1 | ||
| 89545-20150 |
CV43,SV43 |
1 | ||
| 89546 - SENSOR, SPEED, REAR LH | ||||
| 89546-32040 |
CV43,SV43 |
1 | ||
| 89546-20150 |
CV43,SV43 |
1 | ||
| 89546 - SENSOR, SPEED, REAR LH | ||||
| 89546-32040 |
CV43,SV43 |
1 | ||
| 89546-20150 |
CV43,SV43 |
1 | ||
| Common parts | ||||
| 90119-06512 | ||||
| 90179-06009 | ||||
| 90179-06158 | ||||
| 91611-B0816 | ||||
| 91612-B0610 | ||||
| 91651-B0614 | ||||
| 91652-60612 | ||||
| 91652-60614 | ||||
| 93269-54010 | ||||
(9605- )

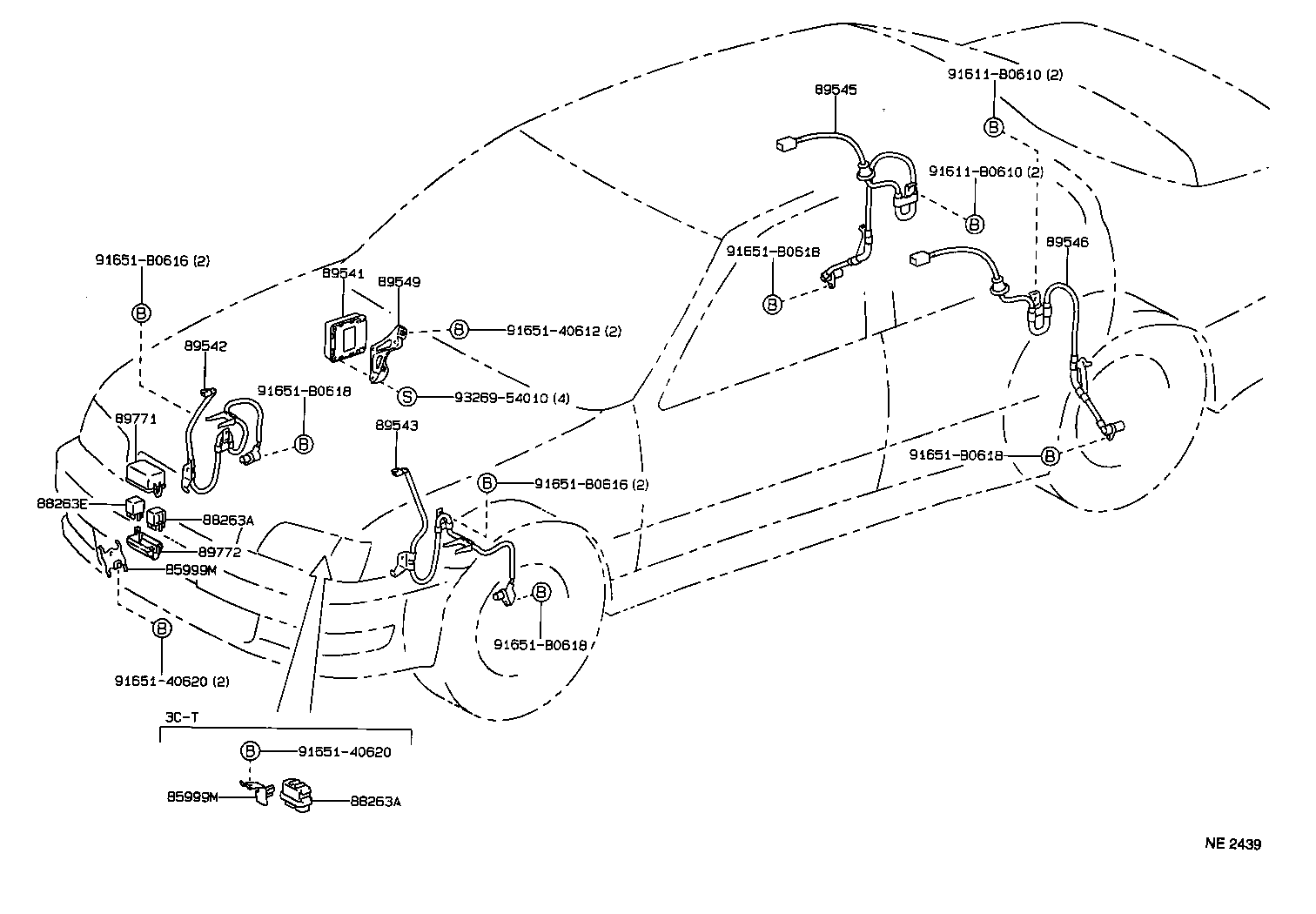

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85999M - BRACKET, RELAY | ||||
| 85999-32270 |
SV4# |
1 | ||
| 85999-32260 |
CV4#,SV4# |
1 | ||
| 85999M - BRACKET, RELAY | ||||
| 85999-32270 |
SV4# |
1 | ||
| 85999-32260 |
CV4#,SV4# |
1 | ||
| 88263A - RELAY, SKID CONTROL | ||||
| 88263-14110 |
SV4# |
1 | ||
| 88263-32060 |
CV4#,SV4# |
1 | ||
| 88263A - RELAY, SKID CONTROL | ||||
| 88263-14110 |
SV4# |
1 | ||
| 88263-32060 |
CV4#,SV4# |
1 | ||
| 88263E - RELAY, SKID CONTROL NO.2 | ||||
| 88263-24030 |
SV4# |
1 | ||
| 89541 - COMPUTER, SKID CONTROL | ||||
| 89541-32110 |
CV43,SV43 |
1 | ||
| 89542 - SENSOR, SPEED, FRONT RH | ||||
| 89542-32030 |
CV4#,SV4# |
1 | ||
| 89542-32021 |
CV4#,SV4# |
1 | ||
| 89543 - SENSOR, SPEED, FRONT LH | ||||
| 89543-32030 |
CV4#,SV4# |
1 | ||
| 89545 - SENSOR, SPEED, REAR RH | ||||
| 89545-32040 |
CV43,SV43 |
1 | ||
| 89545-20150 |
CV43,SV43 |
1 | ||
| 89546 - SENSOR, SPEED, REAR LH | ||||
| 89546-32040 |
CV43,SV43 |
1 | ||
| 89546-20150 |
CV43,SV43 |
1 | ||
| 89549 - BRACKET, SKID CONTROL COMPUTER | ||||
| 89549-32030 |
CV4#,SV4# |
1 | ||
| 89771 - COVER, ABS RELAY BLOCK, UPPER | ||||
| 89771-12010 |
SV4# |
1 | ||
| 89772 - COVER, ABS RELAY BLOCK, LOWER | ||||
| 89772-12010 |
SV4# |
1 | ||
| Common parts | ||||
| 91611-B0610 | ||||
| 91651-40612 | ||||
| 91651-40620 | ||||
| 91651-B0616 | ||||
| 91651-B0618 | ||||
| 93269-54010 | ||||
