SV43-AEMMK (1994)

Toyota Camry/Vista

Production Jun 1994 - Jun 1998
Engine 3SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9406- )SV4#

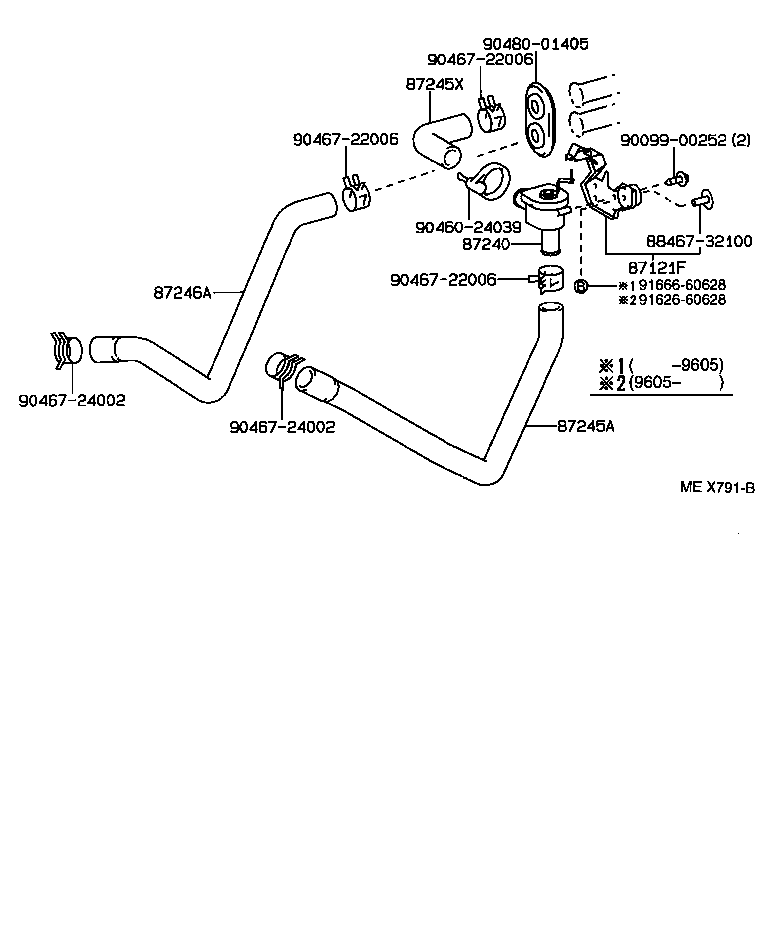

Click highlighted areas on diagram

diagram 87121F 87240 87245A 87245X 87246A 8846732100 9009900252 9046024039 9046722006 9046722006 9046722006 9046724002 9046724002 9048001405 9162660628 9166660628
Part # Description Qty Price
87121F - BRACKET, HEATER
87121-32020

CV4#,SV4#

 1
87240 - VALVE ASSY, HEATER WATER
87240-32040

CV4#,SV4#

 1
87245A - HOSE, HEATER WATER, INLET A
87245-32380

SV4#

 1
87245-32330

SV4#

 1
87245X - HOSE, HEATER WATER
87245-32370

CV4#,SV4#

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-32410

SV4#

 1
87245-32340

SV4#

 1
Common parts
88467-32100
90099-00252
90460-24039
90467-22006
90467-24002
90480-01405
91626-60628
91666-60628
