SV43-AEMMK (1994)

Toyota Camry/Vista

Production Jun 1994 - Jun 1998
Engine 3SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

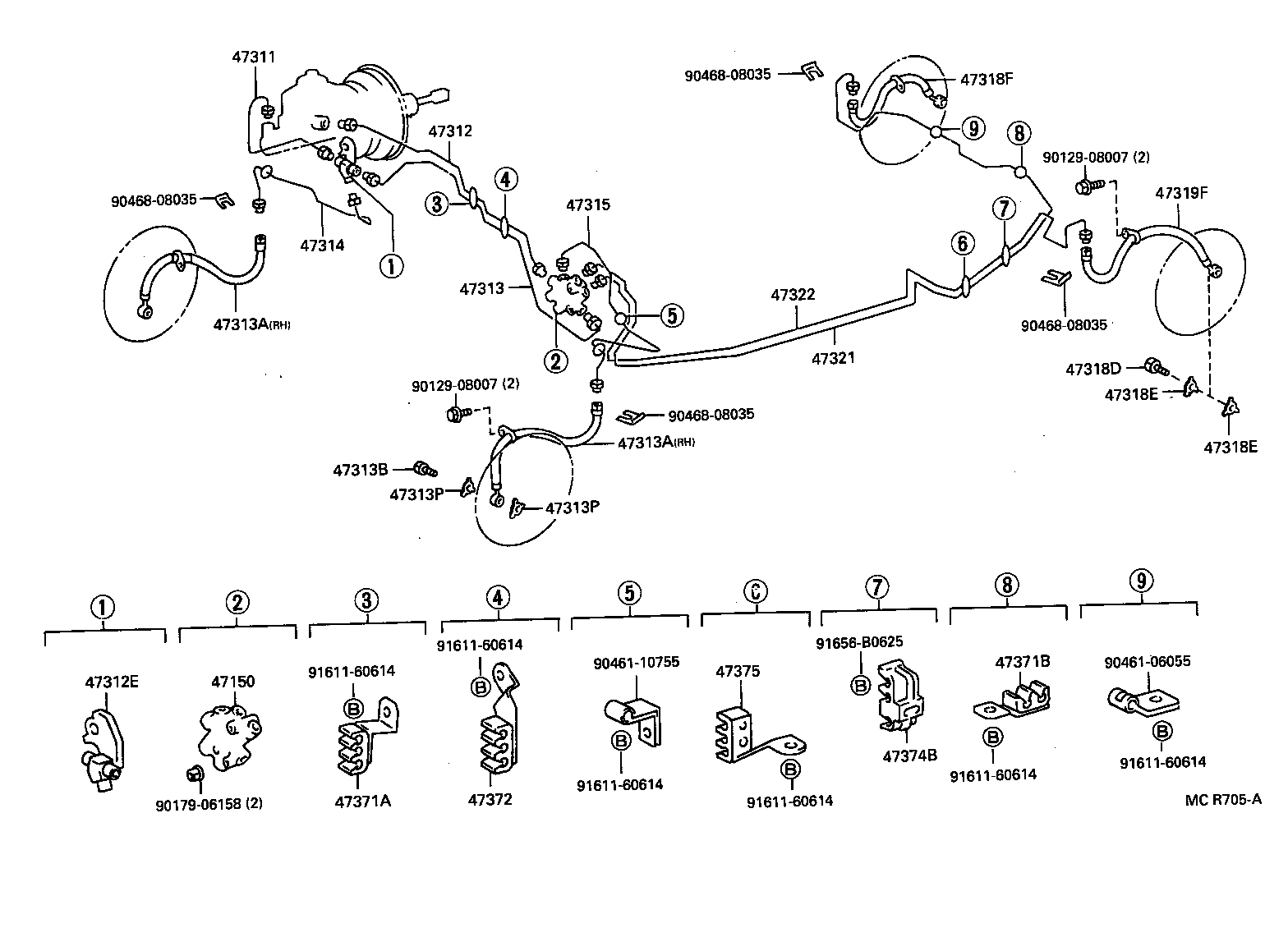

ILLUST NO. 1 OF 2(9406-9605)SV43

Click highlighted areas on diagram

ｱﾘ(ABS)

diagram 47150 47313A 47313A 47313B 47313P 47313P 47315 47316 47317 47318 47318D 47318E 47318E 47318F 47319 47319F 47321 47322 47323 47324 47371A 47371B 47372 47373B 47374B 47375 9012908007 9012908007 9017906158 9046106055 9046110755 9046808035 9046808035 9046808035 9046808035 9048001513 9094901872 9161160614 9161160614 9161160614 9161160614 9161160614 9161160614 91656B0625
Part # Description Qty Price
47150 - VALVE ASSY, PROPORTIONING
47150-20250

CV43,SV40,43

ｱﾘ(ABS)

 1
47150-20340

CV40,SV40,43

 1
47150-16040

CV4#,SV40,43

 1
47150-20250

CV4#,SV40,43

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02792

CV4#,SV4#

右側

 1
90947-02793

CV4#,SV4#

左側

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02792

CV4#,SV4#

右側

 1
90947-02793

CV4#,SV4#

左側

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015

CV4#,SV4#

 2
90401-10058

CV4#,SV4#

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

CV4#,SV4#

 2
90430-10074

CV4#,SV4#

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

CV4#,SV4#

 2
90430-10074

CV4#,SV4#

 4
47315 - TUBE, FRONT BRAKE, NO.5
47315-32150

CV4#,SV4#

 1
47315-32170

CV4#,SV4#

 1
47315-32140

CV4#,SV4#

ｱﾘ(ABS)

 1
47316 - TUBE, FRONT BRAKE, NO.6
47316-32070

SV41,42,43

 1
47316-32140

SV4#

 1
47317 - TUBE, FRONT BRAKE, NO.7
47317-32140

SV4#

 1
47317-32070

SV41,42,43

 1
47318 - TUBE, FRONT BRAKE, NO.8
47318-32140

SV4#

 1
47318-32050

SV4#

 1
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058

CV43,SV41,42,43

 2
90401-10015

CV4#,SV41,42,43

 2
90401-10015

CV43,SV41,42,43

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020

CV43,SV41,42,43

 2
47389-30010

CV43,SV41,42,43

 4
47389-30010

CV4#,SV41,42,43

 4
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020

CV43,SV41,42,43

 2
47389-30010

CV43,SV41,42,43

 4
47389-30010

CV4#,SV41,42,43

 4
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02703

CV43,SV43

 1
47319 - TUBE, FRONT BRAKE, NO.9
47319-32140

SV4#

 1
47319-32060

SV4#

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02704

CV43,SV43

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-32150

CV4#,SV4#

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-32140

CV4#,SV4#

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-32110

SV4#

 1
47323-32140

SV41,42,43

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-32120

SV4#

 1
47324-32140

SV41,42,43

 1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-32080

CV4#,SV4#

 1
47371-32090

CV4#,SV4#

 1
47371-32090

CV4#,SV4#

ｱﾘ(ABS)

 1
47371B - CLAMP, BRAKE TUBE, NO.6
47371-32180

CV4#,SV4#

 1
47372 - CLAMP, BRAKE TUBE, NO.2
47371-32210

CV4#,SV4#

 1
47371-32200

CV4#,SV4#

 1
47371-32150

CV4#,SV4#

ｱﾘ(ABS)

 1
47373B - CLAMP, BRAKE TUBE, NO.3
47371-32160

CV4#,SV4#

 1
47374B - CLAMP, BRAKE TUBE, NO.4
47371-20380

CV4#,SV4#

 1
47375 - CLAMP, BRAKE TUBE, NO.5
47371-32170

CV4#,SV4#

 1
Common parts
90129-08007
90179-06158
90461-06055
90461-10755
90468-08035
90480-01513
90949-01872
91611-60614
91656-B0625

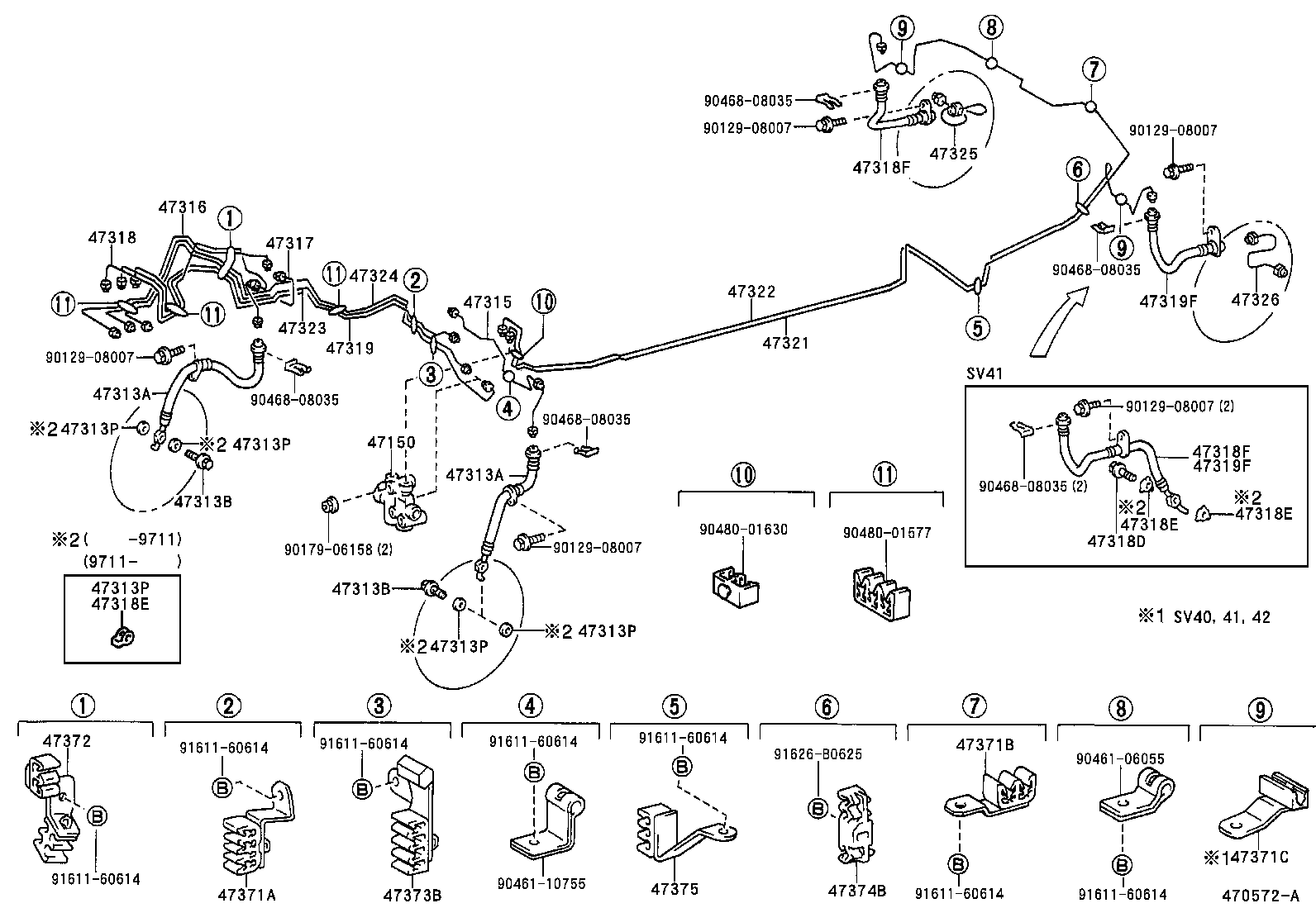

ILLUST NO. 1 OF 2(9605- )SV4#

Click highlighted areas on diagram

diagram 47150 47313A 47313A 47313B 47313B 47313P 47313P 47313P 47313P 47313P 47315 47316 47317 47318 47318D 47318E 47318E 47318E 47318F 47318F 47319 47319F 47319F 47321 47322 47323 47324 47325 47326 47371A 47371B 47371C 47372 47373B 47374B 47375 9012908007 9012908007 9012908007 9012908007 9012908007 9017906158 9046106055 9046110755 9046808035 9046808035 9046808035 9046808035 9046808035 9048001577 9048001630 9161160614 9161160614 9161160614 9161160614 9161160614 9161160614 9161160614 91626B0625
Part # Description Qty Price
47150 - VALVE ASSY, PROPORTIONING
47150-20250

CV4#,SV40,43

 1
47150-20250

CV43,SV40,43

ｱﾘ(ABS)

 1
47150-20340

CV40,SV40,43

 1
47150-16040

CV4#,SV40,43

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02792

CV4#,SV4#

右側

 1
90947-02793

CV4#,SV4#

左側

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02792

CV4#,SV4#

右側

 1
90947-02793

CV4#,SV4#

左側

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015

CV4#,SV4#

 2
90401-10058

CV4#,SV4#

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015

CV4#,SV4#

 2
90401-10058

CV4#,SV4#

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

CV4#,SV4#

 2
90430-10074

CV4#,SV4#

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

CV4#,SV4#

 2
90430-10074

CV4#,SV4#

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

CV4#,SV4#

 2
90430-10074

CV4#,SV4#

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

CV4#,SV4#

 2
90430-10074

CV4#,SV4#

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

CV4#,SV4#

 2
90430-10074

CV4#,SV4#

 4
47315 - TUBE, FRONT BRAKE, NO.5
47315-32150

CV4#,SV4#

 1
47315-32170

CV4#,SV4#

 1
47315-32140

CV4#,SV4#

ｱﾘ(ABS)

 1
47316 - TUBE, FRONT BRAKE, NO.6
47316-32070

SV41,42,43

 1
47316-32140

SV4#

 1
47317 - TUBE, FRONT BRAKE, NO.7
47317-32140

SV4#

 1
47317-32070

SV41,42,43

 1
47318 - TUBE, FRONT BRAKE, NO.8
47318-32140

SV4#

 1
47318-32050

SV4#

 1
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058

CV43,SV41,42,43

 2
90401-10015

CV4#,SV41,42,43

 2
90401-10015

CV43,SV41,42,43

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020

CV43,SV41,42,43

 2
47389-30010

CV43,SV41,42,43

 4
47389-30010

CV4#,SV41,42,43

 4
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020

CV43,SV41,42,43

 2
47389-30010

CV43,SV41,42,43

 4
47389-30010

CV4#,SV41,42,43

 4
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020

CV43,SV41,42,43

 2
47389-30010

CV43,SV41,42,43

 4
47389-30010

CV4#,SV41,42,43

 4
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02703

CV43,SV43

 1
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02703

CV43,SV43

 1
47319 - TUBE, FRONT BRAKE, NO.9
47319-32140

SV4#

 1
47319-32060

SV4#

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02704

CV43,SV43

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02704

CV43,SV43

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-32150

CV4#,SV4#

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-32140

CV4#,SV4#

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-32110

SV4#

 1
47323-32140

SV41,42,43

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-32120

SV4#

 1
47324-32140

SV41,42,43

 1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-32080

CV4#,SV4#

 1
47371-32090

CV4#,SV4#

 1
47371-32090

CV4#,SV4#

ｱﾘ(ABS)

 1
47371B - CLAMP, BRAKE TUBE, NO.6
47371-32180

CV4#,SV4#

 1
47372 - CLAMP, BRAKE TUBE, NO.2
47371-32210

CV4#,SV4#

 1
47371-32200

CV4#,SV4#

 1
47371-32150

CV4#,SV4#

ｱﾘ(ABS)

 1
47373B - CLAMP, BRAKE TUBE, NO.3
47371-32160

CV4#,SV4#

 1
47374B - CLAMP, BRAKE TUBE, NO.4
47371-20380

CV4#,SV4#

 1
47375 - CLAMP, BRAKE TUBE, NO.5
47371-32170

CV4#,SV4#

 1
Common parts
90129-08007
90179-06158
90461-06055
90461-10755
90468-08035
90480-01577
90480-01630
91611-60614
91626-B0625

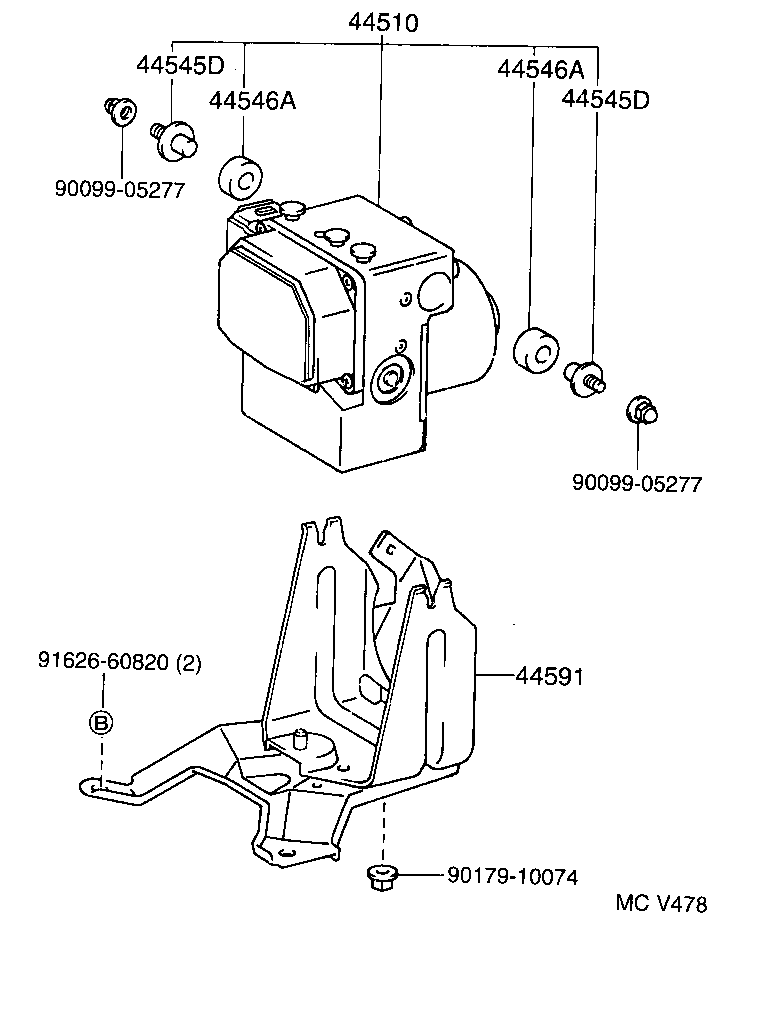

ILLUST NO. 2 OF 2(9406-9605)

Click highlighted areas on diagram

ｱﾘ(ABS)

diagram 44510 44545D 44545D 44545D 44545D 44546A 44546A 44546A 44546A 44591 44597 9010506197 9017906009 9017906009 9017906009 9017906009 9017910074 9166160816
Part # Description Qty Price
44510 - ACTUATOR ASSY, BRAKE
44510-33070

CV4#,SV4#

 1
44050-33020

CV4#,SV4#

 1
44510-32060

CV4#,SV41,42,43

 1
44545D - HOLDER, BRAKE ACTUATOR BOLT
44545-42020

CV4#,SV4#

 2
44545-33010

CV4#,SV4#

 4
44545D - HOLDER, BRAKE ACTUATOR BOLT
44545-42020

CV4#,SV4#

 2
44545-33010

CV4#,SV4#

 4
44545D - HOLDER, BRAKE ACTUATOR BOLT
44545-42020

CV4#,SV4#

 2
44545-33010

CV4#,SV4#

 4
44545D - HOLDER, BRAKE ACTUATOR BOLT
44545-42020

CV4#,SV4#

 2
44545-33010

CV4#,SV4#

 4
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-33010

CV4#,SV4#

 4
44546-42020

CV4#,SV4#

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-33010

CV4#,SV4#

 4
44546-42020

CV4#,SV4#

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-33010

CV4#,SV4#

 4
44546-42020

CV4#,SV4#

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-33010

CV4#,SV4#

 4
44546-42020

CV4#,SV4#

 3
44591 - BRACKET, BRAKE ACTUATOR, NO.1
44590-32010

SV4#

 1
44590-32030

SV4#

 1
44597 - CLAMP, BRAKE ACTUATOR CONNECTOR, NO.1
44597-32020

CV4#,SV4#

 1
Common parts
90105-06197
90179-06009
90179-10074
91661-60816

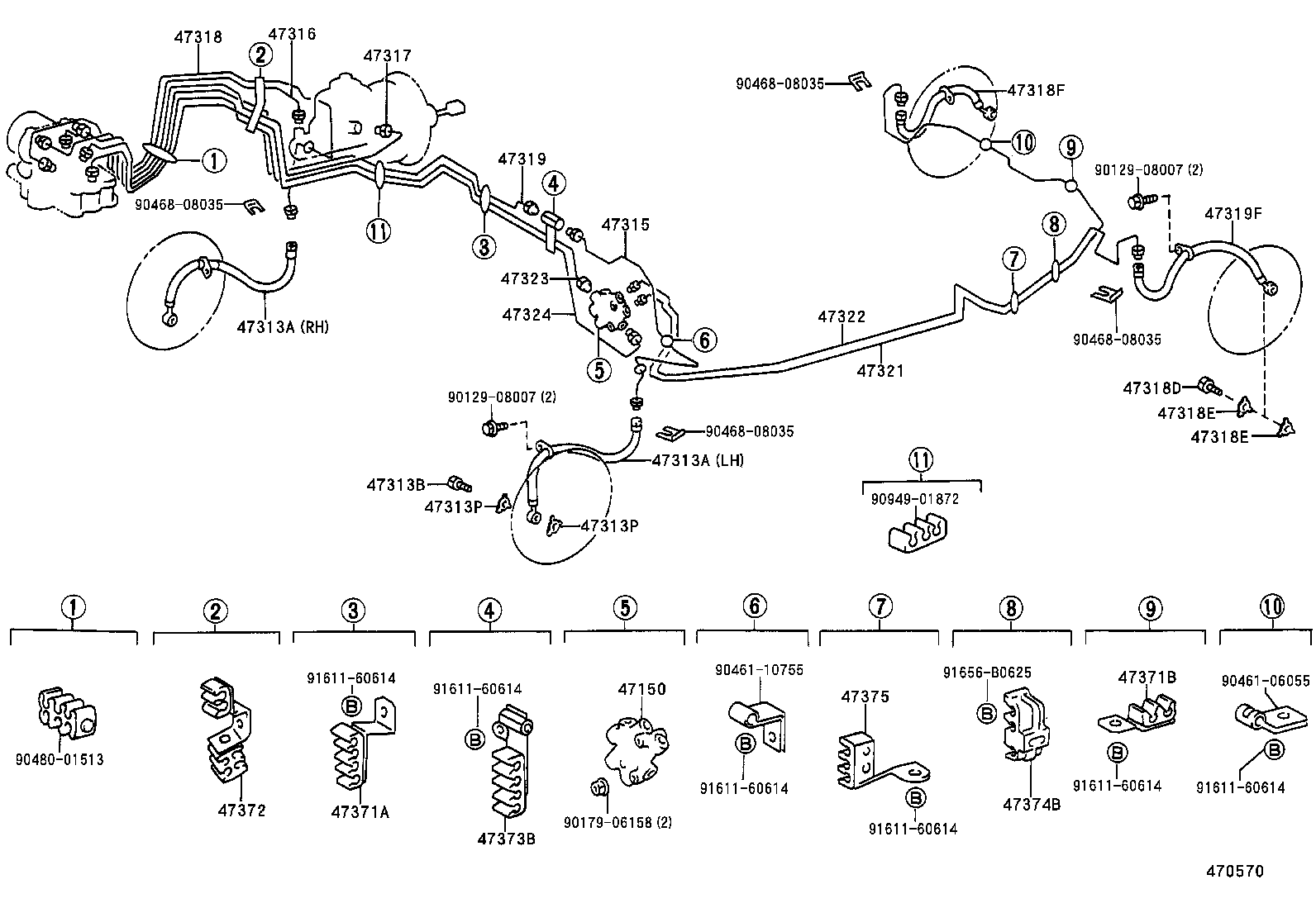

(9406-9605)SV43

Click highlighted areas on diagram

diagram 47150 47311 47312 47312E 47313 47313A 47313A 47313B 47313P 47313P 47314 47315 47318D 47318E 47318E 47318F 47319F 47321 47322 47371A 47371B 47372 47374B 47375 9012908007 9012908007 9017906158 9046106055 9046110755 9046808035 9046808035 9046808035 9046808035 9161160614 9161160614 9161160614 9161160614 9161160614 9161160614 91656B0625
Part # Description Qty Price
47150 - VALVE ASSY, PROPORTIONING
47150-20250

CV43,SV40,43

ｱﾘ(ABS)

 1
47150-20340

CV40,SV40,43

 1
47150-16040

CV4#,SV40,43

 1
47150-20250

CV4#,SV40,43

 1
47311 - TUBE, FRONT BRAKE, NO.1
47311-32100

CV4#,SV4#

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-32180

SV41,42,43

 1
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90904-13013

CV4#,SV4#

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-32180

SV41,42,43

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02792

CV4#,SV4#

右側

 1
90947-02793

CV4#,SV4#

左側

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02792

CV4#,SV4#

右側

 1
90947-02793

CV4#,SV4#

左側

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015

CV4#,SV4#

 2
90401-10058

CV4#,SV4#

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

CV4#,SV4#

 2
90430-10074

CV4#,SV4#

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

CV4#,SV4#

 2
90430-10074

CV4#,SV4#

 4
47314 - TUBE, FRONT BRAKE, NO.4
47314-32180

SV41,42,43

 1
47315 - TUBE, FRONT BRAKE, NO.5
47315-32150

CV4#,SV4#

 1
47315-32170

CV4#,SV4#

 1
47315-32140

CV4#,SV4#

ｱﾘ(ABS)

 1
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058

CV43,SV41,42,43

 2
90401-10015

CV4#,SV41,42,43

 2
90401-10015

CV43,SV41,42,43

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020

CV43,SV41,42,43

 2
47389-30010

CV43,SV41,42,43

 4
47389-30010

CV4#,SV41,42,43

 4
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020

CV43,SV41,42,43

 2
47389-30010

CV43,SV41,42,43

 4
47389-30010

CV4#,SV41,42,43

 4
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02703

CV43,SV43

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02704

CV43,SV43

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-32150

CV4#,SV4#

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-32140

CV4#,SV4#

 1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-32080

CV4#,SV4#

 1
47371-32090

CV4#,SV4#

 1
47371-32090

CV4#,SV4#

ｱﾘ(ABS)

 1
47371B - CLAMP, BRAKE TUBE, NO.6
47371-32180

CV4#,SV4#

 1
47372 - CLAMP, BRAKE TUBE, NO.2
47371-32210

CV4#,SV4#

 1
47371-32200

CV4#,SV4#

 1
47371-32150

CV4#,SV4#

ｱﾘ(ABS)

 1
47374B - CLAMP, BRAKE TUBE, NO.4
47371-20380

CV4#,SV4#

 1
47375 - CLAMP, BRAKE TUBE, NO.5
47371-32170

CV4#,SV4#

 1
Common parts
90129-08007
90179-06158
90461-06055
90461-10755
90468-08035
91611-60614
91656-B0625

ILLUST NO. 2 OF 2(9605- )SV4#

Click highlighted areas on diagram

diagram 44510 44545D 44545D 44546A 44546A 44591 9009905277 9009905277 9017910074 9162660820
Part # Description Qty Price
44510 - ACTUATOR ASSY, BRAKE
44510-33070

CV4#,SV4#

 1
44050-33020

CV4#,SV4#

 1
44510-32060

CV4#,SV41,42,43

 1
44545D - HOLDER, BRAKE ACTUATOR BOLT
44545-42020

CV4#,SV4#

 2
44545-33010

CV4#,SV4#

 4
44545D - HOLDER, BRAKE ACTUATOR BOLT
44545-42020

CV4#,SV4#

 2
44545-33010

CV4#,SV4#

 4
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-33010

CV4#,SV4#

 4
44546-42020

CV4#,SV4#

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-33010

CV4#,SV4#

 4
44546-42020

CV4#,SV4#

 3
44591 - BRACKET, BRAKE ACTUATOR, NO.1
44590-32010

SV4#

 1
44590-32030

SV4#

 1
Common parts
90099-05277
90179-10074
91626-60820
