SV43-AEMMK (1994)
Toyota Camry/Vista
Production
Jun 1994
-
Jun 1998
Engine
3SFE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)

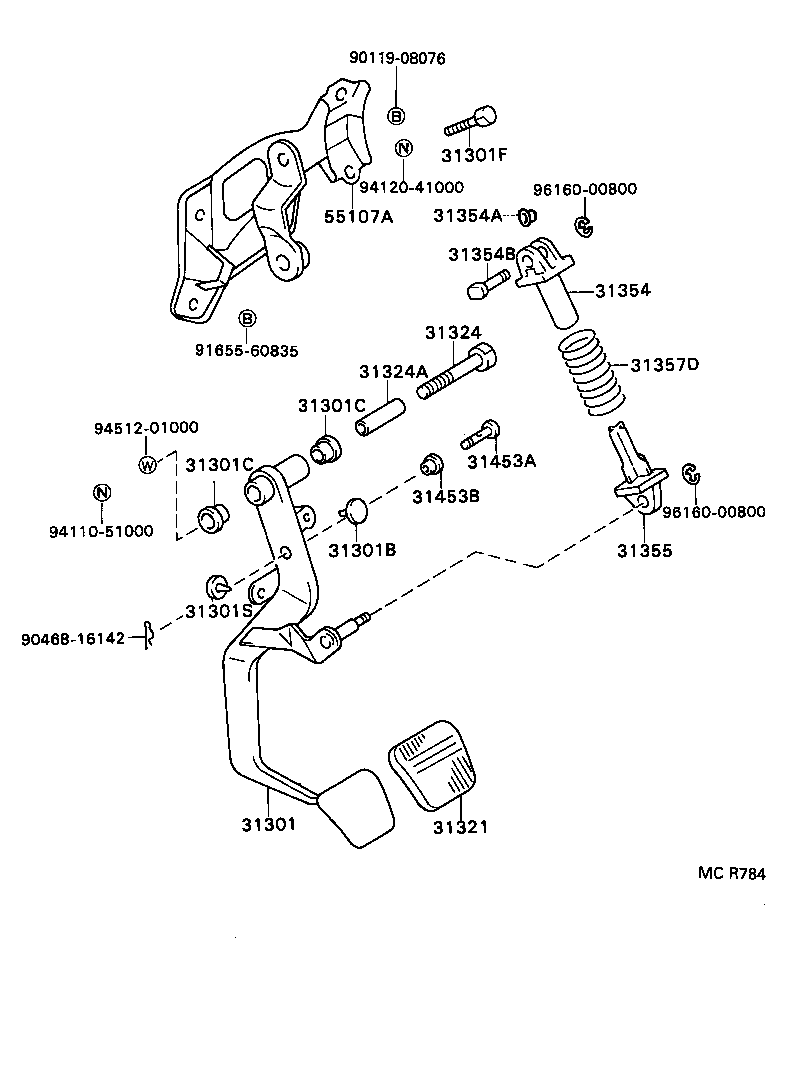

ILLUST NO. 1 OF 2(9406- )CV40,SV43..MTM
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31301 - PEDAL SUB-ASSY, CLUTCH | ||||
| 31301-32160 |
CV40,SV43..MTM |
1 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06036 |
CV40,SV40,43..MTM |
1 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13015 |
CV40,SV40,43..MTM |
2 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13015 |
CV40,SV40,43..MTM |
2 | ||
| 31301F - BOLT(FOR CLUTCH PEDAL STOPPER) | ||||
| 90101-10369 |
CV40,SV40,43..MTM |
1 | ||
| 31301S - CUSHION, NO.2(FOR CLUTCH PEDAL) | ||||
| 90541-06008 |
CV40,SV40,43..MTM |
1 | ||
| 31321 - PAD, CLUTCH PEDAL | ||||
| 31321-14020 |
CV40,SV40,43..MTM |
1 | ||
| 31324 - SHAFT, CLUTCH PEDAL | ||||
| 91121-51060 |
CV40,SV40,43..MTM |
1 | ||
| 31324A - COLLAR, CLUTCH PEDAL SHAFT | ||||
| 90387-10003 |
CV40,SV40,43..MTM |
1 | ||
| 31354 - SEAT, CLUTCH PEDAL SPRING, UPPER | ||||
| 31354-33010 |
CV40,SV43..MTM |
1 | ||
| 31354-20030 |
CV40,SV43..MTM |
1 | ||
| 31354A - BUSH(FOR CLUTCH PEDAL SPRING SEAT UPPER) | ||||
| 90386-10019 |
CV40,SV43..MTM |
1 | ||
| 31354B - PIN, W/HOLE(FOR CLUTCH PEDAL SPRING SEAT UPPER) | ||||
| 90249-10127 |
CV40,SV43..MTM |
1 | ||
| 31355 - SEAT, CLUTCH PEDAL SPRING, LOWER | ||||
| 31355-20030 |
CV40,SV43..MTM |
1 | ||
| 31357D - SPRING, COMPRESSION(FOR OVER CENTER ADJUSTING ROD) | ||||
| 90501-40026 |
CV40,SV43..MTM |
1 | ||
| 31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90249-08143 |
CV40,SV40,43..MTM |
1 | ||
| 31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90386-08036 |
CV40,SV40,43..MTM |
1 | ||
| 55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL | ||||
| 55107-32130 |
CV40,SV40,43..MTM |
1 | ||
| Common parts | ||||
| 90119-08076 | ||||
| 90468-16142 | ||||
| 91655-60835 | ||||
| 94110-51000 | ||||
| 94120-41000 | ||||
| 94512-01000 | ||||
| 96160-00800 | ||||

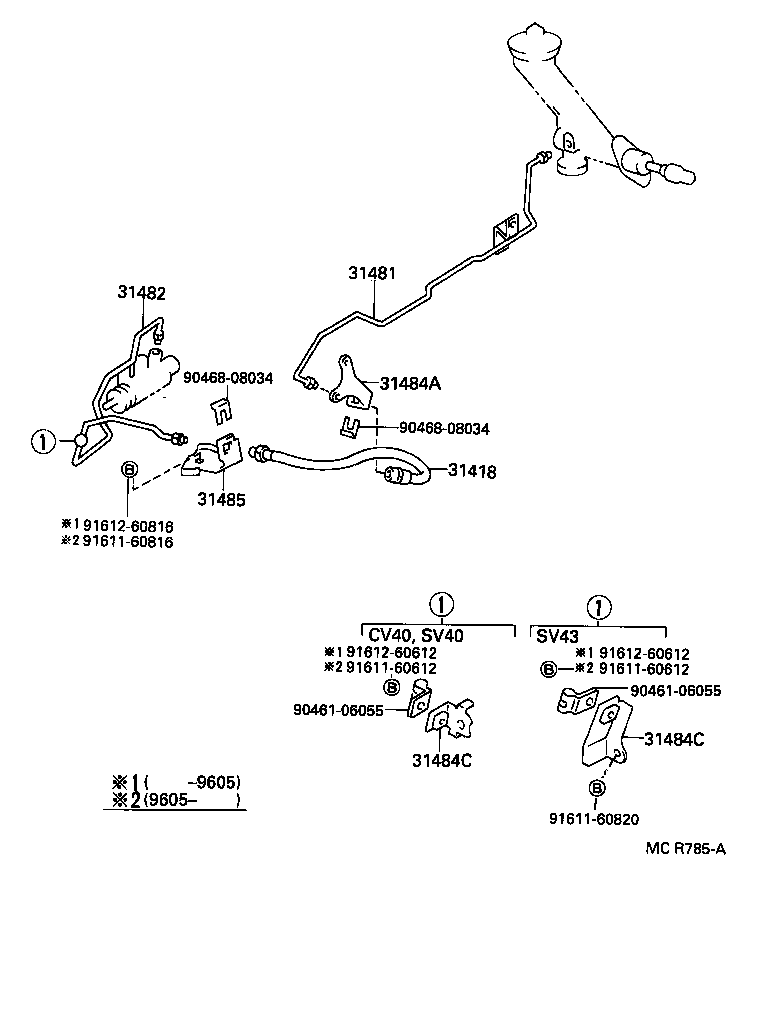

ILLUST NO. 2 OF 2(9406- )MTM
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31418 - HOSE, CLUTCH | ||||
| 90931-01110 |
CV40,SV40,43..MTM |
1 | ||
| 31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE | ||||
| 31481-32130 |
CV40,SV40,43..MTM |
1 | ||
| 31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE | ||||
| 31482-32120 |
SV40,43..MTM |
1 | ||
| 31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH) | ||||
| 31484-32120 |
CV40,SV40,43..MTM |
1 | ||
| 31484C - BRACKET, CLUTCH TUBE, NO.1 | ||||
| 31484-20320 |
SV43..MTM |
1 | ||
| 31484C - BRACKET, CLUTCH TUBE, NO.1 | ||||
| 31484-20320 |
SV43..MTM |
1 | ||
| 31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH) | ||||
| 31484-32130 |
CV40,SV40,43..MTM |
1 | ||
| Common parts | ||||
| 90461-06055 | ||||
| 90468-08034 | ||||
| 91611-60612 | ||||
| 91611-60816 | ||||
| 91611-60820 | ||||
| 91612-60612 | ||||
| 91612-60816 | ||||
