SV43-AEMGK (1994)

Toyota Camry/Vista

Production Jun 1994 - Jun 1998
Engine 3SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9406- )SED

Click highlighted areas on diagram

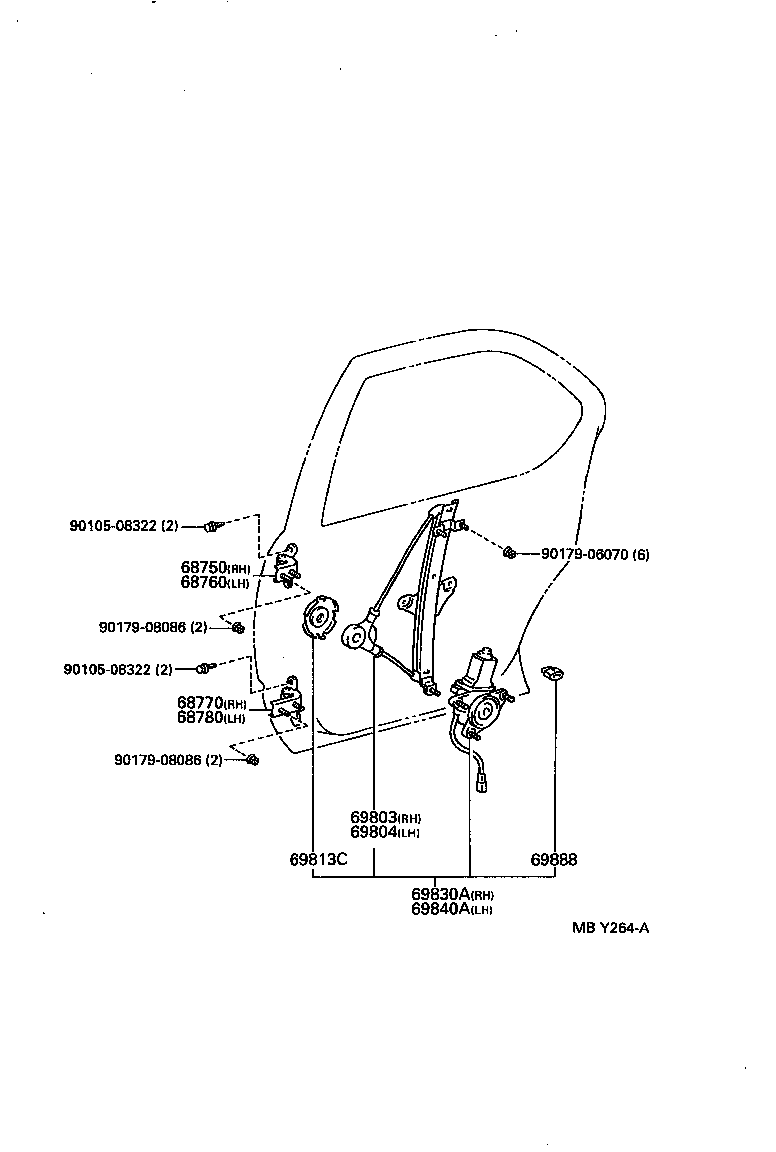

diagram 68750 68760 68770 68780 69803 69804 69813C 69830A 69840A 69888 9010508322 9010508322 9017906070 9017908086 9017908086
Part # Description Qty Price
68750 - HINGE ASSY, REAR DOOR, UPPER RH
68750-32060

CV4#,SV4#..SED

 1
68760 - HINGE ASSY, REAR DOOR, UPPER LH
68760-32060

CV4#,SV4#..SED

 1
68770 - HINGE ASSY, REAR DOOR, LOWER RH
68770-32070

CV4#,SV4#..SED

 1
68780 - HINGE ASSY, REAR DOOR, LOWER LH
68780-32060

CV4#,SV4#..SED

 1
69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
69803-32070

CV4#,SV4#..SED

 1
69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
69804-32070

CV4#,SV4#..SED

 1
69813C - PLATE, REAR DOOR POWER WINDOW REGULATOR BASE
69814-32010

CV4#,SV4#..SED

左側

 1
69813-32040

CV4#,SV4#..SED

右側

 1
69830A - REGULATOR ASSY, REAR DOOR WINDOW, RH
69830-32110

CV4#,SV4#..SED

 1
69840A - REGULATOR ASSY, REAR DOOR WINDOW, LH
69840-32110

CV4#,SV4#..SED

 1
69888 - CUSHION, WINDOW REGULATOR DOOR GLASS BRACKET, NO.2
69888-33011

CV4#,SV4#..SED

 2
Common parts
90105-08322
90179-06070
90179-08086
