SV43-AEMGK (1994)

Toyota Camry/Vista

Production Jun 1994 - Jun 1998
Engine 3SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

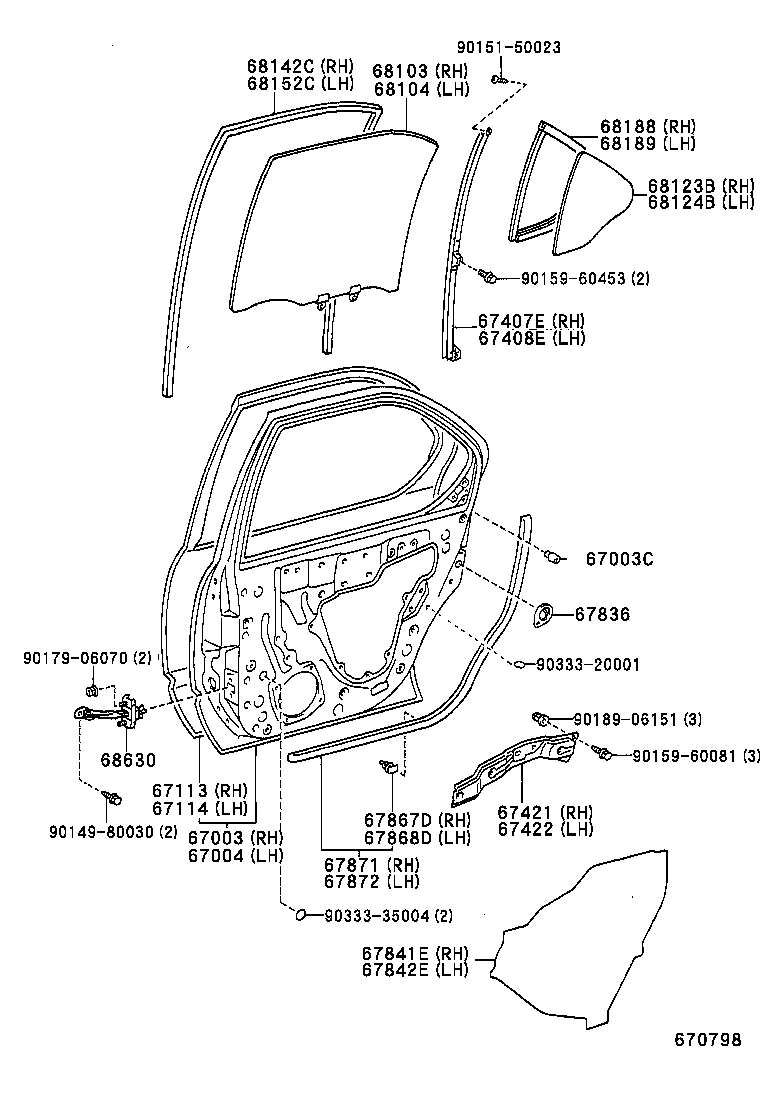

ILLUST NO. 2 OF 2(9406- )SED

Click highlighted areas on diagram

diagram 67003 67003C 67004 67113 67114 67407E 67408E 67421 67422 67836 67841E 67842E 67867D 67868D 67871 67872 68103 68104 68123B 68124B 68142C 68152C 68188 68189 68630 9014980030 9015150023 9015960081 9015960453 9017906070 9018906151 9033320001 9033335004
Part # Description Qty Price
67003 - PANEL SUB-ASSY, REAR DOOR, RH
67003-32330

CV4#,SV4#..SED

 1
67003C - CUSHION, REAR DOOR PANEL
90541-09006

CV4#,SV4#..SED

 2
67004 - PANEL SUB-ASSY, REAR DOOR, LH
67004-32330

CV4#,SV4#..SED

 1
67113 - PANEL, REAR DOOR, OUTER RH
67113-32110

CV4#,SV4#..SED

 1
67114 - PANEL, REAR DOOR, OUTER LH
67114-32110

CV4#,SV4#..SED

 1
67407E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH
67407-32080

CV4#,SV4#..SED

 1
67408E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH
67408-32080

CV4#,SV4#..SED

 1
67421 - FRAME, REAR DOOR WINDOW, FRONT UPPER RH
67421-32070

CV4#,SV4#..SED

 1
67422 - FRAME, REAR DOOR WINDOW, FRONT UPPER LH
67422-32070

CV4#,SV4#..SED

 1
67836 - COVER, REAR DOOR LOCK CHILD PROTECTION, RH
67836-32010

CV4#,SV4#

 2
67841E - COVER, REAR DOOR SERVICE HOLE, RH
67841-32110

CV4#,SV4#..SED

 1
67842E - COVER, REAR DOOR SERVICE HOLE, LH
67842-32080

CV4#,SV4#..SED

 1
67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH
67867-12150

CV4#,SV4#..SED

 11
67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH
67867-12150

CV4#,SV4#..SED

 11
67871 - WEATHERSTRIP, REAR DOOR, RH
67871-32110

CV4#,SV4#..SED

 1
67872 - WEATHERSTRIP, REAR DOOR, LH
67872-32110

CV4#,SV4#..SED

 1
68103 - GLASS SUB-ASSY, REAR DOOR, RH
68103-32220

CV4#,SV4#..SED

*UVCT,厚さ=3.5,ｸﾞﾘｰﾝ

 1
68103-32170

CV4#,SV4#..SED

*TEM,厚さ=3.1,ﾌﾞﾛﾝｽﾞ,ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
68103-32180

CV4#,SV4#..SED

*TEM,厚さ=3.1,ﾌﾞﾙｰ

 1
68104 - GLASS SUB-ASSY, REAR DOOR, LH
68104-32180

CV4#,SV4#..SED

*TEM,厚さ=3.1,ﾌﾞﾙｰ

 1
68104-32170

CV4#,SV4#..SED

*TEM,厚さ=3.1,ﾌﾞﾛﾝｽﾞ,ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
68104-32220

CV4#,SV4#..SED

*UVCT,厚さ=3.5,ｸﾞﾘｰﾝ

 1
68123B - GLASS, REAR DOOR QUARTER WINDOW, RH
68123-32050

CV4#,SV4#..SED

*TEM,厚さ=3.1,ﾌﾞﾙｰ

 1
68123-32040

CV4#,SV4#..SED

*TEM,厚さ=3.1,ﾌﾞﾛﾝｽﾞ,ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
68123-32070

CV4#,SV4#..SED

*UVCT,厚さ=3.5,ｸﾞﾘｰﾝ

 1
68124B - GLASS, REAR DOOR QUARTER WINDOW, LH
68124-32070

CV4#,SV4#..SED

*UVCT,厚さ=3.5,ｸﾞﾘｰﾝ

 1
68124-32050

CV4#,SV4#..SED

*TEM,厚さ=3.1,ﾌﾞﾙｰ

 1
68124-32040

CV4#,SV4#..SED

*TEM,厚さ=3.1,ﾌﾞﾛﾝｽﾞ,ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
68142C - RUN, REAR DOOR GLASS, RH
68142-32080

CV4#,SV4#..SED

 1
68152C - RUN, REAR DOOR GLASS, LH
68152-32040

CV4#,SV4#..SED

 1
68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH
68188-32020

CV4#,SV4#..SED

 1
68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH
68189-32020

CV4#,SV4#..SED

 1
68630 - CHECK ASSY, REAR DOOR
68640-32020

CV4#,SV4#..SED

左側

 1
68630-32080

CV4#,SV4#..SED

右側

 1
Common parts
90149-80030
90151-50023
90159-60081
90159-60453
90179-06070
90189-06151
90333-20001
90333-35004

ILLUST NO. 1 OF 2(9406- )

Click highlighted areas on diagram

diagram 67499A 67603 67603D 67603E 67604 67604D 67673A 67674A 67811A 68190 74294 9016460021 9016460021 9018906018 9090467026
Part # Description Qty Price
67499A - RETAINER, REAR DOOR LOWER FRAME BRACKET GARNISH
67771-17020

CV4#,SV4#..SED

 4
67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH
67630-3H250B0

CV4#,SV4#..ZX

SHADOW GRAY,TRIM1#

 1
67630-3H250E0

CV4#,SV4#..ZX

OAK,TRIM4#

 1
67630-3H340E0

CV4#,SV4#..ZX

OAK,TRIM4#

 1
67630-3H340B0

CV4#,SV4#..ZX

SHADOW GRAY,TRIM1#

 1
67603D - RETAINER, REAR DOOR TRIM, RH
67771-12050

CV4#,SV4#..SED

ﾀｲﾌﾟ A

 1
67771-32140

CV4#,SV4#..SED

ﾀｲﾌﾟ B

 3
67603E - CLIP(FOR REAR DOOR TRIM BOARD)
90467-07066E0

CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX

OAK,TRIM4#

 2
90467-07066P0

CV4#,SV4#

SHADOW GRAY,TRIM1#

 2
67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH
67640-3H250E0

CV4#,SV4#..ZX

OAK,TRIM4#

 1
67640-3H250B0

CV4#,SV4#..ZX

SHADOW GRAY,TRIM1#

 1
67640-3H340B0

CV4#,SV4#..ZX

SHADOW GRAY,TRIM1#

 1
67640-3H340E0

CV4#,SV4#..ZX

OAK,TRIM4#

 1
67604D - RETAINER, REAR DOOR TRIM, LH
67771-32140

CV4#,SV4#..SED

ﾀｲﾌﾟ B

 3
67771-12050

CV4#,SV4#..SED

ﾀｲﾌﾟ A

 1
67673A - GARNISH, REAR DOOR FRAME, RH
67673-32010

CV4#,SV4#..SED

 1
67674A - GARNISH, REAR DOOR FRAME, LH
67674-32010

CV4#,SV4#..SED

 1
67811A - PAD, REAR DOOR SILENCER
67812-32030

CV4#,SV4#

 2
68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER
68173-32010

CV4#,SV4#..SED

 2
74294 - PLATE, REAR DOOR ARMREST, NO.2
74294-32010

CV4#,SV4#

 2
Common parts
90164-60021
90189-06018
90904-67026
