SV43-AEMGK (1994)
Toyota Camry/Vista
Production
Jun 1994
-
Jun 1998
Engine
3SFE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)

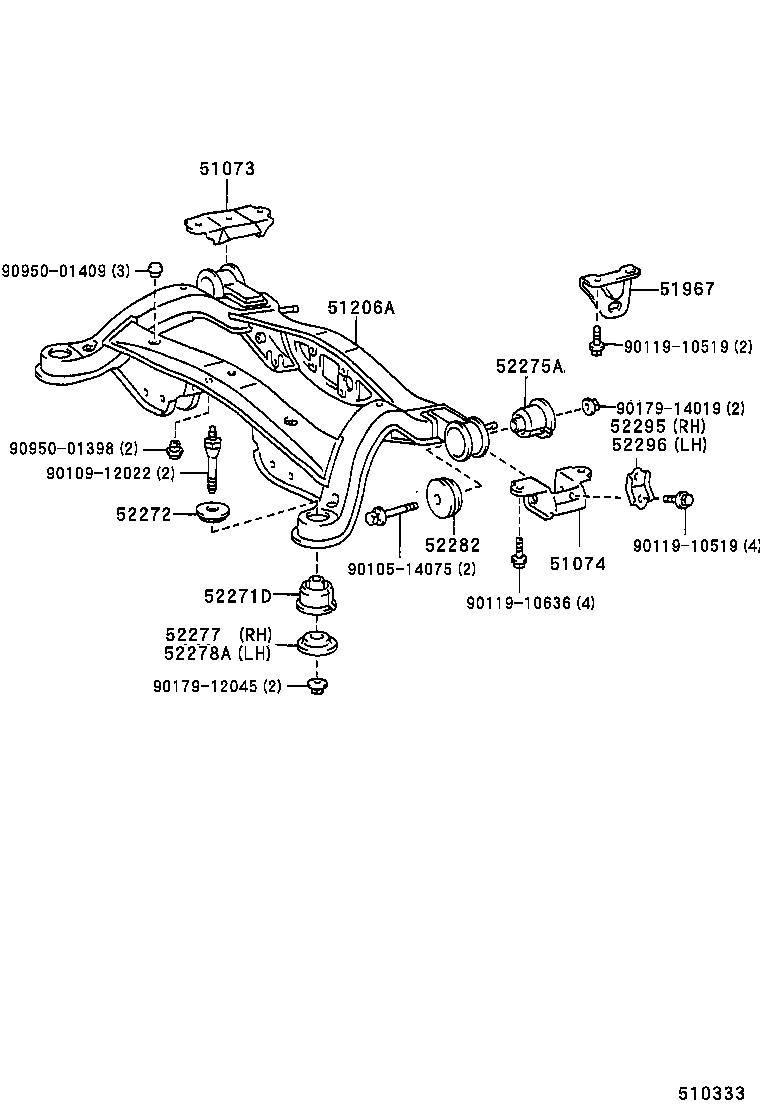

ILLUST NO. 2 OF 2(9406- )CV43,SV43
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51073 - BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.2 RH | ||||
| 51073-32010 |
CV43,SV43 |
1 | ||
| 51074 - BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.2 LH | ||||
| 51074-32010 |
CV43,SV43 |
1 | ||
| 51206A - MEMBER SUB-ASSY, REAR SUSPENSION | ||||
| 51206-32020 |
CV43,SV43 |
1 | ||
| 51967 - HOOK, TRANSPORT, REAR | ||||
| 51967-32060 |
CV4#,SV4# |
1 | ||
| 52271D - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT | ||||
| 52271-32010 |
CV43,SV43 |
2 | ||
| 52272 - STOPPER, REAR SUSPENSION MEMBER, UPPER | ||||
| 52272-32010 |
CV43,SV43 |
2 | ||
| 52275A - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR | ||||
| 52275-32011 |
CV43,SV43 |
2 | ||
| 52277 - RETAINER, REAR SUSPENSION MEMBER LOWER STOPPER, RH | ||||
| 52277-32010 |
CV43,SV43 |
1 | ||
| 52278A - RETAINER, REAR SUSPENSION MENBER LOWER STOPPER, LH | ||||
| 52277-32010 |
CV43,SV43 |
1 | ||
| 52295 - BRACE, REAR SUSPENSION MEMBER, RH | ||||
| 52295-32010 |
CV43,SV43 |
1 | ||
| 52295-32020 |
CV43,SV43 |
1 | ||
| 52296 - BRACE, REAR SUSPENSION MEMBER, LH | ||||
| 52296-32010 |
CV43,SV43 |
1 | ||
| 52296-32020 |
CV43,SV43 |
1 | ||
| Common parts | ||||
| 90105-14075 | ||||
| 90109-12022 | ||||
| 90119-10519 | ||||
| 90119-10636 | ||||
| 90179-12045 | ||||
| 90179-14019 | ||||
| 90950-01398 | ||||
| 90950-01409 | ||||
ILLUST NO. 1 OF 2(9406- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION | ||||
| 51201-32040 |
CV4#,SV4# |
1 | ||
| 51201-32041 |
CV4#,SV4# |
1 | ||
| 51204A - MEMBER SUB-ASSY, ENGINE MOUNTING, CENTER | ||||
| 51204-32030 |
CV4#,SV4# |
1 | ||
| 51227 - WEIGHT, FRONT SUSPENSION MEMBER DAMPER | ||||
| 51227-32050 |
CV40..HT;CV43,SV41,42,43 |
1 | ||
| 51227-32020 |
CV4#,SV4# |
1 | ||
| 51441C - COVER, ENGINE UNDER, RH | ||||
| 51441-32060 |
CV4#,SV4# |
1 | ||
| 51442C - COVER, ENGINE UNDER, LH | ||||
| 51442-32100 |
CV40,SV40,43..MTM |
1 | ||
| Common parts | ||||
| 90119-08601 | ||||
| 90119-10641 | ||||
| 90159-60383 | ||||
| 90467-05114 | ||||
| 90467-07164 | ||||
| Linked diagrams | ||||
| 4802 | ||||
| 4803 | ||||
