SV43-AEMGK (1994)
Toyota Camry/Vista
ILLUST NO. 1 OF 2(9406- )CV43,SV43
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438C - BOOT KIT, REAR DRIVE SHAFT | ||||
| 04437-32010 |
CV43,SV43 |
2 | ||
| 04438-20290 |
CV43,SV43 |
2 | ||
| 04438D - BOOT KIT, REAR DRIVE SHAFT INBOARD JOINT | ||||
| 04437-14020 |
CV43,SV43 |
2 | ||
| 04438-20240 |
CV43,SV43 |
2 | ||
| 42330 - SHAFT ASSY, REAR DRIVE, RH | ||||
| 42340-20080 |
CV43,SV43 |
1 | ||
| 42340-32031 |
CV43,SV43 |
1 | ||
| 42340-32080 |
CV43,SV43 ｱﾘ(ABS) |
1 | ||
| 42340-32041 |
CV43,SV43 ｱﾘ(ABS) |
1 | ||
| 42340-20090 |
CV43,SV43 ｱﾘ(ABS) |
1 | ||
| 42340-32070 |
CV43,SV43 |
1 | ||
| 42340-32080 |
CV43,SV43 |
1 | ||
| 42340-32081 |
CV43,SV43 |
1 | ||
| 42340B - SHAFT ASSY, REAR DRIVE, LH | ||||
| 42340-20090 |
CV43,SV43 ｱﾘ(ABS) |
1 | ||
| 42340-32080 |
CV43,SV43 ｱﾘ(ABS) |
1 | ||
| 42340-32031 |
CV43,SV43 |
1 | ||
| 42340-32070 |
CV43,SV43 |
1 | ||
| 42340-32080 |
CV43,SV43 |
1 | ||
| 42340-32041 |
CV43,SV43 ｱﾘ(ABS) |
1 | ||
| 42340-32081 |
CV43,SV43 |
1 | ||
| 42340-20080 |
CV43,SV43 |
1 | ||
| 42341A - RING, SNAP (FOR REAR DRIVE SHAFT) | ||||
| 90520-23024 |
CV43,SV43 |
2 | ||
| 42343 - COVER, OUTBOARD JOINT END | ||||
| 42343-14010 |
CV43,SV43 |
2 | ||
| 42346A - CLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT) | ||||
| 42345-16010 |
CV43,SV43 内径=32.7 |
2 | ||
| 42345-16030 |
CV43,SV43 内径=35.75 |
2 | ||
| 42346B - CLAMP, NO. 2 (FOR RR DRIVE SHAFT OUTBOARD JOINT BOOT) | ||||
| 42345-16020 |
CV43,SV43 |
2 | ||
| 42345-16040 |
CV43,SV43 |
2 | ||
| 42347A - CLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT) | ||||
| 42345-16030 |
CV43,SV43 内径=35.75 |
2 | ||
| 42347B - CLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT) | ||||
| 42345-14020 |
CV43,SV43 |
2 | ||
| 42350 - JOINT ASSY, REAR DRIVE SHAFT OUTBOARD | ||||
| 42350-14010 |
CV43,SV43 |
2 | ||
| 42370 - SHAFT ASSY, REAR DRIVE OUTBOARD JOINT | ||||
| 42370-39036 |
CV43,SV43 |
2 | ||
| 42370-29315 |
CV43,SV43 |
2 | ||
| 42370-39046 |
CV43,SV43 ｱﾘ(ABS) |
2 | ||
| 42370-39106 |
CV43,SV43 |
2 | ||
| 42370-29325 |
CV43,SV43 ｱﾘ(ABS) |
2 | ||
| 42370-39105 |
CV43,SV43 ｱﾘ(ABS) |
2 | ||
| 42370-39105 |
CV43,SV43 |
2 | ||
| 42370-39095 |
CV43,SV43 |
2 | ||
| 42451 - DEFLECTOR, REAR WHEEL BEARING DUST, NO.1 | ||||
| 43247-12010 |
CV43,SV43 ｱﾘ(ABS) |
2 | ||
| 43247-12010 |
CV43,SV43 |
2 | ||
| 42451-32010 |
CV43,SV43 |
2 | ||
| Common parts | ||||
| 90170-10191 | ||||
| 94511-01000 | ||||

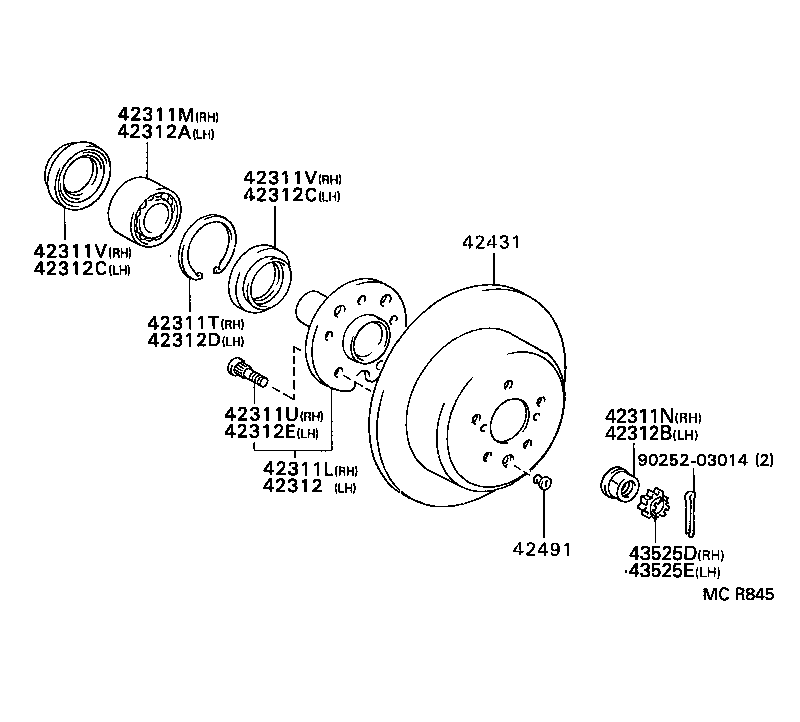

ILLUST NO. 2 OF 2(9406- )CV43,SV43
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42311L - SHAFT, REAR AXLE, RH | ||||
| 42301-32060 |
CV43,SV43 |
1 | ||
| 42311M - BEARING (FOR REAR AXLE SHAFT RH) | ||||
| 90369-38019 |
CV43,SV43 |
1 | ||
| 90369-38003 |
CV43,SV43 |
1 | ||
| 42311N - NUT (FOR REAR AXLE SHAFT RH) | ||||
| 90178-22001 |
CV43,SV43 |
1 | ||
| 90179-22020 |
CV43,SV43 |
1 | ||
| 42311T - RING, SNAP (FOR REAR AXLE SHAFT RH) | ||||
| 90521-79002 |
CV43,SV43 |
1 | ||
| 42311U - BOLT, HUB (FOR REAR AXLE RH) | ||||
| 90942-02070 |
CV43,SV43 |
5 | ||
| 42311V - SEAL, OIL (FOR REAR AXLE SHAFT RH) | ||||
| 90311-56007 |
CV43,SV43 内側 |
1 | ||
| 90311-52005 |
CV43,SV43 外側 |
1 | ||
| 90311-56015 |
CV43,SV43 内側 |
1 | ||
| 90311-52005 |
CV43,SV43 外側 |
1 | ||
| 90311-56007 |
CV43,SV43 内側 |
1 | ||
| 90311-56007 |
CV43,SV43 内側 |
1 | ||
| 90311-56031 |
CV43,SV43 内側 |
1 | ||
| 42311V - SEAL, OIL (FOR REAR AXLE SHAFT RH) | ||||
| 90311-56007 |
CV43,SV43 内側 |
1 | ||
| 90311-52005 |
CV43,SV43 外側 |
1 | ||
| 90311-56015 |
CV43,SV43 内側 |
1 | ||
| 90311-52005 |
CV43,SV43 外側 |
1 | ||
| 90311-56007 |
CV43,SV43 内側 |
1 | ||
| 90311-56007 |
CV43,SV43 内側 |
1 | ||
| 90311-56031 |
CV43,SV43 内側 |
1 | ||
| 42312 - SHAFT, REAR AXLE, LH | ||||
| 42301-32060 |
CV43,SV43 |
1 | ||
| 42312A - BEARING (FOR REAR AXLE SHAFT LH) | ||||
| 90369-38003 |
CV43,SV43 |
1 | ||
| 90369-38019 |
CV43,SV43 |
1 | ||
| 42312B - NUT (FOR REAR AXLE SHAFT LH) | ||||
| 90178-22001 |
CV43,SV43 |
1 | ||
| 90179-22020 |
CV43,SV43 |
1 | ||
| 42312C - SEAL, OIL (FOR REAR AXLE SHAFT LH) | ||||
| 90311-56015 |
CV43,SV43 内側 |
1 | ||
| 90311-52005 |
CV43,SV43 外側 |
1 | ||
| 90311-56007 |
CV43,SV43 内側 |
1 | ||
| 90311-52005 |
CV43,SV43 外側 |
1 | ||
| 90311-56007 |
CV43,SV43 内側 |
1 | ||
| 90311-56031 |
CV43,SV43 内側 |
1 | ||
| 90311-56007 |
CV43,SV43 内側 |
1 | ||
| 42312C - SEAL, OIL (FOR REAR AXLE SHAFT LH) | ||||
| 90311-56015 |
CV43,SV43 内側 |
1 | ||
| 90311-52005 |
CV43,SV43 外側 |
1 | ||
| 90311-56007 |
CV43,SV43 内側 |
1 | ||
| 90311-52005 |
CV43,SV43 外側 |
1 | ||
| 90311-56007 |
CV43,SV43 内側 |
1 | ||
| 90311-56031 |
CV43,SV43 内側 |
1 | ||
| 90311-56007 |
CV43,SV43 内側 |
1 | ||
| 42312D - RING, SNAP (FOR REAR AXLE SHAFT LH) | ||||
| 90521-79002 |
CV43,SV43 |
1 | ||
| 42312E - BOLT, HUB (FOR REAR AXLE LH) | ||||
| 90942-02070 |
CV43,SV43 |
5 | ||
| 42431 - DISC, REAR | ||||
| 42431-32100 |
CV43,SV43 |
2 | ||
| 42491 - PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE) | ||||
| 47491-22020 |
CV43,SV41,42,43 |
2 | ||
| 47491-22020 |
CV4#,SV41,42,43 |
2 | ||
| 43525D - CAP, REAR WHEEL ADJUSTING LOCK, RH | ||||
| 43525-20040 |
CV43,SV43 |
1 | ||
| 43525E - CAP, REAR WHEEL ADJUSTING LOCK, LH | ||||
| 43525-20040 |
CV43,SV43 |
1 | ||
| Common parts | ||||
| 90252-03014 | ||||
