SV43-AEMGK (1994)
Toyota Camry/Vista

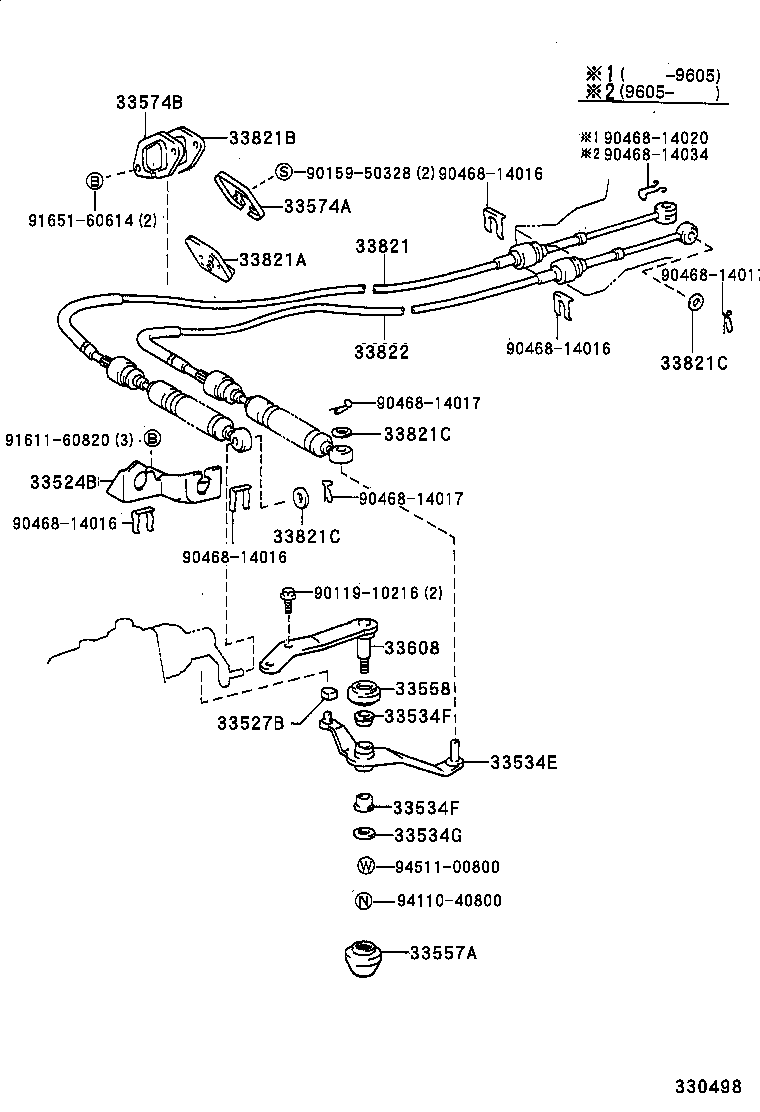

ILLUST NO. 2 OF 2(9406- )SV43..MTM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33524B - BRACKET, CONTROL CABLE | ||||
| 33524-20010 |
SV43..MTM |
1 | ||
| 33527B - BUSH (FOR CONTROL SHIFT LEVER) | ||||
| 33557-33010 |
CV40,SV40,43..MTM |
1 | ||
| 33534E - CRANK, SELECTING BELL, NO.2 | ||||
| 33534-12091 |
SV43..MTM |
1 | ||
| 33534F - BUSH (FOR SELECTING BELLCRANK NO.2) | ||||
| 90386-12022 |
CV40,SV40,43..MTM |
2 | ||
| 33534F - BUSH (FOR SELECTING BELLCRANK NO.2) | ||||
| 90386-12022 |
CV40,SV40,43..MTM |
2 | ||
| 33534G - WASHER, PLATE (FOR SELECTING BELLCRANK NO.2) | ||||
| 90201-08028 |
CV40,SV40,43..MTM |
1 | ||
| 33557A - COVER, SELECTING BELLCRANK DUST, NO.1 | ||||
| 33557-32010 |
CV40,SV40,43..MTM |
1 | ||
| 33558 - COVER, SELECTING BELLCRANK DUST, NO.2 | ||||
| 33558-10030 |
SV43..MTM |
1 | ||
| 33574A - RETAINER, SHIFT CABLE GROMMET, NO.1 | ||||
| 33574-32181 |
CV40,SV40,43..MTM |
1 | ||
| 33574B - RETAINER, SHIFT CABLE GROMMET, NO.2 | ||||
| 33574-32160 |
CV40,SV40,43..MTM |
1 | ||
| 33608 - SUPPORT SUB-ASSY, SELECTING BELLCRANK | ||||
| 33608-12031 |
SV43..MTM |
1 | ||
| 33821 - CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT) | ||||
| 33821-32311 |
SV43..MTM |
1 | ||
| 33821-32310 |
SV43..MTM |
1 | ||
| 33821A - GROMMET, NO.1 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90480-01579 |
CV40,SV40,43..MTM |
1 | ||
| 33821B - GROMMET, NO.2 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90480-01584 |
CV40,SV40,43..MTM |
1 | ||
| 33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90201-10042 |
CV40,SV40,43..MTM ｼﾌﾄﾚﾊﾞｰ側 |
1 | ||
| 90201-08077 |
CV40,SV40,43..MTM 外径=30,ﾄﾗﾝｽｱｸｽﾙ側 |
2 | ||
| 33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90201-10042 |
CV40,SV40,43..MTM ｼﾌﾄﾚﾊﾞｰ側 |
1 | ||
| 90201-08077 |
CV40,SV40,43..MTM 外径=30,ﾄﾗﾝｽｱｸｽﾙ側 |
2 | ||
| 33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90201-10042 |
CV40,SV40,43..MTM ｼﾌﾄﾚﾊﾞｰ側 |
1 | ||
| 90201-08077 |
CV40,SV40,43..MTM 外径=30,ﾄﾗﾝｽｱｸｽﾙ側 |
2 | ||
| 33822 - CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT) | ||||
| 33822-32210 |
SV43..MTM |
1 | ||
| Common parts | ||||
| 90119-10216 | ||||
| 90159-50328 | ||||
| 90468-14016 | ||||
| 90468-14017 | ||||
| 90468-14020 | ||||
| 90468-14034 | ||||
| 91611-60820 | ||||
| 91651-60614 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||

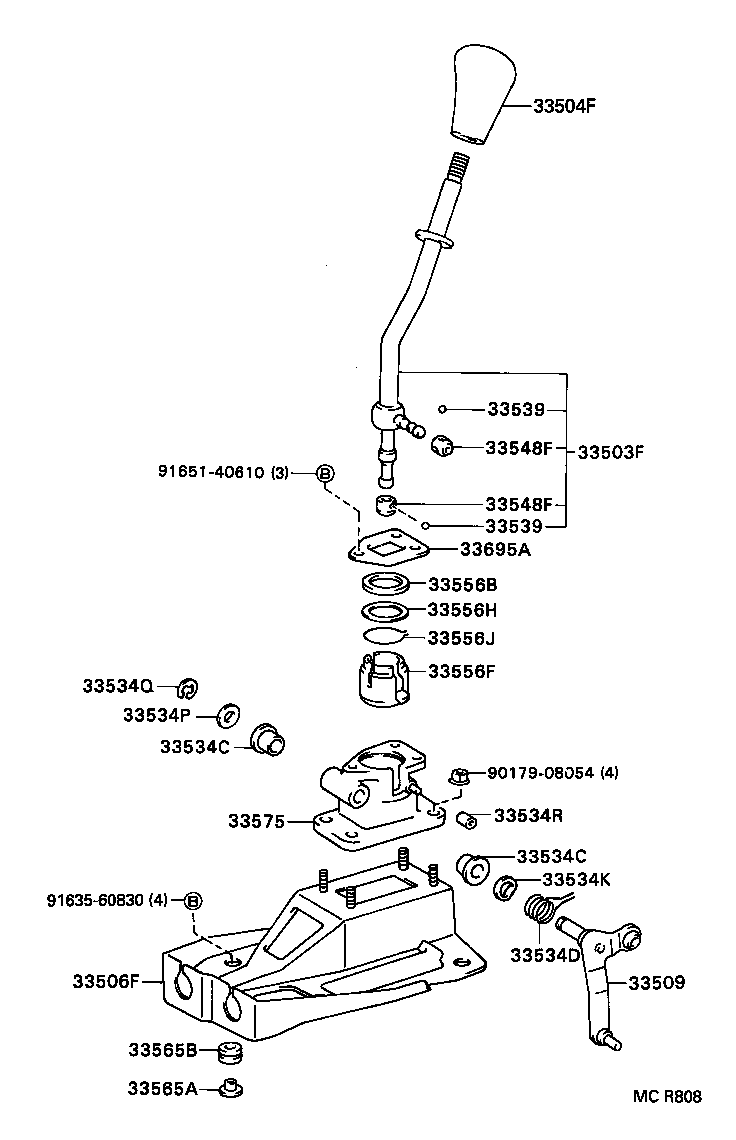

ILLUST NO. 1 OF 2(9406- )SV43..MTM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) | ||||
| 33055-32130 |
SV43..MTM |
1 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-12180P0 |
CV40,SV40,43..MTM..(ALPX,ETO,LUM,VX,ZX) SHADOW GRAY,TRIM1# |
1 | ||
| 33504-12180P0 |
CV40,SV40,43..MTM..(ALPX,ETO,LUM,VX,ZX) ﾙﾐｴ-ﾙG *(B),SHADOW GRAY,TRIM1# |
1 | ||
| 33504-12180P0 |
CV40,SV40,43..MTM..(ALPX,ETO,LUM,VX,ZX) ﾙﾐｴ-ﾙG *(B),SHADOW GRAY,TRIM1# |
1 | ||
| 33504-12180E3 |
CV40,SV40,43..MTM..(ETO,LUM,VX,ZX) OAK,TRIM4# |
1 | ||
| 33506F - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT | ||||
| 33506-32070 |
SV43..MTM |
1 | ||
| 33509 - CRANK SUB-ASSY, SELECTING BELL, NO.1 | ||||
| 33509-12080 |
SV43..MTM |
1 | ||
| 33534C - BUSH (FOR SELECTING BELLCRANK NO.1) | ||||
| 90386-12034 |
SV43..MTM |
2 | ||
| 33534C - BUSH (FOR SELECTING BELLCRANK NO.1) | ||||
| 90386-12034 |
SV43..MTM |
2 | ||
| 33534D - SPRING, TORSION (FOR SELECTING BELLCRANK NO.1) | ||||
| 90508-20084 |
SV43..MTM |
1 | ||
| 33534K - WASHER, WAVE (FOR SELECTING BELLCRANK NO.1) | ||||
| 90206-12003 |
SV43..MTM |
1 | ||
| 33534P - WASHER, PLATE (FOR SELECTING BELLCRANK NO.1) | ||||
| 90201-12052 |
SV43..MTM |
1 | ||
| 33534Q - RING, E (FOR SELECTING BELLCRANK NO.1) | ||||
| 96160-00900 |
SV43..MTM |
1 | ||
| 33534R - CUSHION (FOR SELECTING BELLCRANK NO.1) | ||||
| 90540-06029 |
SV43..MTM |
1 | ||
| 33539 - CUSHION, SHIFT LEVER ANTI-RATTLE | ||||
| 33539-12010 |
SV43..MTM |
2 | ||
| 33539 - CUSHION, SHIFT LEVER ANTI-RATTLE | ||||
| 33539-12010 |
SV43..MTM |
2 | ||
| 33548F - BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT) | ||||
| 33548-12040 |
SV43..MTM |
2 | ||
| 33548F - BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT) | ||||
| 33548-12040 |
SV43..MTM |
2 | ||
| 33556B - BUSH (FOR TRANSMISSION SHIFT LEVER BALL SEAT) | ||||
| 90389-37001 |
SV43..MTM |
1 | ||
| 33556F - SEAT, TRANSMISSION SHIFT LEVER BALL | ||||
| 33556-20040 |
SV43..MTM |
1 | ||
| 33556H - SHIM (FOR TRANSMISSION SHIFT LEVER BALL SEAT) | ||||
| 90564-37017 |
SV43..MTM 厚さ=1.3,ﾏｰｸ=J |
1 | ||
| 90564-37013 |
SV43..MTM 厚さ=0.9,ﾏｰｸ=E |
1 | ||
| 90564-37012 |
SV43..MTM 厚さ=0.8,ﾏｰｸ=D |
1 | ||
| 90564-37021 |
SV43..MTM 厚さ=1.7,ﾏｰｸ=N |
1 | ||
| 90564-37009 |
SV43..MTM 厚さ=0.5,ﾏｰｸ=A |
1 | ||
| 90564-37010 |
SV43..MTM 厚さ=0.6,ﾏｰｸ=B |
1 | ||
| 90564-37011 |
SV43..MTM 厚さ=0.7,ﾏｰｸ=C |
1 | ||
| 90564-37020 |
SV43..MTM 厚さ=1.6,ﾏｰｸ=M |
1 | ||
| 90564-37016 |
SV43..MTM 厚さ=1.2,ﾏｰｸ=H |
1 | ||
| 90564-37018 |
SV43..MTM 厚さ=1.4,ﾏｰｸ=K |
1 | ||
| 90564-37019 |
SV43..MTM 厚さ=1.5,ﾏｰｸ=L |
1 | ||
| 90564-37015 |
SV43..MTM 厚さ=1.1,ﾏｰｸ=G |
1 | ||
| 90564-37014 |
SV43..MTM 厚さ=1.0,ﾏｰｸ=F |
1 | ||
| 33556J - RING, SHAFT SNAP (FOR TRANSMISSION SHIFT LEVER SEAT) | ||||
| 90520-36018 |
SV43..MTM |
1 | ||
| 33565A - BUSH, NO.1 (FOR CONTROL SHIFT LEVER RETAINER PLATE) | ||||
| 90389-08092 |
SV43..MTM |
4 | ||
| 33565B - BUSH, NO.2 (FOR CONTROL SHIFT LEVER RETAINER PLATE) | ||||
| 90385-09008 |
SV43..MTM |
4 | ||
| 33575 - RETAINER, CONTROL SHIFT LEVER (FOR FLOOR SHIFT) | ||||
| 33575-20362 |
SV43..MTM |
1 | ||
| 33695A - COVER, SHIFT LEVER BALL | ||||
| 33695-32010 |
SV43..MTM |
1 | ||
| Common parts | ||||
| 90179-08054 | ||||
| 91635-60830 | ||||
| 91651-40610 | ||||
