SV43-AEMGK (1994)
Toyota Camry/Vista
Production
Jun 1994
-
Jun 1998
Engine
3SFE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9406- )SV43..MTM

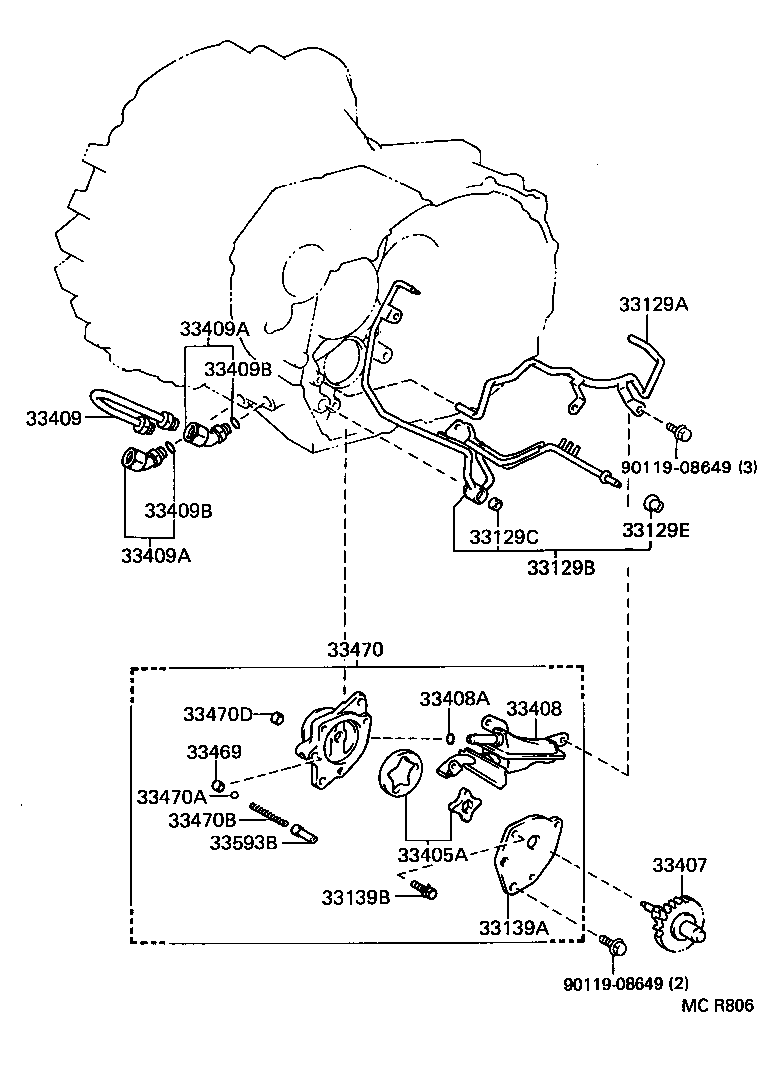

Click highlighted areas on diagram
E59F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33129A - PIPE, MANUAL TRANSMISSION OIL, NO.1 | ||||
| 33129-12030 |
SV43..MTM |
1 | ||
| 33129B - PIPE, MANUAL TRANSMISSION OIL, NO.2 | ||||
| 33106-12040 |
SV43..MTM |
1 | ||
| 33129C - GASKET(FOR MANUAL TRANSMISSION OIL PIPE) | ||||
| 90430-09004 |
SV43..MTM |
1 | ||
| 33129E - BUSH(FOR MANUAL TRANSMISSION OIL PIPE) | ||||
| 90389-05012 |
SV43..MTM |
1 | ||
| 33139A - COVER, OIL PUMP(FOR MANUAL TRANSMISSION) | ||||
| 33139-20010 |
SV43..MTM |
1 | ||
| 33139B - BOLT(FOR MANUAL TRANSMISSION OIL PUMP COVER) | ||||
| 90119-06199 |
SV43..MTM |
3 | ||
| 33405A - ROTOR SUB-ASSY, MANUAL TRANSMISSION OIL PUMP | ||||
| 33405-20020 |
SV43..MTM |
1 | ||
| 33407 - GEAR SUB-ASSY, MANUAL TRANSMISSION OIL PUMP DRIVE | ||||
| 33407-12021 |
SV43..MTM |
1 | ||
| 33408 - STRAINER SUB-ASSY, MANUAL TRANSMISSION OIL | ||||
| 33408-20010 |
SV43..MTM |
1 | ||
| 33408A - RING, O (FOR MANUAL TRANSMISSION OIL STRAINER) | ||||
| 96721-19012 |
SV43..MTM |
1 | ||
| 33409 - TUBE SUB-ASSY, MANUAL TRANSMISSION OIL COOLER | ||||
| 33409-17010 |
SV43..MTM |
1 | ||
| 33409A - ELBOW (FOR MANUAL TRANSMISSION OIL COOLER TUBE) | ||||
| 90407-16017 |
SV43..MTM |
2 | ||
| 33409A - ELBOW (FOR MANUAL TRANSMISSION OIL COOLER TUBE) | ||||
| 90407-16017 |
SV43..MTM |
2 | ||
| 33409B - RING, O (FOR MANUAL TRANSMISSION OIL COOLER TUBE ELBOW) | ||||
| 90301-11006 |
SV43..MTM |
2 | ||
| 33409B - RING, O (FOR MANUAL TRANSMISSION OIL COOLER TUBE ELBOW) | ||||
| 90301-11006 |
SV43..MTM |
2 | ||
| 33469 - SEAT, RELIEF VALVE (FOR MANUAL TRANSMISSION OIL PUMP) | ||||
| 33469-20010 |
SV43..MTM |
1 | ||
| 33470 - PUMP ASSY, MANUAL TRANSMISSION OIL | ||||
| 33470-12010 |
SV43..MTM |
1 | ||
| 33470A - BALL (FOR MANUAL TRANSMISSION OIL PUMP) | ||||
| 90360-10003 |
SV43..MTM |
1 | ||
| 33470B - SPRING, COMPRESSION (FOR MANUAL TRANSMISSION OIL PUMP) | ||||
| 90501-08092 |
SV43..MTM |
1 | ||
| 33470D - GASKET (FOR MANUAL TRANSMISSION OIL PUMP) | ||||
| 90430-09004 |
SV43..MTM |
1 | ||
| 33593B - HOLDER, SPRING (FOR MANUAL TRANSMISSION OIL PUMP) | ||||
| 33593-20010 |
SV43..MTM |
1 | ||
| Common parts | ||||
| 90119-08649 | ||||
