SV42-BTPSK (1994)

Toyota Camry/Vista

Production Jun 1994 - Jun 1998
Engine 3SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9406- )

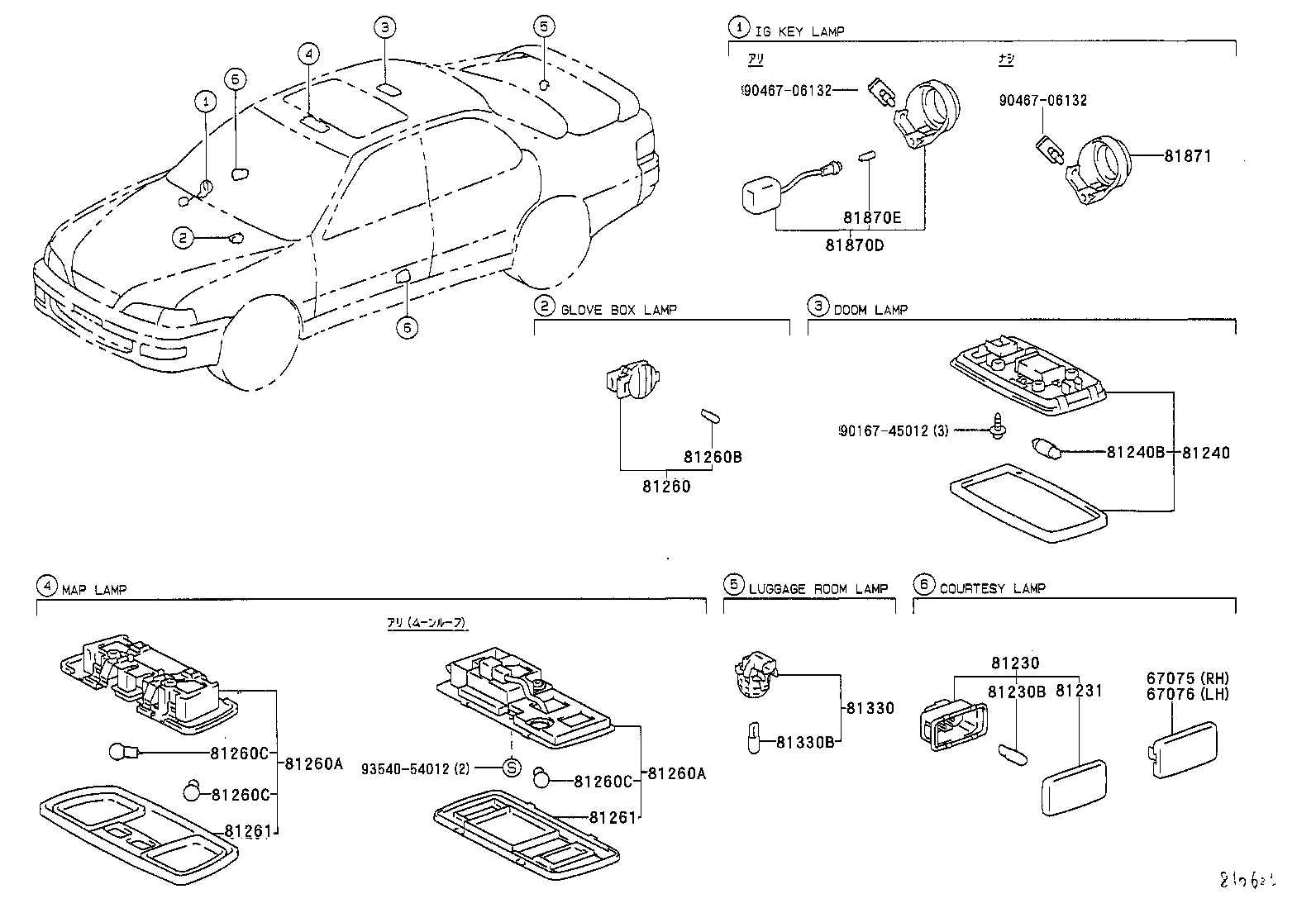

Click highlighted areas on diagram

diagram 67075 67076 81230 81230B 81231 81240 81240B 81260 81260A 81260A 81260B 81260C 81260C 81260C 81261 81261 81330 81330B 81870D 81870E 81871 9016745012 9046706132 9046706132 9354054012
Part # Description Qty Price
67075 - REFLECTOR SUB-ASSY, FRONT DOOR TRIM, RH
67665-20020

CV4#,SV4#..ALPX,ETO,LUM,TOU,VJ,XJ

 1
67076 - REFLECTOR SUB-ASSY, FRONT DOOR TRIM, LH
67665-20020

CV4#,SV4#..ALPX,ETO,LUM,TOU,VJ,XJ

 1
81240 - LAMP ASSY, ROOM, NO.1
81240-22120B0

CV4#,SV4#

MD.GRAY,TRIM1#

 1
81240B - BULB, ROOM LAMP, NO.1
90981-14004

CV4#,SV4#

12V 8W

 1
81260A - LAMP ASSY, MAP
81260-32090B0

CV4#,SV4#..ALPX,TOU,VX,ZX

ｱﾘ(ｻﾝﾙ-ﾌ),MD.GRAY,TRIM1#

 1
81260-22141B0

CV4#,SV4#..ALPX,ETO,LUM,TOU,VX,ZX

MD.GRAY,TRIM1#

 1
81260-22140B0

CV4#,SV4#..ALPX,ETO,LUM,TOU,VX,ZX

MD.GRAY,TRIM1#

 1
81260A - LAMP ASSY, MAP
81260-32090B0

CV4#,SV4#..ALPX,TOU,VX,ZX

ｱﾘ(ｻﾝﾙ-ﾌ),MD.GRAY,TRIM1#

 1
81260-22141B0

CV4#,SV4#..ALPX,ETO,LUM,TOU,VX,ZX

MD.GRAY,TRIM1#

 1
81260-22140B0

CV4#,SV4#..ALPX,ETO,LUM,TOU,VX,ZX

MD.GRAY,TRIM1#

 1
81260C - BULB(FOR MAP LAMP)
90981-12014

CV4#,SV4#..ALPX,TOU,VX,ZX

12V 10W,ｱﾘ(ｻﾝﾙ-ﾌ)

 1
90981-12020

CV4#,SV4#..ALPX,ETO,LUM,TOU,VX,ZX

12V 8W

 2
81260C - BULB(FOR MAP LAMP)
90981-12014

CV4#,SV4#..ALPX,TOU,VX,ZX

12V 10W,ｱﾘ(ｻﾝﾙ-ﾌ)

 1
90981-12020

CV4#,SV4#..ALPX,ETO,LUM,TOU,VX,ZX

12V 8W

 2
81260C - BULB(FOR MAP LAMP)
90981-12014

CV4#,SV4#..ALPX,TOU,VX,ZX

12V 10W,ｱﾘ(ｻﾝﾙ-ﾌ)

 1
90981-12020

CV4#,SV4#..ALPX,ETO,LUM,TOU,VX,ZX

12V 8W

 2
81261 - LENS AND COVER, MAP LAMP
81261-32081B2

CV4#,SV4#..ALPX,ETO,LUM,TOU,VX,ZX

MD.GRAY,TRIM1#

 1
81261-32090B1

CV4#,SV4#..ALPX,TOU,VX,ZX

ｱﾘ(*SNR),MD.GRAY,TRIM1#

 1
81261 - LENS AND COVER, MAP LAMP
81261-32081B2

CV4#,SV4#..ALPX,ETO,LUM,TOU,VX,ZX

MD.GRAY,TRIM1#

 1
81261-32090B1

CV4#,SV4#..ALPX,TOU,VX,ZX

ｱﾘ(*SNR),MD.GRAY,TRIM1#

 1
81330 - LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81330-30090

CV4#,SV4#

 1
81330B - BULB, LUGGAGE COMPARTMENT LAMP
90981-11020

CV4#,SV4#

12V 3.8W

 1
81871 - LENS, KEY ILLUMINATION
81871-22020

CV4#,SV4#..ALPX,ETO,LUM,TOU,VJ,XJ

 1
Common parts
90167-45012
90467-06132
93540-54012
