SV42-BTPGK (1994)
Toyota Camry/Vista
Production
Jun 1994
-
Jun 1998
Engine
3SFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9406- )SV42

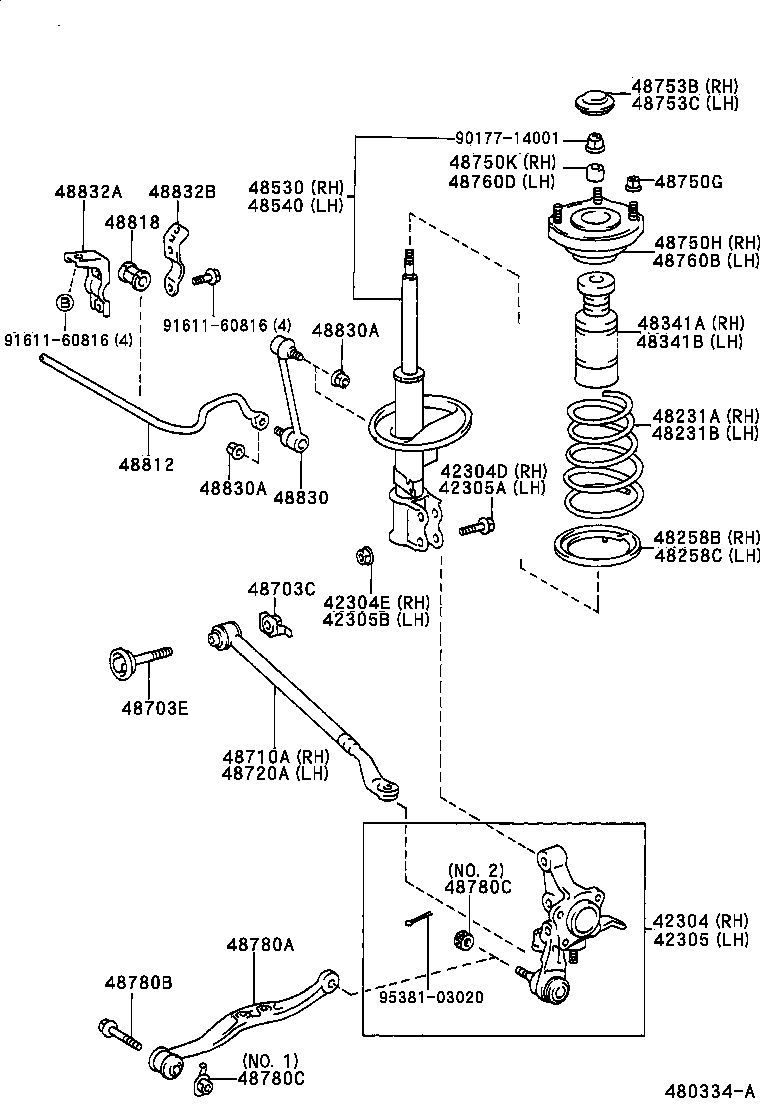

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42304 - CARRIER SUB-ASSY, REAR AXLE, RH | ||||
| 42304-29045 |
SV42 ｱﾘ(ABS) |
1 | ||
| 42304-29025 |
SV42 |
1 | ||
| 42304-29045 |
SV42 |
1 | ||
| 42304D - BOLT (FOR REAR AXLE CARRIER RH) | ||||
| 90105-15001 |
CV4#,SV4# |
2 | ||
| 42304E - NUT (FOR REAR AXLE CARRIER RH) | ||||
| 90179-15001 |
CV4#,SV4# |
2 | ||
| 42305 - CARRIER SUB-ASSY, REAR AXLE, LH | ||||
| 42305-29025 |
SV42 |
1 | ||
| 42305-29045 |
SV42 ｱﾘ(ABS) |
1 | ||
| 42305-29045 |
SV42 |
1 | ||
| 42305A - BOLT (FOR REAR AXLE CARRIER LH) | ||||
| 90105-15001 |
CV4#,SV4# |
2 | ||
| 42305B - NUT (FOR REAR AXLE CARRIER LH) | ||||
| 90179-15001 |
CV4#,SV4# |
2 | ||
| 48231A - SPRING, COIL, REAR RH | ||||
| 48231-3H130 |
SV42 |
1 | ||
| 48231B - SPRING, COIL, REAR LH | ||||
| 48231-3H130 |
SV42 |
1 | ||
| 48258B - INSULATOR, REAR COIL SPRING, LOWER RH | ||||
| 48258-32020 |
CV4#,SV4# |
1 | ||
| 48258C - INSULATOR, REAR COIL SPRING, LOWER LH | ||||
| 48258-32020 |
CV4#,SV4# |
1 | ||
| 48341A - BUMPER, REAR SPRING, NO.1 RH | ||||
| 48341-32090 |
CV4#,SV4# |
1 | ||
| 48341B - BUMPER, REAR SPRING, NO.1 LH | ||||
| 48341-32090 |
CV4#,SV4# |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48530-39195 |
SV42 |
1 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48540-39145 |
SV42 |
1 | ||
| 48703C - NUT(FOR REAR SUSPENSION ARM) | ||||
| 90179-12100 |
SV42 |
2 | ||
| 48703E - BOLT(FOR REAR SUSPENSION ARM) | ||||
| 90901-19004 |
SV42 *12−1.25PX78−24 |
2 | ||
| 48710A - ARM ASSY, REAR SUSPENSION, NO.1 RH | ||||
| 48710-32060 |
SV42 |
1 | ||
| 48720A - ARM ASSY, REAR SUSPENSION, NO.1 LH | ||||
| 48710-32060 |
SV42 |
1 | ||
| 48750G - NUT(FOR REAR SUSPENSION SUPPORT) | ||||
| 90179-08122 |
CV4#,SV4# |
6 | ||
| 48750H - SUPPORT ASSY, REAR SUSPENSION, RH | ||||
| 48750-32150 |
CV4#,SV4# |
1 | ||
| 48750K - COLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH) | ||||
| 90387-15027 |
CV4#,SV4# |
1 | ||
| 48753B - COVER, REAR SUSPENSION SUPOPORT, NO.1 RH | ||||
| 48753-20040 |
CV4#,SV4# |
1 | ||
| 48753C - COVER, REAR SUSPENSION SUPOPORT, NO.1 LH | ||||
| 48753-20040 |
CV4#,SV4# |
1 | ||
| 48760B - SUPPORT ASSY REAR SUSPENSION, LH | ||||
| 48760-32150 |
CV4#,SV4# |
1 | ||
| 48760D - COLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH) | ||||
| 90387-15027 |
CV4#,SV4# |
1 | ||
| 48780A - ROD ASSY, STRUT, REAR | ||||
| 48780-20070 |
SV42 |
2 | ||
| 48780B - BOLT(FOR STRUT ROD) | ||||
| 90119-12131 |
SV42 |
2 | ||
| 48780C - NUT(FOR STRUT ROD) | ||||
| 90171-12008 |
SV42 NO.2 |
2 | ||
| 90179-12063 |
SV42 NO.1 |
2 | ||
| 90179-12063 |
CV4#,SV4# NO.1 |
2 | ||
| 48780C - NUT(FOR STRUT ROD) | ||||
| 90171-12008 |
SV42 NO.2 |
2 | ||
| 90179-12063 |
SV42 NO.1 |
2 | ||
| 90179-12063 |
CV4#,SV4# NO.1 |
2 | ||
| 48812 - BAR, STABILIZER, REAR | ||||
| 48812-32440 |
SV42 |
1 | ||
| 48818 - BUSH, STABILIZER, REAR | ||||
| 48818-32090 |
SV42 |
2 | ||
| 48830 - LINK ASSY, REAR STABILIZER | ||||
| 48830-33010 |
CV40,SV41,42 |
2 | ||
| 48830A - NUT(FOR REAR STABILIZER LINK) | ||||
| 90179-10183 |
CV4#,SV41,42,43 |
4 | ||
| 90179-10054 |
CV4#,SV41,42,43 |
4 | ||
| 48830A - NUT(FOR REAR STABILIZER LINK) | ||||
| 90179-10183 |
CV4#,SV41,42,43 |
4 | ||
| 90179-10054 |
CV4#,SV41,42,43 |
4 | ||
| 48832A - BRACKET, REAR STABILIZER BAR, NO.1 | ||||
| 48832-32030 |
SV42 |
2 | ||
| 48832B - BRACKET, REAR STABILIZER BAR, NO.2 | ||||
| 48832-32040 |
SV42 |
2 | ||
| Common parts | ||||
| 90177-14001 | ||||
| 91611-60816 | ||||
| 95381-03020 | ||||
