SV42-BEPMK (1994)

Toyota Camry/Vista

Production Jun 1994 - Jun 1998
Engine 3SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9406- )SED

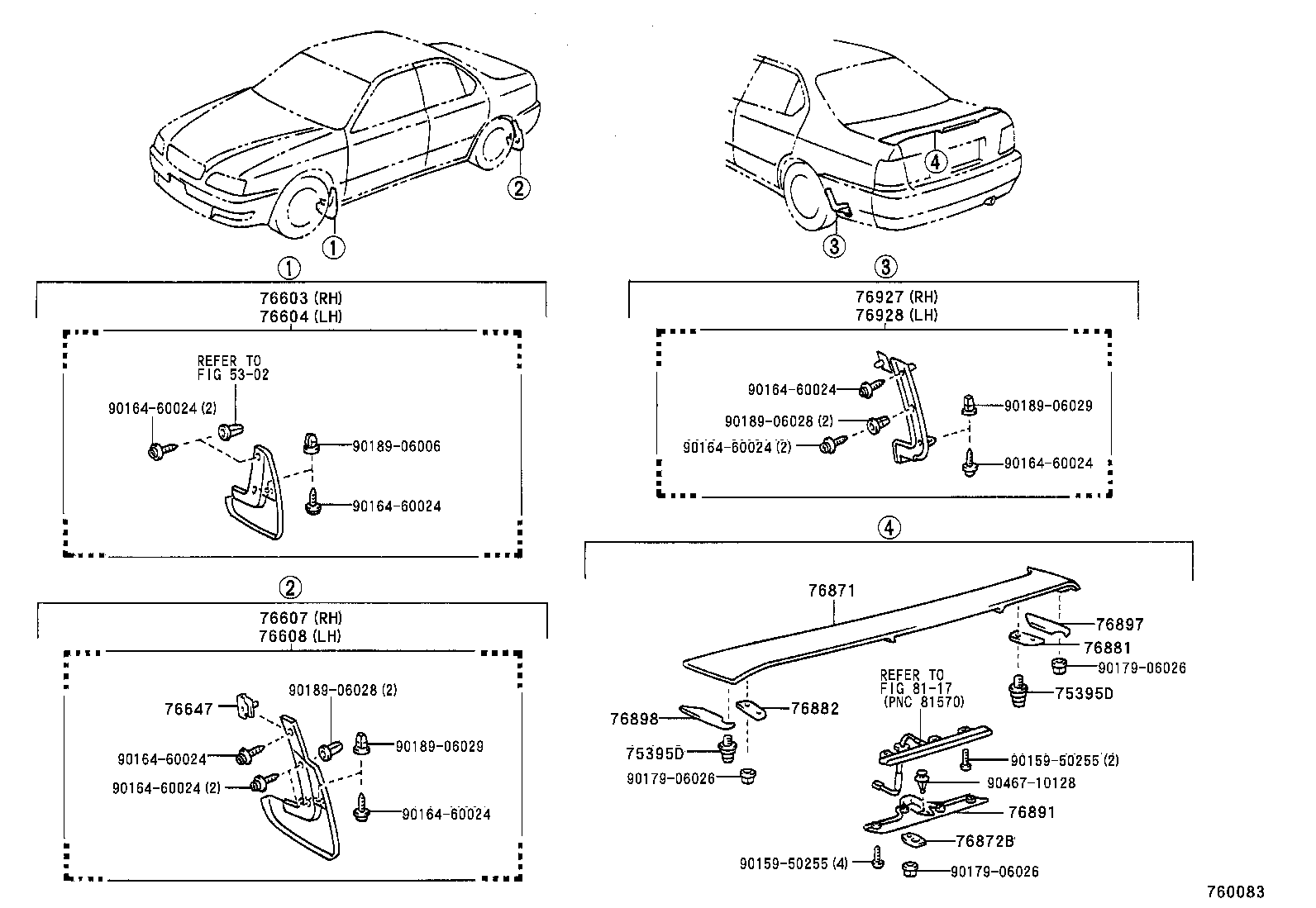

Click highlighted areas on diagram

diagram 5302 75395D 75395D 76603 76604 76607 76608 76647 76871 76872B 76881 76882 76891 76897 76898 76927 76928 8117 9015950255 9015950255 9016460024 9016460024 9016460024 9016460024 9016460024 9016460024 9016460024 9016460024 9017906026 9017906026 9017906026 9018906006 9018906028 9018906028 9018906029 9018906029 9046710128
Part # Description Qty Price
75395D - CLIP, OUTSIDE MOULDING, NO.1
75395-12090

CV4#,SV4#..ALPX,TOU,VX,ZX

 2
75395D - CLIP, OUTSIDE MOULDING, NO.1
75395-12090

CV4#,SV4#..ALPX,TOU,VX,ZX

 2
76603 - MUDGUARD SUB-ASSY, FRONT FENDER, RH
76621-39365

CV4#,SV4#..SED

 1
76604 - MUDGUARD SUB-ASSY, FRONT FENDER, LH
76622-39365

CV4#,SV4#..SED

 1
76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
76625-39435

CV4#,SV4#..SED

 1
76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
76626-39435

CV4#,SV4#..SED

 1
76647 - RETAINER, QUARTER PANEL REAR MUDGUARD
76647-32010

CV4#,SV4#

 2
76871 - SPOILER, REAR
76871-32902

CV4#,SV4#..SED..(ALPX,TOU,ZX)

 1
76872B - PROTECTOR, REAR SPOILER, CENTER
76872-32030

CV4#,SV4#..SED..(ALPX,TOU,ZX)

 1
76881 - PROTECTOR, REAR SPOILER SIDE, NO.1 RH
76881-32010

CV4#,SV4#..SED..(ALPX,TOU,ZX)

 1
76882 - PROTECTOR, REAR SPOILER SIDE, NO.1 LH
76882-32010

CV4#,SV4#..SED..(ALPX,TOU,ZX)

 1
76891 - SPOILER, REAR NO.1
76891-32903

CV4#,SV4#..SED..(ALPX,TOU,ZX)

 1
76897 - PROTECTOR, REAR SPOILER, SIDE RH
76897-32030

CV4#,SV4#..SED..(ALPX,TOU,ZX)

 1
76898 - PROTECTOR, REAR SPOILER, SIDE LH
76898-32030

CV4#,SV4#..SED..(ALPX,TOU,ZX)

 1
76927 - PROTECTER, REAR MUDGUARD, RH
76927-39015

CV4#,SV4#

 1
76928 - PROTECTER, REAR MUDGUARD, LH
76928-39015

CV4#,SV4#

 1
Common parts
90159-50255
90164-60024
90179-06026
90189-06006
90189-06028
90189-06029
90467-10128
Linked diagrams
5302
8117
