SV42-BEPMK (1994)
Toyota Camry/Vista

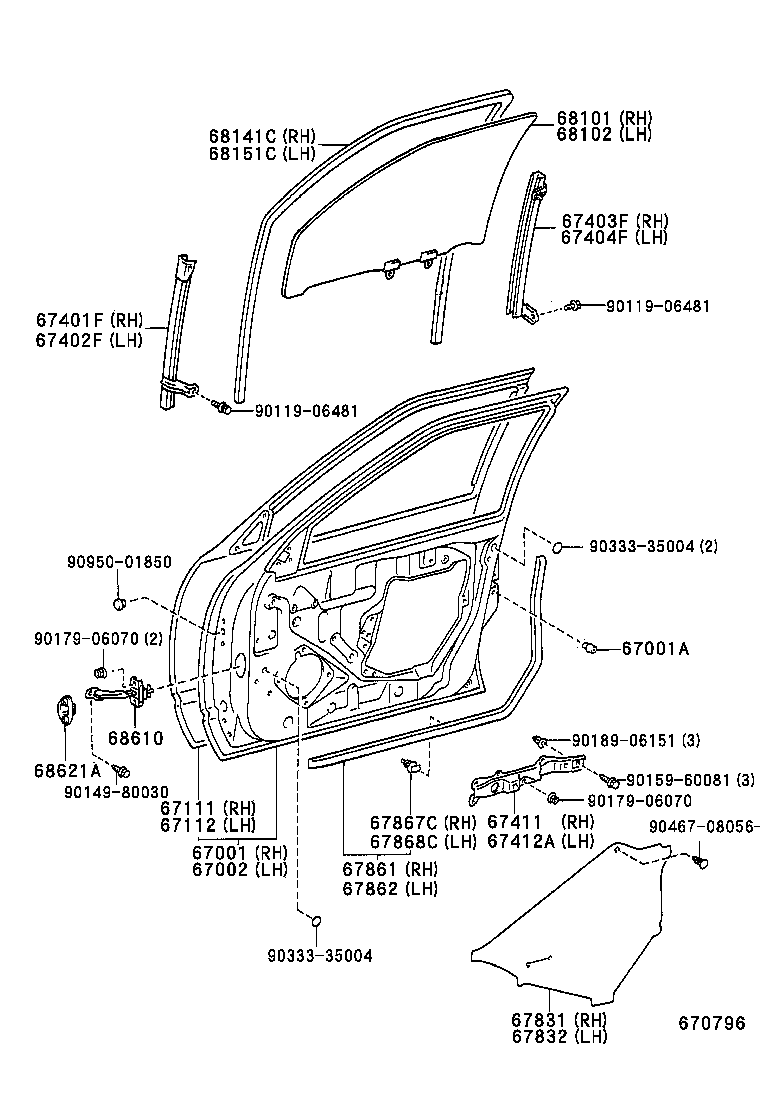

ILLUST NO. 2 OF 2(9406- )SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-32341 |
CV4#,SV4#..SED |
1 | ||
| 67001-32340 |
CV4#,SV4#..SED |
1 | ||
| 67001-32342 |
CV4#,SV4#..SED |
1 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-09006 |
CV4#,SV4#..SED |
2 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-32290 |
CV4#,SV4#..SED |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-32110 |
CV4#,SV4#..SED |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-32110 |
CV4#,SV4#..SED |
1 | ||
| 67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH | ||||
| 67401-32131 |
CV4#,SV4#..SED |
1 | ||
| 67401-32130 |
CV4#,SV4#..SED |
1 | ||
| 67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH | ||||
| 67402-32130 |
CV4#,SV4#..SED |
1 | ||
| 67402-32131 |
CV4#,SV4#..SED |
1 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-32070 |
CV4#,SV4#..SED |
1 | ||
| 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-32070 |
CV4#,SV4#..SED |
1 | ||
| 67411 - FRAME, FRONT DOOR WINDOW, FRONT UPPER RH | ||||
| 67411-32061 |
CV4#,SV4#..SED |
1 | ||
| 67411-32060 |
CV4#,SV4#..SED |
1 | ||
| 67412A - FRAME, FRONT DOOR WINDOW, FRONT UPPER LH | ||||
| 67412-32060 |
CV4#,SV4#..SED |
1 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-32140 |
CV4#,SV4#..SED |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-32120 |
CV4#,SV4#..SED |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-32150 |
CV4#,SV4#..SED |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-32150 |
CV4#,SV4#..SED |
1 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
CV4#,SV4#..SED |
11 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
CV4#,SV4#..SED |
11 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68101-32140 |
CV4#,SV4#..SED *TEM,厚さ=4.0,ﾌﾞﾛﾝｽﾞ,ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 68101-32190 |
CV4#,SV4#..SED *UVCT,厚さ=4.0,ｸﾞﾘｰﾝ |
1 | ||
| 68101-32150 |
CV4#,SV4#..SED *TEM,厚さ=4.0,ﾌﾞﾙｰ |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68102-32190 |
CV4#,SV4#..SED *UVCT,厚さ=4.0,ｸﾞﾘｰﾝ |
1 | ||
| 68102-32140 |
CV4#,SV4#..SED *TEM,厚さ=4.0,ﾌﾞﾛﾝｽﾞ,ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 68102-32150 |
CV4#,SV4#..SED *TEM,厚さ=4.0,ﾌﾞﾙｰ |
1 | ||
| 68141C - RUN, FRONT DOOR GLASS, RH | ||||
| 68141-32110 |
CV4#,SV4#..SED |
1 | ||
| 68151C - RUN, FRONT DOOR GLASS, LH | ||||
| 68151-32040 |
CV4#,SV4#..SED |
1 | ||
| 68610 - CHECK ASSY, FRONT DOOR | ||||
| 68620-32021 |
CV4#,SV4# 左側 |
1 | ||
| 68620-32020 |
CV40,SV4# 左側 |
1 | ||
| 68610-32090 |
CV40,SV4# 右側 |
1 | ||
| 68610-32091 |
CV4#,SV4# 右側 |
1 | ||
| 68621A - COVER, FRONT DOOR CHECK, RH | ||||
| 68621-32020 |
CV4#,SV4#..SED |
1 | ||
| Common parts | ||||
| 90119-06481 | ||||
| 90149-80030 | ||||
| 90159-60081 | ||||
| 90179-06070 | ||||
| 90189-06151 | ||||
| 90333-35004 | ||||
| 90467-08056C0 | ||||
| 90950-01850 | ||||
ILLUST NO. 1 OF 2(9406- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-32130 |
CV4#,SV4#..SED |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-32130 |
CV4#,SV4#..SED |
1 | ||
| 67499 - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH | ||||
| 67771-30070 |
CV4#,SV4#..SED |
4 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-3H090B0 |
SV41,42..SED..(ALPX,TOU) ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ),SHADOW GRAY,TRIM1# |
1 | ||
| 67610-3H070B0 |
CV4#,SV4#..SED..(ALPX,TOU) SHADOW GRAY,TRIM1# |
1 | ||
| 67610-3H210B0 |
SV41,42..SED..(ALPX,TOU) ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ),SHADOW GRAY,TRIM1# |
1 | ||
| 67610-3H200B0 |
CV4#,SV4#..SED..(ALPX,TOU) XXXX,TRIM1# |
1 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-07066P0 |
CV4#,SV4# SHADOW GRAY,TRIM1# |
2 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-07066P0 |
CV4#,SV4# SHADOW GRAY,TRIM1# |
2 | ||
| 67601G - PLUG, HOLE(FOR FRONT DOOR TRIM BOARD) | ||||
| 90950-01800B0 |
CV4#,SV4# SHADOW GRAY,TRIM1# |
2 | ||
| 67601G - PLUG, HOLE(FOR FRONT DOOR TRIM BOARD) | ||||
| 90950-01800B0 |
CV4#,SV4# SHADOW GRAY,TRIM1# |
2 | ||
| 67601H - RETAINER, DOOR TRIM, RH | ||||
| 67771-12050 |
CV4#,SV4#..SED ﾀｲﾌﾟ A |
1 | ||
| 67771-32140 |
CV4#,SV4#..SED ﾀｲﾌﾟ B |
2 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-3H750B0 |
SV41,42..SED..(ALPX,TOU) ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-3H730B0 |
CV4#,SV4#..SED..(ALPX,TOU) SHADOW GRAY,TRIM1# |
1 | ||
| 67050-32020B0 |
CV4#,SV4#..SED..(ALPX,TOU) SHADOW GRAY,TRIM1# |
1 | ||
| 67050-32030B0 |
SV41,42..SED..(ALPX,TOU) ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ),SHADOW GRAY,TRIM1# |
1 | ||
| 67602A - RETAINER, DOOR TRIM, LH | ||||
| 67771-32140 |
CV4#,SV4#..SED ﾀｲﾌﾟ B |
2 | ||
| 67771-12050 |
CV4#,SV4#..SED ﾀｲﾌﾟ A |
1 | ||
| 67651B - GRILLE, SPEAKER DOOR, RH | ||||
| 67651-32070B0 |
CV4#,SV40,43..VX,ZX;SV41,42..ALPX,TOU,VX,ZX SHADOW GRAY,TRIM1# |
1 | ||
| 67651-32070B0 |
SV41,42..ALPX,TOU,VX,ZX SHADOW GRAY,TRIM1# |
1 | ||
| 67652B - GRILLE, SPEAKER DOOR, LH | ||||
| 67652-32070B0 |
CV4#,SV40,43..VX,ZX;SV41,42..ALPX,TOU,VX,ZX SHADOW GRAY,TRIM1# |
1 | ||
| 67652-32070B0 |
SV41,42..ALPX,TOU,VX,ZX SHADOW GRAY,TRIM1# |
1 | ||
| 67715 - PAD, DOOR TRIM, NO.1 | ||||
| 67713-32040 |
CV40,SV4#..SED |
1 | ||
| 67811 - PAD, FRONT DOOR SILENCER | ||||
| 67811-32040 |
CV4#,SV4# |
2 | ||
| 67811 - PAD, FRONT DOOR SILENCER | ||||
| 67811-32040 |
CV4#,SV4# |
2 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68171-32020 |
CV4#,SV4#..SED 右側 |
1 | ||
| 68172-32020 |
CV4#,SV4#..SED 左側 |
1 | ||
| 74293 - PLATE, FRONT DOOR ARMREST, NO.1 | ||||
| 74294-32010 |
CV4#,SV4# |
1 | ||
| Common parts | ||||
| 90159-50002 | ||||
| 90159-50287 | ||||
| 90164-60021 | ||||
| 90189-05055 | ||||
| 90189-06018 | ||||
| 90904-67026 | ||||
