SV42-AEPSK (1994)
Toyota Camry/Vista
Production
Jun 1994
-
Jun 1998
Engine
3SFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9406- )CV40,SV40,41,42..ATM

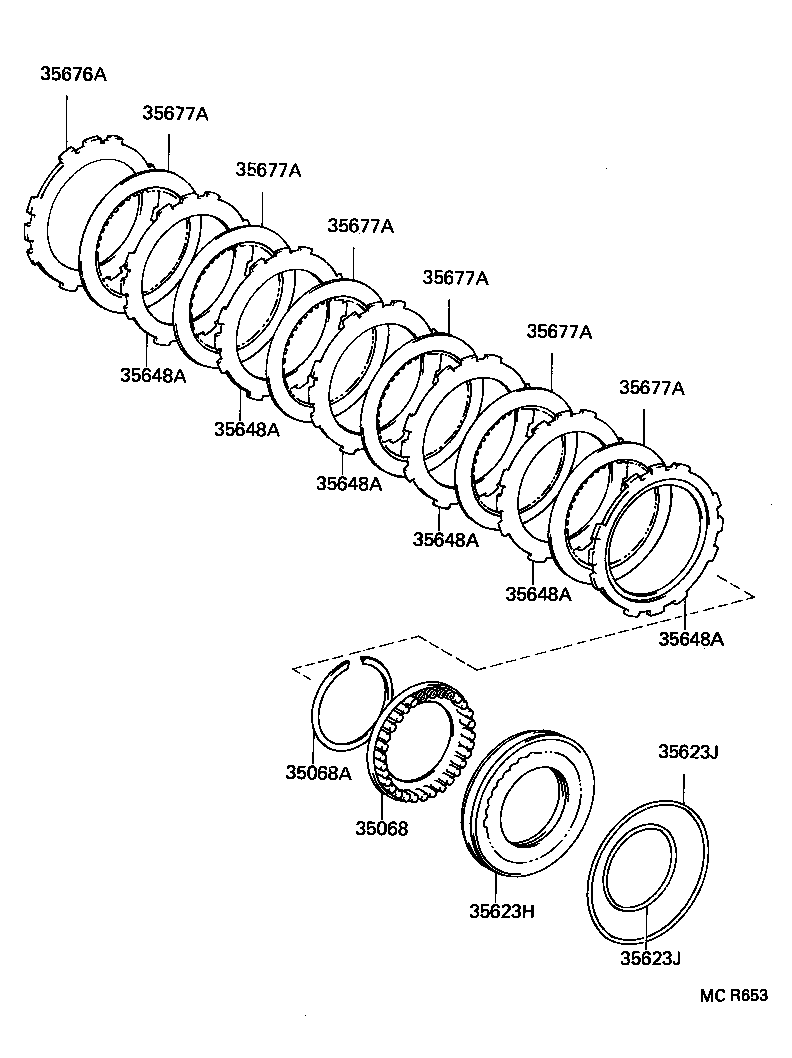

Click highlighted areas on diagram
A140L,A140E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35068 - SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN | ||||
| 35068-20010 |
CV40,SV40,41,42..ATM |
1 | ||
| 35068-32010 |
CV40,SV40,41,42..ATM |
1 | ||
| 35068A - RING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING | ||||
| 90520-90001 |
CV40,SV40,41,42..ATM |
1 | ||
| 35623H - PISTON, 1ST & REVERSE BRAKE | ||||
| 35623-32050 |
CV40,SV40,41,42..ATM |
1 | ||
| 35623J - RING, O (FOR 1ST & REVERSE BRAKE) | ||||
| 90301-94001 |
CV40,SV40,41,42..ATM 内側 |
1 | ||
| 90301-99022 |
CV4#,SV4#..ATM 外側 |
1 | ||
| 35623J - RING, O (FOR 1ST & REVERSE BRAKE) | ||||
| 90301-94001 |
CV40,SV40,41,42..ATM 内側 |
1 | ||
| 90301-99022 |
CV4#,SV4#..ATM 外側 |
1 | ||
| 35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35648-32020 |
CV4#,SV4#..ATM |
6 | ||
| 35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35648-32020 |
CV4#,SV4#..ATM |
6 | ||
| 35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35648-32020 |
CV4#,SV4#..ATM |
6 | ||
| 35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35648-32020 |
CV4#,SV4#..ATM |
6 | ||
| 35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35648-32020 |
CV4#,SV4#..ATM |
6 | ||
| 35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35648-32020 |
CV4#,SV4#..ATM |
6 | ||
| 35676A - FLANGE, BRAKE (FOR 1ST & REVERSE BRAKE) | ||||
| 35676-32010 |
CV4#,SV4#..ATM 厚さ=3.5 |
1 | ||
| 35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35677-32060 |
CV4#,SV4#..ATM |
6 | ||
| 35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35677-32060 |
CV4#,SV4#..ATM |
6 | ||
| 35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35677-32060 |
CV4#,SV4#..ATM |
6 | ||
| 35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35677-32060 |
CV4#,SV4#..ATM |
6 | ||
| 35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35677-32060 |
CV4#,SV4#..ATM |
6 | ||
| 35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35677-32060 |
CV4#,SV4#..ATM |
6 | ||
