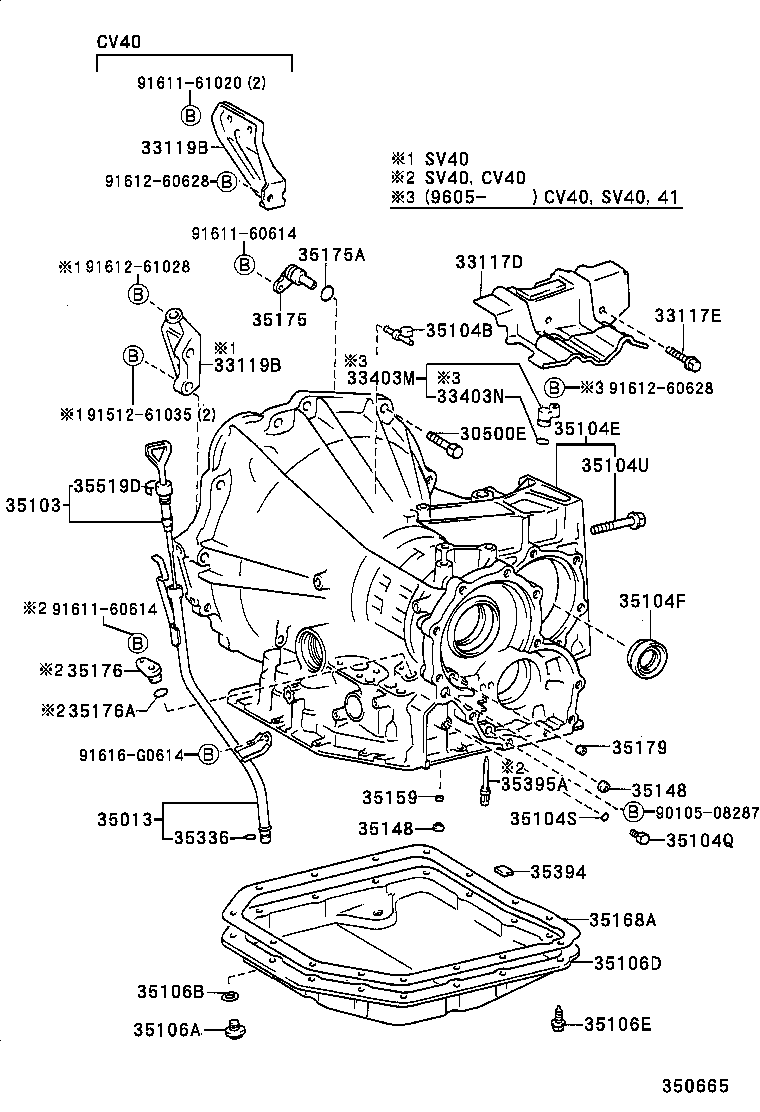

SV42-AEPSK (1994)
Toyota Camry/Vista
(9406- )CV40,SV40,41,42..ATM
A140L,A140E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 30500E - BOLT(FOR TRANSAXLE & ENGINE SETTING) | ||||
| 90105-08040 |
CV4#,SV4#..ATM *8−1.25PX18−15 |
1 | ||
| 91619-61245 |
CV4#,SV4#..ATM *12−1.25PX45−30 |
3 | ||
| 90105-10077 |
CV4#,SV4#..ATM *10−1.25PX43−26 |
1 | ||
| 33117D - PROTECTOR, AUTOMATIC TRANSMISSION CASE | ||||
| 33117-32060 |
CV40,SV40,41,42..ATM |
1 | ||
| 33117E - BOLT(FOR AUTOMATIC TRANSMISSION CASE PROTECTOR) | ||||
| 90105-08040 |
CV4#,SV4#..ATM |
3 | ||
| 90105-08040 |
CV4#,SV4#..ATM |
2 | ||
| 35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER | ||||
| 35013-32110 |
SV40,41,42..ATM |
1 | ||
| 35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL | ||||
| 35103-32150 |
CV40,SV40,41,42..ATM |
1 | ||
| 35104B - PLUG, BREATHER, NO.1 (ATM) | ||||
| 90930-03089 |
CV40,SV40,41,42..ATM |
1 | ||
| 35104E - CASE SUB-ASSY, AUTOMATIC TRANSAXLE | ||||
| 35104-32170 |
SV41,42 |
1 | ||
| 35104F - SEAL, OIL (FOR TRANSAXLE CASE) | ||||
| 90311-35019 |
CV40,SV40,41,42..ATM |
1 | ||
| 35104Q - PLUG, NO.1 (FOR TRANSAXLE CASE) | ||||
| 90341-08001 |
CV40,SV40,41,42..ATM |
2 | ||
| 90341-08001 |
SV41,42 |
1 | ||
| 35104S - RING, O (FOR TRANSAXLE CASE PLUG NO.1) | ||||
| 90301-06196 |
CV40,SV40,41,42..ATM |
2 | ||
| 90301-06196 |
SV41,42 |
1 | ||
| 35104U - BOLT (FOR TRANSAXLE CASE) | ||||
| 90105-12052 |
CV40,SV40,41,42..ATM *12−1.25PX54−24 |
2 | ||
| 35106A - PLUG SUB-ASSY, DRAIN (ATM) | ||||
| 90341-18016 |
CV4#,SV4#..ATM |
1 | ||
| 35106B - GASKET, DRAIN PLUG (ATM) | ||||
| 90430-18008 |
CV4#,SV4#..ATM |
1 | ||
| 35106D - PAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL | ||||
| 35106-32012 |
CV40,SV40,41,42..ATM |
1 | ||
| 35106E - BOLT (FOR TRANSAXLE OIL PAN) | ||||
| 90119-06173 |
CV40,SV40,41,42..ATM |
15 | ||
| 35148 - GASKET, GOVERNOR APPLY, NO.1 | ||||
| 35148-16010 |
CV40,SV40,41,42..ATM |
1 | ||
| 35148 - GASKET, GOVERNOR APPLY, NO.1 | ||||
| 35148-16010 |
CV40,SV40,41,42..ATM |
1 | ||
| 35159 - GASKET, BRAKE DRUM | ||||
| 35159-32011 |
CV4#,SV4#..ATM |
1 | ||
| 35168A - GASKET, AUTOMATIC TRANSAXLE OIL PAN | ||||
| 35168-32010 |
CV40,SV40,41,42..ATM |
1 | ||
| 35175 - CAP, TRANSAXLE CASE, NO.2 | ||||
| 35175-32010 |
CV4#,SV4#..ATM |
1 | ||
| 35175A - RING, O (FOR TRANSAXLE CASE CAP) | ||||
| 90301-21002 |
CV4#,SV4#..ATM |
1 | ||
| 35179 - GASKET, OVERDRIVE BRAKE | ||||
| 35179-32010 |
CV4#,SV4#..ATM |
1 | ||
| 35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE) | ||||
| 90301-09173 |
CV4#,SV4#..ATM |
1 | ||
| 35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION) | ||||
| 35394-30011 |
CV40,SV40,41,42..ATM |
2 | ||
| 35519D - LABEL, AUTOMATIC TRANSMISSION INFORMATION | ||||
| 35519-32040 |
CV40,SV40,41,42..ATM |
1 | ||
| Common parts | ||||
| 90105-08287 | ||||
| 91512-61035 | ||||
| 91611-60614 | ||||
| 91611-61020 | ||||
| 91612-60628 | ||||
| 91612-61028 | ||||
| 91616-G0614 | ||||
