SV42-AEPGK (1994)

Toyota Camry/Vista

Production Jun 1994 - Jun 1998
Engine 3SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9406- )

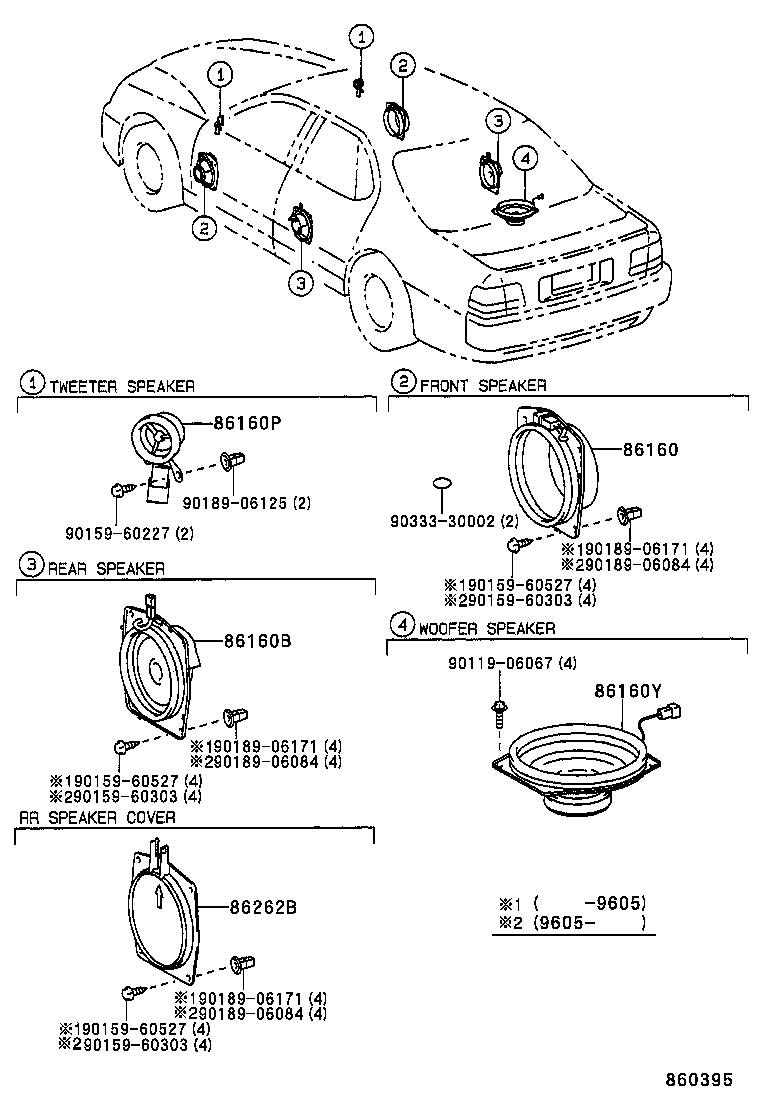

Click highlighted areas on diagram

diagram 86160 86160B 86160P 86160Y 86262B 9011906067 9015960227 9015960303 9015960303 9015960303 9015960527 9015960527 9015960527 9018906084 9018906084 9018906084 9018906125 9018906171 9018906171 9018906171 9033330002
Part # Description Qty Price
86160 - SPEAKER ASSY, FRONT NO.1
86160-32360

CV4#,SV4#

 2
86160B - SPEAKER ASSY, REAR
86160-32370

CV4#,SV40,43..VX,ZX;SV41,42..ALPX,TOU,VX,ZX

ｱﾘ(DSP)

 2
86160-32470

CV4#,SV4#..ALPX,ETO,LUM,TOU,VX,ZX

 2
86160-32370

SV41,42..ALPX,TOU,VX,ZX

ｱﾘ(ﾏﾙﾁ AV ｽﾃ-ｼﾖﾝ)

 2
86160P - SPEAKER ASSY, FRONT NO.2
86160-32450

CV4#,SV40,43..VX,ZX;SV41,42..ALPX,TOU,VX,ZX

左側

 1
86160-32440

CV4#,SV40,43..VX,ZX;SV41,42..ALPX,TOU,VX,ZX

右側

 1
86160-32450

SV41,42..ALPX,TOU,VX,ZX

左側

 1
86160-32440

SV41,42..ALPX,TOU,VX,ZX

右側

 1
86160Y - SPEAKER ASSY, REAR NO.2
86160-32460

CV4#,SV40,43..VX,ZX;SV41,42..ALPX,TOU,VX,ZX

 1
Common parts
90119-06067
90159-60227
90159-60303
90159-60527
90189-06084
90189-06125
90189-06171
90333-30002
