SV42-AEPGK (1994)
Toyota Camry/Vista
Production
Jun 1994
-
Jun 1998
Engine
3SFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9406- )

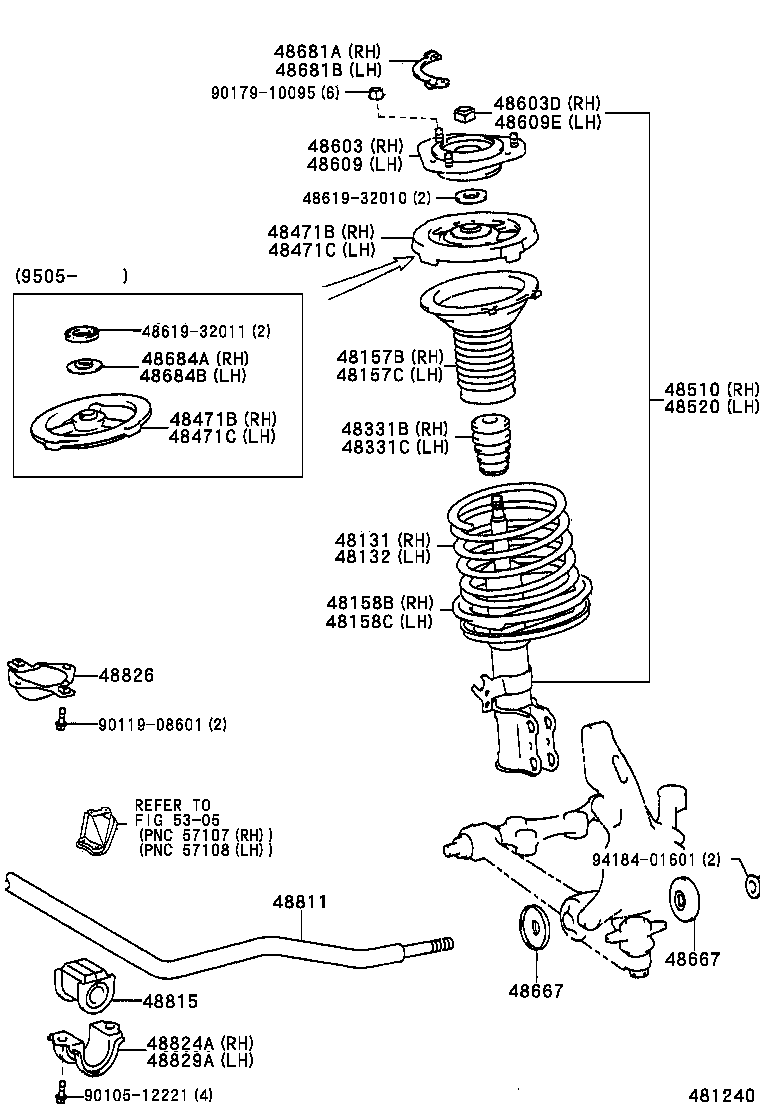

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48131 - SPRING, FRONT COIL, RH | ||||
| 48131-3H380 |
SV42;CV40..MTM |
1 | ||
| 48131-3H580 |
SV42;CV40..MTM |
1 | ||
| 48132 - SPRING, FRONT COIL, LH | ||||
| 48131-3H380 |
SV42;CV40..MTM |
1 | ||
| 48131-3H580 |
SV42;CV40..MTM |
1 | ||
| 48157B - INSULATOR, FRONT COIL SPRING, UPPER RH | ||||
| 48157-32040 |
CV4#,SV4# |
1 | ||
| 48157C - INSULATOR, FRONT COIL SPRING, UPPER LH | ||||
| 48157-32040 |
CV4#,SV4# |
1 | ||
| 48158B - INSULATOR, FRONT COIL SPRING, LOWER RH | ||||
| 48158-32030 |
CV4#,SV4# |
1 | ||
| 48158C - INSULATOR, FRONT COIL SPRING, LOWER LH | ||||
| 48158-32030 |
CV4#,SV4# |
1 | ||
| 48331B - BUMPER, FRONT SPRING, RH | ||||
| 48331-32090 |
CV4#,SV4# |
1 | ||
| 48331C - BUMPER, FRONT SPRING, LH | ||||
| 48331-32090 |
CV4#,SV4# |
1 | ||
| 48471B - SEAT, FRONT COIL SPRING, UPPER RH | ||||
| 48471-32040 |
CV4#,SV4# |
1 | ||
| 48471-32041 |
CV4#,SV4# |
1 | ||
| 48471B - SEAT, FRONT COIL SPRING, UPPER RH | ||||
| 48471-32040 |
CV4#,SV4# |
1 | ||
| 48471-32041 |
CV4#,SV4# |
1 | ||
| 48471C - SEAT, FRONT COIL SPRING, UPPER LH | ||||
| 48471-32040 |
CV4#,SV4# |
1 | ||
| 48471-32041 |
CV4#,SV4# |
1 | ||
| 48471C - SEAT, FRONT COIL SPRING, UPPER LH | ||||
| 48471-32040 |
CV4#,SV4# |
1 | ||
| 48471-32041 |
CV4#,SV4# |
1 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-39225 |
SV40,41,42 |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48520-39045 |
SV40,41,42 |
1 | ||
| 48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH | ||||
| 48609-32150 |
CV40,SV40,41,42 |
1 | ||
| 48609-32140 |
CV4#,SV4# |
1 | ||
| 48609-32150 |
CV40,SV40,41,42 |
1 | ||
| 48603D - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH) | ||||
| 90179-14015 |
CV4#,SV4# |
1 | ||
| 48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH | ||||
| 48609-32140 |
CV4#,SV4# |
1 | ||
| 48609-32150 |
CV40,SV40,41,42 |
1 | ||
| 48609-32150 |
CV40,SV40,41,42 |
1 | ||
| 48609E - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH) | ||||
| 90179-14015 |
CV4#,SV4# |
1 | ||
| 48667 - RETAINER, STRUT BAR | ||||
| 48667-32020 |
CV4#,SV4# |
4 | ||
| 48667 - RETAINER, STRUT BAR | ||||
| 48667-32020 |
CV4#,SV4# |
4 | ||
| 48681A - GASKET, FRONT SUSPENSION SUPPORT, RH | ||||
| 48681-32050 |
SV41,42 |
1 | ||
| 48681B - GASKET, FRONT SUSPENSION SUPPORT, LH | ||||
| 48682-32020 |
SV41,42 |
1 | ||
| 48684A - COVER, FRONT SUSPENSION SUPPORT DUST, RH | ||||
| 48684-32030 |
CV4#,SV4# |
1 | ||
| 48684B - COVER, FRONT SUSPENSION SUPPORT DUST, LH | ||||
| 48684-32030 |
CV4#,SV4# |
1 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-32260 |
CV4#,SV4# |
1 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-32090 |
CV4#,SV4# |
2 | ||
| 48824A - BRACKET, FRONT STABILIZER, NO.1 RH | ||||
| 48824-32040 |
CV4#,SV4# |
1 | ||
| 48826 - PROTECTOR, FRONT STABILIZER BAR | ||||
| 48826-32020 |
CV4#,SV4# |
1 | ||
| 48829A - BRACKET, FRONT STABILIZER, NO.1 LH | ||||
| 48824-32040 |
CV4#,SV4# |
1 | ||
| Common parts | ||||
| 48619-32010 | ||||
| 48619-32011 | ||||
| 90105-12221 | ||||
| 90119-08601 | ||||
| 90179-10095 | ||||
| 94184-01601 | ||||
| Linked diagrams | ||||
| 5305 | ||||
